DCS-2136L Quick Install Guide Wireless N Day/Night Camera with Color Night Vision 2 ENGLISH Package Contents Minimum Requirements Computer with: • PC with 1.3 GHz or above and at least 128 MB RAM • Windows® 8, Windows® 7, Vista® or XP (32-bit or 64-bit) • Mac OS® X 10.6 or higher Web Browser: • Internet Explorer® 7, Firefox 12, Safari 4, or Chrome 20 and above • Installed and enabled Java and ActiveX® controls Network Device and Service: • A router (D-Link Cloud Router is recommended) • An Internet connection • An e-mail account (Required to register mydlink service) CAT5 Ethernet Cable DCS-2136L Wireless N Day/Night Camera with Color Night Vision If any of the above items are missing, please contact your reseller. Power Adapter Stand/Mounting Bracket Quick Install Guide 3 ENGLISH If you wish to connect your camera to your router with a wireless connection, you can simply disconnect the Ethernet cable and move the camera to its intended location. Step 3 From any computer, open a web browser, go to http://www.mydlink.com and log in to your account. Click on the device name when the new device notification appears to add the camera to your account. Step 1 Connect the power cable and Ethernet cable to your cloud camera. Step 2 Connect the other end of the Ethernet cable to your D-Link Cloud Router and connect the camera’s power adapter to a power outlet. Setting up your Camera Using a D-Link Cloud Router (Zero Configuration) If you have a D-Link Cloud Router, you can take advantage of Zero Configuration Setup. This feature automatically configures your camera’s settings for you and adds it to your mydlink account automatically. If you do not have a D-Link Cloud router, refer to the next page to install and configure your camera. DCS-2136L 4 ENGLISH Using the Setup Wizard If you do not have a D-Link Cloud Router, you can simply use any Windows or Mac computer to go through the Setup Wizard, which will guide you through the installation process from connecting your hardware to configuring your camera and registering it with your mydlink account. Download the Setup Wizard from http://www.mydlink.com/download. Click your camera model and then under Wizard, click the link of the version (Windows or Mac) you want to download. Depending on your web browser, you may need to right-click the link and select Save link as. Windows Users - Extract (“unzip”) the files to a folder on your computer and then double-click the autorun.exe file. Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard file and launch the application. After about 20-30 seconds, the Setup Wizard will open. Follow the on-screen instructions. 5 ENGLISH Getting Started with mydlink mydlink is a web-based service which allows you to view and control your mydlink-enabled devices through any computer connected to the Internet. If you have cameras linked to your mydlink account, you will be able to see their live views using the mydlink website. Follow the instructions below to access your mydlink account. • Open a web browser on any computer connected to the Internet. • Type http://www.mydlink.com in the address bar and press Enter. • Sign in using your mydlink account. • From the home screen, you will be able to view all devices which have been linked to your mydlink account. • Ensure that your browser supports both Java and ActiveX, and that these features have been installed and enabled. • Windows does not have Java installed by default. You can download the latest version from http://www.java.com. • In Mac OS X 10.7.x, Java applets are disabled by default. To enable Java applets, click the Finder > Applications > Utilities > Java Preferences and check the Enable applet plug-in and Web Start applications option. • The ActiveX® controls in IE will install automatically if needed. We suggest that you make sure that you have enabled the related options in Tools > Internet Options > Security > Custom Level. 6 ENGLISH Mount the Camera 1. Place the mounting base where you want to position the camera and use a pencil to mark the holes. 4. Place the base cover on the base and screw the camera stem clockwise into the mounting base. 2. Depending on the material of the wall or ceiling, use proper tools to drill two holes or screws where you marked. If the wall is made out of concrete, drill the holes first, insert the plastic anchors and then the screws. 3. Place the mounting base over the screw that is mounted on the wall. Make sure to fit the screw-heads over the big holes and slide it downward to lock firmly. Lightly pull the base forward to make sure that it is locked. Please refer to the steps below to assist you with mounting the camera. The space between the camera and the screwheads should be 3mm. We suggest that you configure the camera before mounting. 1 2 3 4 7 ENGLISH Download mydlink Lite/mydlink + Apps 5. Adjust the angle of the camera as desired, then tighten the collar on the camera stem to lock it in place. 5 mydlink Lite App (Free) Search for “mydlink lite” to download and install the app on your smartphone or tablet when connected to the Internet. You can also find the app by scanning the QR code below with a QR code scan app. mydlink+ App (Paid - Tablet Only) Search for the word “mydlink+” to download and install the app on your tablet when connected to the Internet. You can also find the app by scanning the QR code below with a QR code scan app. System Requirements: iOS version 4.3 or above. Android version 2.1 or above. System Requirements: iOS version 4.3 or above. Android version 2.1 or above. 8 ENGLISH Technical Support This guide is only for the first time configuration. Please refer to the user manual to learn more or visit http://www.mydlink.com for more information. Also feel free to contact us. U.S. and Canadian customers can contact D-Link Technical Support through our website. http://support.dlink.com USA http://support.dlink.ca Canada Version 1.0 April 9, 2013 RMN0101032 Copyright ©2013 All rights re…

Text truncated - open the document above for the full version.

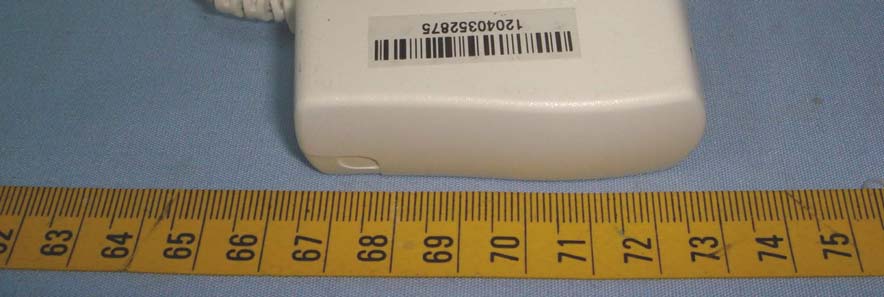

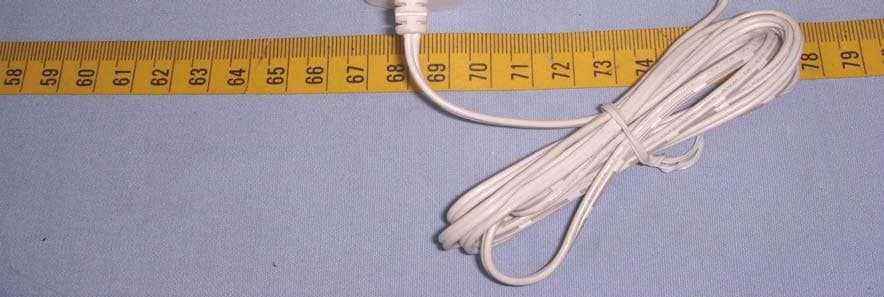

Report No: T130730J01 Page 1 / 8 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130730J01 Page 2 Rev.00 Report No: T130730J01 Page 3 Rev.00 Report No: T130730J01 Page 4 Rev.00 AMS1-0501200FU Report No: T130730J01 Page 5 Rev.00

DCS-2136L (LC-7465H) device label 33.1 x 25.6mm For US / CA For WW S/N: QEXXXXXXXXXXX DCS-2136L FCC ID: KA2CS2136LA1 IC: 4216A-CS2136LA1 Model: DCS-2136LA1 MAC: XXXXXXXXXXXXX mydlink: XXXXXXXX P/N: XXXXXXXXXXXXXXX MADE IN TAIWAN (NTSC) H/W Ver.:XX F/W Ver.:X.XX MADE IN TAIWAN (XXXX) Model No.: DCS-2136L P/N: XXXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX

Report No: T130730J01 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130730J01 Page 7 Rev.00 Antenna Report No: T130730J01 Page 8 Rev.00

Compliance Certification Services Inc. Report No.: T130730J01 Date of Issue: November 01, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wirless N Day / Night Camera Color Night Vision Model Number DCS-2136L Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5250 ~ 5350MHz / 5470 ~ 5725MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5250 ~ 5350MHz / 5470 ~ 5725MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5250 ~ 5350MHz / 5470 ~ 5725MHz / 5725 ~ 5850MHz 802.11 ac: 5150 ~ 5250MHz / 5250 ~ 5350MHz / 5470 ~ 5725MHz / 5725 ~ 5850MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PCB Antenna Gain 2.4GHz 0.1 dBi (Numeric gain: 1.02) PCB Antenna Gain 5GHz4.7 dBi (Numeric gain: 2.95) Max. output power IEEE 802.11b Mode: 19.00 dBm (0.079 W) IEEE 802.11g Mode: 19.00 dBm (0.079 W) IEEE 802.11n HT 20 Mode: 19.00 dBm (0.079 W) IEEE 802.11n HT 40 Mode: 19.00 dBm (0.079 W) IEEE 802.11a Mode: 14.00 dBm (0.025 W) IEEE 802.11n HT20 Mode: 14.00 dBm (0.025 W) IEEE 802.11n HT40 Mode: 14.00 dBm (0.025 W) IEEE 802.11ac HT80 Mode: 12.00 dBm (0.016 W) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130730J01 Date of Issue: November 01, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130730J01 Date of Issue: November 01, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1 2412 0.079 1.02 20 0.0000 1 IEEE 802.11g mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1 2412 0.079 1.02 20 0.0000 1 IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1 2412 0.079 1.02 20 0.0000 1 IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1 2422 0.079 1.02 20 0.0000 1 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 15757850.0252.95200.00001 IEEE 802.11a HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 157 5785 0.025 2.95 20 0.0000 1 IEEE 802.11a HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 159 5795 0.025 2.95 20 0.0000 1 IEEE 802.11ac mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 155 5775 0.025 2.95 20 0.0000 1

Compliance Certification Services Inc. Report No.: T130730J01-RP2 FCC ID: KA2CS2136LA1 Date of Issue: September 17, 2013 Page 1 / 118 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless N Day/Night Camera with Color Night Vision Model: DCS-2136L Trade Name: D-Link Issued to D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130730J01-RP2 FCC ID: KA2CS2136LA1 Date of Issue: September 17, 2013 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 17, 2013 Initial Issue All Landy Huang Compliance Certification Services Inc. Report No.: T130730J01-RP2 FCC ID: KA2CS2136LA1 Date of Issue: September 17, 2013 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................28 7.3 AVERAGE POWER .......................................................................................................... 31 7.4 BAND EDGES MEASUREMENT ..................................................................................... 34 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 57 7.6 SPURIOUS EMISSIONS.................................................................................................. 71 7.7 POWERLINE CONDUCTED EMISSIONS ...................................................................... 111 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................114 9 APPENDIX II: PHOTOGRAPHS OF EUT.........................................................................118 Compliance Certification Services Inc. Report No.: T130730J01-RP2 FCC ID: KA2CS2136LA1 Date of Issue: September 17, 2013 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: Appro Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang District, New Taipei City, Taiwan, R.O.C. Equipment Under Test: Wireless N Day/Night Camera with Color Night Vision Trade Name: D-Link Model: DCS-2136L Date of Test: August 14 ~ September 10, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report N…
