KA2CS2230LA1Full HD Wireless Day/Night Network Camera

User Manual Full HD Wireless Day/Night Network Camera Version 1.00 | 11/10/2014 DCS-2230L 2D-Link DCS-2230L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information. Manual Revisions RevisionDateDescription 1.0November 10, 2014Version A1 with firmware version 1.00 Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2014 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Preface 3D-Link DCS-2230L User Manual Table of Contents Product Overview ..............................................................5 Package Contents .................................................................5 System Requirements .........................................................6 Introduction ............................................................................7 Features ....................................................................................8 Hardware Overview .............................................................9 Front View ............................................................................9 Rear View ...........................................................................10 Side View ............................................................................11 Installation .......................................................................12 Wireless Installation Considerations ............................12 Zero Configuration Setup ................................................13 Camera Setup Wizard ........................................................17 Windows Users ....................................................................17 Mac Users...............................................................................18 Manual Hardware Installation ........................................20 WPS - Push Button Setup .................................................21 Mount the Camera .............................................................22 mydlink ...........................................................................................23 Configuration ...................................................................24 Using the Configuration Interface ................................24 Live Video ..............................................................................25 Setup .......................................................................................27 Setup Wizard ....................................................................27 Network Setup .................................................................33 Wireless Setup ..................................................................36 Dynamic DNS ...................................................................37 Image Setup .....................................................................38 Audio and Video ..............................................................40 Preset ...................................................................................42 Motion Detection ...........................................................44 Time and Date ..................................................................45 Event Setup .......................................................................46 SD Card ...............................................................................55 Advanced .........................................................................56 Digital Input/Output ......................................................56 ICR and IR ...........................................................................57 HTTPS ..................................................................................58 Access List ..........................................................................59 SNMP ...................................................................................60 Maintenance ....................................................................61 Admin..................................................................................61 System ................................................................................62 Firmware Upgrade ..........................................................63 Status ................................................................................64 Device Info ........................................................................64 Logs .....................................................................................65 Help......................................................................................66 4D-Link DCS-2230L User Manual DI/DO Specifications .......................................................67 Technical Specifications ..................................................68 Safety Statements ...........................................................71 5D-Link DCS-2230L User Manual Section 1: Product Overview Product Overview Package Contents If any of the above items are missing, please contact your reseller.…

Text truncated - open the document above for the full version.

r /""' Date: September 10, 2014 Compliance Certification Services Certification Division 4 7173 Benicia Street Fremont, CA 94538, USA FCC ID: KA2CS2230LA1 IC : 42 16A-CS2230LA I To whom it may concern: D-Link No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114,Taiwan, R .O.C I, the undersigned, hereby authorize Mr. Miller Lee I Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Miller Lee I Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e .g . testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

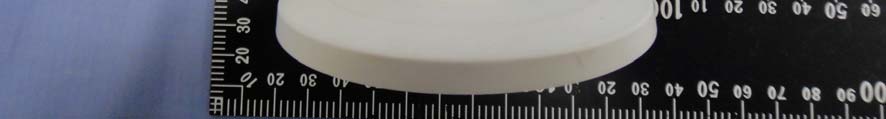

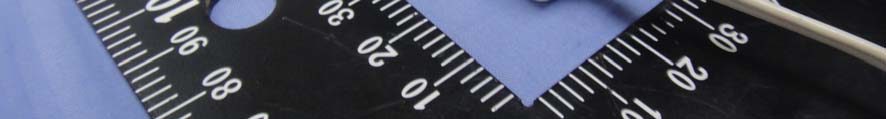

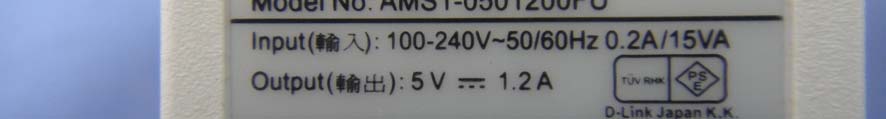

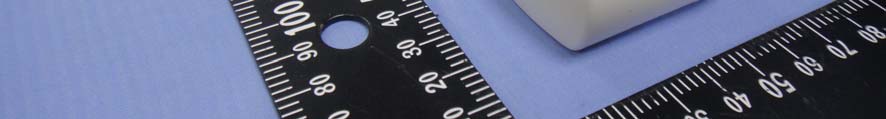

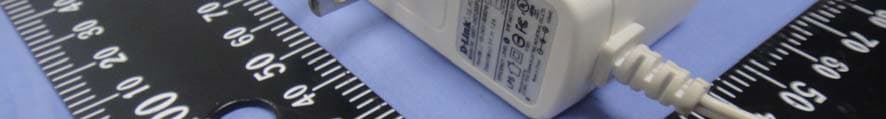

Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 1 / 8 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 5 Rev. 00

1 / 1 MADE IN TAIWAN (NTSC/PAL) P/N: XXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX CAN ICES-3(B)/NMB-3(B) DCS-2230L FCC ID: KA2CS2230LA1 IC: 4216A-CS2230LA1 Model: DCS-2230LA1

Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T141002J02 Date of Issue: November 19, 2014 A1 - 8 Rev. 00 Antenna Module

`Compliance Certification Services Inc. Report No.: T141002J02-MF Date of Issue: November 24, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Full HD Wireless Day/Night Network Camera Model DCS-2230L RF Module Realtek Model: RTL8188EUS Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :2.20 dBi (Numeric gain 1.66) Maximum Average output power IEEE 802.11b Mode: 16.88 dBm (48.753 mW) IEEE 802.11g Mode: 13.93 dBm (24.717 mW) IEEE 802.11n HT 20 Mod e 13.14 dBm (20.606 mW) IEEE 802.11n HT 40 Mod e 13.13 dBm (20.559 mW) Maximum Tune up Power IEEE 802.11b Mode: 18.00 dBm (63.096 mW) IEEE 802.11g Mode: 15.00 dBm (31.623 mW) IEEE 802.11n HT 20 Mod e 14.00 dBm (25.119 mW) IEEE 802.11n HT 40 Mod e 14.00 dBm (25.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A `Compliance Certification Services Inc. Report No.: T141002J02-MF Date of Issue: November 24, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/11/24 Initial Issue ALL Kelly Cheng `Compliance Certification Services Inc. Report No.: T141002J02-MF Date of Issue: November 24, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 `Compliance Certification Services Inc. Report No.: T141002J02-MF Date of Issue: November 24, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 11246263.0961.66200.02081 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 11246231.6231.66200.01041 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 11246225.1191.66200.00831 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 6243725.1191.66200.00831

Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 105 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Full HD Wireless Day/Night Network Camera Model: DCS-2230L Trade Name: D-Link Issued to D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: October 29, 2014 Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 29, 2014 Initial Issue ALL Kelly Cheng 01 31, 86 Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES. ...................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 28 7.3 BAND EDGES MEASUREMENT ................................................................................................ 30 7.4 PEAK POWER SPECTRAL DENSITY .................................................................................................... 56 7.5 SPURIOUS EMISSIONS ................................................................................................................. 70 7.6 RADIATED EMISSIONS .............................................................................................................. 83 7.7 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 100 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 103 Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Equipment Under Test: Full HD Wireless Day/Night Network Camera Trade Name: D-Link Model: DCS-2230L Date of Test: October 23 ~ 28, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Sectio…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 103 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 104 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: KA2CS2230LA1 Report No.: T141002J02-RP1 Page 105 Rev. 00 Powerline Conducted Emissions Setup Photos
