KA2CS2330LA1HD Wireless N Outdoor Cloud Camera

HD WIRELESS N OUTDOOR CLOUD CAMERA DCS-2330L QUICK INSTALLATION GUIDE КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ GUÍA DE INSTALACIÓN RÁPIDA GUIA DE INSTALAÇÃO RÁPIDA 快速安裝指南 PETUNJUK PEMASANGAN CEPAT DCS-2330L 1 ENGLISH CONTENTS OF PACKAGING HD WIRELESS N OUTDOOR CLOUD CAMERA DCS-2330L POWER ADAPTER ADAPTER If any of these items are missing from your packaging, contact your reseller. INSTALLATION CD INCLUDES SETUP WIZARD & TECHNICAL MANUALS CAT5 ETHERNET CABLE CONNECT THE CAMERA TO YOUR ROUTER DURING SETUP • Computer with Microsoft Windows ® 8/7/Vista/XP, or Mac with OS X 10.6 or higher • PC with 1.3GHz or above and at least 128MB RAM • Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled • Existing 10/100 Ethernet-based network or 802.11g/n wireless network SYSTEM REQUIREMENTS DCS-2330L 2 ENGLISH PRODUCT SETUP Step 1: Carefully remove the rubber seal on the back of the DCS-2330L, and use the included Ethernet cable to connect the DCS-2330L to your network. ZERO CONFIGURATION SETUP If you have a D-Link Cloud Router, you can take advantage of Zero Configuration Setup. This feature automatically configures your camera’s settings for you and adds it to your mydlink account. If you do not have a D-Link Cloud Router, you can use the Setup Wizard to install and configure your camera, as described in the following section. USING THE INSTALLATION WIZARD If you do not have a D-Link Cloud Router, you can simply use any Windows or Mac computer to go through the Installation Wizard from the CD, which will guide you through the installation process from connecting your hardware to configuring your camera. If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from http://www.mydlink.com/support • Windows Users: Insert the CD. Simply click Set up your Cloud Camera to go through the Setup Wizard. If the Setup Wizard program does not automatically start on your computer, go to Start > Run. In the run box type D:\autorun.exe (where D: represents the drive letter of your CD-ROM drive) and click OK. • Mac Users: Insert the CD. On the desktop, open your CD drive, and double-click on the SetupWizard file. Wait about 20-30 seconds, and follow the instructions on screen. Step 2: Attach the external power supply to your wall outlet or power strip. Power is confirmed when the green LED Power Indicator located below the lens is lit. Step 3: From any computer, open a web browser, go to http://www.mydlink.com and log in to your account. Click on the device name when the new device notification appears to add the camera to your account. If you wish to connect your camera to your router with a wireless connection, you can simply disconnect the Ethernet cable and move the camera to its intended location. DCS-2330L DCS-2330L 3 ENGLISH MOUNTING THE CAMERA Please refer to the steps below to assist you with mounting the camera. It is recommended that you configure the camera before mounting. 1 Step 2: Place the mounting plate over the holes that are in the wall. Make sure to align the mounting base holes with the holes in the wall. Use the supplied screws to attach the mounting base to the surface of the wall. Step 3: Place the mounting base cover on the mounting plate. Reattach the camera mount onto the mounting base by holding the camera mount and twisting the camera mount clockwise into the mounting base. Step 4: Adjust the angle of the camera as desired, then tighten the collar on the cameara stem to lock it in place. 2 4 3 Step 1: Using the mounting plate as a guide, mark where you want to position the camera. Depending on the material of the wall or ceiling, use proper tools to drill two holes where the holes are located on the mounting plate. If the wall is made out of concrete, drill the holes first, then insert the plastic anchors to support the screws. DCS-2330L 4 ENGLISH mydlink PORTAL After registering your DCS-2330L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to the following: Step 1: Open Internet Explorer and go to http://www.mydlink.com, then sign into mydlink. Step 2: Select your camera from the device list, and your camera’s Live View will appear. DCS-2330L 5 ENGLISH TECHNICAL SUPPORT Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-832-2856000 Toll Free 1800-233-0000 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] South Africa and Sub Sahara Region: Tel: +27 12 661 2025 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time Web: http://www.d-link.co.za E-mail: [email protected] Saudi Arabia (KSA): Tel: +966 01 217 0008 Fax: +966 01 217 0009 Saturday to Wednesday 9.30AM to 6.30PM Thursdays 9.30AM to 2.00 PM E-mail: [email protected] D-Link Middle East - Dubai, U.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] Egypt 1, Makram Ebeid Street - City Lights Building Nasrcity - Cairo, Egypt Floor 6, office C2 Tel.: +2 02 26718375 - +2 02 26717280 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Kingdom of Saudi Arabia Office # 84 , Al Khaleej Bu…

Text truncated - open the document above for the full version.

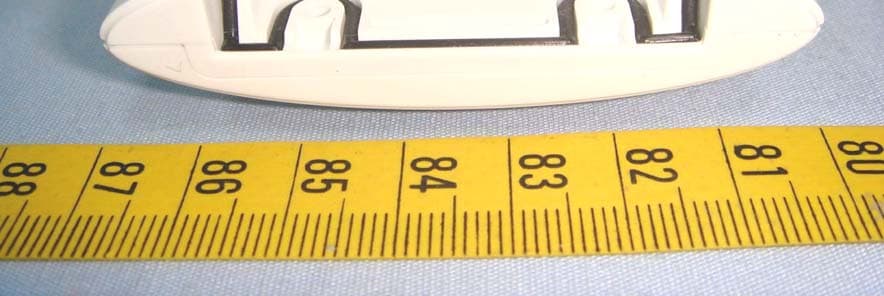

Report No: T131206J02 Page 1 / 11 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T131206J02 Page 2 Rev.00 Report No: T131206J02 Page 3 Rev.00 Report No: T131206J02 Page 4 Rev.00 Report No: T131206J02 Page 5 Rev.00 Report No: T131206J02 Page 6 Rev.00 AMS1-0501200FU

For WW Figure 1. 31*18mm For US / CA Figure 1. 31*18mm Figure 2. 43*13mm MADE IN TAIWAN (xxxx) Model No.: DCS-2330L P/N: XXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX MADE IN TAIWAN (NTSC) DCS-2330L P/N: XXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX H/W Ver.:XX F/W Ver.:X.XX FCC ID: KA2CS2330LA1 IC: 4216A-CS2330LA1 Model: DCS-2330LA1 CAN ICES-3(B)/NMB-3(B)

Report No: T131206J02 Page 7 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T131206J02 Page 8 Rev.00 Report No: T131206J02 Page 9 Rev.00 Report No: T131206J02 Page 10 Rev.00 Report No: T131206J02 Page 11 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T131206J02-MF Date of Issue: December 27, 2013 Page 1 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HD Wireless N Outdoor Cloud Camera Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dipole Antenna / Gain: 2.7 dBi(Numeric gain: 1.86) Max. output power IEEE 802.11b 18.00 dBm(63.096 mW) IEEE 802.11g 15.00 dBm(31.623 mW) IEEE 802.11n HT20 14.00 dBm(25.119 mW) IEEE 802.11n HT40 14.00 dBm(25.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131206J02-MF Date of Issue: December 27, 2013 Page 2 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131206J02-MF Date of Issue: December 27, 2013 Page 3 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0961.86200.02341 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241231.6231.86200.01171 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241225.1191.86200.00931 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 3242225.1191.86200.00931

Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 1 / 94 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Wireless N Outdoor Cloud Camera Model: DCS-2330L Trade Name: D-Link Issued to D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 26, 2013 Initial Issue All Landy Huang Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .......................................................................................................... 24 7.4 BAND EDGES MEASUREMENT ..................................................................................... 26 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 50 7.6 SPURIOUS EMISSIONS.................................................................................................. 58 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 83 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 88 9 APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................... 94 Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: HD Wireless N Outdoor Cloud Camera Trade Name: D-Link Model: DCS-2330L Date of Test: December 17 ~ 23, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: Decemb…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 88 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz LAN Mode Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 89 Rev.00 Wifi Mode Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 90 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 91 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 92 Rev.00 Powerline Conducted Emissions Setup Photos LAN Mode Compliance Certification Services Inc. Report No.: T131206J02-RP FCC ID: KA2CS2330LA1 Date of Issue: December 26, 2013 Page 93 Rev.00 Wifi Mode
