DCS-2630L 2 ENGLISH CONTENTS OF PACKAGING Full HD ulTrA-WIDE VIEW WI-FI CAmErA DCS-2630L mOuNTING KIT POWEr ADAPTEr If any of these items are missing from your packaging, contact your reseller. QuICK INSTAll CArD DCS-2630L 3 ENGLISH SYSTEm r EQuIrEmENTS • 802.11ac/n/g router (a D-Link Cloud Router is recommended) • A broadband Internet connection • iPhone, iPad, Android, or Windows smartphone or tablet (please refer to the mobile app's store page to check whether your device is compatible) Please follow the instructions below to set up your mydlink camera. Congratulations, your DCS-2630L is now ready to use! Be sure to check the mydlink.com website periodically for the latest firmware updates to keep your product secure and up to date with the latest features. Note: If you experience issues registering this camera with your mydlink account, or if you purchased an open box or resold unit, perform a hard reset by pressing and holding the reset button on the device for 10 seconds while the device is powered on. If you are returning the device to the place of purchase, please perform the hard reset procedure to clear the device of any personal data. Step 1: On your mobile device, download mydlink Lite by searching for mydlink Lite in the iTunes App Store, Google Play, or the Windows Store. Step 2: Launch the mydlink Lite app and create a new account or sign in to your existing account. When you are asked to scan a QR code, use the code on the Quick Install Card in your package, or on the label attached to your device. PrODuCT SETuP SETTING UP YOUR CAMERA WITH MYDLINK LITE DCS-2630L 4 ENGLISH Step 2: Press the WPS button on your Cloud Router within 120 seconds. The DCS-2630L will automatically create a wireless connection to your router and automatically reboot. Step 3: From any computer, open a web browser, go to http://www.mydlink.com and log in to your account. Click on the device name when the new device notification appears to add the camera to your account. DCS-2630L If you have a D-Link Cloud Router, you can take advantage of Zero Configuration Setup. This feature configures your camera’s settings for you and adds it to your mydlink account automatically. PrODuCT SETuP ZERO CONFIGURATION SETUP Step 1: Press the WPS button on the camera for 3 seconds. The WPS LED will start blinking. Step 1: Open Internet Explorer and go to www.mydlink.com, then sign into mydlink. Step 2: Select your camera from the device list, and your camera’s Live View will appear. After registering your DCS-2630L camera with a mydlink account in the mydlink Lite mobile app, you will be able to remotely access your camera from the mydlink website. mydlink POrTAl DCS-2630L 5 ENGLISH mOuNTING THE CAmErA Please refer to the steps below to assist you with mounting the camera. It is recommended that you configure the camera before mounting. 1 Step 2: Place the camera base where you want to position the camera and use a pencil to mark the holes. Step 3: Depending on the material of the wall or ceiling, use proper tools to drill four holes 25mm deep with a 6mm drill bit where you marked. If the wall is made out of concrete, drill the holes first, then insert the plastic anchors to support the screws. Step 4: Place the camera base over the holes that are in the wall. Make sure to align the camera base holes with the holes in the wall. Use the supplied screws to attach the camera to the surface of the wall. 2 6 Step 1: Rotate the camera base cover counterclockwise, then lift it to expose the mounting holes. Step 5: Reattach the base cover and turn it clockwise to lock it in place. Step 6: Adjust the angle of the camera as desired. 5 4 3 DCS-2630L 6 ENGLISH TrOuBlESHOOTING SETUP AND CONFIGURATION PROBLEMS 1. WHY IS THE CAmErA VIEW HAZY Or BrIGHT WHEN uSING NIGHT VISION mODE? The IR night vision lights on the camera may be reflecting off of a nearby surface or window. Try repositioning your camera to avoid reflections or glare. 2. WHAT CAN I DO IF I FOrGET mY CAmErA PASSWOrD? If you forget your camera password, you will need to perform a hard reset of your camera. This process will change all your settings back to the factory defaults. To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 10 seconds while your camera is plugged in. DCS-2630L 7 ENGLISH TECHNICAL SUPPORT Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-832-2856000 Toll Free 1800-233-0000 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] South Africa and Sub Sahara region: Tel: +27 12 661 2025 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time Web: http://www.d-link.co.za E-mail: [email protected] D-link middle East - Dubai, u.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] Egypt 1, Makram Ebeid Street - City Light Building - floor 5 Nasrcity - Cairo, Egypt Tel.: +2 02 23521593 - +2 02 23520852 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Kingdom of Saudi Arabia Office # 84 , Al Khaleej Building ( Mujamathu Al-Khaleej) Opp. King Fahd Road, Olaya Riyadh - Saudi Arabia Tel: +966 1121 70008 Technical Support: +966 1121 70009 General Inquiries: info.sa@ dlinkmea.com Tech Support: support.sa@ dlinkmea…

Text truncated - open the document above for the full version.

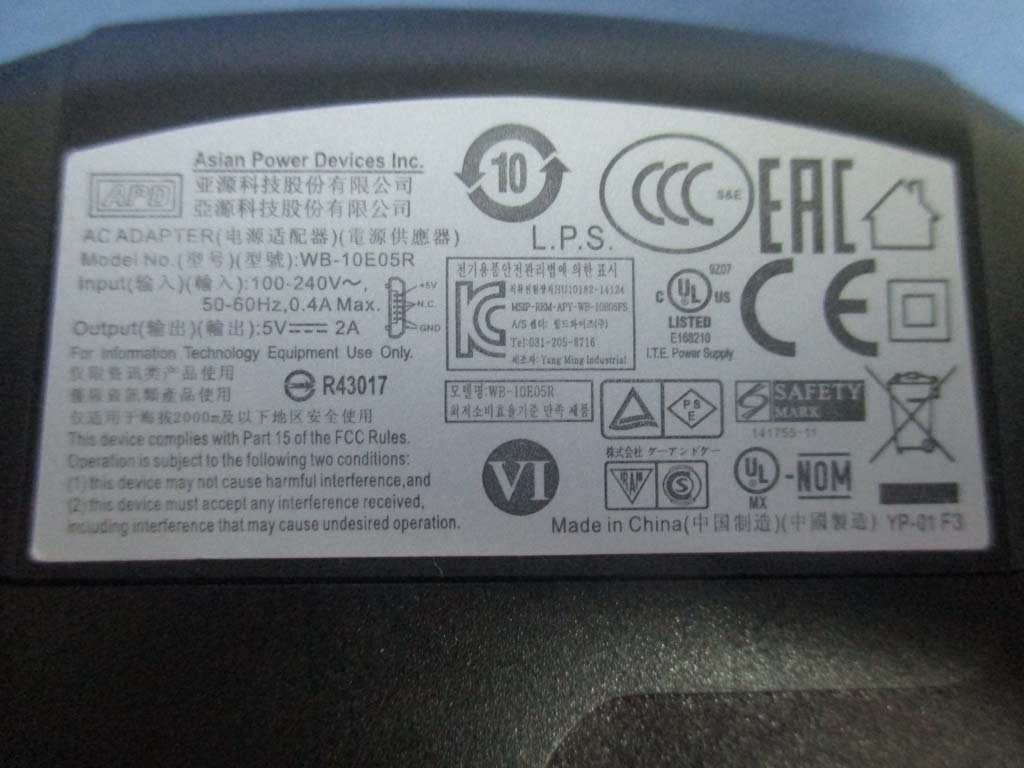

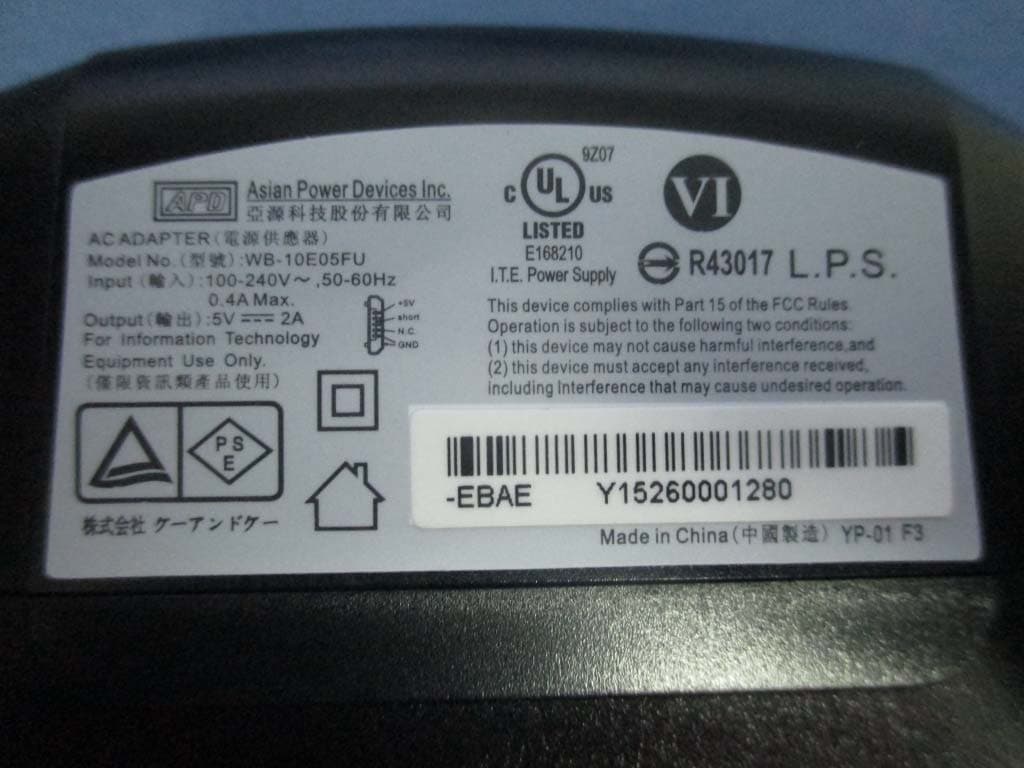

Report No： 1570078R-RFUSP26V00 Page: 207 of 224 Attachement EUT Photograph (1) EUT Photo (Power Adapter: WB-10E05R)(White) (2) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 208 of 224 (3) EUT Photo (Power Adapter: WB-10E05R)(Black) (4) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 209 of 224 (5) EUT Photo (6) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 210 of 224 (7) EUT Photo (Power Adapter: WB-10E05FU)(White) (8) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 211 of 224 (9) EUT Photo (Power Adapter: WB-10E05FU)(Black) (10) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 212 of 224 (11) EUT Photo (12) EUT Photo

FCC ID.: KA2CS2630LA1 FCC ID AND DoC Label

Colors: BackgroundWhite Black 進空白料 for empty label 廠內碳打參考 for additional printing Date: 2015/07/01 Date: 2015/07/01 Date: 2015/07/01 尺寸圖 outline dimension Title: DCS-2630L Device Label Modified drawing Drawn by: Ario Hsieh Checked by: Dido Wang Approved by: Dido Wang Coated: 25μ霧面特多龍(PET) Matte Clear Polyester Film Unit: mm Cutting and Printing Tolerance: ±0.3mm Contents Tolerance: ±0.25mm Adhesive: 壓克力膠 Acrylic Scale: 1:1 Part No.: 970000011135G Rev.: 1.0 Task ID: 5775 Original drawing Material: 80gs/㎡銅板紙 Art Paper 36 4R *3mm 52 Font: Arial / Size: 5pt C=3 HW Ver.: A1 FW Ver.: 1.00 FCC ID: KA2CS2630LA1 IC: 4216A-CS2630LA1 DCS-2630L CAN ICES-3(B)/NMB-3(B) for indoor use only M/N: DCS-2630LA1 Made In China 8mm6mm 3.6mm 5.5mm 10mm 10mm Wi-Fi Name(SSID): DCS-2630L-5435 Wi-Fi password: XXXXXXXX MAC ID: B0C5541B5435 mydlink No.: 28631761 P/N: BCS2630LLNAN.A1 S/N:RZT71000001 Colors: BackgroundWhite Black 進空白料 for empty label 廠內碳打參考 for additional printing Date: 2015/07/29 Date: 2015/07/29 Date: 2015/07/29 尺寸圖 outline dimension Title: DCS-2630LH Device Label Modified drawing Drawn by: Ario Hsieh Checked by: Dido Wang Approved by: Dido Wang Coated: 25μ霧面特多龍(PET) Matte Clear Polyester Film Unit: mm Cutting and Printing Tolerance: ±0.3mm Contents Tolerance: ±0.25mm Adhesive: 壓克力膠 Acrylic Scale: 1:1 Part No.: 970000011135G Rev.: 1.0 Task ID: 5775 Original drawing Material: 80gs/㎡銅板紙 Art Paper 36 4R *3mm 52 Font: Arial / Size: 5pt C=3 DCS-2630LH Made In China 8mm6mm 3.6mm 5.5mm 10mm 10mm P/N: BCS2630LLNAN.A1 S/N:RZT71000001 HW Ver.: A1 FW Ver.: 1.00 FCC ID: KA2CS2630LA1 IIC: 4216A-CS2630LA1 CAN ICES-3(B)/NMB-3(B) for indoor use only M/N: DCS-2630LHA1 Wi-Fi Name(SSID): DCS-2630L-5435 Wi-Fi password: XXXXXXXX MAC ID: B0C5541B5435 mydlink No.: 28631761

Report No： 1570078R-RFUSP26V00 Page: 213 of 224 (13) EUT Photo (14) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 214 of 224 (15) EUT Photo (16) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 215 of 224 (17) EUT Photo (18) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 216 of 224 (19) EUT Photo (20) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 217 of 224 (21) EUT Photo (22) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 218 of 224 (23) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 219 of 224 (24) EUT Photo (MB (2.4G)) Report No： 1570078R-RFUSP26V00 Page: 220 of 224 (25) EUT Photo (MB (5G)) Report No： 1570078R-RFUSP26V00 Page: 221 of 224 (26) EUT Photo (27) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 222 of 224 (28) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 223 of 224 (29) EUT Photo (Antenna (2.4G)) (30) EUT Photo Report No： 1570078R-RFUSP26V00 Page: 224 of 224 (31) EUT Photo (Antenna (5G)) (32) EUT Photo

Report No. 1570078R-RF-US-Exp Page: 1 of 12 RF Exposure Evaluation Declaration Product Name ： Full HD Ultra-Wide View Wi-Fi Camera Model No. ： DCS-2630L, DCS-2630LH FCC ID. ： KA2CS2630LA1 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Tested ：2015/07/09~2015/07/23 Date of Declaration : 2015/07/27 Report No. : 1570078R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1570078R-RF-US-Exp Page: 2 of 12 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1570078R-RF-US-Exp Page: 3 of 12 1.3. Test Result of RF Exposure Evaluation Product Full HD Ultra-Wide View Wi-Fi Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 3.91dBi or 2.46 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b (ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 22.5424 0.01103 6 2437 15.7036 0.00769 11 2462 56.4937 0.02765 IEEE 802.11g (ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 43.4510 0.02126 6 2437 42.6580 0.02088 11 2462 43.3511 0.02122 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1570078R-RF-US-Exp Page: 4 of 12 Product Full HD Ultra-Wide View Wi-Fi Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 3.91dBi or 2.46 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 39.5367 0.01935 6 2437 41.6869 0.02040 11 2462 41.2098 0.02017 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . IEEE 802.11n (40MHz) ANT 0 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 23.3884 0.01145 6 2437 33.0370 0.01617 9 2452 28.8403 0.01411 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1570078R-RF-US-Exp Page: 5 of 12 Product Full HD Ultra-Wide View Wi-Fi Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 4.5dBi or 2.82 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a (ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 5.9020 0.00331 44 5220 6.1235 0.00344 48 5240 6.9024 0.00387 IEEE 802.11n(20MHz) (ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 5.7016 0.00320 44 5220 6.1518 0.00345 48 5240 6.0534 0.00340 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1570078R-RF-US-Exp Page: 6 of 12 Product Full HD Ultra-Wide View Wi-Fi Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 4.5dBi or 2.82 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n(40MHz)(ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 5.7544 0.00323 46 5230 6.2951 0.00353 IEEE 802.11ac(80MHz)(ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 42 5210 6.4863 0.00364 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1570078R-RF-US-Exp Page: 7 of 12 Product Full HD Ultra-Wide View Wi-Fi Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 4.5dBi or 2.82 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a (ANT 0) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20…

Text truncated - open the document above for the full version.

Report No：1570078R-RFUSP63V00 Page: 1 of 592 FCC Test Report Product Name ： Full HD Ultra-Wide View Wi-Fi Camera Model No. ： DCS-2630L, DCS-2630LH FCC ID. ： KA2CS2630LA1 Applicant： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Tested ：2015/07/09~2015/07/23 Issued Date ：2015/07/27 Report No. ：1570078R-RFUSP63V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：1570078R-RFUSP63V00 Page: 2 of 592 Test Report Certification Issued Date : 2015/07/27 Report No. : 1570078R-RFUSP63V00 Product Name ： Full HD Ultra-Wide View Wi-Fi Camera Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Model No. ： DCS-2630L, DCS-2630LH FCC ID. ： KA2CS2630LA1 EUT Voltage ： AC 100-240V, 50-60Hz Trade Name ： D-Link Applicable Standard ： FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2014 ANSI C63.10: 2013 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Assistant ) Reviewed By : ( Ken Huang / Engineer ) Approved By : ( Roy Wang / Director ) Report No：1570078R-RFUSP63V00 Page: 3 of 592 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/english/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/index_en.aspx If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：1570078R-RFUSP63V00 Page: 4 of 592 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT Description .......................................................................................................................... 6 1.2. Test Mode.................................................................................................................................. 12 1.3. Tested System Details............................................................................................................... 15 1.4. Configuration of tested System ................................................................................................. 15 1.5. EUT Exercise Software ............................................................................................................. 16 1.6. Test Facility ............................................................................................................................... 17 2. Conducted Emission .................................................................................................................. 18 2.1. Test Equipment ......................................................................................................................... 18 2.2. Test Setup ................................................................................................................................. 18 2.3. Limits ......................................................................................................................................... 19 2.4. Test Procedure .......................................................................................................................... 19 2.5. Test Specification ...................................................................................................................... 19 2.6. Uncertainty ................................................................................................................................ 19 2.7. Test Result ................................................................................................................................ 20 2.8. Test Photo ................................................................................................................................. 28 3. 99% & 26dB & DTS Bandwidth .................................................................................................. 29 3.1. Test Equipment ......................................................................................................................... 29 3.2. Test Setup ................................................................................................................................. 29 3.3. Limits ......................................................................................................................................... 29 3.4. Test Procedure .......................................................................................................................... 29 3.5. Uncertainty ................................................................................................................................ 29 3.6. Test Result ...................................................…

Text truncated - open the document above for the full version.

Report No：1570078R-RFUSP63V00 Page: 172 of 592 6. Radiated Emission 6.1. Test Equipment The following test equipments are used during the radiated emission test: Radiated Emission / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Bilog Antenna SCHAFFNER CBL6112B 2895(CB1) 2015/08/14 Double Ridged Guide Horn Antenna Schwarzbeck BBHA 9120 D743 2016/01/26 Pre-Amplifier EMCI EMC0031835 980233 2016/01/18 Signal & Spectrum Analyzer R&S FSV40 101049 2015/10/30 Horn Antenna Schwarzbeck BBHA 9170 203 2015/09/25 Pre-Amplifier QuieTek AP-025C CHM-0706049 2016/01/18 Spectrum Analyzer Agilent E4440A MY46187335 2016/01/07 k Type Cable Huber Suhner Sucoflex 102 25623/2 2016/01/26 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. Report No：1570078R-RFUSP63V00 Page: 173 of 592 6.2. Test Setup Under 1GHz Test Setup: Above 1GHz Test Setup: Report No：1570078R-RFUSP63V00 Page: 174 of 592 6.3. Limits  General Radiated Emission Limits The provisions of Section 15.205 of this part apply to intentional radiators operating under this section. Radiated emissions which fall in the restricted bands, as defined in Section 15.205, must also comply with the radiated emission limits specified in Section 15.209: FCC Part 15 Subpart C Paragraph 15.209 Limits Frequency MHz uV/m @3m dBuV/m@3m 30-88 100 40 88-216 150 43.5 216-960 200 46 Above 960 500 54 Remark: 1. RF Voltage (dBuV) = 20 log RF Voltage (uV) 2. In the Above Table, the tighter limit applies at the band edges. 3. Distance refers to the distance in meters between the measuring instrument antenna and the closed point of any part of the device or system.  Unwanted Emission out of the restricted bands Limits Remark: 1. For frequencies more than 10 MHz above or below the band edges. 2. For frequency range from the band edges to 10 MHz above or below the band edges. 3. uV/m = 3 301000000EIRP , RF Voltage (dBuV/m) = 20 log RF Voltage (uV/m) FCC Part 15 Subpart C Paragraph 15.407(b) Limits Frequency (MHz) EIRP Limit (dBm) Equivalent Field Strength (dBuV/m@3m) 5150~5250 -27 68.3 5250~5350 -27 68.3 5470~5725 -27 68.3 -27 (Note1) 68.3 5725~5850 -17 (Note2) 78.3 Report No：1570078R-RFUSP63V00 Page: 175 of 592 6.4. Test Procedure The EUT and its simulators are placed on a turn table which is 0.8 and 1.5 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.10 on radiated measurement. The additional latch filter below 1GHz was used to measure the level of harmonics radiated emission during field dtrength of harmonics measurement. The bandwidth below 1GHz setting on the field strength meter is 120 KHz, above 1GHz are 1 MHz. The frequency range from 30MHz to 10th harminics is checked. 6.5. Uncertainty The measurement uncertainty 30MHz～1GHz as ±3.43dB 1GHz～26.5Ghz as ±3.65dB Report No：1570078R-RFUSP63V00 Page: 176 of 592 6.6. Test Result 30MHz-1GHz Spurious Site : CB1 Time : 2015/07/14 - 15:50 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-2_1011 - HORIZONTAL Power : AC 120V/60Hz EUT : Full HD Ultra-Wide View Wi-Fi Camera Note : 802.11a_5220MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 141.009 10.082 24.91534.997-8.503 43.500 QUASIPEAK 2 218.086 9.510 22.77232.282-13.718 46.000 QUASIPEAK 3 332.489 13.532 18.66232.195-13.805 46.000 QUASIPEAK 4 574.868 17.408 16.16833.576-12.424 46.000 QUASIPEAK 5 807.551 19.234 14.45233.685-12.315 46.000 QUASIPEAK 6 958.311 19.948 7.76727.715-18.285 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No：1570078R-RFUSP63V00 Page: 177 of 592 Site : CB1 Time : 2015/07/14 - 15:55 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-2_1011 - VERTICAL Power : AC 120V/60Hz EUT : Full HD Ultra-Wide View Wi-Fi Camera Note : 802.11a_5220MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 65.872 5.612 31.19436.806-3.194 40.000 QUASIPEAK 2 249.595 11.849 15.57027.419-18.581 46.000 QUASIPEAK 3 393.083 14.988 17.49232.480-13.520 46.000 QUASIPEAK 4 574.868 17.408 15.21232.620-13.380 46.000 QUASIPEAK 5 718.356 18.217 10.57528.792-17.208 46.000 QUASIPEAK 6 958.311 19.948 13.49333.441-12.559 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No：1570078R-RFUSP63V00 Page: 178 of 592 Site : CB1 Time : 2015/07/14 - 16:00 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-2_1011 - HORIZONTAL Power : AC 120V/60Hz EUT : Full HD Ultra-Wide View Wi-Fi Camera Note : 802.11n20_5220MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 106.592 10.165 25.44235.606-7.894 43.500 QUASIPEAK 2 249.595 11.849 16.72528.574-17.426 46.000 QUASIPEAK 3 327.641 13.416 17.59231.008-14.992 46.000 QUASIPEAK 4 574.868 17.408 17.64335.051-10.949 46.000 QUASIPEAK 5 811.914 19.244 11.20530.450-15.550 46.000 QUASIPEAK 6 958.311 19.948 8.76428.712-17.288 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No：1570078R-RFUSP63V00 Page: 179 of 592 Site : CB1 Time : 2015/07/14 - 16:05 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-2_1011 - VERTI…

Text truncated - open the document above for the full version.

Report No.: 1570078R-RFUS-DFS Page: 1 of 42 Dynamic Frequency Selection (DFS) Test Report Product Name : Full HD Ultra-Wide View Wi-Fi Camera Model No : DCS-2630L, DCS-2630LH FCC ID : KA2CS2630LA1 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C Tested : 2015/07/09~2015/07/23 Issued Date : 2015/07/27 Report No. : 1570078R-RFUS-DFS Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1570078R-RFUS-DFS Page: 2 of 42 DFS Test Report Issued Date: 2015/07/27 Report No.: 1570078R-RFUS-DFS Product Name : Full HD Ultra-Wide View Wi-Fi Camera Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C Model No. : DCS-2630L, DCS-2630LH FCC ID. : KA2CS2630LA1 EUT Test Voltage : AC 100-240V, 50-60Hz Trade Name : D-Link Applicable Standard : FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2014 KDB 905462 D02 UNII DFS Compliance Procedures KDB 905462 D03 UNII Clients Without Radar Detection FCC 14-30 Test Result : Complied Documented By : ( Carol Tsai / Engineering Adm. Assistant ) Tested By : ( Jubo Shen / Senior Engineer ) Approved By : ( Roy Wang / Director ) Report No.: 1570078R-RFUS-DFS Page: 3 of 42 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. EUT Description ......................................................................................................................... 4 1.2. Standard Requirement ............................................................................................................... 6 1.3. UNII Device Description ............................................................................................................. 6 1.4. Test Equipment .......................................................................................................................... 7 1.5. Test Setup .................................................................................................................................. 8 1.6. DFS Requirements Prior to Use of a Channel ................................................................…
