KA2CS5020LA1Wireless N Day & Night Pan/Tilt Cloud Camera

User Manual Wireless N Day & Night Pan/Tilt Cloud Camera DCS-5020L D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information. Manual Revision Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2012-2013 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior express written permission from D-Link Corporation. RevisionDateDescription 1.0014 March, 2013Initial release Manual Overview 3D-Link DCS-5020L User Manual Table of Contents Manual Overview...............................................................2 Manual Revision ............................................................................2 Trademarks .....................................................................................2 Product Overview ..............................................................4 Package Contents .........................................................................4 System Requirements .................................................................4 Introduction ...................................................................................5 Features ............................................................................................6 Hardware Overview .....................................................................7 Front View ................................................................................7 Rear View .................................................................................8 Installation .........................................................................9 Zero Configuration Setup ........................................................10 Camera Setup Wizard ................................................................13 Windows Users ....................................................................13 Mac Users...............................................................................14 Manual Hardware Installation ................................................15 Wireless Installation Considerations ....................................16 WPS - Push Button Setup .........................................................17 mydlink ...........................................................................................18 Configuration ...................................................................19 Using the Web Configuration Interface ..............................19 Live Video ......................................................................................20 Setup ...............................................................................................21 Wizard .....................................................................................21 Internet Connection Setup Wizard ........................22 Network Setup ..............................................................24 Wireless Setup ......................................................................25 Extender Setup ....................................................................26 Dynamic DNS (DDNS) .......................................................27 Image Setup .........................................................................28 Video .......................................................................................29 Audio .......................................................................................30 Motion Detection ...............................................................31 Sound Detection .................................................................32 Mail ..........................................................................................33 FTP ............................................................................................35 Time and Date ......................................................................37 Day/Night Mode .................................................................38 Camera Control ...................................................................39 Maintenance ................................................................................40 Admin .....................................................................................40 System ....................................................................................41 Firmware Upgrade ..............................................................42 Status ..............................................................................................43 Device Info ............................................................................43 Active User ............................................................................44 Troubleshooting ..............................................................45 Technical Specifications ..................................................48 Table of Contents 4D-Link DCS-5020L User Manual Section 1 - Product Overview Package Contents • DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera • CAT5 Ethernet Cable • Power Adapter • Manual and Software on CD • Quick Install Guide • Mounting Bracket and Screws If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. System Requirements • Computer with Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher • PC with 1.3 GHz or above and at …

Text truncated - open the document above for the full version.

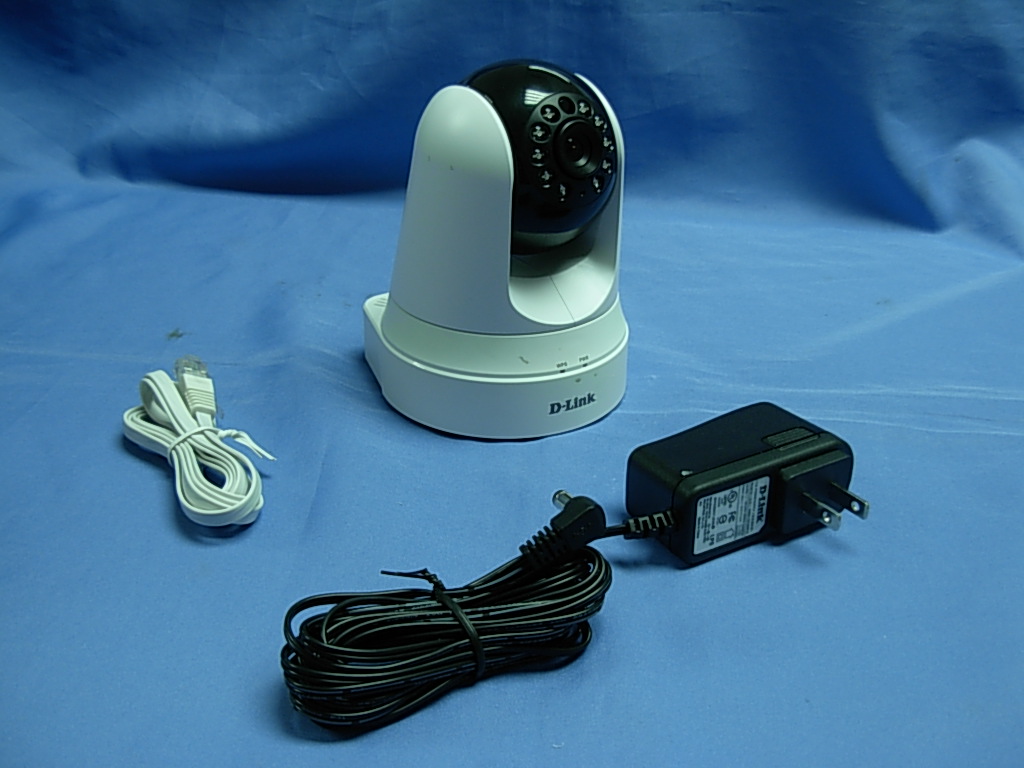

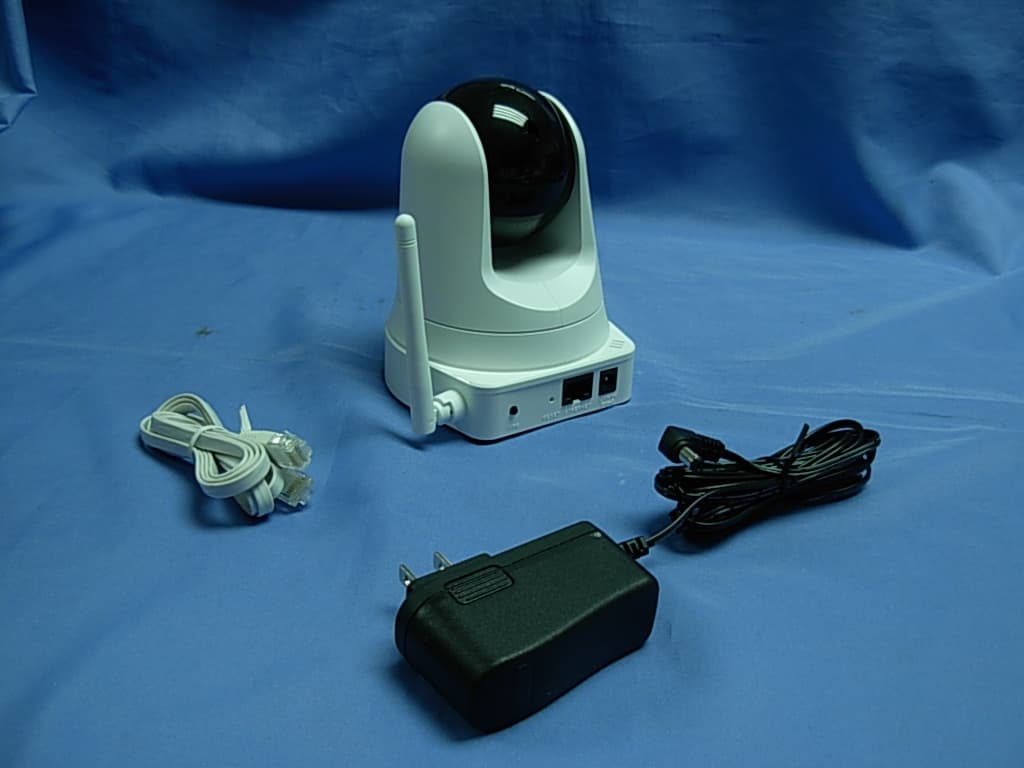

Report No： 133011R-RFUSP42V01 Page: 121 of 126 Attachement EUT Photograph (1) EUT Photo (M/N: DCS-5010L) (2) EUT Photo Report No： 133011R-RFUSP42V01 Page: 122 of 126 (3) EUT Photo (M/N: DCS-5020L) (4) EUT Photo

D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID.: KA2CS5020LA1 FCC ID AND DoC Label

Report No： 133011R-RFUSP42V01 Page: 123 of 126 (5) EUT Photo (6) EUT Photo Report No： 133011R-RFUSP42V01 Page: 124 of 126 (7) EUT Photo (8) EUT Photo Report No： 133011R-RFUSP42V01 Page: 125 of 126 (9) EUT Photo (10) EUT Photo Report No： 133011R-RFUSP42V01 Page: 126 of 126 (11) EUT Photo (MB) (12) EUT Photo (ANT)

Report No. 133011R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name ： Wireless N Day & Night Pan/Tilt Cloud Camera Model No. ： DCS-5010LA1, DCS-5020LA1 FCC ID. ： KA2CS5020LA1 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : 2013/02/26 Date of Declaration : 2013/03/13 Report No. : 133011R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 133011R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 133011R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Wireless N Day & Night Pan/Tilt Cloud Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 49.66 0.0156 6 2437 57.68 0.0181 11 2462 37.50 0.0118 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 32.14 0.0101 6 2437 29.38 0.0092 11 2462 26.30 0.0083 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 133011R-RF-US-Exp Page: 4 of 4 Product Wireless N Day & Night Pan/Tilt Cloud Camera Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 25.12 0.0079 6 2437 22.39 0.0070 11 2462 17.91 0.0057 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 133011R-RFUSP42V01 Page: 1 of 126 FCC Test Report Product Name ： Wireless N Day & Night Pan/Tilt Cloud Camera Model No. ： DCS-5010L, DCS-5020L FCC ID. ： KA2CS5020LA1 Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt：2013/02/26 Issued Date ：2013/03/13 Report No. ：133011R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 133011R-RFUSP42V01 Page: 2 of 126 Test Report Certification Issued Date : 2013/03/13 Report No. : 133011R-RFUSP42V01 Product Name ： Wireless N Day & Night Pan/Tilt Cloud Camera Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Manufacturer ： (1) ALPHA NETWORKS (DONGGUAN) CO., LTD. (2) Mirac Networks (Dongguan) Co., Ltd. Address ： (1) Xingang Road, Xin'an Area, Chang An, Dongguan City, Guangdong Province, China (2) Song Lin East Road, Zeng Tian Village, Xin An District, Chang An Town, Dong Guan City, Guang Dong Province, China Model No. ： DCS-5010L, DCS-5020L FCC ID. ： KA2CS5020LA1 EUT Test Voltage : AC 100-240V, 50-60Hz Trade Name ： D-Link Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Demi Chang / Engineering Adm. Specialist) Reviewed By : ( JuBo Shen / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 133011R-RFUSP42V01 Page: 3 of 126 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 133011R-RFUSP42V01 Page: 4 of 126 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 12 1.6. EUT Exercise Software ................................................................................................ 12 1.7. Test Facility................................................................................................................... 13 2. Conducted Emission .................................................................................................... 14 2.1. Test Equipment............................................................................................................. 14 2.2. Test Setup .................................................................................................................... 14 2.3. Limits ............................................................................................................................ 15 2.4. Test Procedure ............................................................................................................. 15 2.5. Test Specification.......................................................................................................... 15 2.6. Uncertainty ................................................................................................................... 15 2.7. Test Result.................................................................................................................... 16 2.8. Test Photo .................................................................................................................... 18 3. Peak Power Output ...................................................................................................... 19 3.1. Test Equipment............................................................................................................. 19 3.2. Test Setup .................................................................................................................... 19 3.3. Test procedures ............................................................................................................ 19 3.4. Limits ............................................................................................................................ 19 3.5. Test Specification..…

Text truncated - open the document above for the full version.

Report No： 133011R-RFUSP42V01 Page: 18 of 126 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 133011R-RFUSP42V01 Page: 62 of 126 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 133011R-RFUSP42V01 Page: 63 of 126 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
