KA2CS5222LB1HD Wireless N Pan/Tilt Network Camera

HD Wireless N Pan/Tilt Network Camera User Manual DCS-5222LB1 iD-Link DCS-5222LB1 User Manual Manual Overview D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2013 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation. RevisionDateDescription 1.011/311/2013DCS-5222LB1 Revision B1 with firmware version 1.00 Manual Overview iiD-Link DCS-5222LB1 User Manual Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 Front ..........................................................................................5 LEDs ...........................................................................................6 Back............................................................................................7 Left and Right Side ...............................................................8 Adjusting Camera Focus ............................................................9 Installation .......................................................................10 Zero Configuration Setup ........................................................11 Camera Setup Wizard ................................................................14 Wireless Installation Considerations ....................................17 WPS - Push Button Setup .........................................................18 mydlink .............................................................................19 Configuration ...................................................................21 Configuration Utility ..................................................................21 Live Video ......................................................................................22 Setup ...............................................................................................24 Setup Wizard ........................................................................24 Internet Connection Setup Wizard ..........................25 Motion Detection Setup Wizard ...............................29 Network ..................................................................................33 Wireless ..................................................................................36 Dynamic DNS .......................................................................37 Image Setup .........................................................................38 Audio and Video ..................................................................40 PTZ ...........................................................................................42 Motion Detection ...............................................................43 Sound Detection .................................................................44 Time and Date ......................................................................45 SD Management .................................................................55 Maintenance ................................................................................56 Admin .....................................................................................56 System ....................................................................................58 Firmware Upgrade ..............................................................59 Status ..............................................................................................60 Device Info ............................................................................60 Log ...........................................................................................61 Help .................................................................................................62 Configuring the DCS-5222LB1 with a Router ................63 Troubleshooting ..............................................................69 Networking Basics ...........................................................73 Check your IP address ...............................................................73 Statically Assign an IP Address ..............................................74 Table of Contents iiiD-Link DCS-5222LB1 User Manual Table of Contents Technical Specifications - I/O Terminal Applications ....75 Technical Specifications ..................................................76 1D-Link DCS-5222LB1 User Manual Section 1 - Product Overview Package Contents 1 Using a power supply with a different voltage rating than the one included with the DCS-5222LB1 will cause damage and void the warranty for this product. If any of the above items are missing from your package, please contact your retailer. DCS-5222LB1 Network Camera Camera Base and Mounting Kit CAT5 Ethernet Cable Product Overview Power Supply 1 CD-ROM 2D-Link DCS-5222LB1 User Manual Section 1 - Product Overview System Requirements Network Requir…

Text truncated - open the document above for the full version.

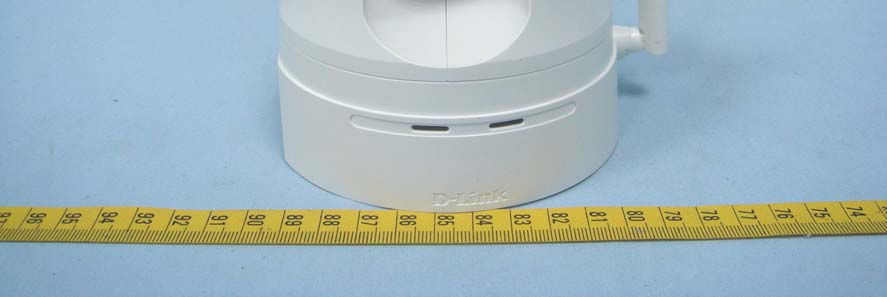

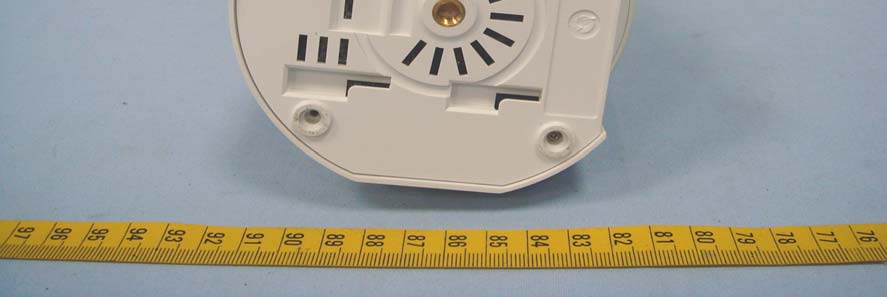

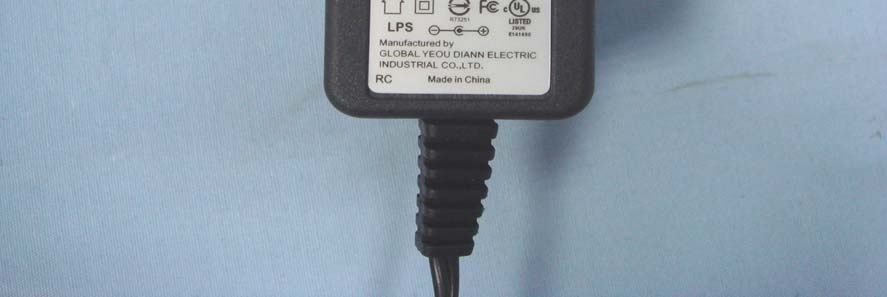

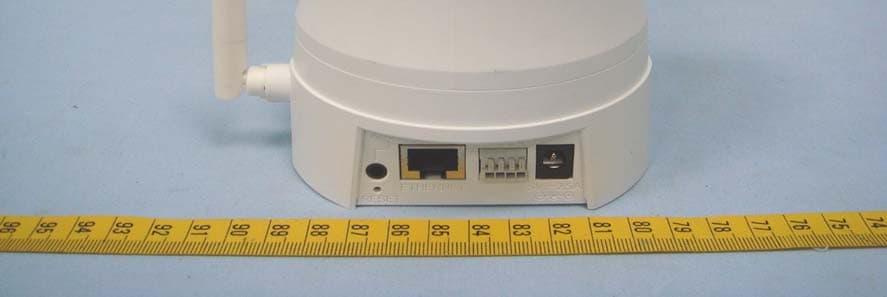

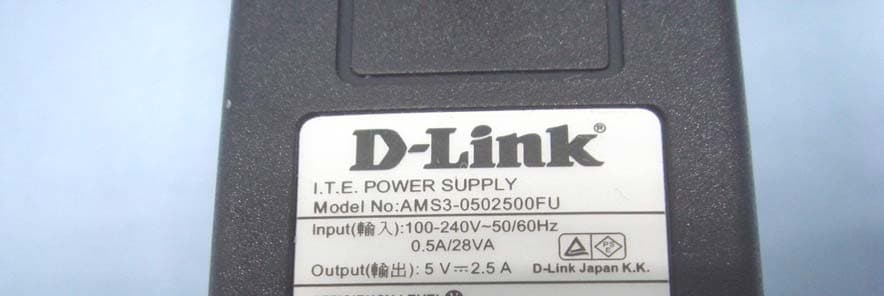

Report No: T131104J01 Page 1 / 11 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T131104J01 Page 2 Rev.00 Report No: T131104J01 Page 3 Rev.00 Report No: T131104J01 Page 4 Rev.00 Report No: T131104J01 Page 5 Rev.00 Report No: T131104J01 Page 6 Rev.00 AMS3-0502500FU Report No: T131104J01 Page 7 Rev.00

A. US / CAN Figure 1. 51*13mm Figure 2. 33*10mm P/N: XXXXXXXXXXXXXXX S/N: QEXXXXXXXXXXX DCS-5222L mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX MADE IN TAIWAN (NTSC) H/W Ver.:XX F/W Ver.:X.XX IC: 4216A-CS5222LB1 FCC ID: KA2CS5222LB1 Model: DCS-5222LB1

Report No: T131104J01 Page 8 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T131104J01 Page 9 Rev.00 Report No: T131104J01 Page 10 Rev.00 Report No: T131104J01 Page 11 Rev.00 Antenna

Compliance Certification Services Inc. Report No.: T131104J01-MF Date of Issue: December 03, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HD Wireless N Pan/Tilt Network Camera Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dipole Antenna / Gain: 2.7 dBi (Numeric gain: 1.86) Max. output power IEEE 802.11b 18.00 dBm(63.096 mW) IEEE 802.11g 15.00 dBm(31.623 mW) IEEE 802.11n HT20 14.00 dBm(25.119 mW) IEEE 802.11n HT40 14.00 dBm(25.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131104J01-MF Date of Issue: December 03, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131104J01-MF Date of Issue: December 03, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11 2462 63.096 1.86 20 0.0234 1 IEEE 802.11g mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 31.623 1.86 20 0.0117 1 IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11 2462 25.119 1.86 20 0.0093 1 IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 25.119 1.86 20 0.0093 1

Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 1 / 90 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Wireless N Pan/Tilt Network Camera Model: DCS-5222L Trade Name: D-Link Issued to D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 26, 2013 Initial Issue All Landy Huang Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION......................................................................................... 4 2 EUT DESCRIPTION............................................................................................................. 5 3 TEST METHODOLOGY....................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES..................................................................................... 8 4 INSTRUMENT CALIBRATION ............................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION..................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................11 5.1 FACILITIES........................................................................................................................11 5.2 LABORATORY ACCREDITATIONS AND LISTING ...........................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................... 13 6.1 SETUP CONFIGURATION OF EUT................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7 FCC PART 15 REQUIREMENTS....................................................................................... 14 7.1 6DB BANDWIDTH............................................................................................................ 14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .......................................................................................................... 24 7.4 BAND EDGES MEASUREMENT ..................................................................................... 26 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 50 7.6 SPURIOUS EMISSIONS.................................................................................................. 58 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 83 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................. 86 9 APPENDIX II: PHOTOGRAPHS OF EUT.......................................................................... 90 Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: HD Wireless N Pan/Tilt Network Camera Trade Name: D-Link Model: DCS-5222L Date of Test: November 12 ~ 22, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Angel Hu Section Manager Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 83 Rev.00 8 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emissions Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 84 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 85 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T131104J01-RP FCC ID: KA2CS5222LB1 Date of Issue: November 26, 2013 Page 86 Rev.00 Powerline Conducted Emissions Setup Photos
