KA2CS6010LA1HD Wirless N 360 degree Home Network Camera

User Manual Wireless N 360° Home Network Camera DCS-6010L Version 1.0 | 2012/06/03 2 D-Link DCS-6010L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develo p and change. Please refer to the www.mydlink.com website for the most current information. Manual Revisions Revision Date Description 1.0 June 6, 2012 DCS-6010L Revision A1 with firmware version 1.00 Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United Stat es or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective comp anies. Copyright © 2012 D-Link Corporation.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission fr om D-Link Corporation. Preface 3 D-Link DCS-6010L User Manual Table of Contents Product Overview ......................................................................... 4 Package Contents ................................................................. 4Introduction ............................................................................ 5System Requirements ......................................................... 5Features .................................................................................... 6Hardware Overview ............................................................. 7 Outside ................................................................................. 7Internal Ports ...................................................................... 8 Installation ...................................................................................... 9 Wireless Installation Considerations .............................. 9 Zero Configuration Setup ........................................................10 Camera Installation Wizard .............................................14 Manual Hardware Installation ........................................22 Focussing the Camera .......................................................23Mounting the Camera .......................................................24WPS - Push Button Setup .................................................25 mydlink ...........................................................................................26 Camera Status ......................................................................27Live Video ..............................................................................28Playback .................................................................................29Settings ..................................................................................30 Recording Settings .........................................................31Advanced Settings .........................................................33 Events ......................................................................................34 Configuration ...............................................................................35 Using the Configuration Interface ................................35 Live Video ..............................................................................36Setup .......................................................................................38 Setup Wizard ....................................................................38Network Setup .................................................................44Wireless Setup ..................................................................47Dynamic DNS ...................................................................48Image Setup .....................................................................49Audio and Video ..............................................................51Preset ...................................................................................53Motion Detection ...........................................................55Time and Date ..................................................................56Event Setup .......................................................................57SD Card ...............................................................................65 Advanced ...............................................................................66 HTTPS ..................................................................................66Access List ..........................................................................67 Maintenance .........................................................................68 Device Management .....................................................68Backup and Restore .......................................................69Firmware Upgrade ..........................................................70 Status ......................................................................................71 Device Info ........................................................................71Logs .....................................................................................72Help......................................................................................73 Technical Specifications ...........................................................74Safety Statements ......................................................................77 4 D-Link DCS-6010L User Manual Section 1: Product Overview Product Overview Package Contents If any of the above items are missing, please contact your reseller.Note : Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. DCS-6010L Wireless N 360° Home Network Camera CAT5 Ethernet cablePower adapterCD-ROM with User Manual and software Quick Ins…

Text truncated - open the document above for the full version.

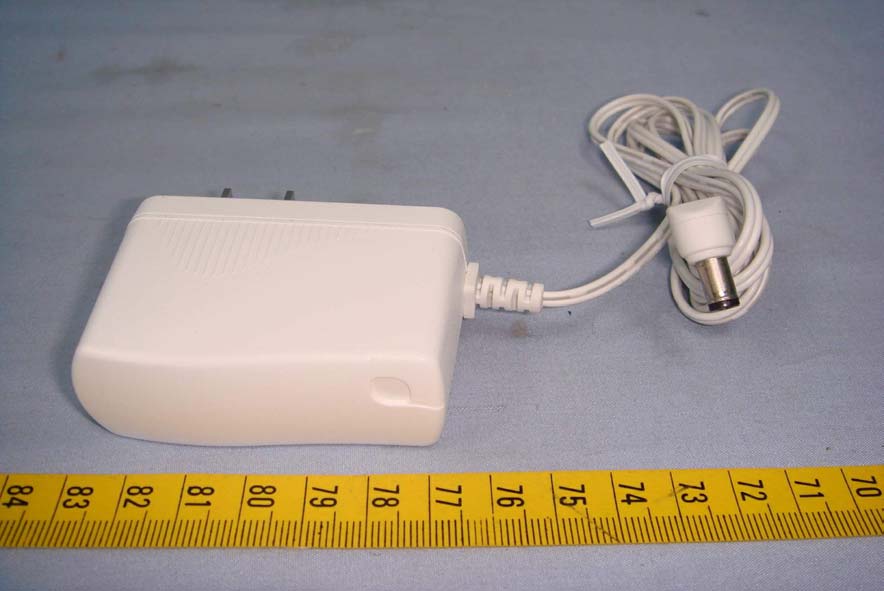

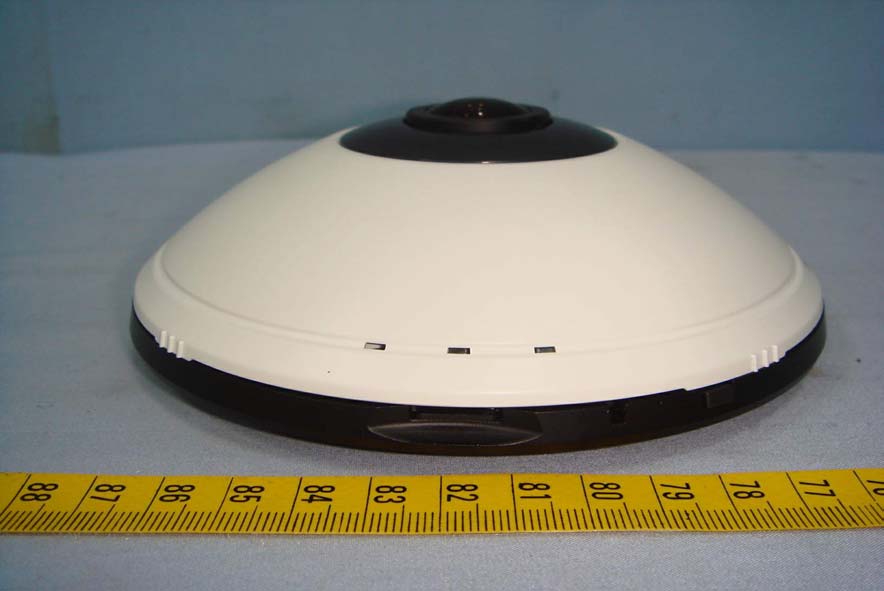

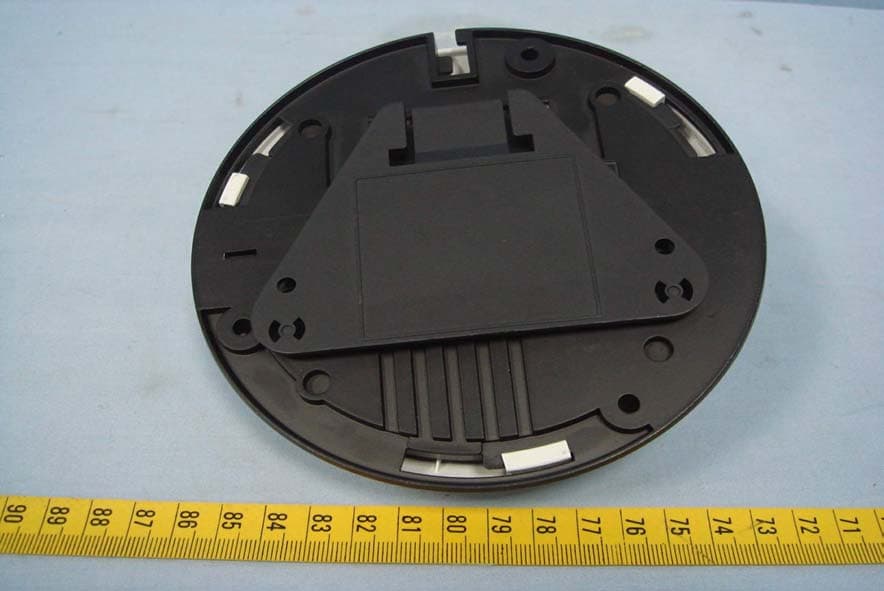

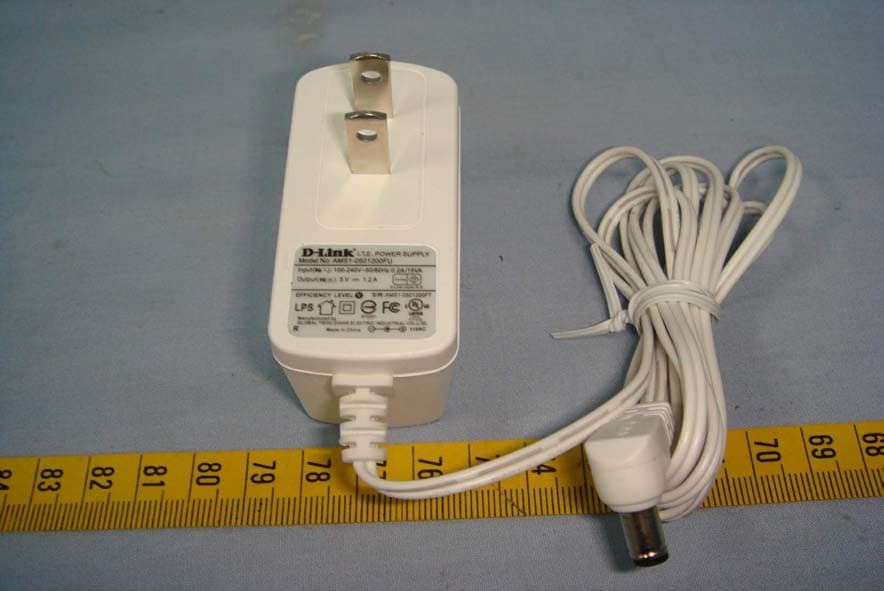

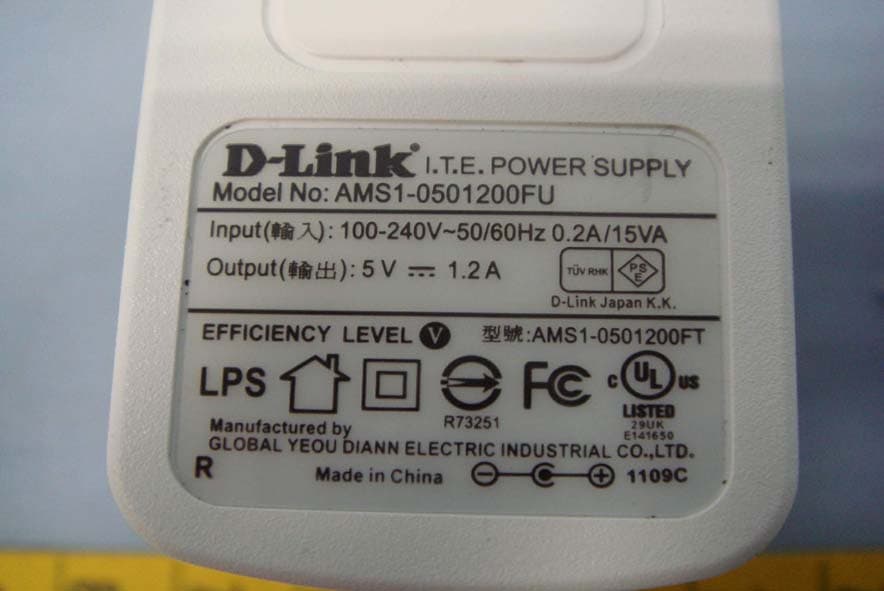

Report No: T120601J01 Page 1 / 9 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T120601J01 Page 2 Rev.00 Report No: T120601J01 Page 3 Rev.00 AMS1-0501200FU Report No: T120601J01 Page 4 Rev.00

S/N: QEXXXXXXXXXXX DCS-6010L FCC ID: KA2CS6010LA1 IC: 4216A-CS6010LA1 Model: DCS-6010LA1 P/N: XXXXXXXXXXXXXXX MAC: XXXXXXXXXXXXX mydlink: XXXXXXXX MADE IN TAIWAN (NTSC) H/W Ver.:XX F/W Ver.:X.XX Label Here

Report No: T120601J01 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T120601J01 Page 6 Rev.00 Report No: T120601J01 Page 7 Rev.00 Report No: T120601J01 Page 8 Rev.00 RF Module Antenna Report No: T120601J01 Page 9 Rev.00

G G a a i i n n F F o o r r c c e e T T e e c c h h n n o o l l o o g g y y C C o o . . , , L L t t d d 嘉光科技股份有限公司 R&D / PE / QC /PURCHASE / VENDOR 承認書 A A P P P P R R O O V V A A L L S S H H E E E E T T 品 名： Multilayer Chip Antenna MODEL NAME 料 號： AT3216-B2R7HAAT/LF PAT NUMBER 3.2*1.6mm Multilayer Chip Antenna 客戶名稱： 晶訊科技股份有限公司 CUSTOMER 供 應 商： 嘉光科技股份有限公司 VENDOR 承認料號： Approve P/N 使用機種： MODEL 聯 絡 人： 許志遠 DENNIS 聯絡電話： +886-915-296-557 附 件： ACCESSORIES ■規格書 □樣品 SPECIFICATION SAMPLE □圖樣 ■檢驗報告 DRAWING TEST REPORT 認可狀況： （APPROVED STATUS） ACX Advanced Ceramic X AT3216 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain XZ-V Average Gain XZ-V VSWR Impedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. -0.5 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 3,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 3216 - B 2R7 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 3.2× 1.6 mm e Material Code B f Frequency Range 2R7=2700MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 3.20.2 1.60.2 1.3+ 0.1/-0.2 0.50.3 (a) Without Matching Circuits (b) With Matching Circuits 1.2pF 3.3nH 2.6 4.2 1.6 1.9 2.7nH 0.4 * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Ground 13.5mm 6.5mm 39.5mm 4mm No Ground Matching Circuit 50Ω Feed Line 19mm Antenna 6.5mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits SGS Taiwan Ltd. Chemical-Taipei 33 WuChyuan Road, Wuku Industrial Zone, Taipei County, Taiwan /33 t + 886 (02)2299 3279 f + 886 (02)2299 3237 www.sgs.com Member of the SGS Group (SGS SA) Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This test report cannot be reproduced, except in full, without prior written permission of the Company. This Test Report is issued by the Company under its General Conditions of Service printed overleaf or available on request and accessible at http://www.sgs.com/terms_and_conditions.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this Test Report is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Sample Description : Style/Item No. : Buyer/Order No. : Sample Receiving Date : Testing Period : ============================================================================================ Test Requested : Test Method: (1) (2) (3) (4) (5) Test Result(s) : The following sample(s) was/were submitted and identified by/on behalf of the client as : Test Report 2010/02/25 MULTILAYER LTCC-A COMPONENTS (CERAMIC BODY) *CE/2010/25138* No. : CE/2010/25138Date : 2010/03/04Page : 1 of 5 ADVANCED CERAMIC X (ACX) CORPORATION 16 TZU CHIANG ROAD, HSINCHU INDUSTRIAL DISTRICT, HSINCHU HSIEN, TAIWAN 303 2010/02/25 TO 2010/03/04 AD SERIES, AM SERIES, AT SERIES, AW SERIES, BD SERIES, BF SERIES, BL SERIES, BM SERIES, CD SERIES, CF SERIES, CP SERIES, DM SERIES, DP SERIES, DS SERIES, FA SERIES, FB SERIES, FD SERIES, HI SERIES, HF SERIES, HM SERIES, HS SERIES, LF SERIES, PD SERIES, NF SERIES, QS SERIES, SF SERIES, TS SERIES, LTCC SUBSTRATES, BCM2037 LOCAL COMPANY OR USA COMPANY In accordance with the RoHS Directive 2002/95/EC, and its amendment directives. With reference to IEC 62321: 2008 Procedures for the Determination of Levels of Regulated Substances in Electrotechnical Products. Determination of Cadmium by ICP-AES. Please refer to next page(s). Determination of Lead by ICP-AES. Determination of Mercury by ICP-AES. Determination of Hexavalent Chromium by UV/Vis Spectrometry. Determination of PBB and PBDE by GC/MS. SGS Taiwan Ltd. Chemical-Taipei 33 WuChyuan Road, Wuku Industrial Zone, Taipei County, Taiwan /33 t + 886 (02)2299 3279 f + 886 (02)2299 3237 www.sgs.com Member of the SGS Group (SGS SA) Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This test report cannot be reproduced, except in full, without prior written permission of the Company. This Test Report is issued by the Company under its General Conditions of Service printed overleaf or available on request and accessible at http://www.sgs.com/terms_and_conditions.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this Test Report is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Result No.1 n.d.2 382 n.d.2 n.d.2 n.d.- n.d.5 n.d.5 n.d.5 n.d.5 n.d…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 93 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HD Wirless N 360° Home Network Camera Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power (AVG.) IEEE 802.11b mode: 17.10 dBm (0.0513W) IEEE 802.11g mode: 12.78 dBm (0.0190W) IEEE 802.11n HT20 mode: 12.68 dBm (0.0185W) IEEE 802.11n HT40 mode: 11.82 dBm (0.0152W) Antenna gain (Max) 0.5dBi (including cable loss) (Numeric gain: 1.122) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 17.10dBm (0.0513W) at 2462MHz (with 1.122numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 94 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 51.286mW Numeric Antenna gain = 1.122 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.00115 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 1 / 98 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HD Wirless N 360° Home Network Camera Model: DCS-6010L Trade Name: D-Link Issued to D Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 10, 2012 Initial Issue ALL Jill Shiau Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................9 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................9 4.3 MEASUREMENT UNCERTAINTY...................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES .......................................................................................................................11 5.2 EQUIPMENT....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT ................................................................................13 6.2 SUPPORT EQUIPMENT..................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6 DB BANDWIDTH ............................................................................................................14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .........................................................................................................24 7.4 BAND EDGES MEASUREMENT .....................................................................................32 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................55 7.6 SPURIOUS EMISSIONS..................................................................................................63 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................90 8. APPENDIX I RADIO FREQUENCY EXPOSURE .................................................................93 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP...............................................................95 Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: July 10, 2012 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: D Link Corporation 17595 Mt. Herrmann, Fountain Valley, California 92708, United States Manufacturer: Appro Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang District, New Taipei City, Taiwan, R.O.C. Equipment Under Test: HD Wirless N 360° Home Network Camera Trade Name: D-Link Model: DCS-6010L Date of Test: June 6 ~ July 6, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: Jun. 13, 2012 Page 91 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Data Link Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: Jun. 13, 2012 Page 92 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Transmitting Mode Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: Jun. 13, 2012 Page 93 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T120601J01-RP1 FCC ID: KA2CS6010LA1 Date of Issue: Jun. 13, 2012 Page 94 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos Data Link
