KA2CS7000LA1Wireless AC Day/Night HD Mini Bullet Cloud Camera

User Manual Wireless AC Day/Night HD Mini Bullet Cloud Camera Version 1.0 | 05/05/2014 DCS-7000L 2D-Link DCS-7000L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the www.mydlink.com website for the most current information. Manual Revisions RevisionDateDescription 1.0May 5, 2014DCS-7000L Revision A1 with firmware version 1.00 Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2014 D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation. Manual Overview 3D-Link DCS-7000L User Manual Table of Contents Manual Overview...............................................................2 Manual Revisions ..........................................................................2 Trademarks .....................................................................................2 Product Overview ..............................................................4 Package Contents .........................................................................4 Introduction ...................................................................................6 Features ............................................................................................7 Hardware Overview .....................................................................8 Front ..........................................................................................8 Rear ............................................................................................9 Adjusting Camera Focus ..........................................................10 Software Installation .......................................................11 Zero Configuration Setup ........................................................12 Camera Setup Wizard ................................................................16 Windows Users ....................................................................16 Mac Users...............................................................................17 Manual Hardware Installation ................................................18 Wireless Installation Considerations ....................................19 WPS - Push Button Setup .........................................................20 mydlink .............................................................................21 Configuration ...................................................................22 Live Video ......................................................................................23 Setup ...............................................................................................25 Setup Wizard ........................................................................25 Network Setup .....................................................................31 Wireless Setup ......................................................................34 Dynamic DNS .......................................................................35 Image Setup .........................................................................36 Audio and Video ..................................................................38 Preset.......................................................................................40 Motion Detection ...............................................................42 Sound Detection .................................................................43 Time and Date ......................................................................44 Event Setup ...........................................................................45 SD Card ...................................................................................52 Advanced ......................................................................................53 ICR and IR ...............................................................................53 HTTPS ......................................................................................54 Access List..............................................................................55 Maintenance ................................................................................56 Device Management .........................................................56 System ....................................................................................57 Firmware Upgrade ..............................................................58 Status ..............................................................................................59 Device Info ............................................................................59 Logs .........................................................................................60 Help .........................................................................................61 Technical Specifications ..................................................62 4D-Link DCS-7000L User Manual Section 1: Product Overview Product Overview Package Contents If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera Wall mount kit Power adapter CD-ROM with User Manual and software Quick Installation Guide 5D-Link DCS-7000L User Manual Section 1: Product Overview System Requirements Network Requirements• 10/100 E…

Text truncated - open the document above for the full version.

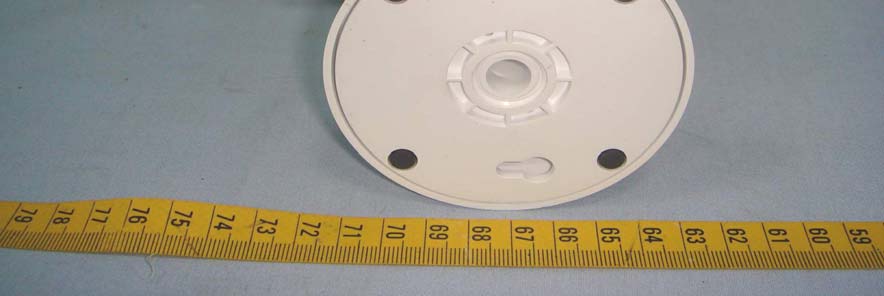

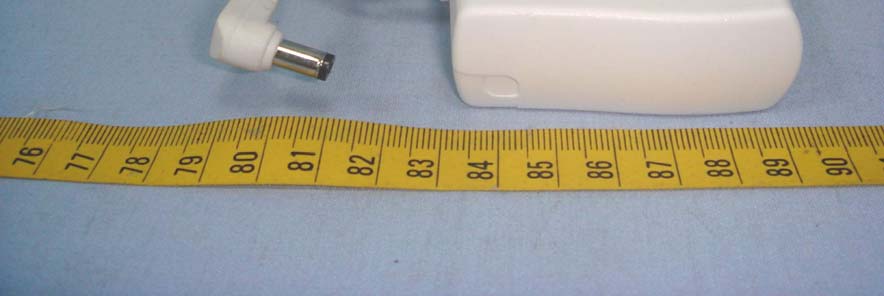

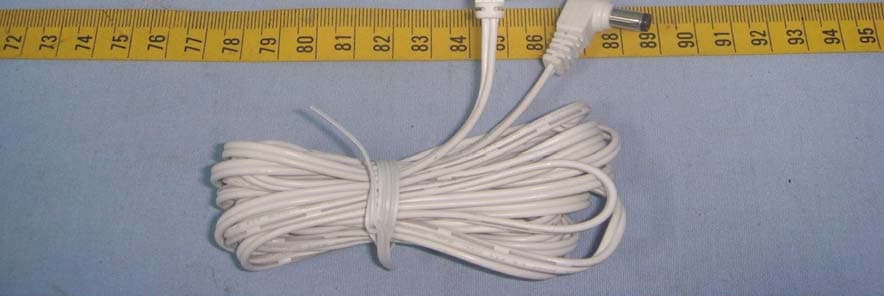

Report No: T140317J01 Page 1 / 10 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140317J01 Page 2 Rev.00 Report No: T140317J01 Page 3 Rev.00 Report No: T140317J01 Page 4 Rev.00 D-Link / AMS1-0501200FU Report No: T140317J01 Page 5 Rev.00

1 / 1 FCC ID: KA2CS7000LA1 IC: 4216A-CS7000LA1 Model: DCS-7000LA1 DCS-7000L MADE IN TAIWAN (XXX) P/N: XXXXXXXXXXXXXXXX mydlink No.: XXXXXXXX MAC: XXXXXXXXXXXXX S/N: QEXXXXXXXXXXX CAN ICES-3(B)/NMB-3(B) H/W Ver.:XX F/W Ver.:X.XX

Report No: T140317J01 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140317J01 Page 7 Rev.00 Report No: T140317J01 Page 8 Rev.00 Report No: T140317J01 Page 9 Rev.00 Antenna Report No: T140317J01 Page 10 Rev.00

Compliance Certification Services Inc. Report No.: T140317J01-MF Date of Issue: September 22, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT WIFI Network Camera Model DCS-7000L Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11AC HT80: 5170 ~ 5330 MHZ / 5490 ~ 5815 MHZ Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :3.97 dBi (Numeric gain:2.49) 2.4GHz: Antenna Gain :2.28 dBi (Numeric gain:1.69) Maximum Average output power IEEE 802.11b Mode: 12.35 dBm(17.179 mW) IEEE 802.11g Mode: 14.53 dBm(28.379 mW) IEEE 802.11n HT 20 Mode: 13.84 dBm(24.210 mW) IEEE 802.11n HT 40 Mode: 14.13 dBm(25.882 mW) IEEE 802.11a Mode: 17.56 dBm(57.016 mW) IEEE 802.11n HT20 Mode: 16.73 dBm(47.098 mW) IEEE 802.11n HT40 Mode: 16.12 dBm(40.926 mW) IEEE 802.11ac HT80 Mode: 15.70 dBm(37.154 mW) Compliance Certification Services Inc. Report No.: T140317J01-MF Date of Issue: September 22, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Tune up Power IEEE 802.11b Mode: 14.00 dBm(25.119 mW) IEEE 802.11g Mode: 16.00 dBm(39.811 mW) IEEE 802.11n HT 20 Mode: 14.50 dBm(28.184 mW) IEEE 802.11n HT 40 Mode: 14.50 dBm(28.184 mW) IEEE 802.11a Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT40 Mode: 16.50 dBm(44.668 mW) IEEE 802.11ac HT80 Mode: 16.50 dBm(44.668 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140317J01-MF Date of Issue: September 22, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/09/22 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Report No.: T140317J01-MF Date of Issue: September 22, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140317J01-MF Date of Issue: September 22, 2014 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241225.1191.69200.00841 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243739.8111.69200.01341 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246228.1841.69200.00951 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243728.1841.69200.00951 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 165582563.0962.49200.03131 IEEE 802.11a HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 165582563.0962.49200.03131 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 159579544.6682.49200.02211 IEEE 802.11ac mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 155577544.6682.49200.02211

Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 1 / 190 Rev.00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For Wireless AC Day/Night HD Mini Bullet Cloud Camera Model: DCS-7000L Trade Name: D-Link Issued to D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 17, 2014 Initial Issue All Iren Wang Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................9 3.1 EUT CONFIGURATION............................................................................................9 3.2 EUT EXERCISE........................................................................................................9 3.3 GENERAL TEST PROCEDURES ............................................................................9 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..............................10 3.5 ○DESCRIPTION OF TEST MODES .......................................................................11 4. INSTRUMENT CALIBRATION .......................................................................................13 4.1 MEASURING INSTRUMENT CALIBRATION.........................................................13 4.2 MEASUREMENT EQUIPMENT USED...................................................................13 4.3 MEASUREMENT UNCERTAINTY .........................................................................14 5. FACILITIES AND ACCREDITATIONS ...........................................................................15 5.1 FACILITIES.............................................................................................................15 5.2 EQUIPMENT...........................................................................................................15 5.3 LABORATORY ACCREDITATIONS AND LISTING ...............................................15 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ....................................................16 6. SETUP OF EQUIPMENT UNDER TEST ........................................................................17 6.1 SETUP CONFIGURATION OF EUT.......................................................................17 6.2 SUPPORT EQUIPMENT ........................................................................................17 7. FCC PART 15 REQUIREMENTS ...................................................................................18 7.1 26 DB EMISSION BANDWIDTH.............................................................................18 7.2 6DB BANDWIDTH ..................................................................................................43 7.3 MAXIMUM CONDUCTED OUTPUT POWER ........................................................50 7.4 BAND EDGES MEASUREMENT ...........................................................................59 7.5 PEAK POWER SPECTRAL DENSITY ...................................................................86 7.6 RADIATED UNDESIRABLE EMISSION ...............................................................112 7.7 POWERLINE CONDUCTED EMISSIONS ...........................................................127 7.8 FREQUENCY STABILITY ....................................................................................127 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP........................................................127 9. APPENDIX II: PHOTOGRAPHS OF EUT.....................................................................127 Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: Wireless AC Day/Night HD Mini Bullet Cloud Camera Trade Name: D-Link Model: DCS-7000L Date of Test: June 17 ~ September 5, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 SUBPART E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Bill Cheng Section Manager Angel Hu Section Manager Co…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: KA2CS7000LA1 Report No.: T140317J01-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 54 Rev.00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For Wireless AC Day/Night HD Mini Bullet Cloud Camera Model: DCS-7000L Trade Name: D-Link Issued to D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: September 18, 2014 Compliance Certification Services Inc. FCC ID: KA2CS7000LA1 Report No.: T140317J01-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 18, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: KA2CS7000LA1 Report No.: T140317J01-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 6 3.1 EUT CONFIGURATION ...................................................................................................... 6 3.2 EUT EXERCISE .................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ........................................................................................ 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES ...................................................................................... 8 4. INSTRUMENT CALIBRATION ................................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................. 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ................................................................................. 11 5.1 FACILITIES ......................................................................................................................... 11 5.2 EQUIPMENT ....................................................................................................................... 11 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................... 11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 13 6.1 SETUP CONFIGURATION OF EUT ................................................................................. 13 6.2 SUPPORT EQUIPMENT .................................................................................................... 13 7. FCC PART 15 REQUIREMENTS............................................................................................. 14 7.1 DYNAMIC FREQUENCY SELECTION ........................................................................... 14 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 54 Compliance Certification Services Inc. FCC ID: KA2CS7000LA1 Report No.: T140317J01-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: D-Link Corporation NO. 289, Sinhu 3rd Rd., Neihu District, Taipei City114, Taiwan, R.O.C. Manufacturer: APPRO Technology Inc. 13F, No. 66, Zhongzheng Rd., Xinzhuang Dist., New Taipei City, Taiwan. Equipment Under Test: Wireless AC Day/Night HD Mini Bullet Cloud Camera Tr a d e N a m e : D-Link Model: DCS-7000L Date of Test: August 26, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407 The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: KA2CS7000LA1 Report No.: T140317J01-RP Page 5 Rev. 00 2. EUT DESCRIPTION Product Wireless AC Day/Night HD Mini Bullet Cloud Camera Tr a d e N a me D-Link Model Number DCS-7000L Model Discrepancy N/A Received Date March 17, 2014 Power Supply VDC from Power Adapter D-Link / AMS1-0501200FU I/P: 100-240V, 0.3A, 50-60Hz O/P: 5V / 1.2A Operating Frequency Range & Number of Channels Mode Frequency Range (MHz) Number of Channels UNII Band I IEEE 802.11a 5180 – 5240 4 Channels IEEE 802.11n HT 20 MHz 5180 – 5240 4 Channels IEEE 802.11n HT 40 MHz 5190 ~ 5230 2 Channels IEEE 802.11n HT 80 MHz 5210 1 Channels UNII Band II IEEE 802.11a 5260 - 5320 4 Channels IEEE 802.11n HT 20 MHz 5260 - 5320 4 Channels IEEE 802.11n HT 40 MHz 5270 ~ 5310 2 Channels IEEE 802.11n HT 80 MHz 5290 1 Channels UNII Ban…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 186 Rev.00 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 187 Rev.00 Above 1GHz Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 188 Rev.00 Conducted Emissions Setup Photo Compliance Certification Services Inc. Report No.: T140317J01-RP2 FCC ID: KA2CS7000LA1 Date of Issue: September 17, 2014 Page 189 Rev.00 Powerline Conducted Emissions Setup Photos
