KA2CS850LA1Wi-Fi Baby Camera Lite with Pan/Tilt

Wi-Fi Baby Camera Lite DCS-850L Quick Installation Guide Краткое руководство по установке Guía de Instalación Rápida Guia de Instalação Rápida 快速安裝指南 Petunjuk Pemasangan Cepat DCS-850L 1 WARNING Strangulation Hazard: Children have STRANGLED in cords. Keep this cord more than 3 feet or 1 meter away from the crib or child sleeping area. Do not use with an extension cord. Предупреждение Опасность удушения: Во избежание опасности удушения кабелем разместите его не менее чем в 1 метре от детской кровати или того места, где спит ребенок. Не используйте удлинительных проводов. ADVERTENCIA Riesgo de estrangulación: Los niños pueden estrangularse con los cables. Mantenga este cable a más de 1 metro de distancia de la cuna o la zona donde duerma el niño. No utilizar con un cable alargador. AVISO Perigo de estrangulamento: As crianças podem ser vítimas de ESTRANGULAMENTO com cabos. Manter este cabo a mais de 1 m de distância do berço ou da zona onde a criança dorme. Não utilizar extensões. DCS-850L 2 警告 窒息的危險: 孩童可能因為被線材纏繞而窒息，所 以請將此線材與嬰兒床或孩童睡眠的 區域保持一公尺以上的距離，並請勿 使用延長線。 Peringatan Pengurangan bahaya: Anak-anak sering terlilit kabel. Jauhkan kabel ini lebih dari 3 meter atau 1 meter dari wilayah jangkauan anak. Jangan gunakan dengan kabel ekstensi. DCS-850L 3 English • Please save this guide for future reference. • Please read these instructions before using your product. • Do not manually adjust the angle of the camera. • Do not cover the ventilation holes. • Do not cover this product with a blanket. • Do not allow children to play with this product. • Do not place this product near water or other liquids, such as near a sink, shower, or bathtub. • Do not attempt to open or disassemble this product. • Cleaning: Clean the camera with a dry cloth only; do not allow the camera to get wet. • Strangulation Hazard: Keep this product and any attached cords at least 3 feet out of reach of a child and out of your baby's crib/cot. • This product is not a replacement for responsible adult supervision. Before you get started... Check to make sure your box has these items: 1 Wi-Fi Baby Camera Lite (DCS-850L) Wall mount kit Additional accent rings Mounting bracket Power adapter If any of these items are missing from your packaging, contact your reseller. DCS-850L 4 English You can use the included power adapter, or you can use a portable USB battery(not included) that can supply 5 V / 2 A of power. Plug in your camera, and wait until the Power LED turns green. 2 Search for the free mydlink Baby Camera Monitor app on the App Store or Google Play, then download and run it. The app will guide you step by step through the setup process. Download and run the free mydlink Baby app to set up your camera. 3 DCS-850L 5 English Your Wi-Fi Baby Camera Back View MicroUSB Power Port Temperature Sensor Reset ButtonDirect Button Speaker Front View Microphone Front Accent Ring Cloud/Direct Mode LED Light Sensor Camera Lens Power LED Night Vision Light (IR) Base Accent Ring DCS-850L 6 English Mounting your camera (optional) • If desired, the cable can be concealed behind the mounting bracket. Run the cable through the back of the mounting bracket, securing it with the built- in guides. Be sure to leave enough cable length protruding to allow connection to the camera. • Depending on the material of the wall or ceiling, use proper tools to drill two holes 25mm deep with a 6mm drill bit where you marked. After drilling the holes, insert the plastic anchors to support the screws. • Place the mounting bracket where you want to position the camera and use a pencil to mark the holes. • Fasten the mounting bracket to the wall using the screws provided. • Using the supplied thumbscrew, fasten the camera to the mounting bracket. Connect the power cable to the camera. • Adjust the angle of the arm on the mounting bracket as required. Tighten the thumbscrew to lock the arm in place. 1 2 3 4 5 6 DCS-850L 7 English Troubleshooting How do I change the accent rings? • Rotate the accent ring counterclockwise, then lift it off. Put the new accent ring on, then rotate it clockwise until it clicks into place. How do I select a different lullaby? • You can change the lullaby used in the mydlink Baby Camera Monitor app. There’s a white haze on my camera video when I use night vision mode. • The night vision light on the Wi-Fi Baby Camera may be reflecting off a nearby surface. Try repositioning and aiming the camera. I started the mydlink Baby Camera Monitor app, but I can’t find my camera. • Make sure your camera is turned on and receiving power. • If you have set up your camera before, make sure your smartphone or tablet is connected to the same router as your camera. • If you are setting up a new camera or are using the camera away from home, make sure your smartphone or tablet is connected to the camera’s Wi-Fi network. • The Wi-Fi network name should be [myBabyCam-XXXX], where XXXX is a 4-digit code. You can find it printed on a label on the bottom of your camera. • The Wi-Fi password is printed on a label on the bottom of your camera. • You can also find your camera’s Wi-Fi network details on a label attached to the back of this guide. • If you still can’t find your camera, reset your camera by pressing its reset button for 10 seconds while it is powered on. DCS-850L 8 English You can find software updates and user documentation on the D-Link website. Tech Support for customers in Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-832-2856000 Toll Free 1800-233-0000 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel: +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web: http://d-link.co.kr E-mail: [email protected] New Zealand: Tel: 0…

Text truncated - open the document above for the full version.

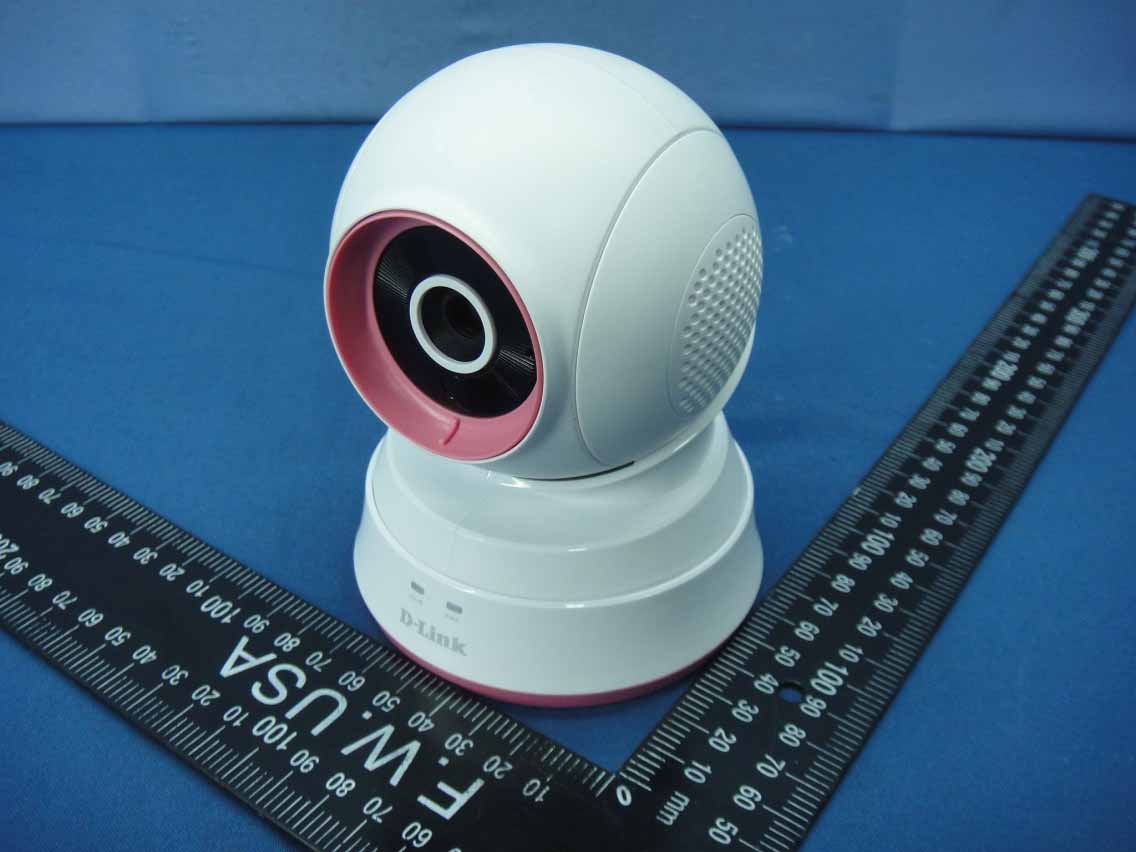

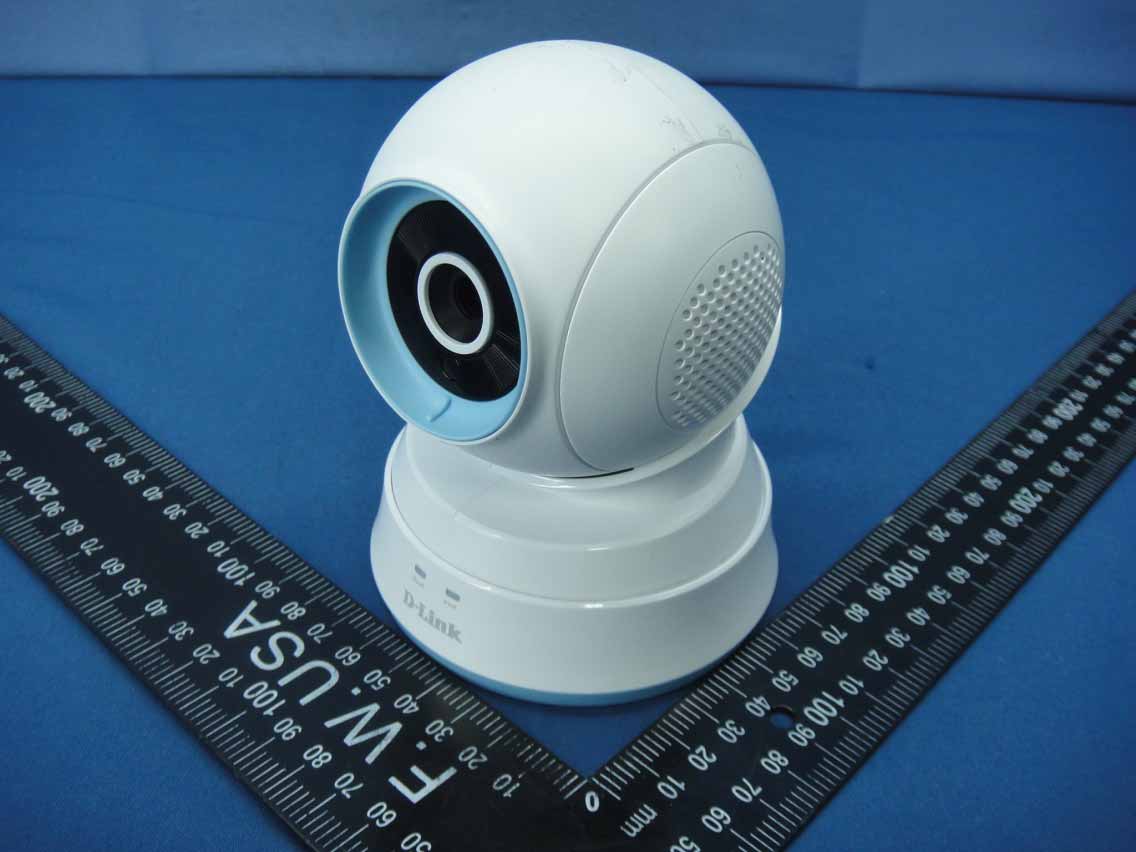

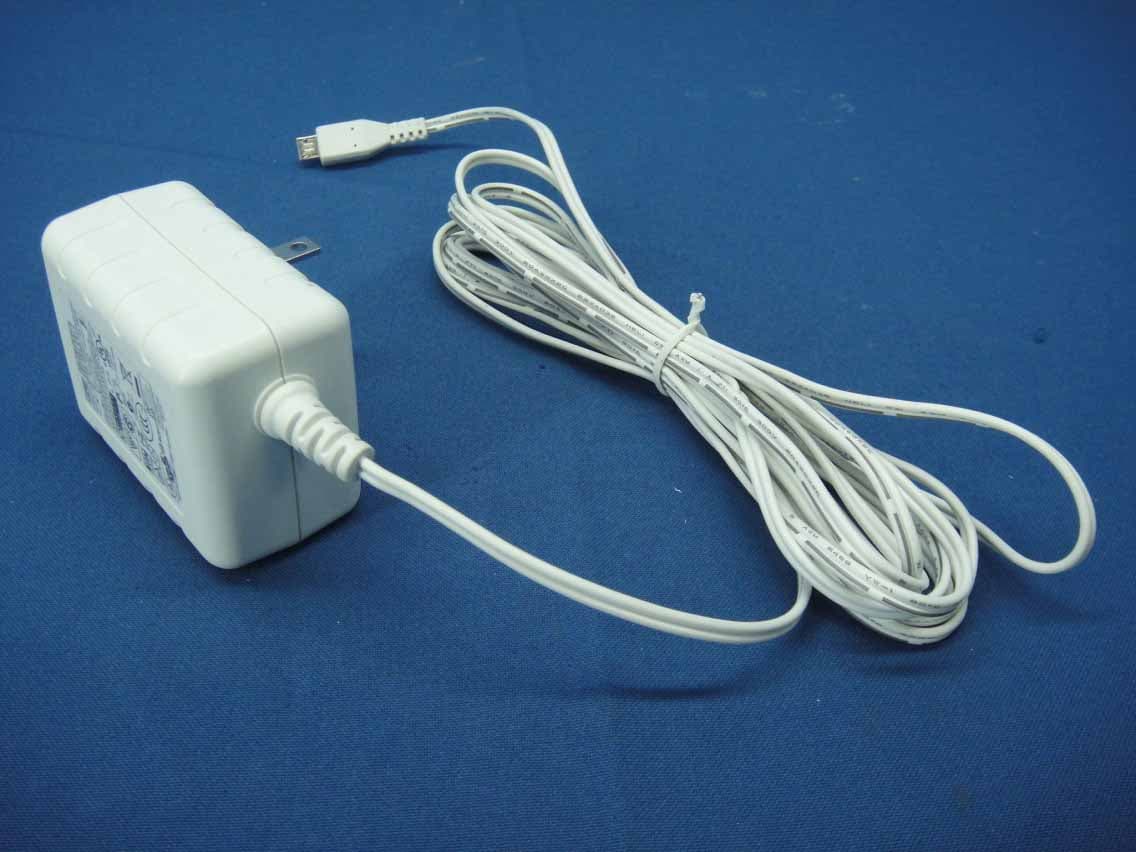

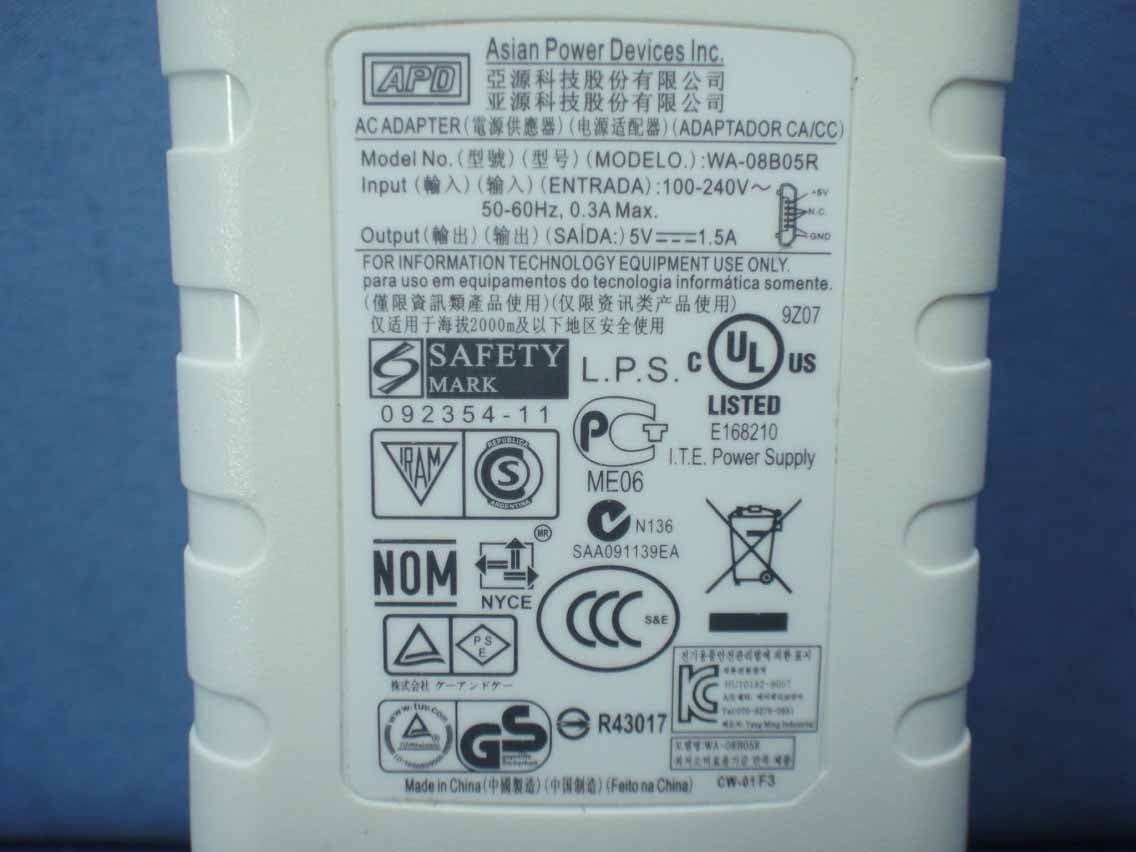

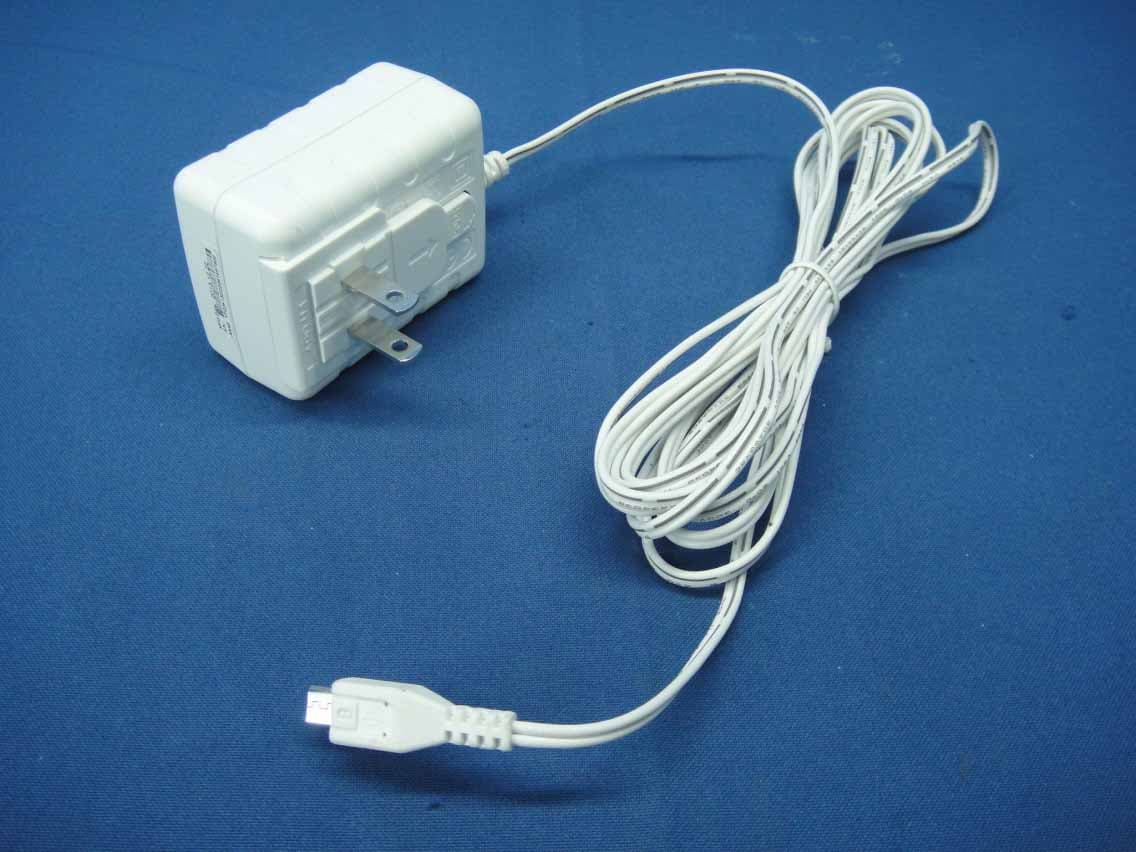

Report No.: 140922E10 1 of 15 CONSTRUCTION PHOTOS OF EUT Report No.: 140922E10 2 of 15 Report No.: 140922E10 3 of 15 Report No.: 140922E10 4 of 15 Report No.: 140922E10 14 of 15 Report No.: 140922E10 15 of 15

FCC ID： KA2CS850LA1 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Report No.: 140922E10 5 of 15 Report No.: 140922E10 6 of 15 Report No.: 140922E10 7 of 15 Report No.: 140922E10 8 of 15 Report No.: 140922E10 9 of 15 Report No.: 140922E10 10 of 15 Report No.: 140922E10 11 of 15 Report No.: 140922E10 12 of 15 Report No.: 140922E10 13 of 15

Report No.: SA140922E10 1 of 6 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA140922E10 MODEL NO.: DCS-850L, DCS-850LA1 FCC ID: KA2CS850LA1 RECEIVED: Sep. 09, 2014 TESTED: Sep. 23, 2014 ISSUED: Oct. 29, 2014 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA140922E10 2 of 6 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA140922E10 3 of 6 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140922E10 Original release Oct. 29, 2014 Report No.: SA140922E10 5 of 6 Report Format Version 5.0.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antenna provided to the EUT, please refer to the following table: Brand Model Gain (dBi) Antenna Type Connecter Type Frequency range (MHz to MHz) Cable Loss (dB) Cable Length (mm) HL 290-20148 3.28 PIFA IPEX 2400-2500 NA 60 Report No.: SA140922E10 6 of 6 Report Format Version 5.0.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 802.11b FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 116.145 3.28 20 0.04917 1 802.11g FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 309.03 3.28 20 0.13084 1 802.11n (HT20) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 282.488 3.28 20 0.11960 1 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 5.74dBi --- END --- CONCLUSION: Both of the WLAN and Zigbee can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.05078 / 1 + 0.00154 / 1= 0.052, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF140922E10 1 of 56 Report Format Version 5.2.1 FCC TEST REPORT REPORT NO.: RF140922E10 MODEL NO.: DCS-850L, DCS-850LA1 FCC ID: KA2CS850LA1 RECEIVED: Sep. 09, 2014 TESTED: Sep. 23 to 24, 2014 ISSUED: Oct. 29, 2014 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140922E10 2 of 56 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 16 4. TEST TYPES AND RESULTS ................................................................................ 17 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 17 4.1.2 TEST INSTRUMENTS ........................................................................................... 17 4.1.3 TEST PROCEDURES ............................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 18 4.1.5 TEST SETUP ......................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 19 4.1.7 TEST RESULTS ..................................................................................................... 20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 22 4.2.2 TEST INSTRUMENTS ........................................................................................... 23 4.2.3 TEST PROCEDURES ............................................................................................ 25 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 25 4.2.5 TEST SETUP ......................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 26 4.2.7 TEST RESULTS ..................................................................................................... 27 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 37 4.3.2 TEST INSTRUMENTS ........................................................................................... 37 4.3.3 TEST PROCEDURE .............................................................................................. 37 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 37 4.3.5 TEST SETUP ...............................................…
