2D-Link DCS-930 User Manual Table of Contents Product Overview ........................................................4 Package Contents ...................................................4 System Requirements .............................................4 Introduction ..............................................................5 Features ..................................................................6 Hardware Overview .................................................7 Front View ..........................................................7 Rear View ..........................................................8 Hardware Installation ...............................................9 Installation ..................................................................10 Wireless Installation Considerations ......................10 Starting the Camera Installation Wizard ................11 WPS - Hardware Push Button Setup ...............12 Using the Configuration Menu ...............................13 Configuration .........................................................15 Live Video ........................................................15 Setup > Wizard ................................................15 Internet Connection Setup Wizard ..............16 Network Setup ............................................18 Setup > Wireless ..............................................19 Wireless Interface .......................................19 Setup > DDNS ................................................20 Setup > Image Setup .......................................21 Image Settings ............................................21 Setup > Video ..................................................22 Video Configuration ....................................22 Setup > Audio ..................................................23 Setup > Motion Detect .....................................24 Setup > Mail .....................................................25 Email Account .............................................25 Time Schedule ............................................26 Setup > FTP .....................................................27 FTP Server .................................................27 Time Schedule ............................................28 Setup > Time and Date ....................................29 Maintenance > Admin ......................................30 Maintenance > System ....................................31 Maintenance > Firmware Upgrade ..................32 Status > System ...............................................33 Status > Active User ........................................34 Wireless Security.......................................................35 What is WEP? .......................................................35 What is WPA? .......................................................36 Using & Configuring the DCS-930 .........................37 Wireless Security ...................................................40 What is WEP? .......................................................40 What is WPA? .......................................................41 Using & Configuring the DCS-930 with a NAT Router ..............................................................42 Table of Contents 3D-Link DCS-930 User Manual Table of Contents Wireless Basics .........................................................49 Networking Basics ....................................................54 Check your IP address ..........................................54 Statically Assign an IP address .............................55 Troubleshooting ........................................................56 Technical Specifications...........................................58 4D-Link DCS-930 User Manual Section 1 - Product Overview • DCS-930 Network Camera • CAT5 Ethernet Cable • Power Adapter • Manual and Software on CD • Quick Install Guide • Camera Stand Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements • Computer with Microsoft Windows ® 7, XP ® , or Vista ® • PC with 1.3GHz or above; at least 128MB RAM • Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4 • Existing 10/100 Ethernet-based network or 802.11n wireless network Product Overview Package Contents 5D-Link DCS-930 User Manual Section 1 - Product Overview Introduction Congratulations on your purchase of the DCS-930 Network Camera. The DCS-930 is a versatile and unique solution for your small office or home. Unlike a webcam, the DCS-930 is a stand-alone system with a built-in CPU that transmits high quality video images for monitoring. The DCS-930 can be remotely accessed, and controlled using a Web browser over the Intranet or Internet. The simple installation procedure and intuitive Web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11n wireless network. The DCS-930 also comes with remote monitoring capability for a complete and cost-effective home security solution. 6D-Link DCS-930 User Manual Section 1 - Product Overview Simple to Use The DCS-930 is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards. The DCS-930 supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox ® and Safari ® . Supports a Variety of Platforms Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-930 can also be integrated easily into other Internet/Intranet applications because of its standards-based features. 802.11n Wireless or Ethernet/Fast Ethernet Support The DCS-930 offers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-930 easy to integrate into your existing network environment. The DCS-930 works with a 10 Mbps Ethernet based network or 100 Mbps Fast Ethernet b…

Text truncated - open the document above for the full version.

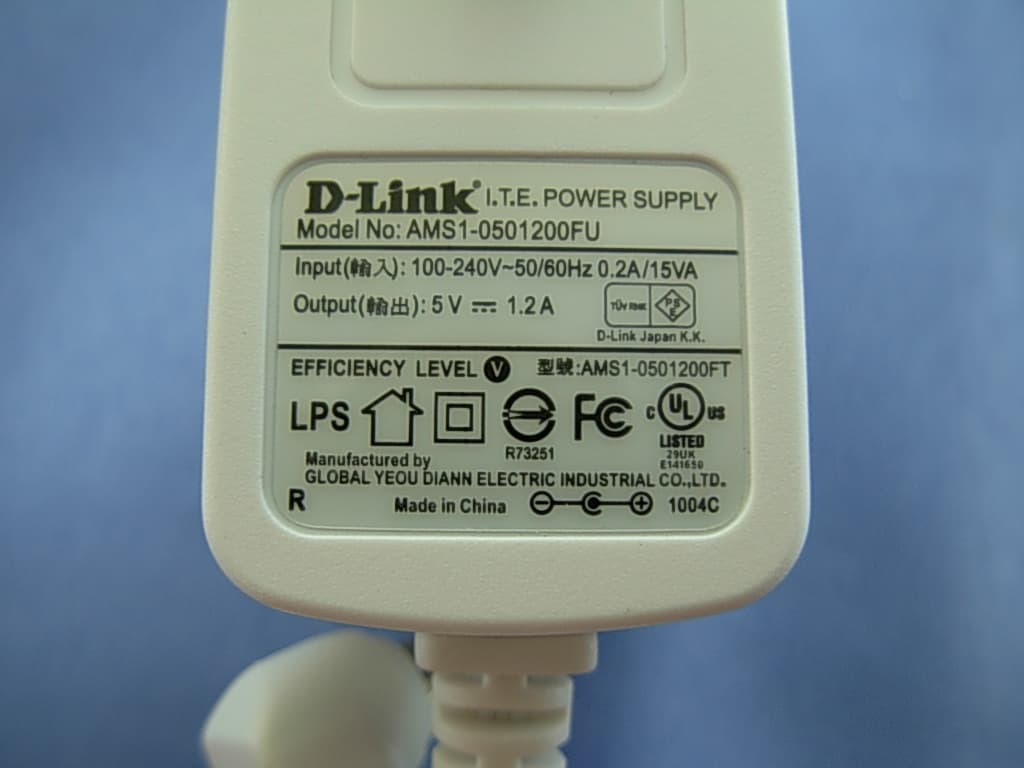

Report No： 104404R-RFUSP42V01 Page: 155 of 160 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 104404R-RFUSP42V01 Page: 156 of 160 (3) EUT Photo

FCC ID.: KA2CS930LA1 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless N Home Network Camera Model No.: DCS-930, DCS-930L F F C C C C I I D D : : KA2CS930LA1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: D-Link Model number.: DCS-930, DCS-930L

Report No： 104404R-RFUSP42V01 Page: 157 of 160 (4) EUT Photo (5) EUT Photo Report No： 104404R-RFUSP42V01 Page: 158 of 160 (6) EUT Photo (7) EUT Photo Report No： 104404R-RFUSP42V01 Page: 159 of 160 (8) EUT Photo (9) EUT Photo Report No： 104404R-RFUSP42V01 Page: 160 of 160 (10) EUT Photo

Report No. 104404R-RF-US-Exp Page: 1 of 5 RF Exposure Evaluation declaration Product Name ：Wireless N Home Network Camera Model No. ：DCS-930, DCS-930L FCC ID. ：KA2CS930LA1 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : 2010/04/12 Date of Declaration : 2010/06/09 Report No. : 104404R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 104404R-RF-US-Exp Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 104404R-RF-US-Exp Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product Wireless N Home Network Camera Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.76dBi or 1.888 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 66.3743 0.02493 6 2437 69.5024 0.02611 11 2462 73.1139 0.02746 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 102.0939 0.03835 6 2437 108.3927 0.04071 11 2462 106.9055 0.04015 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 104404R-RF-US-Exp Page: 4 of 5 Product Wireless N Home Network Camera Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.76dBi or 1.888 in linear scale. IEEE 802.11n (20M) Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 70.4693 0.02647 6 2437 62.5173 0.02348 11 2462 60.8135 0.02284 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 104404R-RF-US-Exp Page: 5 of 5 Product Wireless N Home Network Camera Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.76dBi or 1.888 in linear scale. IEEE 802.11n (40M) Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (40M) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 86.2979 0.03241 6 2437 88.1049 0.03309 9 2452 84.3335 0.03168 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 104404R-RFUSP42V01 Page: 1 of 160 Test Report Product Name ： Wireless N Home Network Camera Model No. ： DCS-930, DCS-930L FCC ID. ： KA2CS930LA1 Applicant： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt：2010/04/12 Issued Date ：2010/06/09 Report No. ：104404R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 104404R-RFUSP42V01 Page: 2 of 160 Test Report Certification Issued Date : 2010/06/09 Report No. : 104404R-RFUSP42V01 Product Name ： Wireless N Home Network Camera Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Manufacturer ： Alpha Networks Inc. Model No. ： DCS-930, DCS-930L FCC ID. ： KA2CS930LA1 EUT Voltage : AC 100-240V / 50/60Hz Trade Name ： D-Link Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Sheena Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 104404R-RFUSP42V01 Page: 3 of 160 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 9 1.3. Test Mode ..................................................................................................................... 10 1.4. Tested System Details .................................................................................................. 11 1.5. Configuration of tested System .................................................................................... 11 1.6. EUT Exercise Software ................................................................................................ 12 1.7. Test Facility...................................................................................................................13 2. Conducted Emission .......................................................................................................... 14 2.1. Test Equipment............................................................................................................. 14 2.2. Test Setup .................................................................................................................... 14 2.3. Limits ............................................................................................................................ 15 2.4. Test Procedure ............................................................................................................. 15 2.5. Test Specification.......................................................................................................... 15 2.6. Uncertainty ................................................................................................................... 15 2.7. Test Result....................................................................................................................16 2.8. Test Photo .................................................................................................................... 18 3. Peak Power Output ............................................................................................................ 19 3.1. Test Equipment............................................................................................................. 19 3.2. Test Setup .................................................................................................................... 19 3.3. Test procedures ............................................................................................................ 19 3.4. Limits ............................................................................................................................ 19 3.5. Test Specification.......................................................................................................... 19 3.6. Uncertainty ................................................................................................................... 19 3.7. Test Result....................................................................................................................20 4. Radiated Emission ............................................................................................................. 24 4.1. Test Equipment............................................................................................................. 24 4.2. Test Setup .................................................................................................................... 24 4.3. Limits ............................................................................................................................ 25 4.4. Test Procedure ............................................................................................................. 25 4.5. Test Specification.......................................................................................................... 25 4.6. Uncertainty ................................................................................................................... 25 4.7. Test Result....................................................................................................................26 4.8. Test Photo .................................................................................................................... 73 5. RF …

Text truncated - open the document above for the full version.

Report No： 104404R-RFUSP42V01 Page: 18 of 160 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 104404R-RFUSP42V01 Page: 73 of 160 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 104404R-RFUSP42V01 Page: 74 of 160 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Backl View of Radiated Emission Test Setup (Horn)
