KA2CS930LA2Wireless N Home Networks Camera

USER MANUAL DCS-930 VERSION 1.0 2D-Link DCS-930 User Manual Table of Contents Product Overview ........................................................4 Package Contents ...................................................4 System Requirements .............................................4 Introduction ..............................................................5 Features ..................................................................6 Hardware Overview .................................................7 Front View ..........................................................7 Rear View ..........................................................8 Installation ....................................................................9 Hardware Installation ...............................................9 Wireless Installation Considerations ......................10 Starting the Camera Installation Wizard ................11 WPS - Hardware Push Button Setup ...............12 Configuration .............................................................13 Using the Configuration Menu ...............................13 Live Video ........................................................15 Setup > Wizard ................................................15 Internet Connection Setup Wizard ..............16 Network Setup ............................................18 Setup > Wireless ..............................................19 Wireless Interface .......................................19 Setup > DDNS ................................................20 Setup > Image Setup .......................................21 Image Settings ............................................21 Setup > Video ..................................................22 Video Configuration ....................................22 Setup > Audio ..................................................23 Setup > Motion Detect .....................................24 Setup > Mail .....................................................25 Email Account .............................................25 Time Schedule ............................................26 Setup > FTP .....................................................27 FTP Server .................................................27 Time Schedule ............................................28 Setup > Time and Date ....................................29 Maintenance > Admin ......................................30 Maintenance > System ....................................31 Maintenance > Firmware Upgrade ..................32 Status > Device Info .........................................33 Status > Active User ........................................34 Using & Configuring the DCS-930 .........................35 Wireless Security.......................................................38 What is WEP? .......................................................38 What is WPA? .......................................................39 Using & Configuring the DCS-930 with a NAT Router ..............................................................40 Troubleshooting ........................................................47 Table of Contents 3D-Link DCS-930 User Manual Table of Contents Wireless Basics .........................................................49 Networking Basics ....................................................54 Check your IP address ..........................................54 Statically Assign an IP address .............................55 Technical Specifications...........................................56 4D-Link DCS-930 User Manual Section 1 - Product Overview • DCS-930 Network Camera • CAT5 Ethernet Cable • Power Adapter • Manual and Software on CD • Quick Install Guide • Camera Stand Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements • Computer with Microsoft Windows ® 7, XP ® , or Vista ® • PC with 1.3GHz or above; at least 128MB RAM • Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4 • Existing 10/100 Ethernet-based network or 802.11n wireless network Product Overview Package Contents 5D-Link DCS-930 User Manual Section 1 - Product Overview Introduction Congratulations on your purchase of the DCS-930 Network Camera. The DCS-930 is a versatile and unique solution for your small office or home. Unlike a webcam, the DCS-930 is a stand-alone system with a built-in CPU that transmits high quality video images for monitoring. The DCS-930 can be remotely accessed, and controlled using a Web browser over the Intranet or Internet. The simple installation procedure and intuitive Web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11n wireless network. The DCS-930 also comes with remote monitoring capability for a complete and cost-effective home security solution. 6D-Link DCS-930 User Manual Section 1 - Product Overview Simple to Use The DCS-930 is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards. The DCS-930 supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox ® and Safari ® . Supports a Variety of Platforms Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-930 can also be integrated easily into other Internet/Intranet applications because of its standards-based features. 802.11n Wireless or Ethernet/Fast Ethernet Support The DCS-930 offers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-930 easy to integrate into your existing network environment. The DCS-930 works with a 10 Mbps Ethernet based network or 100 Mbps Fast Ethernet based network for traditional wired environments, and works with 802.11n routers or access points for added flexibility. The Site Survey feature also allows you to view and connec…

Text truncated - open the document above for the full version.

7D-Link DCS-930 User Manual Section 1 - Product Overview Hardware Overview Front View Power and Link LED Camera Lens Microphone 8D-Link DCS-930 User Manual Section 1 - Product Overview Rear View Camera Stand Ethernet Connector Power Connector WPS Button WPS LED Reset 9D-Link DCS-930 User Manual Section 2 - Installation Hardware Installation Connect the Ethernet Cable Connect the included Ethernet cable to the network cable connector located on the bottom panel of the DCS-930 and attach it to the network. Attach the External Power Supply Attach the external power supply to the DC power input connector located on the bottom panel of the DCS-930 and connect it to your wall outlet or power strip. Power is confirmed when the green LED Power Indicator located below the lens on the DCS-930 is illuminated. Installation 10D-Link DCS-930 User Manual Section 2 - Installation Wireless Installation Considerations The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). 2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. 3. Building Materials make a difference. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. 4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise. 5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use. 11D-Link DCS-930 User Manual Section 2 - Installation Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program. The CD-ROM will open the Camera Installation Wizard. Simply click Start to go through the Installation Wizard, which will guide you through the installation process from connecting your hardware to configuring your camera. Starting the Camera Installation Wizard 12D-Link DCS-930 User Manual Section 2 - Installation Alternatively, you may create a WPS connect using the WPS Button on the back of the camera. To create a WPS connection: Step 1 Press and hold the WPS button on the side of the camera for three seconds. The blue WPS status LED above the button will blink. Step 2 Press the WPS button on your router within 60 seconds. The WPS button is usually on the front or side of your router. On some routers, you may need to log in to the web interface and then click on an onscreen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual. The DCS-930 will automatically create a wireless connection to your router. While connecting, the green LED will flash and your camera will reboot. WPS Button WPS - Hardware Push Button Setup 13D-Link DCS-930 User Manual Section 3 - Configuration Configuration Using the Configuration Menu After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-930. At the end of the wizard, click Go To Camera, or enter the IP address of your camera into a web browser, such as Internet Explorer ® . To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK. Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is 192.168.0.20. 14D-Link DCS-930 User Manual Section 3 - Configuration Click the ActiveX or Java radio button to view live video. Please make sure that you have the latest version of Java application installed on your computer to ensure proper operation when viewing the video in Java mode. The Java application can be downloaded at no cost from Sun’s web site. (http://www.java.com) When you connect to the home page of your camera, you will be prompted to download ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must download ActiveX. 15D-Link DCS-930 User Manual Section 3 - Configuration Live Video ActiveX: Java: For Windows ® Users that do not have Java installed, please choose this option to view video streaming on the Home page. For Windows ® users that have Java installed, you can also use this for viewing video. Mac users must choose this mode to view video. Setup > Wizard You may choose to configure your network by using the Internet Connection Setup Wizard that includes step-by-step instructions. Otherwise, you may manually configure your connection using th…

Text truncated - open the document above for the full version.

16D-Link DCS-930 User Manual Section 3 - Configuration Internet Connection Setup Wizard This wizard will guide you through a step-by-step process to configure your new D-Link Camera and connect the camera to the Internet. You may configure your camera using • DHCP Connection (by default), where your DHCP server will automatically assign dynamic IP to your device. • Static IP Address if your ISP has already assigned an IP address to you. • PPPoE connection, where your camera is directly connected to the Internet through a DSL modem. * Input the DNS information if you have chosen and assigned a Static IP Address for your camera. Click Next Click Next 17D-Link DCS-930 User Manual Section 3 - Configuration Enter a name for your camera. Configure the correct time to ensure that all events triggered, captured and scheduled at the right time. This page displays your configured settings. Click Apply to save and activate the setting, or Back to change your settings. If you have a Dynamic DNS account and would like the camera to update your IP address automatically, enable DDNS and enter your host information. Click Next Click Next Click Next Click Apply 18D-Link DCS-930 User Manual Section 3 - Configuration Network Setup Select this connection if you have a DHCP server running on your network and would like a dynamic IP address to be updated to your camera automatically. You may obtain a static or fixed IP address and other network information from your network administrator for your camera. A static IP address will ease you for accessing your camera in the future. IP Address: The fixed IP address Subnet Mask: The default value is “255.255.255.0.” Used to determine if the destination is the same subnet. Default Gateway: The gateway used to forward frames to destinations in a different subnet. Invalid gateway settings may cause the failure of transmissions to a different subnet. Primary DNS: Primary domain name server that translates names to IP addresses. Secondary DNS: Secondary domain name server to backup the Primary DNS. DHCP: Static IP Client: PPPoE Settings: Port Settings: UPnP Settings: This section allows you to configure your network settings. If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account. You can get this information from your Internet service provider (ISP). You may configure a Second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”. Enable this setting to configure your camera as an UPnP device in the network. 19D-Link DCS-930 User Manual Section 3 - Configuration Setup > Wireless Service Set Identifier, an identifier for your wireless network. The default setting is channel 6. Select the same channel that is using by other wireless devices within your network. When there is interference from the wireless networks that overlap with one another, you may change the channel to obtain maximum performance for your connection. Infrastructure is a wireless connection using an access point as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your DCS-930 is directly connecting to your PC. This is done using the on-board wireless adapter on the DCS-930 connected to a wireless adapter on the PC. This page will allow you to select a wireless network that the DCS-930 was able to detect. For security, there are three choices; None, WEP, and WPA-PSK / WPA2-PSK. Select the same encryption method that is being used by your wireless device/ router. An appropriate Preshared Key, which is needed in order to connect to the wireless network.. SSID: Channel: Connection Mode: Site Survey: Wireless Security Mode: WPA-PSK / WPA2PSK Settings: Wireless Interface This section allows you to setup and configure the wireless settings on your camera. 20D-Link DCS-930 User Manual Section 3 - Configuration (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modified. The username and password are required when using the DDNS service. Click to enable the DDNS function. Select your Dynamic DNS Server from the pull down menu. Enter the host name of the DDNS server. Enter your username or e-mail used to connect to the DDNS. Enter your password used to connect to the DDNS server. DDNS: Enable: Server Address: Host Name: User Name: Password: Setup > DDNS This section allows you to configure the DDNS setting for your camera. DDNS will allow all users to access your camera using a domain name instead of an IP address. 21D-Link DCS-930 User Manual Section 3 - Configuration Setup > Image Setup Select this box to enable antiflicker. Select this box to vertically rotate the video. If the camera is installed upside down, Flip Image and Mirror should both be checked. Horizontally rotates the video. Allows you to adjust the brightness level. Allows you to adjust the contrast level. Allows you to adjust the saturation level. Enable Antiflicker: Flip Image: Mirror: Brightness Control: Contrast Control: Saturation Control: Image Settings This section allows you to configure the image settings for your camera. 22D-Link DCS-930 User Manual Section 3 - Configuration Setup > Video Video Profile: Light Frequency: Video Configuration Encode Type: Resolution: FPS: JPEG Quality: View Mode: The compression format used when viewing your camera. Select the desired video resolution from three formats: 640x480, 320x240, and 160x120. The higher setting can obtain better quality. However, it will use more resource within your network. Select the optimal setting depending on your network status. Please note that the higher setting can obtain better quality. However, it will use more…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: .$&6/$ Date: 2012/02/02 Please be notified that we, the undersigned, D-Link Corporation declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 55)8639. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Regards,

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: .$&6/$ Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

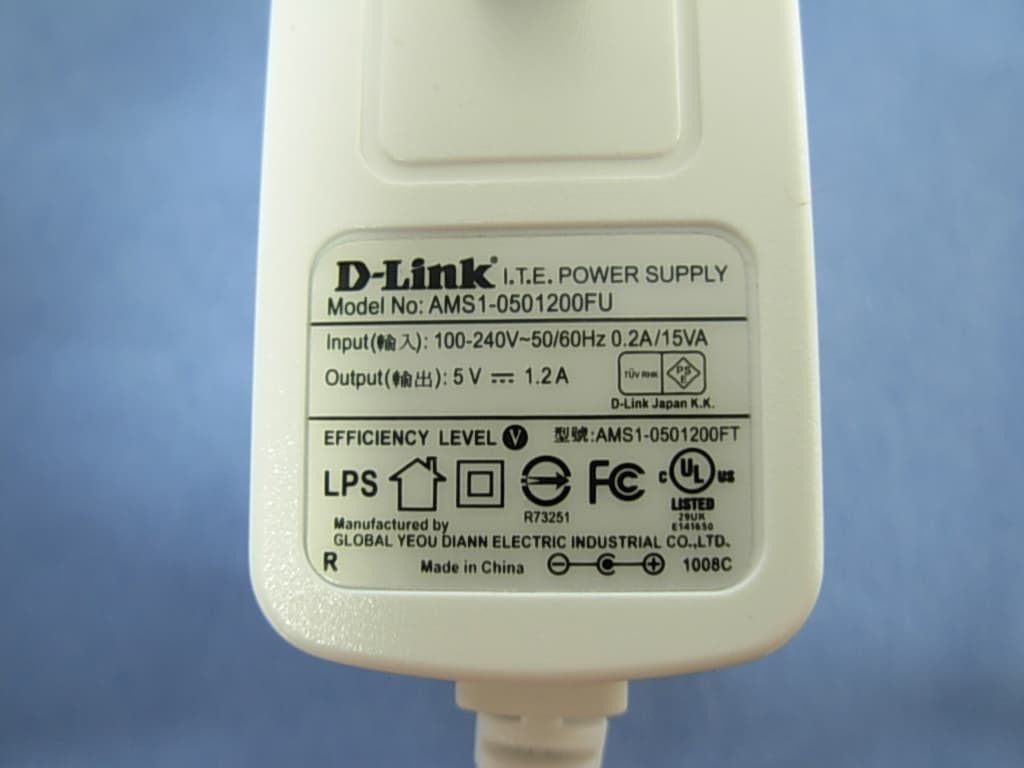

Report No： 122070R-RFUSP42V01 Page: 190 of 199 V0.3-Draft Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 122070R-RFUSP42V01 Page: 191 of 199 V0.3-Draft (3) EUT Photo

FCC ID.: KA2CS930LA2 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless N Home Networks Camera Model No.: DCS-930_A2, DCS-930L_A2 F F C C C C I I D D : : K K A A 2 2 C C S S 9 9 3 3 0 0 L L A A 2 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: D-Link Model number.: DCS-930_A2, DCS-930L_A2

Report No： 122070R-RFUSP42V01 Page: 192 of 199 V0.3-Draft (4) EUT Photo (5) EUT Photo Report No： 122070R-RFUSP42V01 Page: 193 of 199 V0.3-Draft (6) EUT Photo (7) EUT Photo Report No： 122070R-RFUSP42V01 Page: 194 of 199 V0.3-Draft (8) EUT Photo (9) EUT Photo Report No： 122070R-RFUSP42V01 Page: 195 of 199 V0.3-Draft (10) EUT Photo (11) EUT Photo Report No： 122070R-RFUSP42V01 Page: 196 of 199 V0.3-Draft (12) EUT Photo (13) EUT Photo Report No： 122070R-RFUSP42V01 Page: 197 of 199 V0.3-Draft (14) EUT Photo (15) EUT Photo Report No： 122070R-RFUSP42V01 Page: 198 of 199 V0.3-Draft (16) EUT Photo Report No： 122070R-RFUSP42V01 Page: 199 of 199 V0.3-Draft (17) EUT Photo (Antenna)

Report No. 122070R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation declaration Product Name ： Wireless N Home Networks Camera Model No. ： DCS-930_A2, DCS-930L_A2 FCC ID. ： KA2CS930LA2 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : 2012/02/01 Date of Declaration : 2012/04/12 Report No. : 122070R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 122070R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 122070R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Wireless N Home Networks Camera Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.1dBi or 1.622 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 53.3335 0.01721 6 2437 55.8470 0.01802 11 2462 52.9663 0.01709 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 180.3018 0.05817 6 2437 163.6817 0.05281 11 2462 160.6941 0.05185 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 122070R-RF-US-Exp Page: 4 of 4 Product Wireless N Home Networks Camera Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.1dBi or 1.622 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 190.9853 0.06162 6 2437 170.6082 0.05505 11 2462 180.3018 0.05817 IEEE 802.11n (40M) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 225.9436 0.07290 6 2437 226.9865 0.07324 9 2452 242.6610 0.07829 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 122070R-RFUSP42V01 Page: 1 of 199 Test Report Product Name ： Wireless N Home Networks Camera Model No. ： DCS-930_A2, DCS-930L_A2 FCC ID. ： KA2CS930LA2 Applicant： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt：2012/02/01 Issued Date ：2012/04/12 Report No. ：122070R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 122070R-RFUSP42V01 Page: 2 of 199 Test Report Certification Issued Date : 2012/04/12 Report No. : 122070R-RFUSP42V01 Product Name ： Wireless N Home Networks Camera Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Manufacturer ： Alpha Networks Inc. M ODEL NO. ： DCS-930_A2, DCS-930L_A2 FCC ID. ： KA2CS930LA2 EUT Voltage : AC 100-240V / 50/60Hz Trade Name ： D-Link Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2011 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Quale Tang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 122070R-RFUSP42V01 Page: 3 of 199 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................................................................5 1.1. EUT Description ...................................................................................................................... 5 1.2. Operational Description ........................................................................................................... 9 1.3. Test Mode .............................................................................................................................. 10 1.4. Tested System Details ...........................................................................................................11 1.5. Configuration of tested System ............................................................................................. 11 1.6. EUT Exercise Software..........................................................................................................12 1.7. Test Facility ............................................................................................................................ 13 2. Conducted Emission ...................................................................................................................................14 2.1. Test Equipment ...................................................................................................................... 14 2.2. Test Setup.............................................................................................................................. 14 2.3. Limits ..................................................................................................................................... 15 2.4. Test Procedure ...................................................................................................................... 15 2.5. Test Specification................................................................................................................... 15 2.6. Uncertainty ............................................................................................................................ 15 2.7. Test Result............................................................................................................................. 16 2.8. Test Photo.............................................................................................................................. 18 3. Peak Power Output......................................................................................................................................19 3.1. Test Equipment ...................................................................................................................... 19 3.2. Test Setup.............................................................................................................................. 19 3.3. Test procedures ..................................................................................................................... 19 3.4. Limits ..................................................................................................................................... 19 3.5. Test Specification................................................................................................................... 19 3.6. Uncertainty ............................................................................................................................ 19 3.7. Test Result............................................................................................................................. 20 4. Radiated Emission.......................................................................................................................................36 4.1. Test Equipment ...................................................................................................................... 36 4.2. Test Setup............…
