High-Speed 2.4 GHz Manual Building Networks for People Wireless Router D-Link AirPlusXtremeG DI-624DI-624 DI-624DI-624 DI-624 TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 8 Getting Started.................................................................................... 12 Using the Configuration Menu.............................................................. 14 Networking Basics.............................................................................. 41 Troubleshooting................................................................................... 70 Technical Specifications...................................................................... 77 Contacting Technical Support.............................................................. 80 Warranty and Registration................................................................... 81 3 Contents of Package: D-Link AirPlusXTREME G DI-624 High-Speed 2.4GHz Wireless Router Power Adapter-DC 5V, 3.0A Manual and Warranty on CD Quick Installation Guide Ethernet Cable Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter Package Contents Note: Using a power supply with a different voltage rating than the one included with the DI-624 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements for Configuration: „ „ „ „ „ „ „ Ethernet-Based Cable or DSL Modem „ Internet Explorer Version 6.0 or Netscape Navigator Version 6.0 and Above 4 Introduction The D-Link AirPlusXtremeG DI-624 High-Speed Wireless Router is a draft 802.11g high- performance, wireless router that supports high-speed wireless networking at home, at work or in public places. Unlike most routers, the DI-624 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlusXtremeG products. The 802.11g standard is backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices . In addition to offering faster data transfer speeds when used with other 802.11g products, the DI-624 has the newest, strongest, most advanced security features available today. When used with other 802.11g WPA (WiFi Protected Access) and 802.1x compatible products in a network with a radius server, the security features include: WPA*:A new security feature, Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DI-624, used in conjunction with other 802.11g products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DI-624 will obtain a new security key every time it connects to the 802.11g network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security, with the DI-624, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. *WPA will be available Spring 2003 as a free download 5 Connections The Auto MDI/ MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem Auto MDI/MDIX LAN ports automatically sense the cable type when connecting to Ethernet-enabled computers. Pressing the Reset Button restores the router to its original factory default settings. Receptor for the Power Adapter 6 LEDS 3. W ess Basics M2 LED - A solid light indicates that the unit is defective. M1 LED - A solid light indicates that the DI-614+ is ready. WAN LED - A solid light indicates connection on the WAN port. This LED blinks during data transmission. POWER LED - A solid light indicates a proper connection to the power supply. WLAN LED - A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. LOCAL NETWORK LED - A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission. A solid light indicates that the unit is defective. DI-624 is ready. 7 Features WPA* (Wi Fi Protected Access) authorizes and identifies users based on a secret key that changes automatically at a regular interval, for example: 802.1x Authentication in conjunction with the radius server verifies the identity of would be clients „ „ „ TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre Shared Key mode means that the home user, without a RADIUS server, will obtain a new security key every time the he or she connects to the network, vastly improving the safety of communications on the network. „ Ba…

Text truncated - open the document above for the full version.

41 Using the Network Setup Wizard in Windows XP In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com and http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000, ME or 98. Go to Start>Control Panel>Network Connections Select Set up a home or small office network Networking Basics When this screen appears, Click Next. 42 Please follow all the instructions in this window: Networking Basics Click Next In the following window, select the best description of your computer. If your computer connects to the internet through a gateway/router, select the second option as shown. Click Next 43 Enter a Computer description and a Computer name (optional.) Networking Basics Click Next Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next 44 Please wait while the Network Setup Wizard applies the changes. Networking Basics When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 45 Networking Basics In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. 46 Networking Basics Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your net- work. To continue click Next. 47 Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After run- ning the Network Setup Disk on all your computers, your new wireless net- work will be ready to use. 48 „ Networking Basics Naming your Computer To name your computer, please follow these directions:In Windows XP: Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties and click „ „ „ „ „ Select the Computer Name Tab in the Sys- tem Properties window. You may enter a Computer Description if you wish; this field is optional. To rename the computer and join a domain, Click Change. 49 Networking Basics Naming your Computer „ In this window, enter the Computer name Select Workgroup and enter the name of the Workgroup All computers on your network must have the same Workgroup name. Click OK „ „ „ Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Address range (see Getting Started in this manual for a definition of IP Ad- dress Range.) To check on the IP Address of the adapter, please do the follow- ing: Right-click on the Local Area Connection icon in the task bar Click on Status „ „ 50 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab Click Close „ „ Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Addresses to the computers on the network, using DHCP (Dynamic Host Con- figuration Protocol) technology. If you are using a DHCP-capable Gateway/ Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: „ „ Go to Start Double-click on Control Panel 51 Networking Basics Assigning a Static IP Address in Windows XP/2000 „ Double-click on Network Connections „ „ Double-click on Properties Right-click on Local Area Connections 52 Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Networking Basics Assigning a Static IP Address in Windows XP/2000 Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway.) „ The DNS server information will be supplied by your ISP (Internet Service Provider.) „ Click OK Click on Internet Protocol (TCP/IP) Click Properties „ „ „ 53 Networking Basics Assigning a Static IP Address with Macintosh OSX „ „ „ „ „ „ Go to the Apple Menu and se- lect System Preferences cClick on Network Select Built-in Ethernet in the Show pull-down menu Select Manually in the Configure pull-down menu Input the Static IP Ad- dress, the Subnet Mask and the Router IP Ad- dress in the appropriate fields Click Apply Now 54 Networking Basics Selecting a Dynamic IP Address with Macintosh OSX Go to the Apple Menu and se- lect System Preferences Click on Network Select Built-in Ethernet in the Show pull-down menu Select Using DHCP in the Configure pull-down menu Click Apply Now The IP Address, Subnet mask, and the Router’s IP Address will appear in a few seconds „ „ „ „ „ „ 55 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows Me and 98 Go to Start > Run > type cmd. A window similar to this one will ap- pear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Acess Point, as shown. Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP Address of the Wireless Router or Acc…

Text truncated - open the document above for the full version.

61 Networking Basics Adding a local printer Go to Start> Printers and Faxes A successful installation will display the printer icon as shown at right. You have successfully added a local printer. Sharing a network printer After you have run the Network Setup Wizard on all the computers on your network, you can run the Add Printer Wizard on all the computers on your network. Please follow these directions to use the Add Printer Wizard to share a printer on your network: Go to Start> Printers and Faxes „ „ 62 Networking Basics Sharing a network printer Click on Add a printer Click Next Select Network Printer Click Next „ „ „ „ 63 Networking Basics Sharing a network printer Select Browse for a printer Click Next Select the printer you would like to share Click Next Click Finish „ „ „ „ 64 Networking Basics Sharing a network printer To check for proper installation: Go to Start > Printers and Faxes The printer icon will appear at right, indicating proper installation. You have completed adding the printer. To share this printer on your network: Remember the printer name Run the Add Printer Wizard on all the computers on your network Make sure you have already run the Network Setup Wizard on all the network computers After you run the Add Printer Wizard on all the computers in the network, you can share the printer. „ „ „ „ „ 65 Networking Basics Sharing an LPR printer To share an LPR printer (using a print server,) you will need a Print Server such as the DP-101P+. Please make sure that you have run the Network Setup Wizard on all the computers on your network. To share an LPR printer, please follow these directions: Go to Start > Printers and Faxes Click on Add a Printer The screen to the right will appear Click Next Select Local Printer... Click Next „ „ „ „ „ 66 Networking Basics Sharing an LPR printer Select Create a new port From the pull-down menu, select Standard TCP/ IP Port, as shown. Click Next Please read the instructions on this screen Click Next Enter the Printer IP Address and the Port Name, as shown. Click Next „ „ „ „ „ „ „ 67 Networking Basics Sharing an LPR printer In this screen, select Custom Click Settings Enter the Port Name and the Printer Name or IP Address. Select LPR Enter a Queue Name (if your Print- Server/ Gateway has more than one port, you will need a Queue name.) Click OK „ „ „ „ „ „ 68 Networking Basics Sharing an LPR printer Click Next Select Keep existing driver If the printer driver is already installed, do the following: Click Have Disk Insert the printer driver disk that came with your printer. Select the printer you are adding from the list of Printers. Click Finish This screen will show you information about your printer. „ „ „ „ „ „ „ 69 Networking Basics Sharing an LPR printer Note: You must run the Network Setup Wizard on all the computers on your network before you run the Add Printer Wizard. Please run the Add Printer Wizard on all the comput- ers on your network in order to share the printer. Click Finish to complete the addition of the printer. This screen will display informa- tion about your printer. Click Next Select Yes, to print a test page. Click Next Please remember the name of your printer. You will need this information when you use the Add Printer Wizard on the other computers on your network. You can rename your printer if you choose. It is optional. „ „ „ „ „ „ „ 70 1.The computer used to configure the DI-624 cannot access the Configuration menu. Check that the Ethernet LED on the DI-624 is ON. If the LED is not ON, check that the cable for the Ethernet connection is securely inserted. Check that the Ethernet Adapter is working properly. Please see item 3 (Check that the drivers for the network adapters are installed properly) in this Troubleshooting section to check that the drivers are loaded properly. Check that the IP Address is in the same range and subnet as the DI-624. Please see Checking the IP Address in Windows XP in the Networking Basics section of this manual. Note: The IP Address of the DI-624 is 192.168.0.1. All the computers on the network must have a unique IP Address in the same range, e.g., 192.168.0.x. Any computers that have identical IP Addresses will not be visible on the network. They must all have the same subnet mask, e.g., 255.255.255.0 Do a Ping test to make sure that the DI-624 is responding. Go to Start>Run>Type Command>Type ping 192.168.0.1. A successful ping will show four replies. Troubleshooting This Chapter provides solutions to problems that can occur during the installation and operation of the DI-624 Wireless Broadband Router. We cover various aspects of the network setup, including the network adapters. Please read the following if you are having problems. Note: If you have changed the default IP Address, make sure to ping the correct IP Address assigned to the DI-624. Note: It is recommended that you use an Ethernet connection to configure the DI-624 Wireless Broadband Router. „ „ „ „ 71 2. The wireless client cannot access the Internet in the Infrastructure mode. Make sure the wireless client is associated and joined with the correct Access Point. To check this connection: Right-click on the Local Area Connection icon in the taskbar> select View Available Wireless Networks. The Connect to Wireless Network screen will appear. Please make sure you have selected the correct available network, as shown in the illustrations below. Troubleshooting Check that the IP Address assigned to the wireless adapter is within the same IP Address range as the access point and gateway. (Since the DI-624 has an IP Address of 192.168.0.1, wireless adapters must have an IP Address in the same range, e.g., 192.168.0.x. Each device must have a unique IP Address; no two devices may have the same IP Address. The subnet mask must be the same for all the computers on the network.) To check the IP Address assigned to the wireless adapter, double-click on the Local Area Connection icon in the taskbar > select the Support ta…

Text truncated - open the document above for the full version.

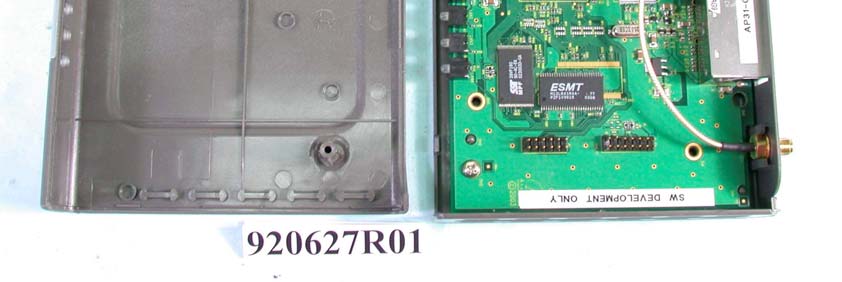

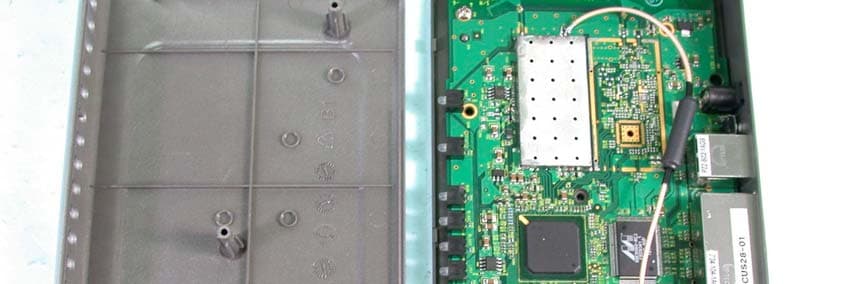

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

DI-624 Wireless Broadband Router This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1 ) this device may not cause harmful interference. ( 2 ) it must accept any interference received including interference that may cause undesired operations. MADE IN TAIWAN C A I T N I O U N M M C O O C M M L I A S R S E I O D N E F U A S

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: KA2DI624VC1 ADT No.920627R01 Operational Description This device is a 2.4GHz Wireless Broadband Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by power adapter and connected with managing computer through RJ45 port. The antenna is Dipole antenna with R-SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. The other instruction, please have a look at the users manual.

FCC ID: KA2DI624VC1 ADT No.: 920627R01 FCC TEST REPORT REPORT NO.: RF920627R01 MODEL NO.: DI-624 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DI624VC1 ADT No.: 920627R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA2DI624VC1 ADT No.: 920627R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA2DI624VC1 ADT No.: 920627R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241237.580.0121.0 6243776.560.0241.0 11246247.210.0151.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241242.070.0131.0 6243794.190.0301.0 11246254.200.0171.0

FCC ID: KA2DI624VC1 Report No.: RF920627R011Issued: May 26, 2003 FCC TEST REPORT REPORT NO.: RF920627R01 MODEL NO.: DI-624 RECEIVED: June. 27, 2003 TESTED: June. 25, 2003 ~ June 30, 2003 APPLICANT: D-LINK CORPORATION ADDRESS: No. 8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DI624VC1 Report No.: RF920627R012Issued: May 26, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 31 4.3.2TEST INSTRUMENTS ................................................................................ 31 4.3.3TEST PROCEDURE ................................................................................... 32 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 32 4.3.5TEST SETUP .............................................................................................. 32 4.3.6EUT OPERATING CONDITIONS................................................................ 32 4.3.7TEST RESULTS.......................................................................................... 33 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 41 4.4.2TEST INSTRUMENTS ................................................................................ 41 4.4.3TEST PROCEDURES................................................................................. 42 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 42 FCC ID: KA2DI624VC1 Report No.: RF920627R013Issued: May 26, 2003 4.4.5TEST SETUP .............................................................................................. 42 4.4.6EUT OPERATING CONDITIONS................................................................ 42 4.4.7TEST RESULTS.......................................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 45 4.5.2TEST INSTRUMENTS ................................................................................ 45 4.5.3TEST PROCEDURE ................................................................................... 46 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 46 4.5.5TEST SETUP .............................................................................................. 46 4.5.6EUT OPERATING CONDITIONS................................................................ 46 4.5.7TEST RESULTS.......................................................................................... 47 4.6BAND EDGES MEASUREMENT ................................................................ 55 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 55 4.6.2TEST INSTRUMENTS ................................................................................ 55 4.6.3TEST PROCEDU…

Text truncated - open the document above for the full version.

FCC ID: KA2DI624VC1 Report No.: RF920627R0170Issued: May 26, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DI624VC1 Report No.: RF920627R0171Issued: May 26, 2003 RADIATED EMISSION TEST
