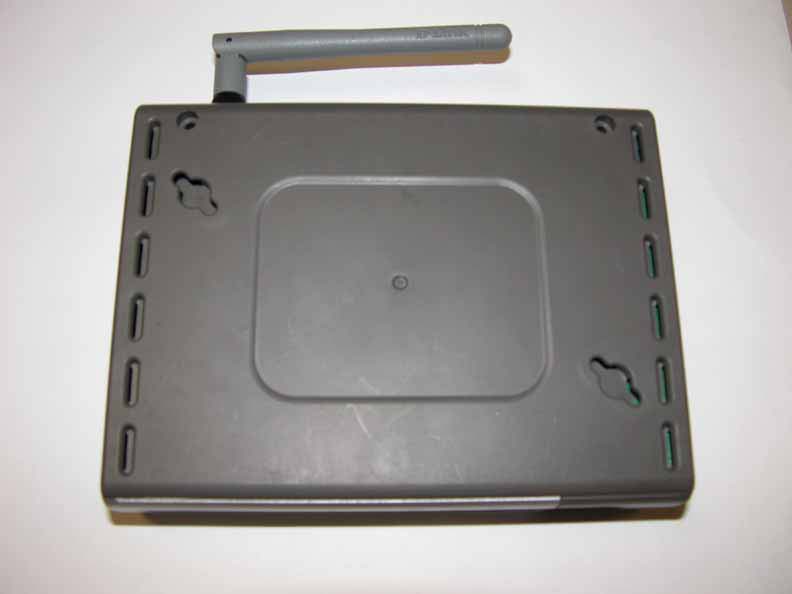

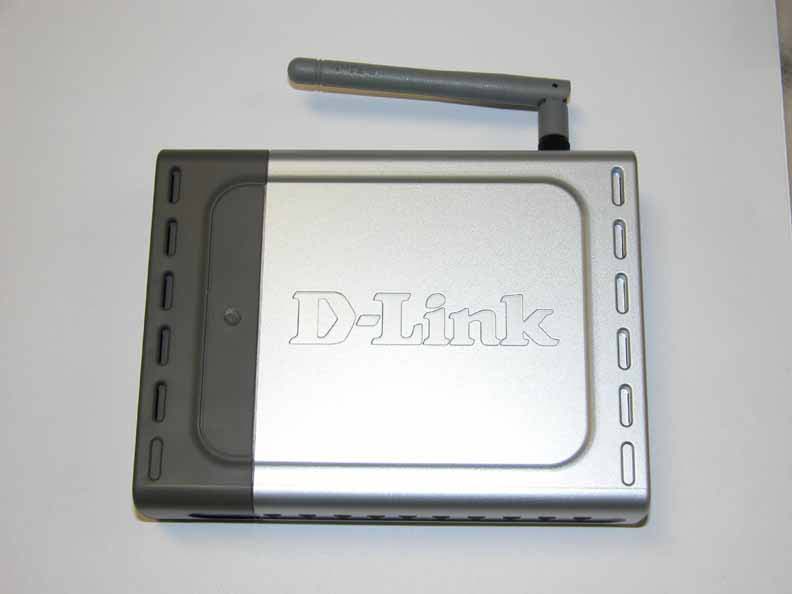

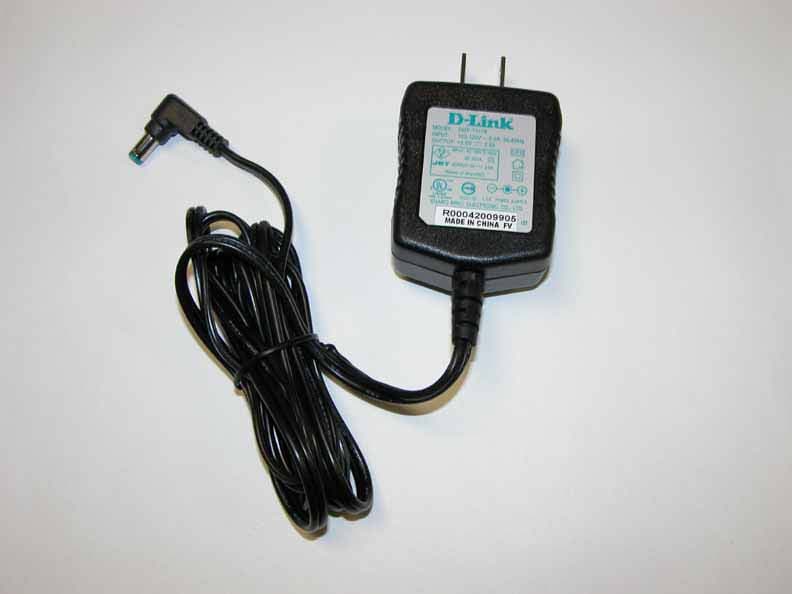

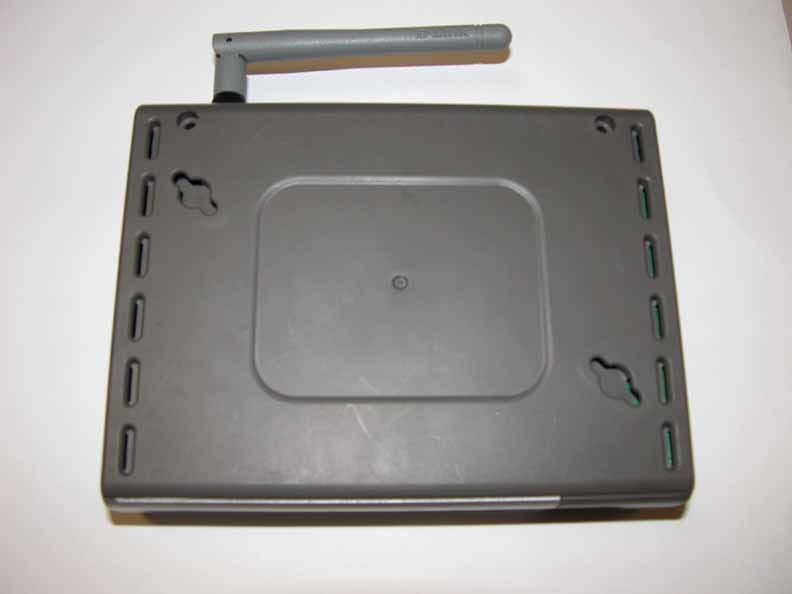

KA2DI524C1802.11 b/g WLAN Router

802.11g/2.4GHz Manual Building Networks for People Wireless Router D-Link AirPlus G DI-524DI-524 DI-524DI-524 DI-524 TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 8 Getting Started.................................................................................... 11 Using the Configuration Menu.............................................................. 12 Networking Basics.............................................................................. 39 Troubleshooting................................................................................... 54 Technical Specifications...................................................................... 61 Frequently Asked Questions................................................................ 64 Contacting Technical Support.............................................................. 92 Warranty and Registration................................................................... 93 3 Internet Explorer Version 6.0 or Netscape Navigator Version 6.0 and Above Contents of Package: D-Link AirPlus G DI-524 802.11g/2.4GHz Wireless Router Power Adapter-DC 5V, 2.5A Manual and Warranty on CD Quick Installation Guide Ethernet Cable (All the DI-524’s Ethernet ports are Auto-MDIX) Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter Package Contents Note: Using a power supply with a different voltage rating than the one included with the DI-524 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements for Configuration: „ „ „ „ „ „ „ Ethernet-Based Cable or DSL Modem „ 4 Introduction The D-Link AirPlus G DI-524 802.11g/2.4 Ghz Wireless Router is an 802.11g high- performance, wireless router that supports high-speed wireless networking at home, at work or in public places. Unlike most routers, the DI-524 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus G products. The 802.11g standard is backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices . In addition to offering faster data transfer speeds when used with other 802.11g products, the DI-524 has the newest, strongest, most advanced security features available today. When used with other 802.11g WPA (WiFi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DI-524, used in conjunction with other 802.11g products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DI-524 will obtain a new security key every time it connects to the 802.11g network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security, with the DI-524, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. 5 Connections All Ethernet Ports (WAN and LAN) are auto MDI/MDIX, meaning you can use either a straight-through or a crossover Ethernet cable. The Auto MDI/ MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem Auto MDI/MDIX LAN ports automatically sense the cable type when connecting to Ethernet-enabled computers. Receptor for the Power Adapter Pressing the Reset Button restores the router to its original factory default settings. 6 LEDs WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission POWER LED A solid light indicates a proper connection to the power supply STATUS A blinking light indicates that the DI-524 is ready WAN LED A solid light indi- cates connection on the WAN port. This LED blinks during data trans- mission LOCAL NETWORK LED A solid light indicates a connection to an Ethernet-enabled computer on ports 1- 4. This LED blinks during data trans- mission 7 Features WPA (Wi Fi Protected Access) authorizes and identifies users based on a secret key that changes automatically at a regular interval, for example: 802.1x Authentication in conjunction with the RADIUS server verifies the identity of would be clients „ „ „ TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre Shared Key mode means that the home user, without a RADIUS server, can connect securely via a pre-shared key, vastly improving the safety of communications on the network. „ Backwards compatible with th…

Text truncated - open the document above for the full version.

39 Using the Network Setup Wizard in Windows XP In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com and http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000, ME or 98. Go to Start>Control Panel>Network Connections Select Set up a home or small office network Networking Basics When this screen appears, Click Next. 40 Please follow all the instructions in this window: Networking Basics Click Next In the following window, select the best description of your computer. If your computer connects to the internet through a gateway/router, select the second option as shown. Click Next 41 Enter a Computer description and a Computer name (optional.) Networking Basics Click Next Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next 42 Please wait while the Network Setup Wizard applies the changes. Networking Basics When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 43 Networking Basics In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. Click Next. 44 Networking Basics Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next. Please wait while the Network Setup Wizard copies the files. 45 Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 46 „ Networking Basics Naming your Computer To name your computer, please follow these directions:In Windows XP: Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties and click „ „ „ „ „ Select the Computer Name Tab in the System Properties window. You may enter a Computer Description if you wish; this field is optional. To rename the computer and join a domain, Click Change. 47 Networking Basics Naming your Computer „ In this window, enter the Computer name Select Workgroup and enter the name of the Workgroup All computers on your network must have the same Workgroup name. Click OK „ „ „ Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Ad- dress range (see Getting Started in this manual for a definition of IP Address Range.) To check on the IP Address of the adapter, please do the following: Right-click on the Local Area Connection icon in the task bar Click on Status „ „ 48 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab Click Close „ „ Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable Gateway/Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: „ „ Go to Start Double-click on Control Panel 49 Networking Basics Assigning a Static IP Address in Windows XP/2000 „ Double-click on Network Connections „ „ Double-click on Properties Right-click on Local Area Connections 50 Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Networking Basics Assigning a Static IP Address in Windows XP/2000 Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway.) „ The DNS server information will be supplied by your ISP (Internet Service Provider.) „ Click OK Click on Internet Protocol (TCP/IP) Click Properties „ „ „ „ Select Use the following IP address in the Internet Protocol (TCP/IP) Properties window (shown below) 51 Networking Basics Assigning a Static IP Address with Macintosh OSX „ „ „ „ „ „ Go to the Apple Menu and se- lect System Preferences cClick on Network Select Built-in Ethernet in the Show pull-down menu Select Manually in the Con- figure pull-down menu Input the Static IP Address, the Subnet Mask and the Router IP Address in the ap- propriate fields Click Apply Now 52 Networking Basics Selecting a Dynamic IP Address with Macintosh OSX Go to the Apple Menu and select System Preferences Click on Network Select Built-in Ethernet in the Show pull-down menu Select Using DHCP in the Configure pull-down menu Click Apply Now The IP Address, Subnet mask, and the Router’s IP Address will appear in a few seconds „ „ „ „ „ „ 53 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows Me and 98 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Acess Point, as sh…

Text truncated - open the document above for the full version.

54 Troubleshooting This Chapter provides solutions to problems that can occur during the installation and operation of the DI-524 Wireless Broadband Router. We cover various aspects of the network setup, including the network adapters. Please read the following if you are having problems. Note: If you have changed the default IP Address, make sure to ping the correct IP Address assigned to the DI-524. Note: It is recommended that you use an Ethernet connection to configure the DI-524 Wireless Broadband Router. 1.The computer used to configure the DI-524 cannot access the Configuration menu. Check that the Ethernet LED on the DI-524 is ON. If the LED is not ON, check that the cable for the Ethernet connection is securely inserted. Check that the Ethernet Adapter is working properly. Please see item 3 (Check that the drivers for the network adapters are installed properly) in this Troubleshooting section to check that the drivers are loaded properly. Check that the IP Address is in the same range and subnet as the DI-524. Please see Checking the IP Address in Windows XP in the Networking Basics section of this manual. Note: The IP Address of the DI-524 is 192.168.0.1. All the computers on the network must have a unique IP Address in the same range, e.g., 192.168.0.x. Any computers that have identical IP Addresses will not be visible on the network. They must all have the same subnet mask, e.g., 255.255.255.0 Do a Ping test to make sure that the DI-524 is responding. Go to Start>Run>Type Command>Type ping 192.168.0.1. A successful ping will show four replies. „ „ „ „ 55 2. The wireless client cannot access the Internet in the Infrastructure mode. Make sure the wireless client is associated and joined with the correct Access Point. To check this connection: Right-click on the Local Area Connection icon in the taskbar> select View Available Wireless Networks. The Connect to Wireless Network screen will appear. Please make sure you have selected the correct available network, as shown in the illustrations below. Troubleshooting Check that the IP Address assigned to the wireless adapter is within the same IP Address range as the access point and gateway. (Since the DI-524 has an IP Address of 192.168.0.1, wireless adapters must have an IP Address in the same range, e.g., 192.168.0.x. Each device must have a unique IP Address; no two devices may have the same IP Address. The subnet mask must be the same for all the computers on the network.) To check the IP Address assigned to the wireless adapter, double-click on the Local Area Connection icon in the taskbar > select the Support tab and the IP Address will be displayed. (Please refer to Checking the IP Address in the Networking Basics section of this manual.) If it is necessary to assign a Static IP Address to the wireless adapter, please refer to the appropriate section in Networking Basics. If you are entering a DNS Server address you must also enter the Default Gateway Address. (Remember that if you have a DHCP-capable router, you will not need to assign a Static IP Address. See Networking Basics: Assigning a Static IP Address.) default „ „ 56 Troubleshooting 3. Check that the drivers for the network adapters are installed properly. You may be using different network adapters than those illustrated here, but this procedure will remain the same, regardless of the type of network adapters you are using. Click Device Manager. „ Select the Hardware Tab. „ „ Go to Start > My Computer > Properties. 57 Troubleshooting „ „ „ „ „ Double-click on Network Adapters. Right-click on D-Link AirPlus DWL-G650 Wireless Cardbus Adapter (In this example we use the DWL-G650; you may be using other network adapters, but the procedure will remain the same.) Select Properties to check that the drivers are in- stalled properly. Look under Device Status to check that the device is working properly. Click OK. D-Link AirPlus DWL-650 D-Link AirPlus DWL-650 Wireless Cardbus Adapter D-Link AirPlus DWL-G650 Wireless Cardbus Adapter 58 Troubleshooting 4. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advantageous placement of your D-Link wireless products. 5. Why does my wireless connection keep dropping? 6. Why can’t I get a wireless connection? If you have enabled Encryption on the DI-524, you must also enable encryption on all wireless clients in order to establish a wireless connection. Make sure that the SSID on the Router and the Wireless Client are exactly the same. If they are not, wireless connection will not be established. For 802.11b, the Encryption settings are: 64 or 128 bit. Make sure that the en- cryption bit level is the same on the Router and the Wireless Client. „ „ Move the DI-524 and the wireless client into the same room and then test the wireless connection. „ Disable all security settings. (WEP, MAC Address Control) „ Antenna Orientation- Try different antenna orientations for the DI-524. Try to keep the antenna at least 6 inches away from the wall or other objects. „ If you are using 2.4GHz cordless phones, X-10 equipment or other home secu- rity systems, ceiling fans, and lights, your wireless connection will degrade dra- matically or drop altogether. Try changing the Channel on your Router, Access Point and Wireless adapter to a different Channel to avoid interference. „ Keep your product away (at least 3-6 feet) from electrical devices that generate RF noise, like microwaves, Monitors, electric motors, etc. „ 59 Troubleshooting 6. Why can’t I get a wireless connection? (continued) Turn off your DI-524 and the client. Turn the DI-524 back on again, and then turn on the client. „ Check that the LED indicators are indicating normal a…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION D-LINK CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: KA2DI524C1 FCC ID LABEL LOCATION

FCC ID: KA2DI524C1 Antenna Specification For 2.4GHz Printed Antenna General Description The PCB antenna is designed specifically for operation in the 2.4GHz band. It is a monopole antenna type, and is printed on the pcb fab. Features • Operating frequencies: 2.4-2.4835GHz for IEEE 802.11b/g applications • Omni-directional pattern • 0dBi peak antenna gain Electrical The antenna has been designed to meet the electrical characteristics shown in Table 0-1. Table 0-1. Antenna Electrical Specifications Parameter Specification Input VSWR 2:1 Max Max. Gain 0.0dBi Polarization Horizontal Frequency Range 2.4-2.4835GHz Printed pcb traces Electrical Ground RF feed point

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 2.4GHZ WIRELESS ROUTER MODEL NUMBER: DI-524 FCC ID: KA2DI524C1 REPORT NUMBER: 04U2807-1 ISSUE DATE: JULY 1, 2004 Prepared for D-LINK CORPORATION 2F, NO. 233-2, PAO-CHIAO RD., HSIN-TEIN 231 TAIPEI TAIWAN, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 2 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 12 7.1. 6 dB BANDWIDTH ..................................................................................................................... 12 7.2. 99% BANDWIDTH ..................................................................................................................... 20 7.3. PEAK OUTPUT POWER............................................................................................................ 28 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 37 7.5. AVERAGE POWER..................................................................................................................... 40 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 41 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 49 7.8. RADIATED EMISSIONS.............................................................................................................64 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 64 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ, PCB Monopole Antenna . 67 7.8.3. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ, Dipole Antenna ............... 86 8. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ...................................................... 105 8.1. POWERLINE CONDUCTED EMISSIONS .............................................................................. 109 9. SETUP PHOTOS ............................................................................................................................ 112 REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 3 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: D-LINK CORPORATION 2F, NO. 233-2, PAO-CHIAO RD., HSIN-TEIN 231 TAIPEI TAIWAN, R.O.C. EUT DESCRIPTION: 802.11b/g 2.4GHz Wireless Router MODEL: DI-524 DATE TESTED: JUNE 11 – 29, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: NEELESH RAJ CHIN PANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 4 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. …

Text truncated - open the document above for the full version.

REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 112 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 113 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 114 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 115 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE RADIATED EMISSIONS SETUP DIGITAL DEVICE FRONT PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 116 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE BACK PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 117 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2807-1 DATE: JULY 1, 2004 EUT: 802.11 b/g Wireless Router FCC ID: KA2DI524C1 Page 118 of 118 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
