KA2DI624D2AirPlus XTERME G 2.4GHz Wireless Router

High-Speed 2.4 GHz Manual Building Networks for People Wireless Router D-Link AirPlus Xtreme G DI-624DI-624 DI-624DI-624 DI-624 TM Version 1.06 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 8 Getting Started.................................................................................... 11 Using the Configuration Menu.............................................................. 12 Networking Basics.............................................................................. 40 Troubleshooting................................................................................... 55 Technical Specifications...................................................................... 62 Frequently Asked Questions................................................................ 65 Contacting Technical Support.............................................................. 93 Warranty.............................................................................................. 94 Registration........................................................................................ 97 3 Internet Explorer Version 6.0 or Netscape Navigator Version 6.0 and Above Contents of Package: D-Link AirPlus XTREME G DI-624 High-Speed 2.4GHz Wireless Router Power Adapter-DC 7.5V, 1A Manual and Warranty on CD Quick Installation Guide Ethernet Cable (All the DI-624’s Ethernet ports are Auto-MDIX) Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter Package Contents Note: Using a power supply with a different voltage rating than the one included with the DI-624 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements for Configuration: „ „ „ „ „ „ „ Ethernet-Based Cable or DSL Modem „ 4 Introduction The D-Link AirPlus Xtreme G DI-624 High-Speed Wireless Router is an 802.11g high- performance, wireless router that supports high-speed wireless networking at home, at work or in public places. Unlike most routers, the DI-624 provides data transfers at up to 108 Mbps (compared to the standard 54 Mbps) when used with other D-Link AirPlus Xtreme G products. The 802.11g standard is backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices . In addition to offering faster data transfer speeds when used with other 802.11g products, the DI-624 has the newest, strongest, most advanced security features available today. When used with other 802.11g WPA (WiFi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DI-624, used in conjunction with other 802.11g products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DI-624 will obtain a new security key every time it connects to the 802.11g network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security, with the DI-624, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. 5 Connections All Ethernet Ports (WAN and LAN) are auto MDI/MDIX, meaning you can use either a straight-through or a crossover Ethernet cable. The Auto MDI/ MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem Auto MDI/MDIX LAN ports automatically sense the cable type when connecting to Ethernet-enabled computers. Receptor for the Power Adapter Pressing the Reset Button restores the router to its original factory default settings. 6 LEDs WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. POWER LED A solid light indicates a proper connection to the power supply. STATUS A blinking light indicates that the DI-624 is ready. WAN LED A solid light indi- cates connection on the WAN port. This LED blinks during data trans- mission. LOCAL NETWORK LED A solid light indicates a connection to an Ethernet-enabled computer on ports 1- 4. This LED blinks during data trans- mission. 7 Features WPA (Wi Fi Protected Access) authorizes and identifies users based on a secret key that changes automatically at a regular interval, for example: 802.1x Authentication in conjunction with the RADIUS server verifies the identity of would be clients „ „ „ TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre Shared Key mode means that the home use…

Text truncated - open the document above for the full version.

51 Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Networking Basics Assigning a Static IP Address in Windows XP/2000 Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway.) „ The DNS server information will be supplied by your ISP (Internet Service Provider.) „ Click OK Click on Internet Protocol (TCP/IP) Click Properties „ „ „ 52 Networking Basics Assigning a Static IP Address with Macintosh OSX „ „ „ „ „ „ Go to the Apple Menu and se- lect System Preferences cClick on Network Select Built-in Ethernet in the Show pull-down menu Select Manually in the Con- figure pull-down menu Input the Static IP Address, the Subnet Mask and the Router IP Address in the ap- propriate fields Click Apply Now 53 Networking Basics Selecting a Dynamic IP Address with Macintosh OSX Go to the Apple Menu and select System Preferences Click on Network Select Built-in Ethernet in the Show pull-down menu Select Using DHCP in the Configure pull-down menu Click Apply Now The IP Address, Subnet mask, and the Router’s IP Address will appear in a few seconds „ „ „ „ „ „ 54 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows Me and 98 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Acess Point, as shown. Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP Address of the Wireless Router or Access Point. A good wireless connection will show four replies from the wireless router or access point, as shown. „ „ 55 Troubleshooting This Chapter provides solutions to problems that can occur during the installation and operation of the DI-624 Wireless Broadband Router. We cover various aspects of the network setup, including the network adapters. Please read the following if you are having problems. Note: If you have changed the default IP Address, make sure to ping the correct IP Address assigned to the DI-624. Note: It is recommended that you use an Ethernet connection to configure the DI-624 Wireless Broadband Router. 1.The computer used to configure the DI-624 cannot access the Configuration menu. Check that the Ethernet LED on the DI-624 is ON. If the LED is not ON, check that the cable for the Ethernet connection is securely inserted. Check that the Ethernet Adapter is working properly. Please see item 3 (Check that the drivers for the network adapters are installed properly) in this Troubleshooting section to check that the drivers are loaded properly. Check that the IP Address is in the same range and subnet as the DI-624. Please see Checking the IP Address in Windows XP in the Networking Basics section of this manual. Note: The IP Address of the DI-624 is 192.168.0.1. All the computers on the network must have a unique IP Address in the same range, e.g., 192.168.0.x. Any computers that have identical IP Addresses will not be visible on the network. They must all have the same subnet mask, e.g., 255.255.255.0 Do a Ping test to make sure that the DI-624 is responding. Go to Start>Run>Type Command>Type ping 192.168.0.1. A successful ping will show four replies. „ „ „ „ 56 2. The wireless client cannot access the Internet in the Infrastructure mode. Make sure the wireless client is associated and joined with the correct Access Point. To check this connection: Right-click on the Local Area Connection icon in the taskbar> select View Available Wireless Networks. The Connect to Wireless Network screen will appear. Please make sure you have selected the correct available network, as shown in the illustrations below. Troubleshooting Check that the IP Address assigned to the wireless adapter is within the same IP Address range as the access point and gateway. (Since the DI-624 has an IP Address of 192.168.0.1, wireless adapters must have an IP Address in the same range, e.g., 192.168.0.x. Each device must have a unique IP Address; no two devices may have the same IP Address. The subnet mask must be the same for all the computers on the network.) To check the IP Address assigned to the wireless adapter, double-click on the Local Area Connection icon in the taskbar > select the Support tab and the IP Address will be displayed. (Please refer to Checking the IP Address in the Networking Basics section of this manual.) If it is necessary to assign a Static IP Address to the wireless adapter, please refer to the appropriate section in Networking Basics. If you are entering a DNS Server address you must also enter the Default Gateway Address. (Remember that if you have a DHCP-capable router, you will not need to assign a Static IP Address. See Networking Basics: Assigning a Static IP Address.) default „ „ 57 Troubleshooting 3. Check that the drivers for the network adapters are installed properly. You may be using different network adapters than those illustrated here, but this procedure will remain the same, regardless of the type of network adapters you are using. Click Device Manager „ Select the Hardware Tab „ „ Go to Start > My Computer > Properties 58 Troubleshooting „ „ „ „ „ Double-click on Network Adapters Right-click on D-Link AirPlus DWL-G650 Wireless Cardbus Adapter (In this example we use the DWL-G650; you may be using other network adapters, but the procedure will remain the same.) Select Properties to check that the drivers are in- stalled properly Look under Device Status to check that the device is working properly Cl…

Text truncated - open the document above for the full version.

DI-624 Air Plus Xtreme G 2.4GHz Wireless Router 7.5V 1A DC Power Adapter ©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifi cations subject to change without notice. Before You Begin 1. If you purchased this router to share your high-speed Internet connection with other computers, you must have either an Ethernet-based Cable or DSL modem with an established Internet account from an Internet Service Provider (ISP). 2. It’s best to use the same computer that is connected to your modem for confi guring the DI-624 Multimode Wireless Router. The DI-624 acts as a DHCP server and will assign all the necessary IP address information on your network. See Appendix at the end of this Quick Installation Guide or the Manual on the CD-ROM for setting each network adapter to automatically obtain an IP address. Check Your Package Contents DI-624 Air Plus Xtreme G 2.4GHz Wireless Router CD-ROM (containing Manual and Warranty) Ethernet (Straight Through) Cable Using a power supply with a different volt- age rating will damage and void the warranty of this product. If any of the above items are missing, please contact your reseller. This product can be set up using any current web browser, i.e., Internet Explorer 6 or Netscape Navigator 7 2 Connecting The DI-624 Wireless Router To Your Network A.First, connect the power adapter to the receptor at the back panel of the DI-624 and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED will turn ON to indicate proper operation. B.1. Power off your Cable or DSL modem; some devices may not have a on/off switch and will require you to unplug the power adapter. Now, the DI-624 should be powered on and the Cable / DSL modem should be turned off. 2. Cable / DSL modem (Power Off) – DI-624 (Power On) Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem. After the Ethernet cable is securely connected, power on the Cable / DSL modem by turning on the unit or plugging in the power adapter. 3. Cable / DSL modem (Power On) – DI-624 (Power On) Insert the other end of the Ethernet cable to the WAN PORT on the back panel of the DI-624. The WAN LED light will illuminate to indicate proper connection. If the WAN LED is not illuminated, please go back to step B1 and repeat the instructions. C.Insert an Ethernet cable to LAN port 1 on the back panel of the DI-624 and an available Ethernet port on the network adapter in the computer you will use to configure the DI-624. The LED light for LAN Port 1 will illuminate to indicate proper connection. (Note: The LAN Ports on the DI-624 are Auto-MDI/MDIX. Meaning you can use a straight-through or crossover Ethernet cable to the LAN Ports.) D.Computers equipped with 802.11g wireless adapters will be able to connect to the DI-624. The DWL-G650 AirPlus Xtreme G Wireless Cardbus Adapter and the DWL-G520 AirPlus Xtreme G Wireless PCI Adapter will be able to connect out of the box with the router using their default wireless settings. B. WAN PORT This is for the connection of an Ethernet cable to the Cable or DSL modem D. Antennas Used to wirelessly connect to 802.11g or 802.11b adapters. C. LAN PORTS These are the connections for Ethernet cables to Ethernet enabled computers. A. Receptor for Power Adapter. Reset Button Pressing this button restores the Router to its original factory default settings. 3 Restart Your Computer Connecting Additional Computers To The DI-624 LOCAL NETWORK LEDs – a solid light on the port indicates a connection to an Ethernet enabled computer on ports 1-4. This LED blinks during data transmission. Power LED – a solid light indicates a proper connection to the power supply. WLAN LED – a solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. Status LED – a blinking light indicates that the DI-624 is functioning properly. When you have completed the steps in this Quick Installation Guide, your connected network should look similar to this: Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DI-624 WAN LED – a solid light indicates connection on the WAN port. This LED blinks during data transmission. 4 Once you have logged in, the Home screen will appear. Click Run Wizard Using The Setup Wizard The logon pop-up screen will appear. Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key. Type “admin” for the username and leave the password field blank. Click OK 5 The Setup Wizard (continued) You will see the following screens Set up your new password. You have the option to establish a password. Click Next Click Next Choose your time zone from the drop down list. Click Next 6 If you selected Dynamic IP Ad- dress, this screen will appear: (Used mainly for Cable Internet service.) Click the “Clone MAC Address” button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address. The Setup Wizard (continued) Select your Internet Connection. You will be prompted to select the type of Internet connection for your router. If you are unsure of which setting to select, please contact your Internet Service Provider. Click Next Click Next This setup should be done on the computer that is registered on the ISP’s network. Please continue to Wireless Setup. A this point, the setup wizard will try to auto-detect your Internet connec- tion type. If you have a Dynamic or PPPoE connection, you will be brought to the corresponding page. Otherwise, you will see the following screen: 7 The Setup Wizard (continued) If your ISP requires a Static IP Address, and this option is selected, then this screen will appear: Enter the IP address information originally provided to you by your ISP. You will need to complete all t…

Text truncated - open the document above for the full version.

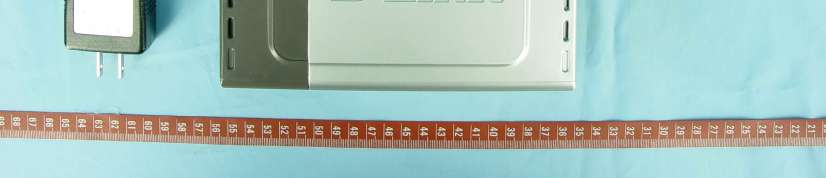

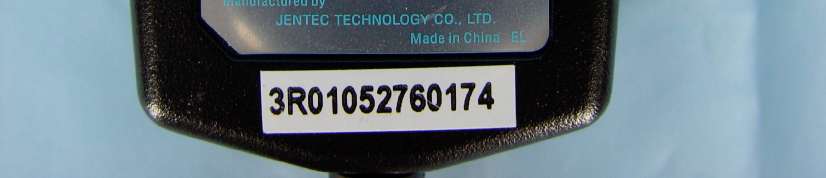

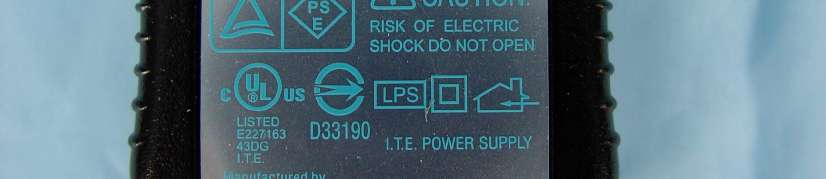

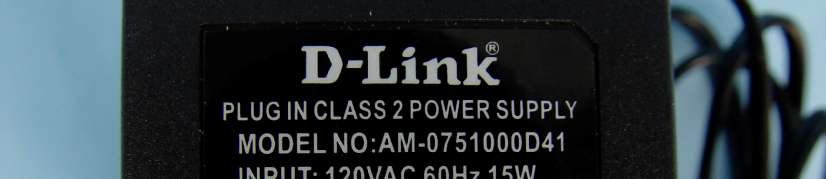

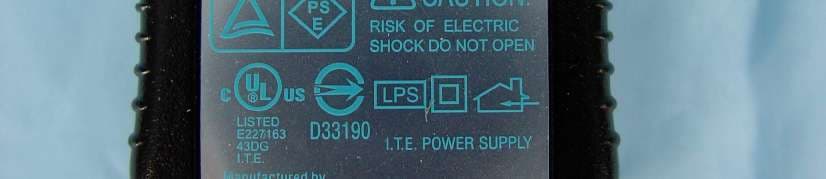

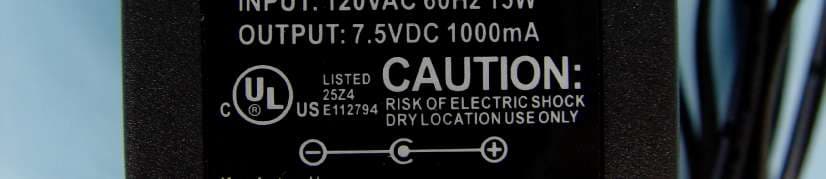

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID : KA2DI624D2 Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: KA2DI624D2 Report No.RF940930L01 Operational Description This device is a AirPlus XTERME G 2.4GHz Wireless Router which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with Reverse SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: KA2DI624D2 Report No: SA940930L01 1 RF EXPOSURE REPORT REPORT NO.: SA940930L01 MODEL NO.: DI-624 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DI624D2 Report No: SA940930L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DI624D2 Report No: SA940930L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DI624D2 Report No: SA940930L01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.2340.0161.0 6243750.8160.0161.0 11246250.8160.0161.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.1680.0161.0 6243750.2340.0161.0 11246250.5820.0161.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243751.0500.0161.0

FCC ID: KA2DI624D2 Report No.: RF940930L011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940930L01 MODEL NO.: DI-624 RECEIVED: Sep. 29, 2005 TESTED: Sep. 29 ~ Oct. 04, 2005 ISSUED: Oct. 07, 2005 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 88 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DI624D2 Report No.: RF940930L012Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION.........................................................................................................4 2.SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3.GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.2.4 DESCRIPTION OF SUPPORT UNITS......................................................................10 4. TEST TYPES AND RESULTS...................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2 TEST INSTRUMENTS..............................................................................................11 4.1.3 TEST PROCEDURES..............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5 TEST SETUP...........................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..............................................................................13 4.1.7 TEST RESULTS.......................................................................................................13 4.2 RADIATED EMISSION MEASUREMENT.................................................................30 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................30 4.2.2 TEST INSTRUMENTS..............................................................................................31 4.2.3 TEST PROCEDURES..............................................................................................32 4.2.4 DEVIATION FROM TEST STANDARD.....................................................................33 4.2.5 TEST SETUP...........................................................................................................33 4.2.6 EUT OPERATING CONDITIONS..............................................................................33 4.2.7 TEST RESULTS.......................................................................................................34 4.3 6dB BANDWIDTH MEASUREMENT........................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................45 4.3.2 TEST INSTRUMENTS..............................................................................................45 4.3.3 TEST PROCEDURE.................................................................................................46 4.3.4 DEVIATION FROM TEST STANDARD.....................................................................46 4.3.5 TEST SETUP...........................................................................................................46 4.3.6 EUT OPERATING CONDITIONS..............................................................................46 4.3.7 TEST RESULTS.......................................................................................................47 4.4 MAXIMUM PEAK OUTPUT POWER........................................................................55 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................55 FCC ID: KA2DI624D2 Report No.: RF940930L013Report Format Version 2.0.4 4.4.2 INSTRUMENTS........................................................................................................55 4.4.3 TEST PROCEDURES..............................................................................................56 4.4.4 DEVIATION FROM TEST STANDARD.....................................................................56 4.4.5 TEST SETUP...........................................................................................................56 4.4.6 EUT OPERATING CONDITIONS..............................................................................56 4.4.7 TEST RESULTS.......................................................................................................57 4.5 POWER SPECTRAL DENSITY MEASUREMENT....................................................59 4.5.1 LIMITS OF POWER SP…

Text truncated - open the document above for the full version.

FCC ID: KA2DI624D2 Report No.: RF940930L0183Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST MODE 1 FCC ID: KA2DI624D2 Report No.: RF940930L0184Report Format Version 2.0.4 MODE 2 FCC ID: KA2DI624D2 Report No.: RF940930L0185Report Format Version 2.0.4 RADIATED EMISSION TEST MODE 1 FCC ID: KA2DI624D2 Report No.: RF940930L0186Report Format Version 2.0.4 MODE 2
