KA2DI624SA12.4 GHz Wireless 108 Mbps Mini PCI

108Mbps Wireless Network Mini PCI Adapter USER’S MANUAL Model Name: WL MP 2454 1A5 Version: 1.0 Date: Nov/12/04 Please make sure TURN OFF your computer and remove the power cord from your PC. Open the computer case and then please insert the 108Mbps Wireless mini PCI Adapter. Once the 108Mbps Wireless mini PCI Adapter is installed, place the computer case back. Turn ON your computer. Driver Installation 1. Please select the second option and click “Next”. 2. Please click “Continue Anyway” 3. Please click “Finish” 4. To make sure if the installation is successful, you could check it through the device management. 5. Once the installation is successful, a utility program icon will show on your desktop. To lunch the utility, just double click the icon. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users .The final end product must be labeled in a visible area . with the following: Contains TX FCC :KA2DI624SA1. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID: KA2DI624SA1 ADT No. 930927L02 Modular Approval Request Letter Advance Data Technology 26 November, 2004 Dear Application Examiner, D-Link Corporation, It’s 2.4GHz Wireless 108Mbps Mini PCI, FCC ID: KA2DI624SA1, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2414A-00. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is AR2414A-00. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: KA2DI624SA1 ADT No. 930927L02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 26, 2004 RE: D-Link Corporation FCC ID: KA2DI624SA1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The POA is not dated. Please revise. 2) A modular request letter does not appear to have been provided but it appears applicable to this device. Please explain/ provide as necessary. 3) The power measurements for modes A and B are exactly identical. It appears that both modes were not fully tested or the data is not correct. I find it difficult to believe the data can be exactly identical for both modes. Just the measurement tolerances would show different results between these 2 modes. Please review/correct as necessary. 4) The spectral density plot for Turbo mode appears to be missing from the report. Please provide. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim The POA, test report has been revised and uploaded to website. The modular letter has also been uploaded to website. Please check and we will wait for the grant. Thanks for your assistance! Best Regards Wendy Liao

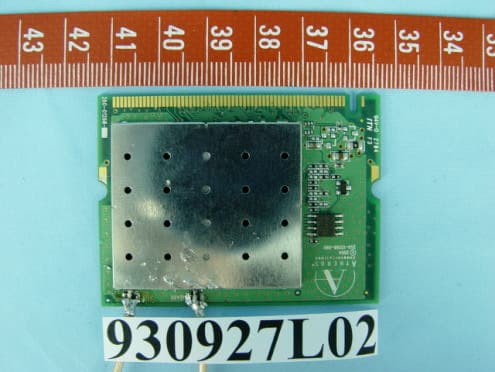

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID Label Location

16mm Model Name: WLMP2454-1A5 Tested To Comply With FCC Standards Made in Taiwan Rating: 3.3V FCC ID: KA2DI624SA1 Prodect Name: 2.4GHz Wireless 108Mbps Mini PCI GLOBAL SUN TECHNOLOGY INC. FOR HOME OR OFFICE USE 47mm 5.0mm 12mm 11mm

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: KA2DI624SA1 Report No.: RF930927L02 Operational Description This device is a 2.4GHz Wireless 108Mbps Mini PCI which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied or 108Mbps for turbo mode. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment and connected with managing equipment through PCMCIA. The antenna is Dipole & Inverted-F antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: KA2DI624SA1 Report No: SA930927L02 1 RF EXPOSURE REPORT REPORT NO.: SA930927L02 MODEL NO.: WL MP 2454 1A5 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road, Science Based Industrial Park, Hsin-Chu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DI624SA1 Report No: SA930927L02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DI624SA1 Report No: SA930927L02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DI624SA1 Report No: SA930927L02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz Band: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.8260.0201.0 6243766.6810.0211.0 11246265.6150.0211.0

FCC ID: KA2DI624SA1 Report No.: RF930927L021Issued: Oct. 13, 2004 FCC TEST REPORT REPORT NO.: RF930927L02 MODEL NO.: WL MP 2454 1A5 RECEIVED: Sep. 27, 2004 TESTED: Oct. 08 ~ Oct. 12, 2004 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road, Science Based Industrial Park, Hsin-Chu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 83 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: KA2DI624SA1 Report No.: RF930927L022Issued: Oct. 13, 2004 Table of Contents 1CERTIFICATION.........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................6 3GENERAL INFORMATION.........................................................................................7 3.1GENERAL DESCRIPTION OF EUT...........................................................................7 3.2DESCRIPTION OF TEST MODES.............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................................9 3.5 CONFIGURATION OF SYSTEM UNDER TEST........................................................9 4TEST TYPES AND RESULTS..................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT...........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS..............................................................................................10 4.1.3TEST PROCEDURES...............................................................................................11 4.1.4DEVIATION FROM TEST STANDARD.....................................................................11 4.1.5TEST SETUP............................................................................................................12 4.1.6EUT OPERATING CONDITIONS.............................................................................12 4.1.7TEST RESULTS........................................................................................................13 4.2RADIATED EMISSION MEASUREMENT................................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................21 4.2.2TEST INSTRUMENTS..............................................................................................22 4.2.3TEST PROCEDURES..............................................................................................23 4.2.4DEVIATION FROM TEST STANDARD....................................................................23 4.2.5TEST SETUP............................................................................................................24 4.2.6EUT OPERATING CONDITIONS.............................................................................24 4.2.7TEST RESULTS........................................................................................................25 4.2.8TEST RESULTS (A)..................................................................................................26 4.2.9TEST RESULTS (B)..................................................................................................29 4.36dB BANDWIDTH MEASUREMENT........................................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.....................................................33 4.3.2TEST INSTRUMENTS..............................................................................................33 4.3.3TEST PROCEDURE.................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD....................................................................34 4.3.5TEST SETUP............................................................................................................34 4.3.6EUT OPERATING CONDITIONS.............................................................................34 4.3.7TEST RESULTS (A)..................................................................................................35 FCC ID: KA2DI624SA1 Report No.: RF930927L023Issued: Oct. 13, 2004 4.3.8TEST RESULTS (B)..................................................................................................39 4.4MAXIMUM PEAK OUTPUT POWER.......................................................................45 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.......................45 4.4.2TEST INSTRUMENTS..............................................................................................45 4.4.3TEST PROCEDURES..............................................................................................46 4.4.4DEVIATION FROM TEST STANDARD....................................................................46 4.4.5TEST SETUP............................................................................................................46 4.4.6EUT OPERATING CONDITIONS.............................................................................46 4.4.7TEST RESULTS (A)..................…

Text truncated - open the document above for the full version.

FCC ID: KA2DI624SA1 Report No.: RF930927L0249Issued: Oct. 13, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KA2DI624SA1 Report No.: RF930927L0250Issued: Oct. 13, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUTSPECTRUM ANALYZER FCC ID: KA2DI624SA1 Report No.: RF930927L0251Issued: Oct. 13, 2004 4.5.7 TEST RESULTS (A) EUT 2.4GHz Wireless 108Mbps Mini PCI MODELWL MP 2454 1A5 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg. C, 67%RH, 991 hPa TESTED BYSteven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-5.248PASS 62437-5.028PASS 112462-5.778PASS FCC ID: KA2DI624SA1 Report No.: RF930927L0252Issued: Oct. 13, 2004 CH1 FCC ID: KA2DI624SA1 Report No.: RF930927L0253Issued: Oct. 13, 2004 CH6 FCC ID: KA2DI624SA1 Report No.: RF930927L0254Issued: Oct. 13, 2004 CH11 FCC ID: KA2DI624SA1 Report No.: RF930927L0255Issued: Oct. 13, 2004 4.5.8 TEST RESULTS (B) Normal mode EUT 2.4GHz Wireless 108Mbps Mini PCI MODEL WL MP 2454 1A5 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg. C, 67%RH, 991 hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-3.258PASS 62437-3.508PASS 112462-3.148PASS Turbo mode EUT 2.4GHz Wireless 108Mbps Mini PCI MODELWL MP 2454 1A5 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg. C, 67%RH, 991 hPa TESTED BY Steven Lu CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 62437-1.468PASS FCC ID: KA2DI624SA1 Report No.: RF930927L0256Issued: Oct. 13, 2004 Normal mode CH1 FCC ID: KA2DI624SA1 Report No.: RF930927L0257Issued: Oct. 13, 2004 CH6 FCC ID: KA2DI624SA1 Report No.: RF930927L0258Issued: Oct. 13, 2004 CH11 FCC ID: KA2DI624SA1 Report No.: RF930927L0259Issued: Oct. 13, 2004 Turbo mode CH6 FCC ID: KA2DI624SA1 Report No.: RF930927L0260Issued: Oct. 13, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz and 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: KA2DI624SA1 Report No.: RF930927L0261Issued: Oct. 13, 2004 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 1~2 pages show 57.93dB delta between carrier maximum power and local maximum emission in restrict band (2.3200GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 104.11dBuV/m, so the maximum field strength in restrict band is 104.11-57.93=46.18dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 59.43dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 105.51dBuV/m, so the maximum field strength in restrict band is 105.51-59.43=46.08dBuV/m which is under 54dBuV/m limit. FCC ID: KA2DI624SA1 Report No.: RF930927L0262Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0263Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0264Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0265Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0266Issued: Oct. 13, 2004 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 8 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). Normal mode NOTE : The band edge emission plot on the following 1~2 pages show 50.31dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 100.57dBuV/m, so the maximum field strength in restrict band is 100.57-50.31=50.26dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 48.64dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 99.86dBuV/m, so the maximum field strength in restrict band is 99.86-48.64=51.22dBuV/m which is under 54dBuV/m limit. Turbo mode NOTE : The band edge emission plot on the following 5~6 pa…

Text truncated - open the document above for the full version.

FCC ID: KA2DI624SA1 Report No.: RF930927L0275Issued: Oct. 13, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is Dipole & Inverted-F antenna without antenna connector. The maximum Gain of this antenna is 2dBi. FCC ID: KA2DI624SA1 Report No.: RF930927L0276Issued: Oct. 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DI624SA1 Report No.: RF930927L0277Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0278Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0279Issued: Oct. 13, 2004 RADIATED EMISSION TEST FCC ID: KA2DI624SA1 Report No.: RF930927L0280Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0281Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0282Issued: Oct. 13, 2004 FCC ID: KA2DI624SA1 Report No.: RF930927L0283Issued: Oct. 13, 2004 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL, A2LA GermanyTUV Rheinland JapanVCCI NorwayNEMKO CanadaINDUSTRY CANADA , CSA R.O.C.CNLA, BSMI, DGT NetherlandsTelefication SingaporePSB , GOST-ASIA(MOU) RussiaCERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety/Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also. Report Format Version 1.5
