KA2DI634MA1High Speed Wireless Network Adapter

USER’S MANUAL Model Name: Version: 1.0 Date: April/20/05 Please make sure TURN OFF your computer and remove the power cord from your PC. Open the computer case and then please insert the Wireless mini PCI Adapter. Once the Wireless mini PCI Adapter is installed , place the computer case back. Turn ON your computer. Driver Installation 1. Please select the second option and click “Next”. 2. Please click “Continue Anyway” 5. Once the installation is successful, a utility program icon will show on your desktop. To lunch the utility, just double click the icon. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. D-Link declares that the High Speed Wireless Network Adapter. (FCC ID: KA2DI634MA1) is limited in CH1~CH11 by specified firmware controlled in the USA. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example :Access point, Wireless Router..etc.). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: KA2DI634MA1”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. D-Link declares that the High Speed Wireless Network Adapter. (FCC ID: KA2DI634MA1) is limited in CH1~CH11 by specified firmware controlled in the USA.

FCC ID: KA2DI634MA1 ADT No. 940316L11 Modular Approval Request Letter Advance Data Technology 28 April 2004 Dear Application Examiner, D-Link Corporation, It’s High Speed Wireless Network Adapter, FCC ID: KA2DI634MA1, would like to have your authorization as a full modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5513A. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is VR2. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: KA2DI634MA1 ADT No. 940316L11 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

The test proposal with the composite dipole antennas is acceptable with the following modular approval restriction. 1) The module is approved as long as the same dipole antennas, or dipole antennas with identical properties are used, AND the relative antenna spacings are maintained exactly as proposed. The device uses a simple array antenna design with no new technology issues. The array consists of two low gain antennas with a total antenna gain of less than 6 dBi. The test proposal for determining the total output power and total antenna gain agrees with methods we have allowed for phased array systems. Do not use a combiner when summing the output power of both antenna ports. Due to approval as a mobile device, no SAR issues should be involved. The confidential operational description and the test plan document must be submitted in the TCB filing. Also, submit a copy of this letter and the same test plan(but with confidential material removed) into the filing. Additional test guidance prior to TCB approval will be required for any changes to the device(antenna, RF circuitry etc...). A TCB can authorize this device with the dipole antennas as long as the filing is for mobile exposure conditions. However, Please inform the TCB to contact us prior to submission, in order for us to provide the TCB guidance on reviewing the submission.

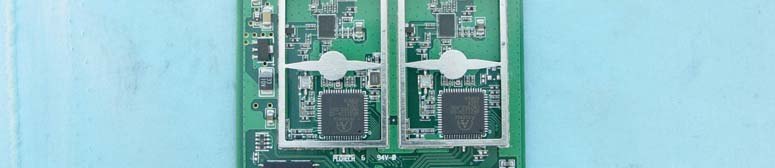

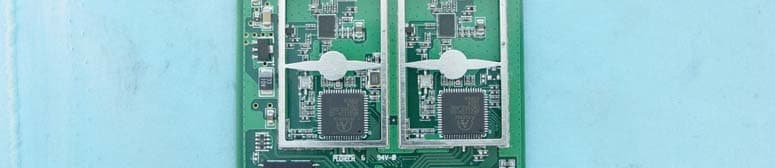

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 1 Label location (FCC ID: KA2DI634MA1)

Tested To Comply With FCC Standards Made in Taiwan Rating: 3.3V FOR HOME OR OFFICE USE FCC ID: KA2DI634MA1 57mm 19mm High Speed Wireless Network Adapter Model Name: AV10 5.2mm 22.8mm

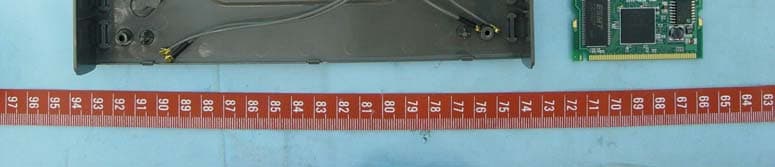

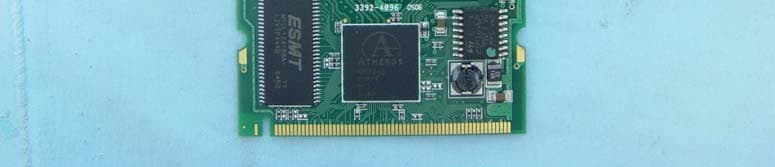

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID.: KA2DI634MA1 Report No: SA 940316L11 1 RF EXPOSURE REPORT REPORT NO.: SA940316L11 MODEL NO.: AV10 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID.: KA2DI634MA1 Report No: SA 940316L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID.: KA2DI634MA1 Report No: SA 940316L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID.: KA2DI634MA1 Report No: SA 940316L11 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.319dBi or 1.706(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.6990.0171.0 6243736.5330.0221.0 11246250.3500.0171.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.8750.0151.0 6243763.8260.0221.0 11246245.1860.0151.0 802.11g Turbo OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243763.6800.0221.0

FCC ID: KA2DI634MA1 Report No.: RF940316L11 1 Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940316L11 MODEL NO.: AV10 RECEIVED: Mar. 15, 2005 TESTED: Mar. 15 ~ Mar. 22, 2005 ISSUED: Mar. 25, 2005 APPLICANT: D-Link Corporation ADDRESS: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 174 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DI634MA1 Report No.: RF940316L11 2 Report Format Version 2.0.2 Table of Contents 1 CERTIFICATION ..........................................................................................................6 2 SUMMARY OF TEST RESULTS .................................................................................7 2.1 MEASUREMENT UNCERTAINTY ...............................................................................7 3 GENERAL INFORMATION ..........................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.............................................................................8 3.2 DESCRIPTION OF TEST MODES.............................................................................10 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................15 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................................15 4 TEST TYPES AND RESULTS (FOR SINGLE CHAIN (TX)).....................................16 4.1 CONDUCTED EMISSION MEASUREMENT .............................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................16 4.1.2 TEST INSTRUMENTS ...............................................................................................16 4.1.3 TEST PROCEDURES ................................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD......................................................................17 4.1.5 TEST SETUP .............................................................................................................18 4.1.6 EUT OPERATING CONDITIONS...............................................................................18 4.1.7 TEST RESULTS .........................................................................................................19 4.2 RADIATED EMISSION MEASUREMENT ..................................................................31 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...............................................31 4.2.2 TEST INSTRUMENTS ...............................................................................................32 4.2.3 TEST PROCEDURES ................................................................................................33 4.2.4 DEVIATION FROM TEST STANDARD......................................................................33 4.2.5 TEST SETUP .............................................................................................................34 4.2.6 EUT OPERATING CONDITIONS...............................................................................34 4.2.7 TEST RESULTS .........................................................................................................35 4.3 6dB BANDWIDTH MEASUREMENT .........................................................................59 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................59 4.3.2 TEST INSTRUMENTS ...............................................................................................59 4.3.3 TEST PROCEDURE ..................................................................................................60 4.3.4 DEVIATION FROM TEST STANDARD......................................................................60 4.3.5 TEST SETUP .............................................................................................................60 4.3.6 EUT OPERATING CONDITIONS...............................................................................60 FCC ID: KA2DI634MA1 Report No.: RF940316L11 3 Report Format Version 2.0.2 4.3.7 TEST RESULTS .........................................................................................................61 4.4 MAXIMUM PEAK OUTPUT POWER .........................................................................69 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................69 4.4.2 TEST INSTRUMENTS ...............................................................................................69 4.4.3 TEST PROCEDURES ................................................................................................70 4.4.4 DEVIATION FROM TEST STANDARD......................................................................70 4.4.5 TEST SETUP .............................................................................................................70 4.4.6 EUT OPERATING CONDITIONS...............................................................................70 4.4.7 TEST RESULTS .........................................................................................................71 4.5 POWER SPECTRAL DENSITY MEASUREMENT ....................................................73 4.5.1 LIMITS OF POWER…

Text truncated - open the document above for the full version.

FCC ID: KA2DI634MA1 Report No.: RF940316L11 130 Report Format Version 2.0.2 5.3.7 TEST RESULTS 802.11g OFDM modulation EUT High Speed Wireless Network Adapter MODEL AV10 MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 53%RH, 991hPa TEST MODE Dual chain TESTED BY Gary Chang 6 dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) Chain 0 Chain 1 MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.40 16.36 0.5 PASS 6 2437 16.36 16.36 0.5 PASS 11 2462 16.44 16.36 0.5 PASS FCC ID: KA2DI634MA1 Report No.: RF940316L11 131 Report Format Version 2.0.2 For Dual Chain (Chain 0): CH1 CH6 FCC ID: KA2DI634MA1 Report No.: RF940316L11 132 Report Format Version 2.0.2 CH11 For Dual Chain (Chain 1): CH1 FCC ID: KA2DI634MA1 Report No.: RF940316L11 133 Report Format Version 2.0.2 CH6 CH11 FCC ID: KA2DI634MA1 Report No.: RF940316L11 134 Report Format Version 2.0.2 802.11g Turbo OFDM modulation EUT High Speed Wireless Network Adapter MODEL AV10 MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 53%RH, 991hPa TEST MODE Dual chain TESTED BY Gary Chang 6 dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) Chain 0 Chain 1 MINIMUM LIMIT (MHz) PASS/FAIL 6 2437 31.44 31.28 0.5 PASS FCC ID: KA2DI634MA1 Report No.: RF940316L11 135 Report Format Version 2.0.2 For Dual Chain (Chain 0): CH6 For Dual Chain (Chain 1): CH6 FCC ID: KA2DI634MA1 Report No.: RF940316L11 136 Report Format Version 2.0.2 5.4 MAXIMUM PEAK OUTPUT POWER 5.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. . 5.4.2 TEST INSTRUMENTS Description & Manufacturer Model No.Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSEK30 100049 Aug. 12, 2005 AGILENT SIGNAL GENERATOR E8257C MY43320668Dec. 06, 2005 TEKTRONIX OSCILLOSCOPE TDS 220 C019167 Feb. 01, 2006 NARDA DETECTOR 4503A FSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KA2DI634MA1 Report No.: RF940316L11 137 Report Format Version 2.0.2 5.4.3 TEST PROCEDURES A detector was used on the output port of the EUT. An oscilloscope was used to peak the response of the detector. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR FCC ID: KA2DI634MA1 Report No.: RF940316L11 138 Report Format Version 2.0.2 5.4.7 TEST RESULTS 802.11g OFDM modulation EUT High Speed Wireless Network Adapter MODEL AV10 MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 53%RH, 991hPa TEST MODE Dual chain TESTED BY Gary Chang PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUEN CY (MHz) Chain 0 Chain 1 Chain 0Chain 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 20.137 20.045 13.04 13.02 40.182 16.04 30 PASS 2 2417 63.387 63.826 18.02 18.05 127.213 21.05 30 PASS 3 2422 64.121 63.387 18.07 18.02 127.508 21.06 30 PASS 6 2437 64.714 63.533 18.11 18.03 128.247 21.08 30 PASS 9 2452 63.680 63.973 18.04 18.06 127.653 21.06 30 PASS 10 2457 63.826 64.417 18.05 18.09 128.243 21.08 30 PASS 11 2462 20.184 20.464 13.05 13.11 40.648 16.09 30 PASS FCC ID: KA2DI634MA1 Report No.: RF940316L11 139 Report Format Version 2.0.2 802.11g Turbo OFDM modulation EUT High Speed Wireless Network Adapter MODEL AV10 MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 53%RH, 991hPa TEST MODE Dual chain TESTED BY Gary Chang PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUEN CY (MHz) Chain 0 Chain 1 Chain 0Chain 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 6 2437 32.509 31.842 15.12 15.03 64.351 18.09 30 PASS FCC ID: KA2DI634MA1 Report No.: RF940316L11 140 Report Format Version 2.0.2 5.5 POWER SPECTRAL DENSITY MEASUREMENT 5.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 5.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until SPECTRUM ANALYZER FSEK30 100049 Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KA2DI634MA1 Report No.: RF940316L11 141 Report Format Version 2.0.2 5.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 5.5.4 DEVIATION FROM TEST STANDARD No deviation 5.5.5 TEST SETUP 5.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: KA2DI634MA1 Report No.: RF940316L11 142 Report Format Version 2.0.2 5.5.7 TEST RESULTS 802.11g OFDM modulation EUT High Speed Wireless Network Adapter MODEL AV10 MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 24deg.C, 53%RH, 991hPa TEST MODE Dual chain TESTED BY Gary Chang RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) Chain 0 Chain 1 MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -11.37 -11.56 8 PASS 6 2437 -9.87 -10.26 8 PASS 11 2462 -11.45 -11.93 8 PASS FCC ID: KA2DI634MA1 Report No.: RF940316L11 143 Report Format Version 2.0.2 For Dual Chain (Chain 0): CH1 CH6 FCC ID: KA2DI634MA1 Report No.: RF940316L11 144 Report Format Version 2.0.2 CH11 For Dual Chain (Chain 1): CH1 FCC ID: KA2DI634MA1 Report No.: …

Text truncated - open the document above for the full version.

FCC ID: KA2DI634MA1 Report No.: RF940316L11166Report Format Version 2.0.2 6 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Antenna 1) FCC ID: KA2DI634MA1 Report No.: RF940316L11167Report Format Version 2.0.2 FCC ID: KA2DI634MA1 Report No.: RF940316L11168Report Format Version 2.0.2 CONDUCTED EMISSION TEST (Antenna 2) FCC ID: KA2DI634MA1 Report No.: RF940316L11169Report Format Version 2.0.2 FCC ID: KA2DI634MA1 Report No.: RF940316L11170Report Format Version 2.0.2 RADIATED EMISSION TEST (Antenna 1) FCC ID: KA2DI634MA1 Report No.: RF940316L11171Report Format Version 2.0.2 FCC ID: KA2DI634MA1 Report No.: RF940316L11172Report Format Version 2.0.2 RADIATED EMISSION TEST (Antenna 2) FCC ID: KA2DI634MA1 Report No.: RF940316L11173Report Format Version 2.0.2
