KA2DI725EVA1Wireless G EVDO Router

D-Link Corporation

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 27, 2005
Application Purpose: Original Equipment
Date of Application: Nov 27, 2005
Equipment Note: Wireless G EVDO Router
Frequency Range: 2412.00000000 - 2462.00000000
Company: D-Link Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

iii Table of Contents 1 Introduction ................................................................................................................1 Connections–Kyocera KR1 Mobile Router (Back View) .................................................................................. 1 LEDs–Kyocera KR1 Mobile Router (Front View) ............................................................................. 2 Features ........................................................................................................................................... 2 2 Package Contents......................................................................................................4 System Requirements for Configuration ..........................................................................................4 WiFi System Requirements .............................................................................................................................4 Verify Package Contents .................................................................................................................. 4 3 Wireless Basics..........................................................................................................5 Standards-Based Technology .......................................................................................................... 5 Installation Considerations ............................................................................................................... 6 4 Installation Instructions.............................................................................................7 Connect the Kyocera KR1 Wireless Router to Your Network..........................................................................7 32-bit PCMCIA (EVDO) Card or 1xEV-DO Mobile Phone Connection ........................................................... 7 Establish WiFi Connection .............................................................................................................................. 7 5 Using the Configuration Menu..................................................................................8 Basic > Wizard ................................................................................................................................................ 9 Basic > Wireless (Security–No Encryption) ..................................................................................................10 Basic > Wireless (Security–WEP) .................................................................................................................11 Basic > Wireless (Security–WPA-PSK) ........................................................................................................12 Basic > WAN (EVDO) > WAN Type ..............................................................................................................13 Basic > LAN ..................................................................................................................................................14 Basic > DHCP ..............................................................................................................................................15 Advanced > Virtual Server ...........................................................................................................................16 Advanced > Applications ...............................................................................................................................18 Advanced > Filters > IP Filters ......................................................................................................................19 Advanced > Filters > MAC Filters .................................................................................................................20 Advanced > Firewall ......................................................................................................................................21 Advanced > DMZ ..........................................................................................................................................22 Advanced > Performance .............................................................................................................................23 Advanced > WAN (EVDO) ............................................................................................................................25 Tools > Admin ...............................................................................................................................................26 Tools > Time .................................................................................................................................................27 iv Kyocera KR1 Mobile Router User Guide Tools > System .............................................................................................................................................28 Tools > Firmware .........................................................................................................................................29 Tools > DDNS ...............................................................................................................................................30 Tools > Misc ..................................................................................................................................................31 Tools > Cable Test ........................................................................................................................................32 Status > Device Info ......................................................................................................................................33 Status > Log ..................................................................................................................................................34 Status > Log > Log Settings #2 ............................................................…

Text truncated - open the document above for the full version.

Users Manual

i KYOCERA KR1 MOBILE ROUTER QUICK INSTALLATION GUIDE Page 1 GUIDE D’INSTALLATION RAPIDE DU ROUTEUR MOBILE KYOCERA KR1 Page 10 ROUTER MÓVIL KR1 DE KYOCERA GUÍA DE INSTALACIÓN RÁPIDA Page 22 Kyocera Wireless Corp. 10300 Campus Point Drive San Diego, CA 92121 U.S.A. 82-N8462-1SF, Rev. 001 82-N8462-1SF.book Page i Friday, November 11, 2005 2:32 PM ii Kyocera KR1 Mobile Router Quick Installation Guide The Kyocera Wireless Corp. (“KWC”) products described in this manual may include copyrighted KWC and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KWC and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KWC products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KWC products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of KWC or any third party software provider, except for the normal, non-exclusive royalty-free license to use that arises by operation of law in the sale of a product. All data and information contained in or disclosed by this document are confidential and proprietary information of Kyocera Wireless Corp, and all rights therein are expressly reserved. Kyocera is a registered trademark of Kyocera Corporation. D-link is a trademark of D-link Systems Inc. Macintosh is a trademark Apple Computer Inc. Netscape and Netscape Navigator are trademarks of Netscape Communications. All other trademarks or registered trademarks are the property of their respective owners. Software and specifications subject to change without notice. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, copied, or reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of Kyocera Wireless Corp. Copyright © 2005 Kyocera Wireless Corp. All rights reserved. Kyocera Wireless Corp. 10300 Campus Point Drive, San Diego, CA 92121 Guide d’installation rapide du routeur mobile Kyocera KR1 Les produits Kyocera Wireless Corp. (« KWC ») présentés dans ce manuel peuvent inclure des logiciels de Kyocera ou de tierces parties protégés par des droits d’auteur, enregistrés dans des mémoires à semi- conducteurs ou d’autres supports. Les lois des États-Unis et d’autres pays réservent certains droits exclusifs à KWC et les fournisseurs de logiciels tiers concernant les logiciels protégés par des droits d’auteurs, tels que les droits exclusifs de distribution et de reproduction des logiciels protégés. En conséquence, tout logiciel protégé par des droits d’auteur contenu dans les produits KWC ne peut être modifié, analysé à des fins de rétro-ingénierie, distribué ou reproduit dans des conditions autres que celles autorisées par la loi. En outre, l’achat de produits KWC ne saurait être interprété comme l’octroi d’une licence, que ce soit de manière directe, implicite, par estoppel ou de toute autre manière, en vertu des droits d’auteur, brevets ou applications brevetées de KWC ou de fournisseurs de logiciels tiers, à l’exception de l’utilisation normale, non exclusive et non lucrative autorisée par les lois sur la vente d’un produit. Toutes les données et informations données ou divulguées dans le présent document constituent des renseignements confidentiels appartenant à Kyocera Wireless Corp. et tous les droits s’y rapportant sont expressément réservés. Kyocera est une marque déposée de Kyocera Corporation. D-link est une marque de commerce de D-link Systems, Inc. Macintosh est une marque de commerce de Apple Computer Inc. Netscape et Netscape Navigator sont des marques de commerce de Netscape Communications. Toutes les autres marques de commerce ou marques déposées appartiennent à leurs propriétaires respectifs. Les logiciels et les spécifications techniques sont sujets à modification sans préavis. En acceptant ce document, le destinataire s’engage à respecter la confidentialité des informations qu’il contient et à ne pas l’utiliser, le copier, le reproduire en tout ou partie, ni à en divulguer d’aucune façon le contenu à des tiers sans l’autorisation écrite expresse de Kyocera Wireless Corp. Copyright © 2005 Kyocera Wireless Corp. Tous droits réservés. Kyocera Wireless Corp. 10300 Campus Point Drive, San Diego, CA 92121 82-N8462-1SF.book Page ii Friday, November 11, 2005 2:32 PM iii Router móvil KR1 de Kyocera Guía de instalación rápida Los productos de Kyocera Wireless Corp. (“KWC”) descritos en este manual pueden incluir software de KWC y de terceros protegido bajo derechos de autor y almacenado en la memoria de semiconductores u otros medios. Existen leyes en los Estados Unidos y en otros países que reservan, para KWC y otros proveedores de software, los derechos exclusivos de software protegido por derechos de autor, tales como los derechos exclusivos de distribuir o reproducir el software protegido bajo derechos de autor. Consecuentemente, todo software protegido por derechos de autor contenido en los productos de KWC no puede ser modificado, distribuido ni reproducido de formas no permitidas por la ley, así como tampoco pueden usarse técnicas de ingeniería inversa. Adicionalmente, la compra de los productos KWC no será considerada como una cesión, ya sea directamente o por presunción, desestimación de una demanda, o por alguna otra razón, de una licencia bajo derechos de autor, patente o aplicaciones de patente de KWC o cualquier otro proveedor de software, excepto por la licencia normal, no exclusiva, libre de regalías, para el uso que surge por la operación de la ley en la venta de un producto. Todos los dato…

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

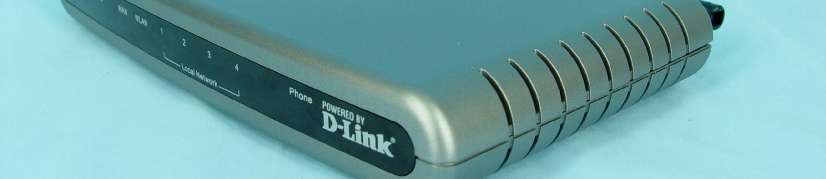

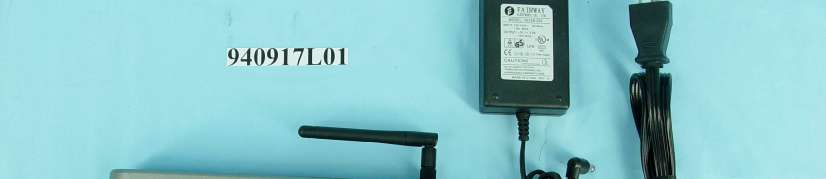

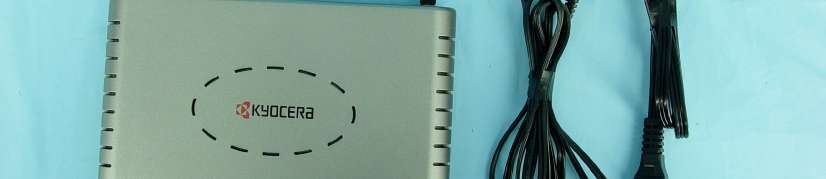

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT

ID Label/Location Info

FCC ID : KA2DI725EVA1 Label Location

ID Label/Location Info

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Canada ID : 4216A-DI725EVA MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Canada ID : 4216A-DI725EVA Model No : DI-725EV 59mm 39.4mm 59mm 39.4mm

Internal Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Operational Description

FCC ID: KA2DI725EVA1 Report No.: RF940917L01 Operational Description This device is a Wireless G EVDO Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna used in this product is Dipole antenna with Reverse SMA antenna connector. The antenna used in mini PCI card is PIFA antenna The other instruction, please have a look at the users manual.

RF Exposure Info

FCC ID: KA2DI725EVA1 Report No: SA940917L01 1 RF EXPOSURE REPORT REPORT NO.: SA940917L01 MODEL NO.: DI-725EV OEM MODEL NO.: TXRTR10004 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DI725EVA1 Report No: SA940917L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DI725EVA1 Report No: SA940917L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DI725EVA1 Report No: SA940917L01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.39dBi or 1.734 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241245.9200.0161.0 6243745.9200.0161.0 11246246.2380.0161.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.0580.0121.0 6243736.2240.0121.0 11246235.7270.0121.0

RF Exposure Info

FCC ID: KA2DI725EVA1 Report No: SA940917L01A 1 RF EXPOSURE REPORT REPORT NO.: SA940917L01A MODEL NO.: DI-725EV OEM MODEL NO.: TXRTR10004 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DI725EVA1 Report No: SA940917L01A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DI725EVA1 Report No: SA940917L01A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DI725EVA1 Report No: SA940917L01A 4 6. Test Results 6.1 Antenna Gain FOR WLAN FUNCTION: The maximum Gain measured in Fully Anechoic Chamber is 2.39dBi or 1.734 (numeric). FOR CDMA FUNCTION: CDMA 800: Since the maximum erp power is used, so the Gain of the antenna can be assumed as 2.14dBi. CDMA 1900: Since the maximum eirp power is used, so the Gain of the antenna can be assumed as 0dBi. NOTE: The power as above refers to the FCC part 22 / 24 report of FCC ID: OVFKWC-KPC650. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: WLAN 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1241245.9200.0161.0 6243745.9200.0161.0 11246246.2380.0161.0 WLAN 802.11g: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1241236.0580.0121.0 6243736.2240.0121.0 11246235.7270.0121.0 FCC ID: KA2DI725EVA1 Report No: SA940917L01A 5 CDMA 800: CHANNEL CHANNEL FREQUENCY (MHz) E.I.R.P (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1013824.70325.8370.0650.549 384836.52325.0870.0650.549 777848.31488.6520.0970.549 NOTE: Limit of powre density = 824 (MHz) / 1500 = 0.549. CDMA 1900: CHANNEL CHANNEL FREQUENCY (MHz) E.I.R.P (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 251851.25221.8200.0441.0 6001880.00229.6150.0461.0 11751908.75256.4480.0511.0 CONCULSION: Both of the WLAN and CDMA can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.097 / 0.549 + 0.016 / 1 = 0.1927, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Test Report

FCC ID: KA2DI725EVA1 Report No.: RF940917L011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940917L01 MODEL NO.: DI-725EV OEM MODEL NO.: TXRTR10004 RECEIVED: Sep. 19, 2005 TESTED: Sep. 23 ~ Oct. 07, 2005 ISSUED: Oct. 13, 2005 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DI725EVA1 Report No.: RF940917L012Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION........................................................................................................4 2.SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3.GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES..................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brett Adair(General Counsel)

[email protected]714-885-6000Fax: 866-743-4589

Technical Contact

Advance Data Technology Corporation (Hwa Ya)Cody Chang

[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Advance Data Technology CorporationStephanie Hung

[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen

[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	46.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. Collocated transmitter operating configurations have been evaluated as described in this filing; other collocation configurations require separate evaluation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
