KA2DIR410A1M2M 3G VPN Router

1 D-Link DIR-410 M2M 3G VPN Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 TABLE OF CONTENTS COPYRIGHT ......................................................................................................................... 2 FCC INTERFERENCE STATEMENT ................................................................................... 2 CHAPTER 1. INTRODUCTION ............................................................................................ 4 1.1 PACKAGE LIST .............................................................................................................. 4 1.2 HARDWARE INSTALLATION ....................................................................................... 4 CHAPTER 2. GETTING STARTED ...................................................................................... 8 2.1 EASY SETUP BY WINDOWS UTILITY .......................................................................... 8 2.2 EASY SETUP BY CONFIGURING WEB PAGES ........................................................ 16 CHAPTER 3. MAKING CONFIGURATION ........................................................................ 21 3.1 BASIC SETTING ........................................................................................................... 21 3.2 FORWARDING RULES ................................................................................................ 40 3.3 SECURITY SETTING .................................................................................................... 43 3.4 ADVANCED SETTING ................................................................................................. 59 3.5 TOOL BOX .................................................................................................................... 66 CHAPTER 4. TROUBLESHOOTING ................................................................................. 70 APPENDIX A. SPEC SUMMARY TABLE .......................................................................... 74 APPENDIX B. LICENSING INFORMATION ...................................................................... 75 4 CHAPTER 1. Introduction Congratulations on your purchase of this outstanding product: DIR-410 M2M 3G VPN Router. This product is specifically designed for Office needs. It provides a complete solution for Internet surfing, 3G backup, and VPN tunneling. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 M2M 3G VPN Router 1 2 Power adapter 12V 2A 1 3 CD 1 1.2 Hardware Installation 5 1.2.1 Hardware configuration 1.2.2 LED indicators LED color Description WA N Green It is connected to Internet. Green in flash Data access LAN Green RJ45 cable is plugged, and Ethernet connection is established. Green in flash Data access WLAN Green WiFi is on. Green in flash Data access 3G USB Amber 3G/3.5G is on. Amber in flash Data access 3G Express Card Amber Connection established Amber in flash Data access RS232 Amber Serial port connection established Amber in flash Data access Power Green in flash Normal mo…

Text truncated - open the document above for the full version.

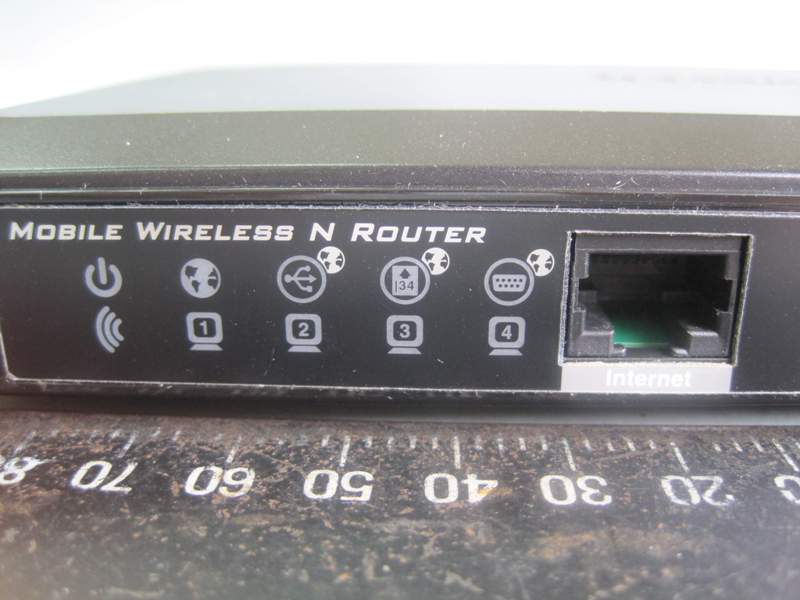

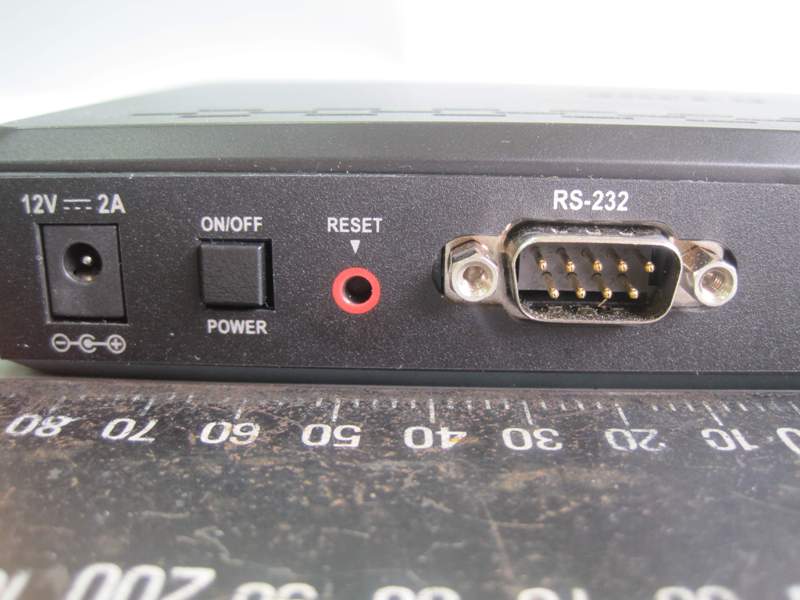

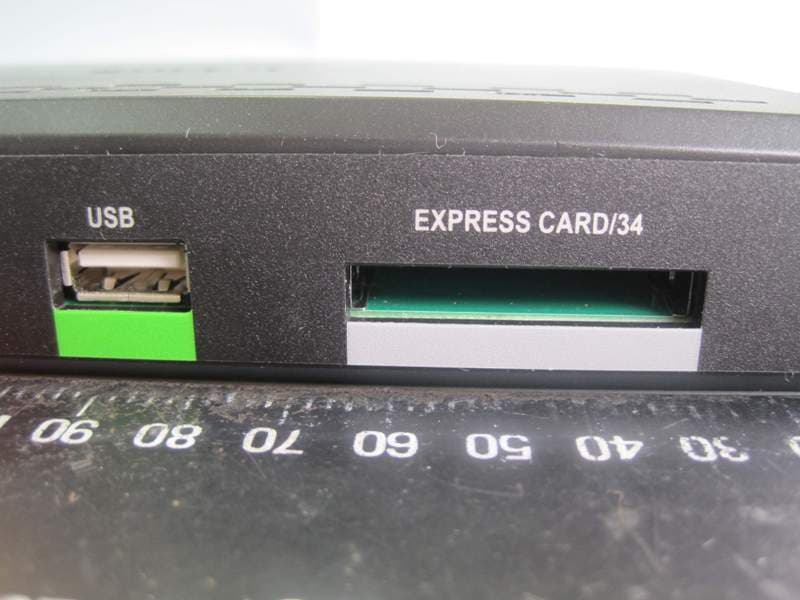

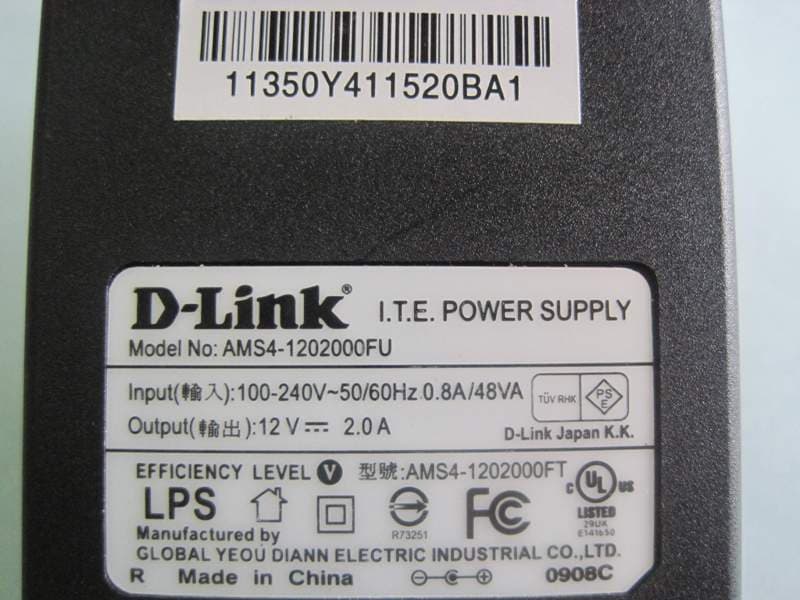

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2010 FAX : 886-2-2696-2255

Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : C1 of C5 Appendix C. Maximum Permissible Exposure Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : C2 of C5 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : C3 of C5 1.3. Calculated Result and Limit <For WLAN Function>: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B: 23.12 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 23.1223 205.2263 0.064742 1 Complies Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : C4 of C5 <For GSM 850 Function>: 3G USB Dongle (Mode 1), FCC ID: QISE169 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 31.7800 33.9200 2466.0393 0.490852 0.549 Complies 836.4 31.7500 33.8900 2449.0632 0.487473 0.549 Complies 848.8 31.7300 33.8700 2437.8108 0.485233 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.064742 / 1 + 0.490852 / 0.549 = 0.958826, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : C5 of C5 <For GSM 850 Function>: 3G Express Card (Mode 2), FCC ID: UZI-C100 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 30.3700 32.5100 1782.3788 0.354773 0.549 Complies 836.4 30.2900 32.4300 1749.8467 0.348298 0.549 Complies 848.8 30.7200 32.8600 1931.9683 0.384548 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.064742 / 1 + 0.384548 / 0.549 = 0.765193, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : D1 of D3 Appendix D. Co-location Report Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 23°C Humidity 51% Test Engineer Serway Li Configurations WLAN + GSM850 CH128 / Mode 2 Horizontal Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation Applicant Address No.289, Sinhu 3rd., Neihu District Taipei City 114 , Taiwan , R.O.C. FCC ID KA2DIR410A1 Manufacturer’s company Advance Multimedia Internet Technology Inc. Manufacturer Address No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Product Name M2M 3G VPN Router Brand Name D-Link Model Name DIR-410 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 26, 2010 Final Test Date Jul. 01, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR021111 Report Format Version: 01 Page No. : i of ii FCC ID: KA2DIR410A1 Issued Date : Aug. 23, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................27 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................33 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Band Edge Emissions Measurement .................................................................................................................................................57 4.7. Antenna Requirements .....................................................................................................................................................................66 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 67 6. TEST LOCATION.............................................................................................................................................. 69 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 70 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A13 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B8 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE.....................…

Text truncated - open the document above for the full version.

Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 4 of 6 Test Configuration: 30MHz ~1GHz FRONT VIEW REAR VIEW Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR021111 FCC ID: KA2DIR410A1 Page No. : 6 of 6 Test Configuration: Co-location Test Mode: Mode 2 FRONT VIEW REAR VIEW
