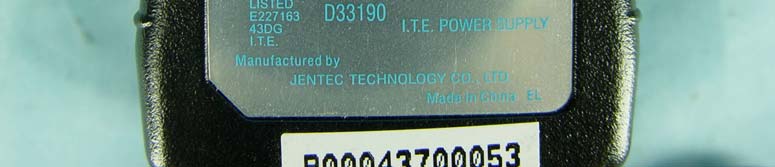

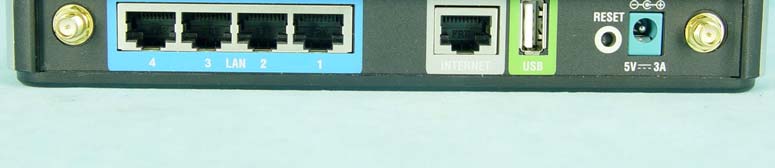

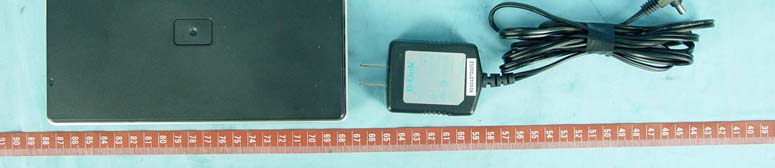

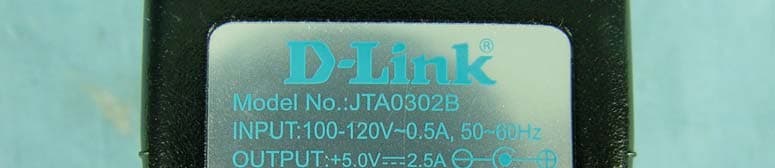

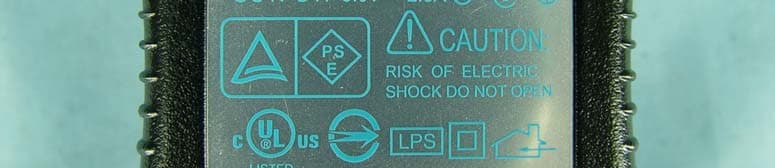

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: KA2DIR430A1 Report No: SA950801L02 1 RF EXPOSURE REPORT REPORT NO.: SA950801L02 MODEL NO.: DIR-430 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DIR430A1 Report No: SA950801L02 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500......F/3006 1500-100,000......56 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DIR430A1 Report No: SA950801L02 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DIR430A1 Report No: SA950801L02 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12412 36.1410.011 1.0 62437 50.9330.016 1.0 112462 36.0580.011 1.0 802.11g NORMAL OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12412 35.5630.011 1.0 62437 50.6990.016 1.0 112462 36.2240.011 1.0 802.11g TURBO OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 62437 50.1190.016 1.0

Report No.: RF950801L021Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950801L02 MODEL NO.: DIR-430 RECEIVED: Aug. 03, 2006 TESTED: Aug. 04 ~ Aug. 15, 2006 ISSUED: Aug. 18, 2006 APPLICANT : D-Link Corporation ADDRESS : 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950801L022Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT .............................................................................6 3.2DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................12 4.1.5 TEST SETUP..............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................22 4.2.2 TEST INSTRUMENTS................................................................................................23 4.2.3 TEST PROCEDURES ................................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................24 4.2.5 TEST SETUP..............................................................................................................25 4.2.6 EUT OPERATING CONDITIONS ...............................................................................25 4.2.7 TEST RESULTS .........................................................................................................26 4.36dB BANDWIDTH MEASUREMENT..........................................................................35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................35 4.3.2 TEST INSTRUMENTS................................................................................................35 4.3.3 TEST PROCEDURE...................................................................................................35 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................35 4.3.5 TEST SETUP..............................................................................................................36 4.3.6 EUT OPERATING CONDITIONS ...............................................................................36 4.3.7 TEST RESULTS .........................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................44 4.4.2 TEST INSTRUMENTS................................................................................................44 4.4.3 TEST PROCEDURES ................................................................................................45 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................45 4.4.5 TEST SETUP..............................................................................................................45 4.4.6 EUT OPERATING CONDITIONS ...............................................................................45 Report No.: RF950801L023Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT .....................................................47 4.5.1 LIMITS OF POWER SPEC…
