KA2DIR456A1Residential USIM Embedded HSDPA 3G Router

S ftjefoujbm!VTJN!Fncfeefe!ITEQB!4H!Spvufs!!!!!!!!փ৬4Hጻ׬୮شሁطᕴ! i D-Link DIR-456 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2009 by D-Link Systems, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Preface ii D-Link DIR-456 User Manual Table of Contents Preface........................................................................... i Trademarks .............................................................. i Product Overview ........................................................ 1 Package Contents ................................................... 1System Requirements ............................................. 1Introduction .............................................................. 2Hardware Overview ................................................. 3 Rear Panel ......................................................... 3Front Panel ........................................................ 4LEDs .................................................................. 5 Installation .................................................................... 6 Connect to Your Network ........................................ 6Connect a Telephone .............................................. 7 Wireless Installation Considerations ........................ 8 Configuration ............................................................... 9 Web-based Configuration Utility .............................. 9 Setup Wizard ......................................................... 10 Internet Connection Setup Wizard ................... 10Manual Internet Connection Setup .................. 14Internet Connection ......................................... 15Internet Connection Type ................................ 15 Static IP ........................................................... 16Dynamic IP (DHCP) ......................................... 17PPPoE ............................................................. 18 PPTP ............................................................... 19 L2TP ................................................................ 20Russia PPTP (Dual Access) ............................ 21Russia PPPoE (Dual Access) .......................... 233G Internet ....................................................... 25Wireless Settings ............................................. 26 Network Settings .............................................. 28 Router Settings ............................................ 28 DHCP Server Settings ................................. 29 DHCP Reservations ..................................... 30 Message Service ............................................. 31 Virtual Server ................................................... 33 Application Rules ............................................. 34 QoS Engine ..................................................... 35Network Filter ................................................... 36 Website Filter ................................................... 37 Firewall Settings .............................................. 38Advanced Wireless .......................................... 40Wi-Fi Protected Setup ...................................... 42 Advanced Network ........................................... 44Call Setting ...................................................... 46Admin ............................................................... 47 Time ................................................................. 48Email Settings .................................................. 49 System ............................................................. 50Firmware .......................................................... 51 Table of Contents iii D-Link DIR-456 User Manual Table of Contents Dynamic DNS .................................................. 52 System Check .................................................. 53 Schedules ........................................................ 54 Device Information ........................................... 55Logs ................................................................. 56Statistics .......................................................... 57Internet Sessions ............................................. 58 Wireless ........................................................... 59Support ............................................................ 60 Wireless Security....................................................... 61 What is WEP? ....................................................... 61Configure WEP ...................................................... 62What is WPA? ....................................................... 63Configure WPA-PSK ............................................. 64 Configure WPA (RADIUS) ..................................... 65Using Windows ® 7 and WPS for Wireless Configuration ......................................................... 66Connecting to a Wireless Network Using Windows ® 7 ................................................. 70 Connecting to a Wireless Network Using Windows Vista ® .......................................... 73 Connecting to a Wireless Network ........................ 75Using Windows ® XP ............................................... 75 Troubleshooting ........................................................ 77 Wireless Basics ......................................................... 79 What is Wireless? .................................................. 80Tips …

Text truncated - open the document above for the full version.

Schematics Block Diagram Bom list, Tune up procedure, OpDes

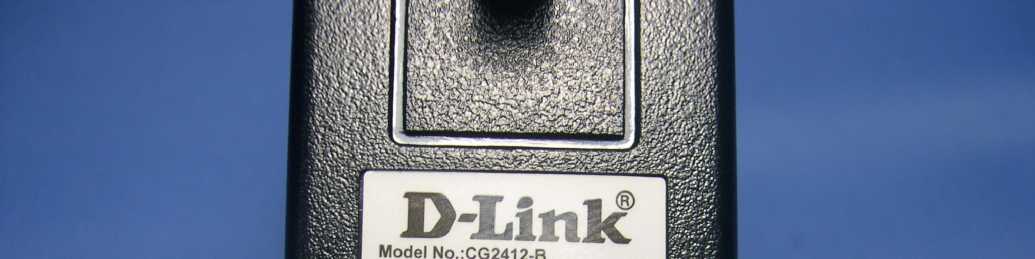

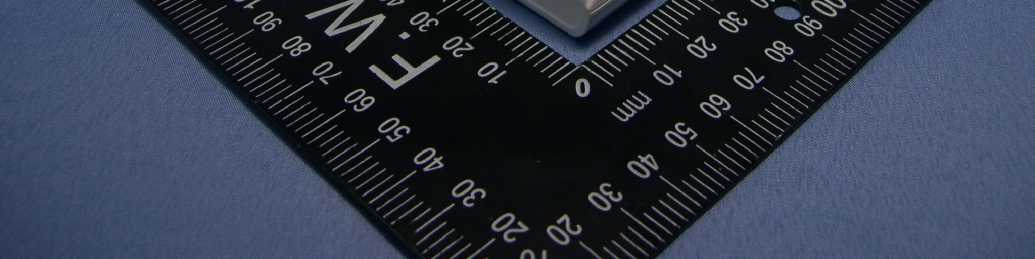

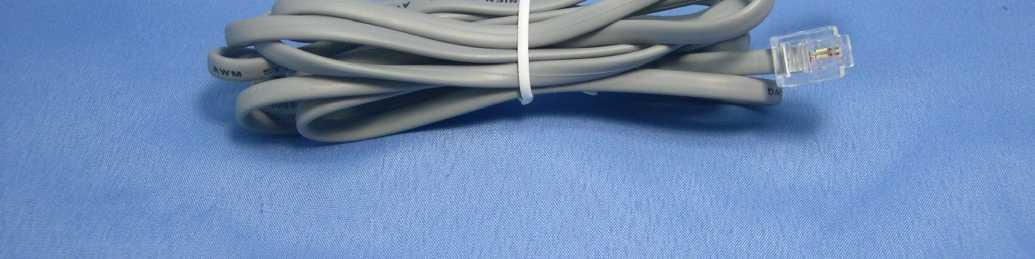

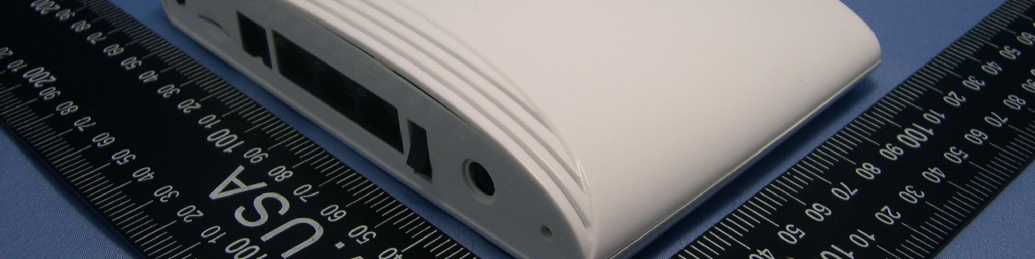

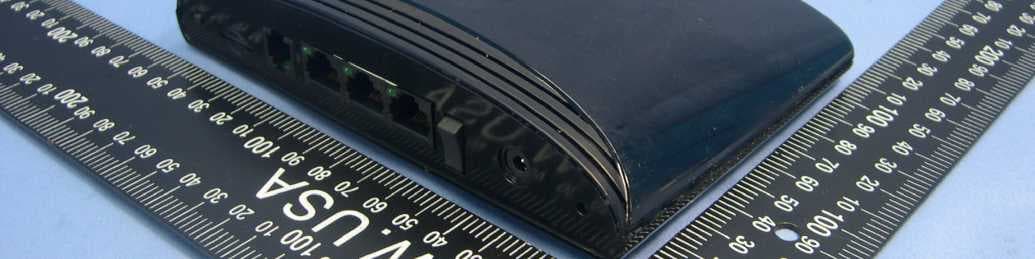

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 11 Page 12 Adapter: AMS4-1202000SU Page 13 Page 14 Adapter: CG2412-B Page 15

FCC ID： KA2DIR456A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Company Confidential

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

Report No.: SA990104H03 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA990108H03 MODEL NO.: DIR-456 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Co. ADDRESS: No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990104H03 2 Report Format Version 3.0.1 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990104H03 3 Report Format Version 3.0.1 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition For WLAN: The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. For 3G/2G The communication simulator station system controlled a EUT to export maximum output power under transmission mode and specific channel frequency. FOR WCDMA BAND: The following procedures were followed according to FCC “SAR Measurement Procedures for 3G Devices”, October, 2007. Output Power Verification Maximum output power is verified on the High, Middle and Low channels according to the procedures described in section 5.2 of 3GPP TS 34.121, using the appropriate RMC or AMR with TPC (transmit power control) set to all “ 1 ’ s ” for WCDMA/HSDPA or applying the required inner loop power control procedures to maintain maximum output power while HSUPA is active. Results for all applicable physical channel configurations (DPCCH, DPDCHn and spreading codes, HSDPA, HSPA) should be tabulated in the SAR report. All configurations that are not supported by the DUT or cannot be measured due to technical or equipment limitations should be clearly identified. Report No.: SA990104H03 4 Report Format Version 3.0.1 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA990104H03 5 Report Format Version 3.0.1 6. Test Results 6.1 Antenna Gain For WLAN: Brand No. Model No. Net Gain (dBi) Antenna Type Connector WHA YU GROUP C037-511052-A (SSR-209493) 2.41 PCB Antenna MHF For 3G/2G: Ant. Manufacture ANT Type ANT Model Connector Main Auden Techno Corp. PCB Antenna H-0124-1 I-PEX Aux Auden Techno Corp. PCB Antenna H-0124-2 I-PEX Antenna Gain Ant. Peak Gain CELL850 (dBi) EGSM900 (dBi) DCS1800 (dBi) DCS1900 (dBi) WCDMA2100 (dBi) TX 0 0.3 1.9 3.0 3.2 Main RX 0.4 -0.1 2.7 3.1 1.2 Ant. Peak Gain CELL850 (dBi) EGSM900 (dBi) DCS1800 (dBi) DCS1900 (dBi) WCDMA2100 (dBi) TX NA NA NA NA NA Aux RX 0.6 -1.5 0.3 0.1 -1.4 Report No.: SA990104H03 6 Report Format Version 3.0.1 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 87.1 0.030 1.0 6 2437 91.2 0.032 1.0 11 2462 85.1 0.029 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 275.4 0.095 1.0 6 2437 269.2 0.093 1.0 11 2462 288.4 0.100 1.0 802.11n (20MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 173.8 0.060 1.0 6 2437 169.8 0.059 1.0 11 2462 182.0 0.063 1.0 802.11n (40MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 147.9 0.051 1.0 4 2437 138.0 0.048 1.0 7 2452 154.9 0.054 1.0 Report No.: SA990104H03 7 Report Format Version 3.0.1 For 3G function(Gain: 3.2dBi) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 810 1909.8 977.237 0.388 1.0 For 2G function(Gain: 3.2dBi) Channel Channel Frequency (MHz) Output Pow…
