KA2DIR635B1D-Link DIR-635 RangeBooster N 650 Router

D-Link DIR-635 User Manual Table of Contents Product Overview ........................................................4 Package Contents ...................................................4 System Requirements .............................................4 Introduction ..............................................................5 Features ..................................................................6 Hardware Overview .................................................7 Connections .......................................................7 LEDs ..................................................................8 Installation ....................................................................9 Before you Begin .....................................................9 Wireless Installation Considerations ......................10 Getting Started ......................................................11 Configuration .............................................................12 Web-based Configuration Utility ............................12 Setup Wizard ...................................................13 Manual Configuration .......................................17 Dynamic (Cable) ..........................................17 PPPoE (DSL) ...............................................18 PPTP ............................................................19 L2TP .............................................................21 Static (assigned by ISP) ...............................23 Big Pond .......................................................24 Wireless Settings .............................................25 Network Settings ..............................................27 DHCP Server Settings .................................28 DHCP Reservation .......................................29 Virtual Server ...................................................30 Port Forwarding ...............................................32 Application Rules .............................................33 QoS Engine .....................................................34 Network Filters .................................................36 Access Control .................................................37 Access Control Wizard .................................37 Website Filters .................................................40 Inbound Filters .................................................41 Firewall Settings ..............................................42 ALG Configuration ...........................................43 VPN Passthrough .........................................43 RTSP ............................................................43 H.323 ............................................................43 SIP (VoIP) ....................................................43 MMS .............................................................43 Router Settings ................................................44 Advanced Wireless Settings ............................45 Transmit Power ............................................45 802.11d Mode ..............................................45 WISH Settings .................................................46 Wi-Fi Protected Setup ......................................48 Advanced Network Settings .............................50 UPnP ............................................................50 Internet Ping Block .......................................50 Internet Port Speed ......................................50 Multicast Streams .........................................50 Table of Contents 3D-Link DIR-635 User Manual Table of Contents Administrator Settings ......................................51 Change Password ........................................51 Remote Management ...................................51 Time Settings ...................................................52 SysLog .............................................................53 Email Settings ..................................................54 System Settings ...............................................55 Update Firmware .............................................56 DDNS ...............................................................57 System Check ..................................................58 Schedules ........................................................59 Device Information ...........................................60 Logs .................................................................61 Statistics ..........................................................62 Internet Sessions .............................................62 Wireless ...........................................................63 WISH Sessions ................................................63 Support ............................................................64 Wireless Security.......................................................65 What is WEP? .......................................................65 What is WPA? .......................................................66 Wireless Security Setup Wizard ............................67 Configure WEP ......................................................70 Configure WPA-Personal (PSK) ............................71 Configure WPA-Enterprise (RADIUS) ...................72 Connect to a Wireless Network ................................74 Using Windows ® XP ...............................................74 Configure WEP ......................................................75 Configure WPA-PSK .............................................77 Troubleshooting ........................................................79 Wireless Basics .........................................................83 What is Wireless? ..................................................84 Tips ........................................................................86 Wireless Modes .....................................................87 Networking Basics .....................................…

Text truncated - open the document above for the full version.

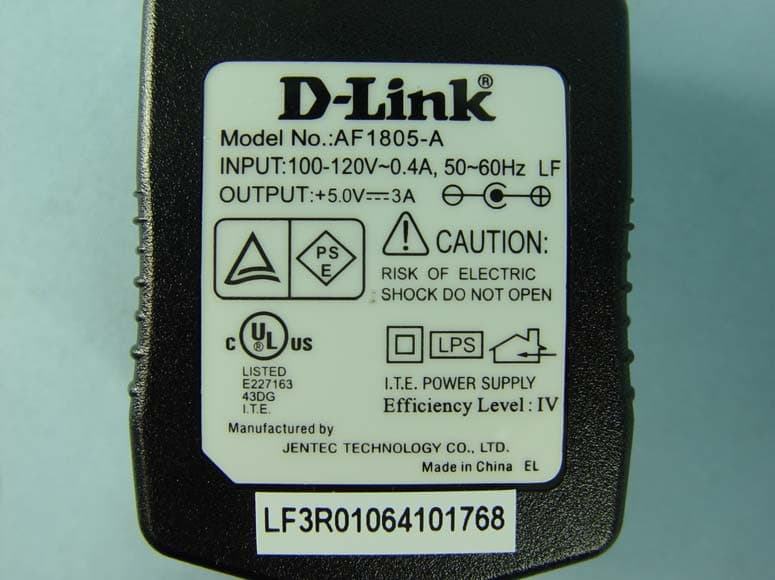

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: KA2DIR635B1 Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: KA2DIR635B1 Report No: SA960511L06 1 RF EXPOSURE REPORT REPORT NO.: SA960511L06 MODEL NO.: DIR-635 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DIR635B1 Report No: SA960511L06 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: KA2DIR635B1 Report No: SA960511L06 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DIR635B1 Report No: SA960511L06 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.5849 (numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 71.945 0.023 1.0 6 2437 81.096 0.026 1.0 11 2462 63.533 0.020 1.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 71.121 0.022 1.0 6 2437 100.000 0.032 1.0 11 2462 80.910 0.026 1.0 FCC ID: KA2DIR635B1 Report No: SA960511L06 5 DRAFT 802.11n (20MHz) OFDM modulation - DUAL TX PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 2 CHAIN 0 CHAIN 1 CHAIN 2 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2) PEAK POWER LIMIT (dBm) 1 2412 35.645 35.810 32.211 15.52 15.54 15.08 103.665 20.16 0.033 1.0 6 2437 40.458 40.272 41.210 16.07 16.05 16.15 121.939 20.86 0.038 1.0 11 2462 36.813 36.983 36.058 15.66 15.68 15.57 109.854 20.41 0.035 1.0 DRAFT 802.11n (40MHz) OFDM modulation - DUAL TX PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 2 CHAIN 0 CHAIN 1 CHAIN 2 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2) PEAK POWER LIMIT (dBm) 1 2422 18.155 16.144 17.824 12.59 12.08 12.51 52.123 17.17 0.016 1.0 4 2437 20.045 22.594 22.542 13.02 13.54 13.53 65.181 18.14 0.021 1.0 7 2452 17.906 17.865 18.030 12.53 12.52 12.56 53.801 17.31 0.017 1.0

Report No.: RF960511L06 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960511L06 MODEL NO.: DIR-635 RECEIVED: May 10, 2007 TESTED: May 10 ~ May 14, 2007 ISSUED: May 17, 2007 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 108 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960511L06 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION ..........................................................................................................4 2. SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................5 3. GENERAL INFORMATION...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................10 3.4 DESCRIPTION OF SUPPORT UNITS........................................................................10 4. TEST TYPES AND RESULTS .................................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS ............................................................................................... 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT ..................................................................32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................32 4.2.2 TEST INSTRUMENTS ...............................................................................................33 4.2.3 TEST PROCEDURES ................................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................34 4.2.5 TEST SETUP .............................................................................................................35 4.2.6 EUT OPERATING CONDITIONS ...............................................................................35 4.2.7 TEST RESULTS .........................................................................................................36 4.3 6dB BANDWIDTH MEASUREMENT ..........................................................................51 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................51 4.3.2 TEST INSTRUMENTS ...............................................................................................51 4.3.3 TEST PROCEDURE ..................................................................................................51 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................51 4.3.5 TEST SETUP .............................................................................................................52 4.3.6 EUT OPERATING CONDITIONS ...............................................................................52 4.3.7 TEST RESULTS .........................................................................................................53 4.4 MAXIMUM PEAK OUTPUT POWER ..........................................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................67 4.4.2 INSTRUMENTS..........................................................................................................67 4.4.3 TEST PROCEDURES ................................................................................................67 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................67 4.4.5 TEST SETUP .............................................................................................................68 4.4.6 EUT OPERATING CONDITIONS ...............................................................................68 4.4.7 TEST RESULTS .........................................................................................................69 4.5 POWER SPECTRAL DENSITY MEASUREMENT .....................................................71 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................................71 4.5.2 TEST INSTRUME…
