KA2DP-311PWireless Print Server

Manual Building Networks for People Wireless Print Server D-Link DP-311P 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Getting to know the DP-311P ................................................................ 5 Getting Started...................................................................................... 6 Using the Web Configuration................................................................. 7 Printing with Windows XP/2000..........................................................17 Printing with Windows 98SE/Me.........................................................24 Setting up AppleTalk or LPR Printing with MAC OS X ..........................32 Setting up AppleTalk or LPR Printing with MAC OS 9 ..........................39 Printing from MAC OS Client Workstations.........................................40 Networking Basics.............................................................................. 42 Technical Specifications......................................................................59 Contacting Technical Support..............................................................61 Warranty and Registration................................................................... 62 Appendix 1: DP-311P Printer Compatibility List ................................. 65 Appendix 2: Incompatible Printers List................................................66 Appendix 3: Upgrading the Firmware in Netware/ Windows/ Unix ....... 67 3 Contents of Package: D-Link DP-311P Wireless Print Server Manual, PS Admin User’s Guide and Warranty on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements: ! ! ! Windows XP/2000/Me/98SE ! Apple Mac OS with AppleTalk ! NetWare 5.x (Native NDS) ! Internet Explorer 6.0, or Netscape Navigator version 6.0 or above, with JavaScript enabled ! Printer must support required Operating System ! 4 Introduction The D-Link DP-311P Print Server is a wireless print server with one parallel port. With its high-speed IEEE 1283 parallel port, the DP-311P allows those on your network to access and share a printer wirelessly, no matter where they reside on the network. The DP-311P is equipped with one bi-directional parallel port with a centronics connector for direct connection to most printers available on the market today. No additional printer cable will be required. The DP-311P also supports all major network operating systems and protocols. The DP-311P is an 802.11b-compliant wireless Print Server that supports both Infrastructure or Ad-Hoc wireless modes. With the DP-311P you have the ability and convenience of sharing a printer beyond the wired network. The DP-311P is also easily configurable using a Web Browser or Windows based setup wizard. Using a web browser on a PC connected to the network, configuration is simple and straightforward with the familiar D-Link interface. PS Admin, a Windows-based configuration program can also be used to configure the DP-311P. (The PS Admin manual is available on the CD included with your purchase). The DP-311P Wireless Print Server is the ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing. 5 Getting to know the DP-311P 5V-2A Power inlet Plug the External Power Supply into this jack Mode Switch Toggle UP to Configure; Toggle DOWN for Normal operation. WLAN LED A blinking Green light indicates a connection to a power supply Parallel Port IEEE 1284 Bi-Directional Parallel Port with a centronics connector Power LED A solid Green light indicates a connection to a power supply Frontview Rearview 6 Getting Started Below is a sample network using the DP-311P. The DP-311P has a built- in Web-based management feature that allows users to easily configure and manage multiple print queues through TCP/IP. For a list of printers that are compatible with the DP-311P, please see the Appendix in this manual. The compatibility list is not comprehensive. Even if it is not included in the list, your printer may be compatible with the DP-311P. 7 Using the Web Configuration On the following pages you will find a description of each of the screens that are available to you for the web configuration of the DP-311P. Re-power the DP-311P by pulling the power adapter plug out and re-inserting it. After you have finished configuring the DP-311P, in order for the changes to take effect, you must toggle the mode switch on the rear panel of the print server back to “Normal” mode. Set the switch to Config mode on the rear panel of the DP-311P. Change your wireless adapter setting to Ad-Hoc or Peer-to-Peer mode. (Open the Configuration utility for your network adapter and make sure that your network adapter is set to Ad-Hoc mode in your configuration settings.) (For D-Link network adapters, you can open the web-based configuration utility and go to the Site Survey function and select the SSID named WLAN-PS. The Channel is 1 and WEP is set to Disable. The network adapter will now be in Ad- Hoc mode.) Change the wireless adapter IP Address so that it is in the same IP Address range as the DP-311P (192.168.0.x). For instructions on changing the IP Address, please refer to the Networking Basics section in this manual. The subnet mask is 255.255.255.0. Restart the computer. Open your web browser and input the IP Address of your wireless print server. The default IP Address is 192.168.0.10. you begin configuring the DP-311P: Before you have completed the configuration: After 8 You can access and control the Print Server’s configuration through the tabs on the top of this main screen: Home, Con- figuration, Network, Tools, and Help. Using the Web Configuration (continued) Home > Status This screen displays some basic informa- tion abou…

Text truncated - open the document above for the full version.

31 Printing with Windows 98SE/Me (continued) Select your DP-311P wireless print server Click OK Click Apply > OK You have completed setting up your printer in Win 98SE/Me! 192.168.0.10 192.168.0.10 HP LaserJet Series II HP LaserJet Series II 32 Setting up Apple Talk or LPR Printing in Mac OS X Set the switch to Config mode on the rear panel of the DP-311P. Change your wireless adapter setting to Ad-Hoc or Peer-to-Peer mode. (Open the Configuration utility for your network adapter and make sure that your network adapter is set to Ad-Hoc mode in your configuration settings.) (For D-Link network adapters, you can open the web-based configuration utility and go to the Site Survey function and select the SSID named WLAN-PS. The Channel is 1 and WEP is set to Disable. The network adapter will now be in Ad- Hoc mode.) Change the wireless adapter IP Address so that it is in the same IP Address range as the DP-311P (192.168.0.x). For instructions on changing the IP Address, please refer to the Networking Basics section in this manual. The subnet mask is 255.255.255.0. Restart the computer. Open your web browser and input the IP Address of your wireless print server. The default IP Address is 192.168.0.10. 33 Change the IP Address and change the other settings of the DP-311P to conform to your network. Change the mode to Infrastructure. Input or select the SSID of your wireless router or AP. Input WEP settings if applicable. 11 11 1After you have configured the DP-311P, set the rear panel switch back to Normal mode. 22 22 2Change your wireless network adapter settings (IP Address, Infrastructure mode) so that they match your network. Setting up Apple Talk or LPR Printing in Mac OS X (continued) 34 At the Configure pull- down menu, select Manually Note: Mac OS printing is supported by Postscript printers only! Open your System Preferences window and Click Network With Mac OSX you can use AppleTalk or LPR printers using IP protocols for printing through Print Servers. Follow the instructions below for setting up the Print Server. After attaching the Print Server to your network using the directions provided in the Quick Installation Guide, change the IP Address of your Macintosh to access the Print Server’s web configuration. Setting up Apple Talk or LPR Printing in Mac OS X (continued) 35 The default IP Address of the Print Server is 192.168.0.10. Manually change your IP Address to 102.168.0.x, where x is any number between 1 and 254 (except 10 which is the IP Address of the Print Server.) The IP Addresses and Subnet Mask shown here are examples only Setting up Apple Talk or LPR Printing in Mac OS X (continued) Select the AppleTalk tab in this window and check Make AppleTalk Active 36 Setting up Apple Talk or LPR Printing in Mac OS X (continued) To print, open a document and select File > Print from the menu Select Edit Printer List from the Printer dialog box Click Add Printer 37 Setting up Apple Talk or LPR Printing in Mac OS X (continued) Select the printing protocol preferred, AppleTalk or LPR Printers using IP AppleTalk protocol: After selecting AppleTalk the Port Name of the Print Server will be displayed. The Port Name shown here is an example only Click on the Port to which the post-script printer is connected In this example, AppleTalk has been selected PS - 1123D6-U1Laserwriter Then select the printer model from the dialog box displayed here. Click Add Printer and the Printer Port configuration is complete. Select the Printer Port just configured in the Print window. Click Print to print your document 38 Setting up Apple Talk or LPR Printing in Mac OS X (continued) LPR Printers using IP pro- tocol: When you select LPR Print- ers using IP Protocol, this window will appear Type the IP Address of the Print Server into the LPR Printer’s Address field In the Queue Name field, type in the Port Name of the post-script printer that is connected to the Print Server. The Port Name illustrated here is only an example. Select the printer model from the dialog box. In the Queue Name field, type in the Port Name of the post-script printer that is connected to the Print Server. The Port Name illustrated here is only an example. Select the printer model from the dialog box Click Add and the process is complete Close all Print Center windows, select the Printer Port that was just selected Click Print to print the document.Click Add and the process is complete ATALK_PS 39 Setting up Apple Talk Printing in Mac OS 9 The AppleTalk network protocol is used with computers using the MacOS operating system. It can be used for network communications over standard Ethernet or Fast Ethernet using the EtherTalk transport, or over a proprietary low-speed LocalTalk transport. Your Print Server can be used for network printing to PostScript printers. You can print from any MacOS computer connected to your Ethernet network, either directly using an EtherTalk connection, or indirectly through a LocalTalk-to-EtherTalk router. NOTE: The Chooser name of a printer connected to one of the Print Server’s ports is the same as its Port Name. If you are using AppleTalk printing, you will need to make sure that every Port Name is unique among all of the network printers in your AppleTalk zone. The Port Names shown in this manual are examples only. Setting up the Print Server for AppleTalk Printing To set up your Print Server so that it can be used for AppleTalk printing: Select the Network tab and scroll to the bottom to the AppleTalk protocol section Change the IP Address on one of the computers on your network to 192.168.0.x, where x is any number between 11-254 Type 192.168.0.10 into the address field of your web browser. 192.168.0.10 is the default IP Address of the DP-301U Make sure the AppleTalk protocol is enabled in your Macintosh ! ! ! ! If your AppleTalk network is divided into AppleTalk zones, you will have to specify which zone the Print Server should be in. You should locate the Print Server in the same zone as most of…

Text truncated - open the document above for the full version.

48 Networking Basics The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Net- work Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. (continued) 49 Networking Basics How to assign a Name to your computer (continued) To name your computer, please follow these directions in Windows XP: Click Start (in the lower left corner of the screen) Right-click My Computer Select Properties and Click ! ! ! ! ! ! Select the Computer Name tab in the System Properties window. You may enter a Computer Description (optional). To rename the computer and join a domain, Click Change. (continued) 50 Networking Basics How to assign a Name to your Computer (continued) ! In this window, enter the Computer name Select Workgroup and enter the name of the Workgroup All computers on your network must have the same Workgroup name. Click OK ! ! ! How to find your IP Address in Windows XP The adapter-equipped computers in your network must be in the same IP Ad- dress range. To verify the IP Address of the adapter, please do the following: Right-click on the Local Area Con- nection icon in the task bar Click on Status ! ! (continued) 51 Networking Basics (continued) How to find your IP Address in Windows XP (continued) This window will appear. Click the Support tab Click Close ! ! Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Addresses to the computers on the network, using DHCP (Dynamic Host Con- figuration Protocol) technology. If you are using a DHCP-capable Gateway/ Broadband Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Broadband Router, or you need to assign a Static IP Address, please follow these instructions: ! ! Go to Start Double-click Control Panel 52 Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 (continued) ! Double-click Network Connections ! ! Double-click Properties Right-click Local Area Connections 53 Input your IP Address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 (continued) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway.) ! The DNS server information will be supplied by your ISP (Internet Service Provider.) ! Click OK Click Internet Protocol (TCP/IP) Click Properties ! ! Select Use the following IP Address in the Internet Protocol (TCP/IP)Properties window. ! ! 54 Networking Basics (continued) Sharing an LPR Printer (continued) To share an LPR printer (using a print server,) you will need a Print Server such as the DP- 311P. Please make sure that you have run the Network Setup Wizard on all the computers on your network. To share an LPR printer, please follow these directions: Go to Start > Printers and Faxes Click on Add a Printer The screen to the right will appear Click Next Select Local Printer... Click Next ! ! ! ! ! 55 Networking Basics (continued) Sharing an LPR Printer (continued) Select Create a new port From the pull-down menu, select Standard TCP/IP Port, as shown. Click Next Please read the instruc- tions on this screen Click Next Enter the Printer IP Address and the Port Name, as shown. Click Next ! ! ! ! ! ! ! 56 Networking Basics Sharing an LPR printer (continued) In this screen, select Custom. Click Settings. Enter the Port Name and the Printer Name or IP Address. Select LPR. Enter a Queue Name (if your Print- Server/ Gateway has more than one port, you will need a Queue name.) Click OK. ! ! ! ! ! ! 57 Networking Basics Sharing an LPR printer (continued) Select Keep existing driver. If the printer driver is already installed, do the following: Click Have Disk. Insert the printer driver disk that came with your printer. Select the printer you are adding from the list of Printers. Click Finish. This screen will show you information about your printer. ! ! ! ! ! ! ! Click Next. 58 Networking Basics Sharing an LPR printer (continued) Note: You must run the Network Setup Wizard on all the computers on your network before you run the Add Printer Wizard. Please run the Add Printer Wizard on all the computers on your network in order to share the printer. Click Finish to complete the addition of the printer. This screen will display information about your printer. Select Yes, to print a test page. Please remember the name of your printer. You will need this information when you use the Add Printer Wizard on the other computers on your network. You can rename your printer if you choose. It is optional. ! ! ! ! ! ! ! Click Next. Click Next. 59 Technical Specifications Parallel- 1 DB-36-pin male Centronics port, supporting bi- directional communication Standard-Complies with IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) standard Radio Frequency-2.4GHz Band Media Access Control Method- Modulation Types-CCK (11 & 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) Operating Channels-11 Channels (U. S. & Canada) 13 Channels (Pan Europe) 14 Channels (Japan) Modes-Ad-Hoc and Infrastructure (User-definable via Web management interface) Data Transmission Rate-Up to 11Mbps, with auto-fallback feature to 5.5Mbps, 2Mbps, 1Mbps Output Power-+13 ~ +17dBm (typical +15dBm) Radio Sensitivity (BER < 8%)- Min. -82 dBm for 11Mbps Min. -86 dBm for 5.5Mbps Min. -88 dBm for 1/2Mbps Type of Antenna-Internal, PIFA Type(Peak Gain: 2) WEP (Wired Equivalent Privacy) Encryption-Supports 64- and 128-bit (alphan…

Text truncated - open the document above for the full version.

R:\Customer document\\920625R01\Form\ -03 (1200x1600x16M jpeg)零零零零

R:\Customer document\\920625R01\Form\ -01 (4800x6678x256 jpeg)零零零零

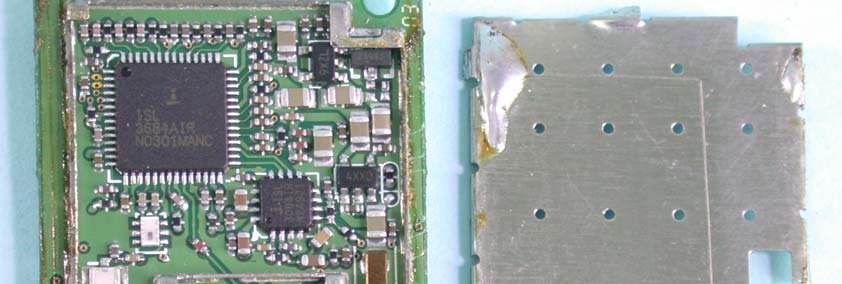

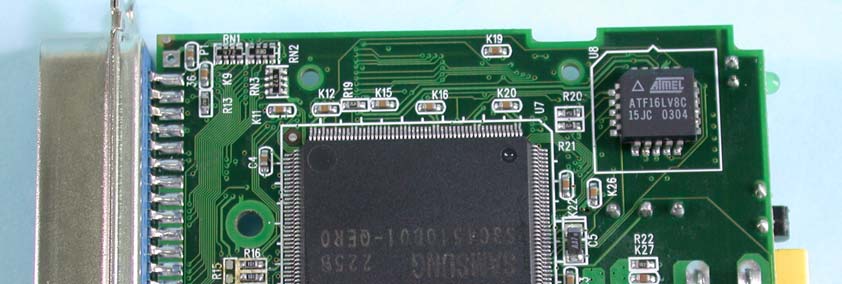

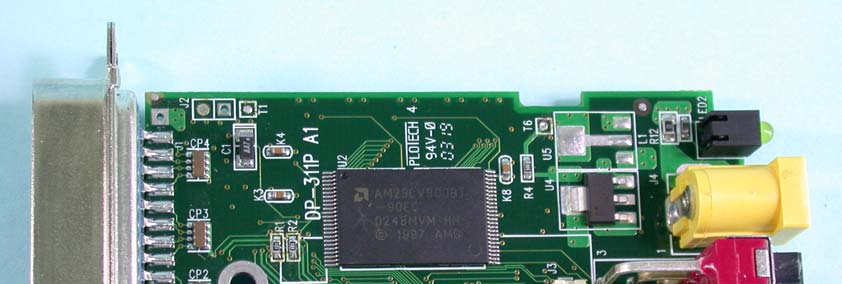

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID Label Location

C:\DOCUME~1\Jane\LOCALS~1\Temp\C.NotesR5.Data.jane\ DP-311P FCCl (289x381x16M jpeg)

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: KA2DP-311P ADT No.920625R01 Operational Description The transmitter of the EUT is powered by power adapter. The antenna type is Dipole antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2dB coding gain.

FCC ID: KA2DP-311P Report No: 920625R01 1 FCC TEST REPORT REPORT NO.: RF920625R01 MODEL NO.: DP-311P ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No. 20, Sec. 2, Park Ave., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DP-311P Report No: 920625R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DP-311P Report No: 920625R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, for normal use, it is easy to be re- located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DP-311P Report No: 920625R01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849(numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.760.01001.0 6243731.190.00981.0 11246231.410.00991.0

FCC ID: KA2DP-311P Report No.: RF920625R011Issued: Aug 11, 2003 FCC TEST REPORT REPORT NO.: RF920625R01 MODEL NO.: DP-311P RECEIVED: June. 25, 2003 TESTED: June. 30 ~ Aug. 07, 2003 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 52 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DP-311P Report No.: RF920625R012Issued: Aug 11, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 5 2SUMMARY OF TEST RESULTS................................................................... 6 3GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT.............................................................. 7 3.2DESCRIPTION OF TEST MODES................................................................ 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 9 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 13 4.1.7TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 20 4.2.2TEST INSTRUMENTS ................................................................................ 21 4.2.3TEST PROCEDURES................................................................................. 23 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 23 4.2.5TEST SETUP .............................................................................................. 24 4.2.6EUT OPERATING CONDITIONS................................................................ 24 4.2.7TEST RESULTS.......................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT .......................................................... 30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 30 4.3.2TEST INSTRUMENTS ................................................................................ 30 FCC ID: KA2DP-311P Report No.: RF920625R013Issued: Aug 11, 2003 4.3.3TEST PROCEDURE ................................................................................... 31 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 31 4.3.5TEST SETUP .............................................................................................. 31 4.3.6EUT OPERATING CONDITIONS................................................................ 31 4.3.7TEST RESULTS.......................................................................................... 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 37 4.4.5TEST SETUP .............................................................................................. 37 4.4.6EUT OPERATING CONDITIONS................................................................ 37 4.4.7TEST RESULTS.......................................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 40 4.5.5TEST SETUP .............................................................................................. 40 4.5.6EUT OPERATING CONDITIONS................................................................ 40 4.5.7TEST RESULTS.......................................................................................... 41 4.6BAND EDGES MEASUREMENT ................................................................ 45 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 45 4.6.2TEST INSTRUMENTS ...............................…

Text truncated - open the document above for the full version.

FCC ID: KA2DP-311P Report No.: RF920625R0150Issued: Aug 11, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DP-311P Report No.: RF920625R0151Issued: Aug 11, 2003 RADIATED EMISSION TEST
