D Link Corporation Date: March 4, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: KA2DSL-2750U ATTESTATION FCC ID: KA2DSL-2750U Product: ADSL2+ 4-port Wireless Router Model: DSL-2750U, DSL-2750B, We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Michael Boschma/Engineer 17595 Mt. Herrmann,Fountain Valley,California USA

RF_160, Issue 02 D Link Corporation Declaration of Authorization We Name: D Link Corporation Address: 17595 Mt. Herrmann, Fountain Valley, California USA City: ......... Fountain Valley ................................................................ Country:...... California/USA ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: ADSL2+ 4-port Wireless Router .................................. Type designation: DSL-2750U,DSL-2750B, ............ Trademark: D-Link................................................. on our behalf. Date: ...... 2011/03/04................. City: ...... Fountain Valley .......................... Name: ...... Michael Boschma ................................ (2) Function: ...... Engineer............... ................ Signature: .......................................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

D Link Corporation Date: March 4, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: KA2DSL-2750U Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Michael Boschma/Engineer 17595 Mt. Herrmann,Fountain Valley,California USA

D Link Corporation Attestation for FCC Declaration of Conformity FCC ID: KA2DSL-2750U Date: 2011/03/04 Please be notified that we, the undersigned, D Link Corporation declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 10CS018R-HP-US-P01V02. Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Michael Boschma/Engineer 17595 Mt. Herrmann,Fountain Valley,California USA

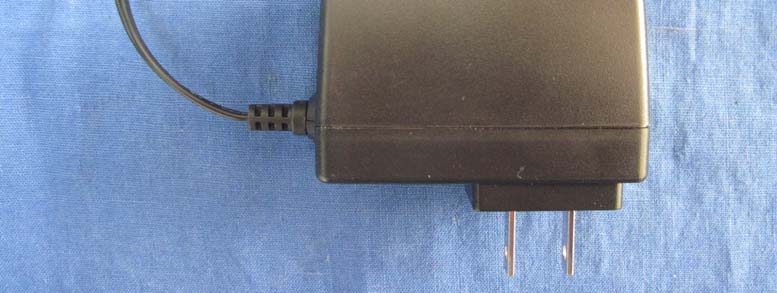

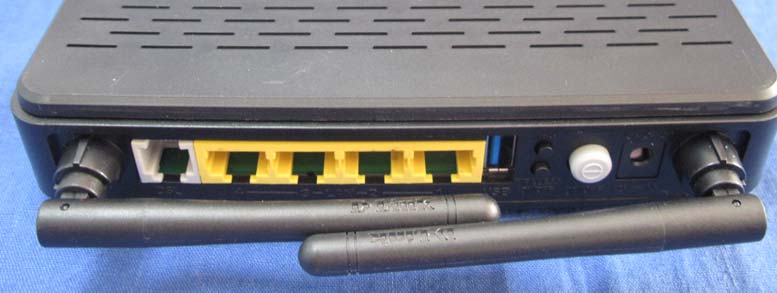

Report No：10CS018R-RF-US-P05V01 Page: 177 of 181 12. Appendix 2 – EUT Photograph (1) EUT Photo (2) EUT Photo Report No：10CS018R-RF-US-P05V01 Page: 178 of 181 (3) EUT Photo (4) EUT Photo Report No：10CS018R-RF-US-P05V01 Page: 179 of 181 (5) EUT Photo (6) EUT Photo

Report No：10CS018R-RF-US-P05V01 Page: 180 of 181 (7) EUT Photo (8) EUT Photo Report No：10CS018R-RF-US-P05V01 Page: 181 of 181 (9) EUT Photo (10) EUT Photo

FCC Part15.247 Test Report Product Name : ADSL2+ 4-port Wireless Router Model No. : DSL-2750U, DSL-2750B FCC ID : KA2DSL-2750U Applicant : D-link Corporation Address : NO. 289. Sinhu 3rd RD., Neihu District, Taipei City 114, Taiwan Date of Receipt : Dec. 10, 2010 Test Date : Dec. 10, 2010 ~ Dec. 20, 2010 Issued Date : Dec. 22, 2010 Report No. : 10CS018R-RF-US-P05V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：10CS018R-RF-US-P05V01 Page: 2 of 181 Test Report Certification Issued Date : Dec. 22, 2010 Report No. : 10CS018R-RF-US-P05V01 Product Name : ADSL2+ 4-port Wireless Router Applicant : D-link Corporation Address : NO. 289. Sinhu 3rd RD., Neihu District, Taipei City 114, Taiwan Manufacturer : D-link Corporation Address : NO. 289. Sinhu 3rd RD., Neihu District, Taipei City 114, Taiwan Model No. : DSL-2750U, DSL-2750B FCC ID : KA2DSL-2750U EUT Voltage : DC 12V, 1A Trade Name : D-Link Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008; ANSI C63.4: 2009; ANSI C63.10: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No：10CS018R-RF-US-P05V01 Page: 3 of 181 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：10CS018R-RF-US-P05V01 Page: 4 of 181 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................8 1.3. Tested System Details................................................................................................9 1.4. Configuration of Tested System ...............................................................................10 1.5. EUT Exercise Software ............................................................................................ 11 2. Technical Test ..............................................................................................................12 2.1. Summary of Test Result ...........................................................................................12 2.2. Test Environment.....................................................................................................13 3. Conducted Emission ....................................................................................................14 3.1. Test Equipment ........................................................................................................14 3.2. Test Setup ................................................................................................................14 3.3. Limit..........................................................................................................................15 3.4. Test Procedure.........................................................................................................15 3.5. Uncertainty ...............................................................................................................15 3.6. Test Result...............................................................................................................16 4. Radiated Emission.......................................................................................................18 4.1. Test Equipment ........................................................................................................18 4.2. Test Setup ................................................................................................................19 4.3. Limit..........................................................................................................................20 4.4. T est Procedure...................................................…

Text truncated - open the document above for the full version.

Report No：10CS018R-RF-US-P05V01 Page: 173 of 181 11. Appendix 1 – Test Setup Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No：10CS018R-RF-US-P05V01 Page: 174 of 181 Description : Front View of Radiated Emission Test Setup for Below 1GHz Description : Back View of Radiated Emission Test Setup for Below 1GHz Report No：10CS018R-RF-US-P05V01 Page: 175 of 181 Description : Front View of Radiated Emission Test Setup for Above 1GHz Description : Back View of Radiated Emission Test Setup for Above 1GHz Report No：10CS018R-RF-US-P05V01 Page: 176 of 181 Description : Front View of Radiated Emission Test Setup for Above 18GHz Description : Back View of Radiated Emission Test Setup for Above 18GHz
