KA2DSM510A1High Definition Media Player

D-Link DSM-510 User Manual Table of Contents Safety Information .......................................................4 Product Overview ........................................................8 Package Contents....................................................8 Minimum System Requirements ..............................8 Recommended ........................................................8 Introduction ..............................................................9 Features .................................................................10 Wireless Installation Considerations .......................11 Setup Your DSM-510 Using an Intel ® Viiv ™ Technology-Based PC ...............................................12 Wireless Connection ..............................................15 Wired Connection ..................................................16 Connecting the DSM-510 ......................................17 Video Connections ...........................................17 Audio Connections ...........................................18 Network Connections .......................................19 Using the Remote Control .....................................20 Power on the DSM-510 ..........................................21 Finalizing Your Wireless Connection with an Intel ® Viiv ™ Technology Verified Router ...........................22 Finalizing Your Wireless Connection without an Intel ® Viiv ™ Technology Verified Router ...........................24 Finalizing Your Wired Connection ..........................26 Adding a Device without an Intel ® Viiv ™ Technology Verified Router .......................................................27 Adding a Device .....................................................30 Setting Up the Intel ® Viiv ™ Media Library ...............31 Navigating to the Intel ® Viiv ™ Technology Settings Screen and Images on Your PC .............................32 D-Link ® Media Server Installation ............................33 Settings ......................................................................34 Options ..................................................................34 On-Screen Keyboard .............................................35 Network Settings ...................................................36 Wired LAN Settings .........................................36 Wireless LAN Settings .....................................37 TV Settings ............................................................38 Audio Output Settings ............................................38 Language Settings .................................................39 Settings for Ease of Use ........................................39 Reset Settings .......................................................40 Wireless LAN Profile Settings ................................40 Software Update ....................................................41 Device Information .................................................41 Windows ® Connect Now ...........................................42 Operating the DSM-510 .............................................47 Table of Contents D-Link DSM-510 User Manual Table of Contents Music .....................................................................48 Time Search ....................................................54 Photo .....................................................................55 Video......................................................................58 Time Search ....................................................59 Intel ® Viiv ™ Zone ....................................................60 Server ....................................................................61 USB .......................................................................62 Troubleshooting .........................................................63 Wireless Basics .........................................................69 Networking Basics ....................................................74 Check your IP Address ..........................................74 Statically Assign an IP Address .............................75 General Appendix ......................................................76 How to Check your Media ......................................76 Convert an Earlier WMV File into WMV9 ..............77 Remote Control Table ............................................83 Contacting Technical Support ..................................84 Warranty .....................................................................85 Registration ................................................................90 D-Link DSM-510 User Manual For optimum performance, please read the following information carefully. Safety Precautions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert users to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION! THE POWER SUPPLY CORD IS USED AS THE MAIN DISCONNECT DEVICE. ENSURE THAT THE SOCKET-OUTLET IS LOCATED/INSTALLED NEAR THE EQUIPMENT AND IS EASILY ACCESSIBLE. CAUTION! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PRODUCT DAMAGE, DO NOT EXPOSE THE UNIT TO RAIN, MOISTURE, DRIPPING, OR SPLASHING. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS UPON THE UNIT. Safety Information 5D-Link DSM-510 User Manual CAUTION! • DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. • DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTH…

Text truncated - open the document above for the full version.

51D-Link DSM-510 User Manual Section  - Operation Playing a Playlist To play all the tracks in a playlist, select the playlist name and press the Play button. All tracks will be played in the playlist. Adding Favorites Click the MENU button on your remote control and you should see the Add Favorite option. Highlight the Add Favorite option and press ENTER (see the following image). Select the Favories folder you want to add this Playlist, Genre, Artist, Album, or Folder to and click OK. 5D-Link DSM-510 User Manual Section  - Operation Browsing for Music There are many ways to browse for a music track. For example, let’s use the following music file located in the following shared location: c:\Documents and Settings\Administrator\My Documents\My Music\Beethoven\Ode to joy.mp3 Track: Ode to joy.mp3 Artist: Ludwig van Beethoven Album: Beethoven Genre: Classical To browse for this track in the track list: 1. Select All Music 2. Highlight Ode to joy To browse by artist: 1. Select Artist 2. Select Ludwig van Beethoven 3. Select Beethoven 4. Highlight Ode to joy To browse by album: 1. Select Album 2. Select Beethoven 3. Highlight Ode to joy To browse by genre: 1. Select Genre 2. Select Classical 3. Select Ludwig van Beethoven 4. Select Beethoven 5. Highlight Ode to joy To browse by folder: 1. Select Folders 2. Select My Music 3. Select Beethoven 4. Select Ode to joy 5D-Link DSM-510 User Manual Section  - Operation Controlling Music Playback Your DSM-510 works just like a stereo or CD player. Controlling your music playback will be an easy and natural experience. Use the remote to Play, Pause, or Stop music. You can also use your remote control to Fast Forward or Fast Reverse the track. Press the Previous and Next buttons to skip to the previous or next track. Repeat You can turn on the repeat function to continuously play individual tracks, playlists, or groups of tracks within a folder. To repeat a track or a group of tracks, press REPEAT on the remote control. When the the Repeat icon appears in the lower right hand corner , than you are in the repeat current group of tracks mode. Press REPEAT for the second time and the Repeat One icon will appear in the lower right hand corner , this will repeat the track that is currently playing. Shuffle When you are playing a group of tracks, you can randomize the play order by pressing the SHUFFLE button on the remote control. You will see the shuffle icon in the lower right hand corner light up . 5D-Link DSM-510 User Manual Section  - Operation Time Search You can search to a specific time in a music file by using the Time Search function. While your music is playing, click the MENU button on your remote control. Navigate to the Time Search option and press ENTER (see the following image). Using your remote control, enter the minutes and seconds you want the player to start from, and click OK. Note: The Time Search function may not be supported outside the Intel ® Viiv ™ and Nero MediaHome Server. 55D-Link DSM-510 User Manual Section  - Operation Supported Photo Formats The following photo file formats are supported: • BMP (non-compressed) Windows bitmap file. Widely used in Microsoft Windows for pictures and backgrounds. • JPEG (grayscale, RGB, YCbCy) (Does not support CMYK, YCCK.) The JPEG format is the Internet and digital photo format standard used by most digital cameras. • GIF (Animated GIF’s are not supported) Older format still widely available on the internet for photos, web pages, and clip art. • PNG (Non-alpha channel only) Portable Network Graphics standard created in response to limitations in the GIF file format. • TIFF (RGB) (Does not support CMYK, YMC, YMCK, KCMY) Tagged Image File Format is a raster file format. Photo Select the PHOTO category from the Home page or click the PHOTO button on the remote control. Select a category, by using the down arrow and up arrow on the remote control to navigate (choose between All Pictures, Album, or Favorites). Select your category by clicking ENTER. After the appropriate picture is highlighted, press ENTER, or Play to start a slideshow, on the remote control. The Page Up and Page Down buttons can be used to navigate through the picture list one page at a time. 5D-Link DSM-510 User Manual Section  - Operation Organizing Photo Albums Unlike music files, photos contain little information about their content. Therefore, photos are organized by their filename and by the folder they are in. Many digital cameras will organize your photos into folders when you connect and unload them to your PC. Each time you dock or connect, a new folder is created using the current date and time, and all photos are copied into that folder. To simplify browsing on your DSM-510, you can create folders on your PC. For instance, create a folder in the My Pictures directory called Vacation and copy all of your vacation photos into it. Your DSM-510 will show the Vacation folder. To play a slideshow of the folder, highlight it and press the Play button. To view a list of photos in the folder, highlight it and press the right arrow button. You can give your photos meaningful names by renaming the files on the PC. Most digital cameras number photos sequentially. For example, rename the photo IM001125.jpg to sunset.jpg on your PC. The photo will be displayed as sunset.jpg on your DSM-510*. You can create as many folders as you need. Create a folder for the year, then create folders inside for each of the months, and then folders in each month for special occasions (birthday, vacation, holidays, etc...). *Folder creation and renaming files must be done on the PC via standard Windows ® procedures. If the file extension does not appear as part of the name displayed when you select rename, then it is not necessary to enter the file extension (.jpg) at the end of the filename. To rename IM001125.jpg to sunset.jpg, type in sunset and hit Enter on your computer’s keyboard. Right-click on the file and select Rename. If the fil…

Text truncated - open the document above for the full version.

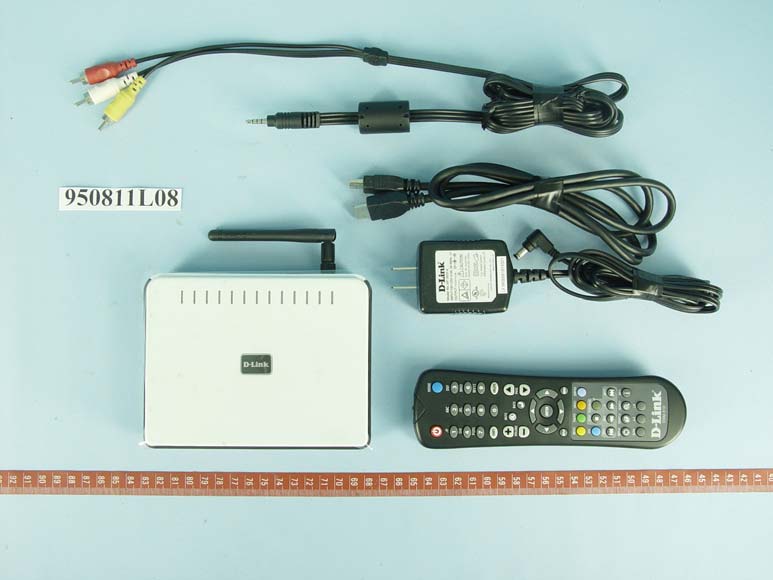

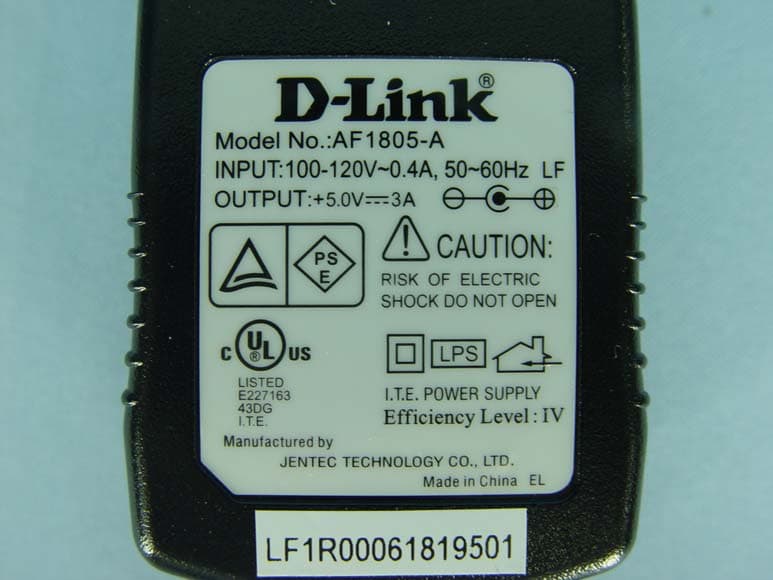

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID:KA2DSM510A1 IC:4216A-SM510

FCC ID .: KA2DSM510A1 Label Location

Page 1 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: KA2DSM510A1 Report No. RF950811L08 Operational Description This device is a High Definition Media Player in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: KA2DSM510A1 Report No: SA950811L08 1 RF EXPOSURE REPORT REPORT NO.: SA950811L08 MODEL NO.: DSM-510 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DSM510A1 Report No: SA950811L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: KA2DSM510A1 Report No: SA950811L08 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: KA2DSM510A1 Report No: SA950811L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58489 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 35.975 0.014 1.0 6 2437 36.224 0.014 1.0 11 2462 35.975 0.014 1.0 For 802.11g OFDM MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 44.875 0.014 1.0 6 2437 44.978 0.014 1.0 11 2462 45.604 0.014 1.0

Report No.: RF950811L08 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950811L08 MODEL NO.: DSM-510 RECEIVED: Aug. 08, 2006 TESTED: Aug. 08 ~ Nov. 13, 2006 ISSUED: Nov. 15, 2006 APPLICANT : D-Link Corporation ADDRESS : 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950811L08 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ................................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 5 3 GENERAL INFORMATION......................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................................ 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................................... 10 4 TEST TYPES AND RESULTS ...................................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................................11 4.1.2 TEST INSTRUMENTS...............................................................................................................11 4.1.3 TEST PROCEDURES .............................................................................................................. 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 12 4.1.5 TEST SETUP............................................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 13 4.1.7 TEST RESULTS ....................................................................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................. 20 4.2.2 TEST INSTRUMENTS.............................................................................................................. 21 4.2.3 TEST PROCEDURES .............................................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 22 4.2.5 TEST SETUP............................................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 23 4.2.7 TEST RESULTS ....................................................................................................................... 24 4.3 6dB BANDWIDTH MEASUREMENT ....................................................................................... 31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................................... 31 4.3.2 TEST INSTRUMENTS.............................................................................................................. 31 4.3.3 TEST PROCEDURE................................................................................................................. 31 4.3.4 DEVIATION FROM TEST STANDARD .................................................................................... 31 4.3.5 TEST SETUP............................................................................................................................ 32 4.3.6 EUT OPERATING CONDITIONS ............................................................................................. 32 4.3.7 TEST RESULTS ............................................................................................................. .......... 33 4.4 MAXIMUM PEAK OUTPUT POWER ....................................................................................... 37 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ....................................... 37 4.4.2 TEST INSTRUMENTS.............................................................................................................. 37 4.4.3 TEST PROCEDURES .............................................................................................................. 38 Report No.: RF950811L08 3 Report Format Version 2.0.5 4.4.4 DE…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
