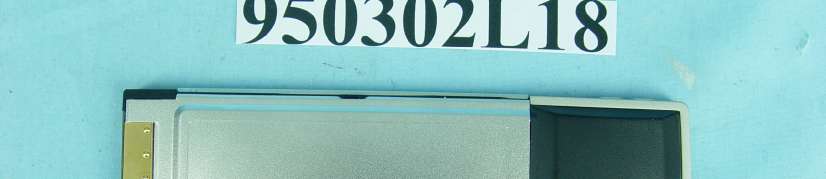

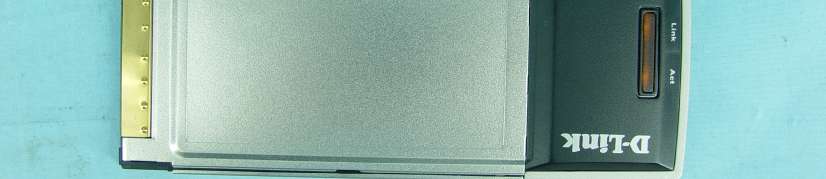

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : KA2DWA645B1 Label Location Model no.: DWA-645

Page 3 Page 4 Page 5

FCC ID: KA2DWA645B1 Report No.: RF950302L18 OPERATIONAL DESCRIPTION This device is a D-Link DWA-645 RangeBooster N TM 650 Notebook Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report no.: SA950302L181Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950302L18 MODEL NO.: DWA-645 RECEIVED: Apr. 14, 2006 TESTED: Apr. 27, 2006 ISSUED: May 02, 2006 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950302L182Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................6 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION........................9 3.DESCRIPTION OF SUPPORT UNITS................................................................................13 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................14 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................14 4.2.DESCRIPTION OF ASSESSMENT POSITION.............................................................15 4.3.DESCRIPTION OF TEST MODE..................................................................................15 4.4.SUMMARY OF TEST RESULTS...................................................................................17 5.TEST RESULTS.................................................................................................................18 5.1TEST PROCEDURES..................................................................................................18 5.2MEASURED SAR RESULTS........................................................................................20 5.3SAR LIMITS.................................................................................................................25 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................26 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................28 6.SYSTEM VALIDATION.......................................................................................................29 6.1TEST EQUIPMENT......................................................................................................29 6.2TEST PROCEDURE.....................................................................................................30 6.3VALIDATION RESULTS................................................................................................32 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................33 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................34 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................34 7.2.ISOTROPY UNCERTAINTY.........................................................................................35 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................35 7.4.PROBE LINEARITY UNCERTAINTY............................................................................36 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................36 7.6.RESPONSE TIME UNCERTAINTY..............................................................................36 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................37 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................38 7.9.PROBE POSITIONING.................................................................................................38 7.10.PHANTOM UNCERTAINTY.........................................................................................39 7.11.DASY4 UNCERTAINTY BUDGET................................................................................40 8.INFORMATION ON THE TESTING LABORATORIES.........................................................41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950302L183Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: D-Link DWA-645 RangeBooster NTM 650 Notebook Adapter MODEL: DWA-645 BRAND: D-Link APPLICANT: D-Link Corporation TESTED: Apr. 27, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS:FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Mar. 02, 2006 Rennie Wang TECHNICAL ACCEPTANCE: , DATE:Mar. 02, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Mar. 02, 2006 Gary Chang / Supervisor Report no.: SA950302L184Report Format…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm A - 2 Date/Time: 2006/4/27 10:21:54 Test Laboratory: Advance Data Technology N800C-11b-CH1-Mode 1 DUT: CARDBUS ; Type: DWA-645 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.7 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.172 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.35 V/m Peak SAR (extrapolated) = 0.349 W/kg SAR(1 g) = 0.166 mW/g; SAR(10 g) = 0.084 mW/g Maximum value of SAR (measured) = 0.177 mW/g A - 3 Date/Time: 2006/4/27 10:41:05 Test Laboratory: Advance Data Technology N800C-11b-CH6-Mode 1 DUT: CARDBUS ; Type: DWA-645 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.7 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.282 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.35 V/m Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.269 mW/g; SAR(10 g) = 0.136 mW/g Maximum value of SAR (measured) = 0.288 mW/g A - 4 Date/Time: 2006/4/27 10:59:47 Test Laboratory: Advance Data Technology N800C-11b-CH11-Mode 1 DUT: CARDBUS ; Type: DWA-645 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.02 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.7 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 High Channel 11/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.355 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.90 V/m Peak SAR (extrapolated) = 0.742 W/kg SAR(1 g) = 0.337 mW/g; SAR(10 g) = 0.168 mW/g Maximum value of SAR (measured) = 0.362 mW/g A - 5 A - 6 Date/Time: 2006/4/27 11:34:09 Test Laboratory: Advance Data Technology N800C-11g-CH1-Mode 2 DUT: CARDBUS ; Type: DWA-645 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.7 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.089 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.33 V/m Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.087 mW/g; SAR(10 g) = 0.044 mW/g Maximum value of SAR (measured) = 0.093 mW/g A - 7 Date/Time: 2006/4/27 11:52:40 Test Laboratory: Advance Data Technology N800C-11g-CH6-Mode 2 DUT: CARDBUS ; Type: DWA-645 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.7 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D4: SYSTEM VALIDATION DIPOLE D4：DAE3 (Cal Date：August 17.2005) APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Report No.: RF950302L181Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950302L18 MODEL NO.: DWA-645 RECEIVED: Apr. 14, 2006 TESTED: Apr. 15 ~ 20, 2006 ISSUED: Apr. 27, 2006 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 130 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950302L182Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................5 3.GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................11 3.4DESCRIPTION OF SUPPORT UNITS..................................................................11 4.TEST TYPES AND RESULTS..............................................................................12 4.1CONDUCTED EMISSION MEASUREMENT........................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................12 4.1.2TEST INSTRUMENTS..........................................................................................12 4.1.3TEST PROCEDURES..........................................................................................13 4.1.4DEVIATION FROM TEST STANDARD.................................................................13 4.1.5TEST SETUP.......................................................................................................14 4.1.6EUT OPERATING CONDITIONS.........................................................................14 4.1.7TEST RESULTS...................................................................................................15 4.2RADIATED EMISSION MEASUREMENT.............................................................33 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................33 4.2.2TEST INSTRUMENTS..........................................................................................34 4.2.3TEST PROCEDURES..........................................................................................35 4.2.4DEVIATION FROM TEST STANDARD.................................................................35 4.2.5TEST SETUP.......................................................................................................36 4.2.6EUT OPERATING CONDITIONS.........................................................................36 4.2.7TEST RESULTS...................................................................................................37 4.36dB BANDWIDTH MEASUREMENT....................................................................60 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................60 4.3.2TEST INSTRUMENTS..........................................................................................60 4.3.3TEST PROCEDURE.............................................................................................60 4.3.4DEVIATION FROM TEST STANDARD.................................................................60 4.3.5TEST SETUP.......................................................................................................61 4.3.6EUT OPERATING CONDITIONS.........................................................................61 4.3.7TEST RESULTS...................................................................................................62 4.4MAXIMUM PEAK OUTPUT POWER....................................................................78 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................78 4.4.2INSTRUMENTS....................................................................................................78 4.4.3TEST PROCEDURES..........................................................................................78 4.4.4DEVIATION FROM TEST STANDARD.................................................................78 4.4.5TEST SETUP.......................................................................................................79 4.4.6EUT OPERATING CONDITIONS.........................................................................79 Report No.: RF950302L183Report Format Version 2.0.4 4.4.7TEST RESULTS...................................................................................................80 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................83 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................83 4.5.2TEST INSTRUMENTS..........................................................................................83 4.5.3TEST PROCEDURE.............................................................................................83 4.5.4DEVIATION FROM TEST STANDARD..........................................................…

Text truncated - open the document above for the full version.

Report No.: RF950302L18101Report Format Version 2.0.4 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 1kHz) are attached on the following pages. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 Report No.: RF950302L18102Report Format Version 2.0.4 4.6.6 TEST RESULTS The spectrum plots are attached on the following 12 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS MODULATION: NOTE 1: The band edge emission plot of DSSS technique on the next page shows 47.34dBc between carrier maximum power and local maximum emission in restrict band (2.38640GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 108.39dBuV/m (Peak), so the maximum field strength in restrict band is 108.39- 47.34=61.05dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next page shows 54.39dBc between carrier maximum power and local maximum emission in restrict band (2.38640GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 104.58dBuV/m (Average), so the maximum field strength in restrict band is 104.58- 54.39=50.19dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot of DSSS technique on the next second page shows 49.23dBc between carrier maximum power and local maximum emission in restrict band (2.48710GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 110.61dBuV/m (Peak), so the maximum field strength in restrict band is 110.61- 49.23=61.38dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next third page shows 53.95dBc between carrier maximum power and local maximum emission in restrict band (2.48760GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 106.90dBuV/m (Average), so the maximum field strength in restrict band is 106.90- 53.95=52.95dBuV/m which is under 54dBuV/m limit. Report No.: RF950302L18103Report Format Version 2.0.4 Report No.: RF950302L18104Report Format Version 2.0.4 Report No.: RF950302L18105Report Format Version 2.0.4 Report No.: RF950302L18106Report Format Version 2.0.4 802.11g OFDM MODULATION: NOTE 1: The band edge emission plot of OFDM technique on the next page shows 45.47dBc between carrier maximum power and local maximum emission in restrict band (2.38536GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 107.30dBuV/m (Peak), so the maximum field strength in restrict band is 107.30- 45.47=61.83dBuV/m which is under 74dBuV/m limit. The band edge emission plot of OFDM technique on the next page shows 48.90dBc between carrier maximum power and local maximum emission in restrict band (2.39000GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 99.92dBuV/m (Average), so the maximum field strength in restrict band is 99.92- 48.90=51.02dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot of OFDM technique on the next second page shows 45.27dBc between carrier maximum power and local maximum emission in restrict band (2.48650GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 105.87dBuV/m (Peak), so the maximum field strength in restrict band is 105.87- 45.27=60.60dBuV/m which is under 74dBuV/m limit. The band edge emission plot of OFDM technique on the next third page shows 48.12dBc between carrier maximum power and local maximum emission in restrict band (2.48350GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 97.65dBuV/m (Average), so the maximum field strength in restrict band is 97.65- 48.12=49.53dBuV/m which is under 54dBuV/m limit. Report No.: RF950302L18107Report Format Version 2.0.4 Report No.: RF950302L18108Report Format Version 2.0.4 Report No.: RF950302L18109Report Format Version 2.0.4 Report No.: RF950302L18110Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: SINGLE TX: NOTE 1: The band edge emission plot of OFDM technique on the next page shows 42.22dBc between carrier maximum power and local maximum emission in restrict band (2.38…
