D-Link Corporation No.8, Li-shing Rd VII,Science-based Industrial park, Hsinchu,Taiwan,R.O.C. TEL.:+886+3-563-6666 FAX:+886+3-563-6789 FCC ID: KA2DWL-1000APPLUS Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission¡¦ s Rul es, t he Appli cant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely ------------------------------------------- Leeming Li / Associate Project Manager D-LINK Corporation Tel: +886 3 563-6666ext.6613 Fax: +886 3 578-1861 e-mail: [email protected]

D-Link Corporation No.8, Li-shing Rd VII,Science-based Industrial park, Hsinchu,Taiwan,R.O.C. TEL.:+886+3-563-6666 FAX:+886+3-563-6789 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don¡¦t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------- Leeming Li / Associate Project Manager D-LINK Corporation Tel: +886 3 563-6666ext.6613 Fax: +886 3 578-1861 e-mail: [email protected]

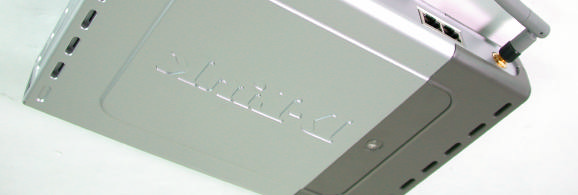

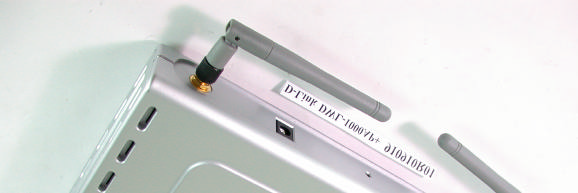

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

DWL-1000AP+ FCC ID:KA2DWL-1000APPLUS

DWL-1000AP+ FCC ID:KA2DWL-1000APPLUS

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: KA2DWL-1000APPLUS ADT No.910910R01 Operational Description The transmitter of the EUT is powered by power adapter and connected with managing computer through RJ45 port. The antenna type is Dipole antenna. There is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: KA2DWL-1000APPLUS ADT No.: 910910R01 FCC TEST REPORT REPORT NO.: RF910910R01 MODEL NO.: DWL-1000AP+ ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:D-Link ADDRESS: No. 8, Li Hsing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: KA2DWL-1000APPLUS ADT No.: 910910R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA2DWL-1000APPLUS ADT No.: 910910R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA2DWL-1000APPLUS ADT No.: 910910R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241236.901.92 6243734.911.87 11246235.241.88 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: KA2DWL-1000APPLUS Report No.: RF910910R011Issued: September 20, 2002 FCC TEST REPORT REPORT NO.: RF910910R01 MODEL NO.: DWL-1000AP+ RECEIVED: Sept. 10, 2002 TESTED: Sept. 10 ~ Sept. 16, 2002 APPLICANT:D-Link ADDRESS: No. 8, Li-shing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DWL-1000APPLUS Report No.: RF910910R012Issued: September 20, 2002 Table of Contents 1CERTIFICATION.....................................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................................5 3GENERAL INFORMATION.....................................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................................................7 3.4DESCRIPTION OF SUPPORT UNITS...................................................................................8 4TEST TYPES AND RESULTS................................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.........................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.2TEST INSTRUMENTS............................................................................................................9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.................................................................................10 4.1.5TEST SETUP........................................................................................................................11 4.1.6EUT OPERATING CONDITIONS.........................................................................................12 4.1.7TEST RESULTS....................................................................................................................13 4.2RADIATED EMISSION MEASUREMENT............................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..........................................................19 4.2.2TEST INSTRUMENTS..........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD.................................................................................21 4.2.5TEST SETUP........................................................................................................................22 4.2.6EUT OPERATING CONDITIONS.........................................................................................22 4.2.7TEST RESULTS....................................................................................................................23 4.36dB BANDWIDTH MEASUREMENT....................................................................................28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................................28 4.3.2TEST INSTRUMENTS..........................................................................................................28 4.3.3TEST PROCEDURE.............................................................................................................29 4.3.4DEVIATION FROM TEST STANDARD.................................................................................29 4.3.5TEST SETUP........................................................................................................................29 4.3.6EUT OPERATING CONDITIONS.........................................................................................29 4.3.7TEST RESULTS....................................................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER....................................................................................34 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................34 4.4.2INSTRUMENTS....................................................................................................................34 4.4.3TEST PROCEDURES...........................................................................................................35 4.4.4DEVIATION FROM TEST STANDARD.................................................................................35 4.4.5TEST SETUP........................................................................................................................35 4.4.6EUT OPERATING CONDITIONS.........................................................................................35 4.4.7TEST RESULTS....................................................................................................................36 4.5POWER SPECTRAL DENSITY MEASUREMENT...............................................................37 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............…

Text truncated - open the document above for the full version.

FCC ID: KA2DWL-1000APPLUS Report No.: RF910910R0148Issued: September 20, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DWL-1000APPLUS Report No.: RF910910R0149Issued: September 20, 2002 RADIATED EMISSION TEST
