KA2DWL-AG650A1AirPro Dual-Band Wireless Cardbus Adapter

Manual Building Networks for People Tri-mode Dualband DWL-AG650 D-Link Air Xpert TM Wireless Cardbus Adapter 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started.................................................................................... 10 Using the Configuration Utility.............................................................. 13 Networking Basics.............................................................................. 20 Troubleshooting................................................................................... 33 Technical Specifications...................................................................... 38 Contacting Technical Support.............................................................. 40 Warranty and Registration................................................................... 41 3 Contents of Package: D-Link Air Xpert DWL-AG650 Tri-mode Dualband Wireless Cardbus Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements for Configuration: ! ! ! An 802.11a, 802.11b or 802.11g Access Point (for Infrastruc- ture Mode) or another 802.11a, 802.11b, or 802.11g wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode). ! At least 128 MB of memory and a 500 MHz processor ! Windows XP, Windows 2000, Windows Me, or Windows 98SE ! A laptop or notebook computer with an available 32-bit Cardbus slot ! TM 4 Introduction The D-Link Air Xpert DWL-AG650 Tri-mode Dualband Wireless Cardbus Adapter is an 802.11a/802.11b/draft 802.11g high-performance, wireless adapter that supports high- speed wireless networking at home, at work or in public places. In addition to offering faster data transfer speeds when used with other 802.11a or draft 802.11g products, the DWL-AG650 has the newest, most advanced security features available today, using the draft 802.11i security standard. These additional security features are optional. You may choose to continue using the familiar WEP security, or you may not wish to utilize security features at all. However, if you do choose to use the DWL-AG650ís powerful security features with other WPA (WiFi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features will include: WPA*:A new security feature, Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network). This ensures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually). 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. Users that choose not to incorporate a RADIUS server in their network may also use the optional enhanced security features, or they may wish to continue using the standard WEP security, or they may choose to use no security at all. However, if you do wish to experience the enhanced security of the DWL-AG650 in conjunction with other draft 802.11i compatible products, without a RADIUS server, the Pre Shared Key mode of WPA will assign a new security key every time the DWL-AG650 connects to the draft 802.11i Access Point. If you choose to enable the enhanced security features of the DWL-AG650, you need only to input your encryption information once in the configuration menu. No longer will you have to manually change the WEP key to ensure security - with the DWL-AG650, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. *WPA will be available Q3 2003 as a driver download TM Featuring a breakthrough all-in-one tri-mode dualband design, the new D-Link Air Xpert DWL-AG650 is a next generation laptop PC adapter that connects to 802.11a (in the 5GHz band) and draft 802.11g networks (in the 2.4GHz band) at 54 Mbps and 802.11b networks (in the 2.4GHz band) at 11Mbps. When used with other 802.11a or 802.11g devices, the DWL-AG650 will achieve data transfer rates of up to 54Mbps. 802.11b devices will communicate at 11Mbps. 5 Features *WPA will be available Q3 2003 as a driver download LEDs LED stands for Light-Emitting Diode. The DWL-AG650 has the following LEDs: LED LED Activity A blinking light indicates data is being transmitted A steady light indicates a connection to an Access Point Activity Link ! User-friendly configuration and diagnostic utilities Versatility - The DWL-AG650 is fully compatible with IEEE 802.11a and 802.11b standards, making it interoperable with 802.11a and 802.11b wireless routers and access points in your office, home or at public wireless hotspots. ! 32-bit Cardbus Performance/Plug & Play Connectivity -The DWL-AG650 is a powerful 32-bit cardbus adapter that installs quickly and easily into laptop PCs, and when used with other D-LinkAirXpert ABG products will automati- cally connect to the network out of the box. ! Compatible with 802.11a, 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11a, 802.11b and Draft 802.11g standards, the DWL- AG650 can connect with existing 802.11b routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks. ! Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWL-AG650 in you…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: AirPro Dual-Band Wireless Cardbus Adapter (Receiver Part) MODEL NO.: DWL-AG650 TRADE NAME: D-Link IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D920214R01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: D-Link Corporation To Be Determined. Address: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan Contact Person: Warner Wang Title: Product Engineer Tel/Fax: Tel: +886-2916-0600 Fax: +886-2-2914-6299

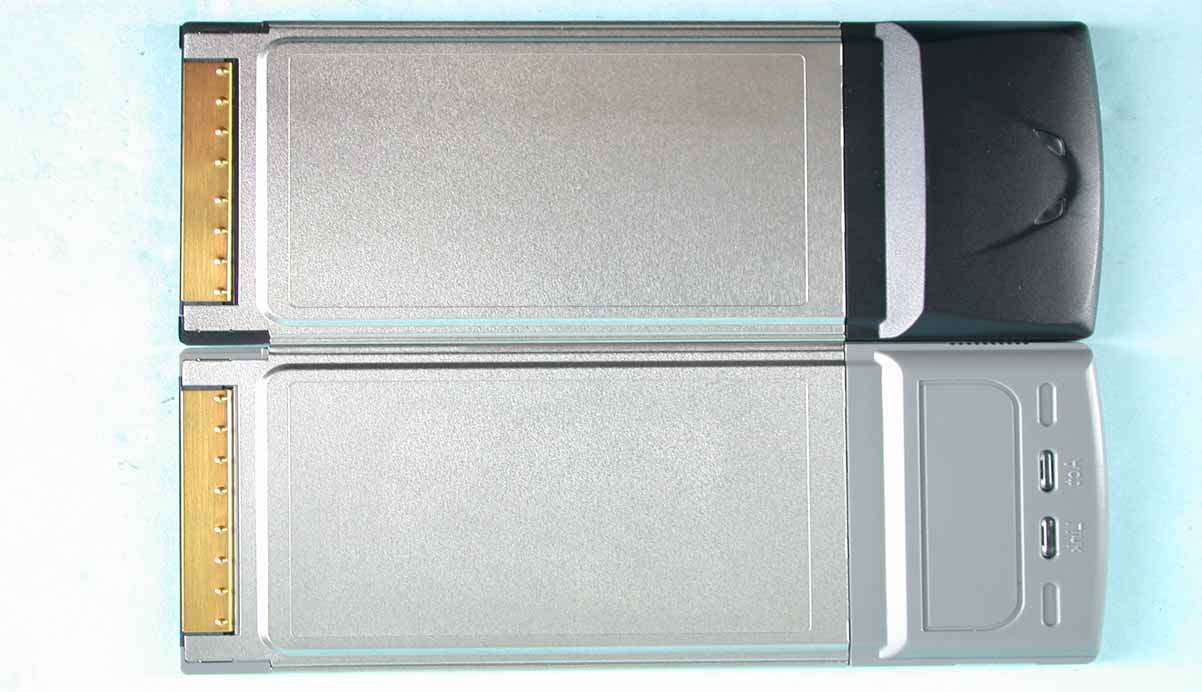

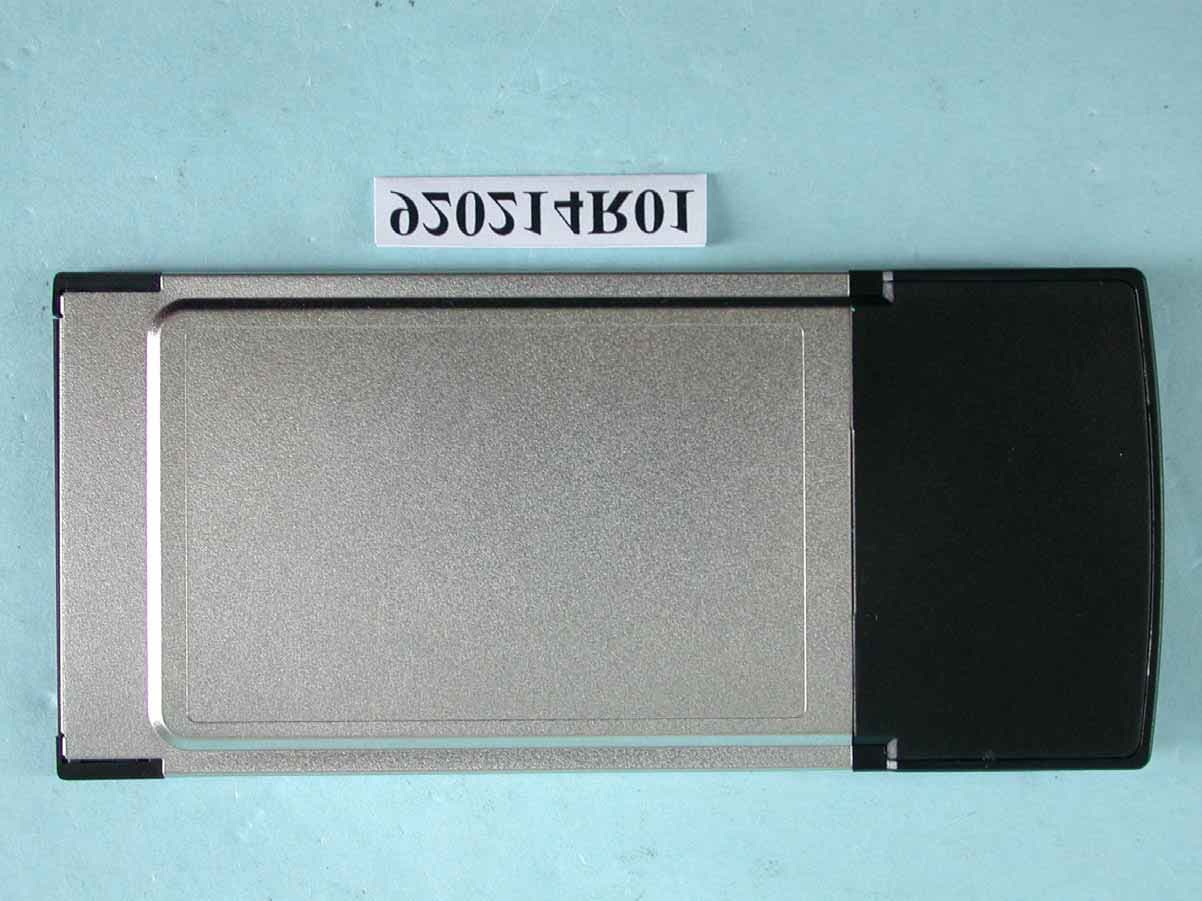

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID FOR LABEL LOCATION

(1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Node ID: S/N: FCC ID: KA2DWL-AG650A1 DWL-AG650 Made in Taiwan

Page 7 Page 8 Page 9

FCC ID: KA2DWL-AG650A1 ADT No.920214R01 Technical Description The transmitter of the EUT is powered by host equipment. The antenna is Printed Patch antenna without antenna connector. This device is a AirPro Dual-Band Wireless Cardbus Adapter operates in both the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: KA2DWL-AG650A1 Report No.: SA920214R01 1 Issued: March. 19, 2003 SAR TEST REPORT REPORT NO.: SA920214R01 MODEL NO.: DWL-AG650 RECEIVED: March. 14, 2003 TESTED: March. 18, 2003 APPLICANT: D-Link Corporation ADDRESS:No. 8, Li Hsing Rd VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: KA2DWL-AG650A1 Report No.: SA920214R01 2 Issued: March. 19, 2003 Table of Contents 1.CERTIFICATION ..................................................................................................................... 3 2.GENERAL INFORMATION ..................................................................................................... 4 2.1GENERAL DESCRIPTION OF EUT ....................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 5 2.3GENERAL INOFRMATION OF THE TEST SYSTEM............................................................. 5 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ............................................... 7 4.DESCRIPTION OF SUPPORT UNITS ................................................................................... 8 5.TEST RESULTS...................................................................................................................... 9 5.1TEST PROCEDURES.............................................................................................................9 5.2MEASURED SAR RESULT .................................................................................................... 9 5.3SAR LIMITS .......................................................................................................................... 10 5.4EUT CONDUCTED POWER VARIATION ............................................................................ 10 5.5TISSUE ..................................................................................................................................11 5.6TEST EQUIPMENT FOR TISSUE PROPERTY ....................................................................11 6.SYSTEM VALIDATION.......................................................................................................... 12 7.MEASUREMENT UNCERTAINTIES .................................................................................... 13 8.INFORMATION ON THE TESTING LABORATORIES ......................................................... 14 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: KA2DWL-AG650A1 Report No.: SA920214R01 3 Issued: March. 19, 2003 1. CERTIFICATION PRODUCT : AirPro Dual-Band Wireless Cardbus Adapter MODEL NO. : DWL-AG650 BRAND : D-Link APPLICANT : D-Link Corporation STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that two samples of the designation has been tested in our facility on 18 th March. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts for the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: KA2DWL-AG650A1 Report No.: SA920214R01 4 Issued: March. 19, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCTAirPro Dual-Band Wireless Cardbus Adapter MODEL NO.DWL-AG650 POWER SUPPLY3.3VDC powered by host equipment MODULATION TYPEBPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGYDSSS / OFDM TRANSFER RATEup to 54Mbps FREQUENCY RANGE2412MHz ~ 2462MHz NUMBER OF CHANNEL11 CONDUCTED OUTPUT POWER 54.32mW ANTENNA TYPEInternal Printed Antenna PEAK SAR0.069W/kg DATA CABLENA I/O PORTSPCMCIA ASSOCIATED DEVICESNA NOTE : 1. The EUT operates in both the 5GHz and 2.4GHz Bands and compatibility with 802.11a and 802.11g technology. 2. IEEE 802.11a, 802.11b, and draft 802.11g Compliant. 3. This test is presented for 2.4GHz transmitter only. FCC ID: KA2DWL-AG650A1 Report No.: SA920214R01 5 Issued: March. 19, 2003 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC CFR 47 Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. 2.3 GENERAL INOFRMATION OF THE TEST SYSTEM ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions Overall length: 330mm (Tip Length: 16mm) Tip diameter: 6.8mm (Body diameter: 12mm) Distance from probe tip to dipole centers: 2.7mm Application General dosimetric measurements up to 3 GHz Compliance tests of mobile phones Fast…

Text truncated - open the document above for the full version.

FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 1 Issued: Mar. 18, 2003 FCC TEST REPORT REPORT NO.: RF920214R01 MODEL NO.: DWL-AG650 RECEIVED: Feb. 14, 2003 TESTED: Feb. 19 ~ Mar. 11, 2003 APPLICANT:D-Link Corporation ADDRESS: NO.8, LI-HSIN VII ROAD, SCIENCE BASED INDUSTRIAL PARK HSIN-CHU, TAIWAN, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 126 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 2 Issued: Mar. 18, 2003 Table of Contents 1.CERTIFICATION.....................................................................................................5 2.SUMMARY OF TEST RESULTS ............................................................................6 3.GENERAL INFORMATION .....................................................................................8 3.1GENERAL DESCRIPTION OF EUT .......................................................................8 3.2DESCRIPTION OF TEST MODES .........................................................................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................10 3.4DESCRIPTION OF SUPPORT UNITS.................................................................. 11 4.TEST TYPES AND RESULTS (FOR PART 802.11B & DRAFT 802.11G) .............12 4.1CONDUCTED EMISSION MEASUREMENT ........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................12 4.1.2 TEST INSTRUMENTS..........................................................................................12 4.1.3 TEST PROCEDURES ..........................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD .................................................................13 4.1.5 TEST SETUP .......................................................................................................14 4.1.6 EUT OPERATING CONDITIONS..........................................................................14 4.1.7 TEST RESULTS ...................................................................................................15 4.2RADIATED EMISSION MEASUREMENT .............................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...........................................21 4.2.2 TEST INSTRUMENTS..........................................................................................22 4.2.3 TEST PROCEDURES ..........................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD .................................................................23 4.2.5 TEST SETUP .......................................................................................................24 4.2.6 EUT OPERATING CONDITIONS..........................................................................24 4.2.7 TEST RESULTS ...................................................................................................25 4.2.8 TEST RESULTS – FOR CCK ...............................................................................26 4.2.9 TEST RESULTS – FOR OFDM.............................................................................29 4.36dB BANDWIDTH MEASUREMENT ....................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................................32 4.3.2 TEST INSTRUMENTS..........................................................................................32 4.3.3 TEST PROCEDURE.............................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD .................................................................33 4.3.5 TEST SETUP .......................................................................................................33 4.3.6 EUT OPERATING CONDITIONS..........................................................................33 4.3.7 TEST RESULTS – FOR CCK ...............................................................................34 4.3.8 TEST RESULTS – FOR OFDM.............................................................................38 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................42 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................42 4.4.2 INSTRUMENTS....................................................................................................42 4.4.3 TEST PROCEDURES ..........................................................................................43 4.4.4 DEVIATION FROM TEST STANDARD .................................................................43 4.4.5 TEST SETUP .......................................................................................................43 4.4.6 EUT OPERATING CONDITIONS..........................................................................43 4.4.7 TEST RESULTS – FOR CCK ...............................................................................44 4.4.8 TEST RESULTS – FOR OFDM.............................................................................45 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................46 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................46 4.5.2 TEST INSTRUMENTS..........................................................................................46 4.5.3 TEST PROCEDURE..........................................................…

Text truncated - open the document above for the full version.

FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 101 Issued: Mar. 18, 2003 CHANNEL 5 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 102 Issued: Mar. 18, 2003 CHANNEL 8 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 103 Issued: Mar. 18, 2003 CHANNEL 9 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 104 Issued: Mar. 18, 2003 CHANNEL 12 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 105 Issued: Mar. 18, 2003 5.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 5.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz4dBm 5.25 – 5.35 GHz11dBm 5.725 – 5.825 GHz17dBm 5.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE&SCHWARZ SPECTRUM ANALYZER FSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 106 Issued: Mar. 18, 2003 5.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 5.5.4 DEVIATION FROM TEST STANDARD No deviation 5.5.5 TEST SETUP 5.5.6 EUT OPERATING CONDITIONS Same as 5.3.6 EUT SPECTRUM ANALYZER FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 107 Issued: Mar. 18, 2003 5.5.7 TEST RESULTS EUT AirPro Dual-Band Wireless Cardbus Adapter MODEL DWL-AG650 ENVIRONMENTAL CONDITIONS 20deg. C, 69%RH, 991 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BY Ansen Lei CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15180-2.364PASS 45240-2.194PASS 55260-0.6511PASS 85320-0.2711PASS 95745-2.6917PASS 125805-1.6417PASS FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 108 Issued: Mar. 18, 2003 CHANNEL 1 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 109 Issued: Mar. 18, 2003 CHANNEL 4 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 110 Issued: Mar. 18, 2003 CHANNEL 5 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 111 Issued: Mar. 18, 2003 CHANNEL 8 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 112 Issued: Mar. 18, 2003 CHANNEL9 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 113 Issued: Mar. 18, 2003 CHANNEL 12 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 114 Issued: Mar. 18, 2003 5.6 FREQUENCY STABILITY 5.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 5.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU SPECTRUM ANALYZERMS2667CM10281Mar. 15, 2003 WIT STANDARD TEMPERATURE AND HUMIDITY CHAMBER TH-4S-CW901030Jun. 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 5.6.3 TEST PROCEDURE 1. The EUT was placed inside the environmental test chamber and powered by nominal DC voltage. 2. Turn the EUT on and couple its output to a spectrum analyzer. 3. Turn the EUT off and set the chamber to the highest temperature specified. 4. Allow sufficient time (approximately 30 min) for the temperature of the chamber to stabilize, turn the EUT on and measure the operating frequency after 2, 5, and 10 minutes. 5. Repeat step 2 and 3 with the temperature chamber set to the lowest temperature. 6. The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply voltage was then adjusted on the EUT from 85% to 115% and the frequency record. FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 115 Issued: Mar. 18, 2003 5.6.4 DEVIATION FROM TEST STANDARD No deviation 5.6.5 TEST SETUP 5.6.6 EUT OPERATING CONDITION Same as Item 4.1.6 Spectrum Analyzer DC Power Supply Temp era t u re FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 116 Issued: Mar. 18, 2003 5.6.7 TEST RESULTS Operating frequency: 5320MHzLimit : ± 0.02% 2 minute5 minute10 minute Te m p . (°C °C°C °C) Power supply (VDC) (MHz)(%)(MHz)(%)(MHz)(%) 126.5 5320.03350.0006305320.03310.0006225320.03320.000624 110.0 5320.03370.0006335320.03330.0006265320.03300.000620 50 93.5 5320.03380.0006355320.03330.0006265320.03300.000620 126.5 5320.03650.0006865320.03610.0006795320.03650.000686 110.0 5320.03630.0006825320.03600.0006775320.03620.000680 40 93.5 5320.03670.0006905320.03660.0006885320.03630.000682 126.5 5320.04850.0009125320.04930.0009275320.04950.000930 110.0 5320.04830.0009085320.04900.0009215320.04970.000934 30 93.5 5320.04860.0009145320.04900.0009215320.04990.000938 126.5 5320.06330.0011905320.06280.0011805320.06260.001177 110.0 5320.06330.0011905320.06230.0011715320.06270.001179 20 93.5 5320.06350.0011945320.06240.0011735320.06280.001180 126.5 5320.09270.0017425320.09250.0017395320.09240.001737 110.0 5320.09300.0017485320.09270.0017425320.09230.001735 10 93.5 5320.09310.0017505320.09280.0017445320.09250.001739 126.5 5320.08100.0015235320.08070.0015175320.08110.001524 110.0 5320.08100.0015235320.08070.0015175320.08130.001528 0 93.5 5320.08120.0015265320.08090.0015215320.08130.001528 126.5 5320.08650.0016265320.08600.0016175320.08580.001613 110.0 5320.08670.0016305320.08600.0016175320.08570.001611 -10 93.5 5320.08670.0016305320.08620.0016205320.08580.001613 126.5 5320.08450.0015885320.08430.0015855320.08410.001581 110.0 5320.08470.0015925320.08430.0015855320.08400.001579 -20 93.5 5320.08490.0015965320.08440.0015865320.08420.001583 126.5 5320.07330.0013785320.07380.0013875320.07290.001370 110.0 5320.07330.0013785320.07380.0013875320.07300.001372 -30 93.5 5320.07340.0013805320.07380.0013875320.07330.001378 FCC ID: KA2DWL-AG650A1 Report No.: RF920214R01 117 Issued: Mar. 18, 2003 5.7 BAND EDGES MEASUREMENT 5.7.1 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK301000…
