KA2DWL-G650A1High-Speed 2.4GHz wireless Cardbus Adapter

Manual Building Networks for People 2.4GHz up to 54Mbps DWL-G650 D-Link AirPlus XTREME G TM Wireless Cardbus Adapter 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started.................................................................................... 10 Using the Configuration Utility.............................................................. 13 Networking Basics.............................................................................. 20 Troubleshooting................................................................................... 33 Technical Specifications...................................................................... 38 Contacting Technical Support.............................................................. 40 Warranty and Registration................................................................... 41 3 Contents of Package: D-Link AirPlus Xtreme G DWL-G650 2.4 GHz - 54Mbps Wireless Cardbus Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements for Configuration: „ „ „ An 802.11g or 802.11b Access Point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, peer-to-peer networking mode.) „ At least 32 MB of memory and a 300 MHz processor „ Windows XP, Windows 2000, Windows Me, or Windows 98SE „ A laptop or notebook computer with an available 32-bit Cardbus slot „ TM 4 Introduction The D-Link AirPlus Xtreme G DWL-G650 Wireless Router is a draft 802.11g high- performance, wireless adapter that supports high-speed wireless networking at home, at work or in public places. Unlike most network cards, the DWL-G650 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus Xtreme G products. The 802.11g standard is backwards compatible with 802.11b products.This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices . In addition to offering faster data transfer speeds when used with other 802.11g products, the DWL-G650 has the newest, strongest, most advanced security features available soon. When used with other 802.11g WPA (WiFi Protected Access) and 802.1x compatible products in a network with a radius server, the security features include: WPA*:A new security feature, Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) (WPA will be available in soon.) 802.1x:Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access.(802.1x available soon) For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G650, used in conjunction with other 802.11g products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DWL-G650 will obtain a new security key every time it connects to the 802.11g network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security, with the DWL-G650, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. (WPA will be available in soon.) *WPA will be available Spring 2003 as a free download TM 5 Features WPA* (WPA will available soon) authorizes and identifies users based on a secret key that changes automatically at a regular interval, for example: 802.1x Authentication in conjunction with the radius server verifies the identity of would be clients.(802.1x will be available in soon) „ „ „ TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security. Pre Shared Key mode means that the home user, without a RADIUS server, will obtain a new security key every time the he or she connects to the network, vastly improving the safety of communications on the network. „ Backwards compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps „ Fully compatible with the 802.11g standard to provide a wireless data rate of up to 54Mbps „ *WPA will be available Spring 2003 as a free download „ Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing) „ User-friendly configuration and diagnostic utilities Operates in the 2.4GHz frequency range „ LEDS LED stands for Light-Emitting Diode. The DWL-G650 has the following LEDs: LED LED Activity A steady light indicates a connection to a power source A blinking light indicates network activity Activity Link 6 D-Link wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will…

Text truncated - open the document above for the full version.

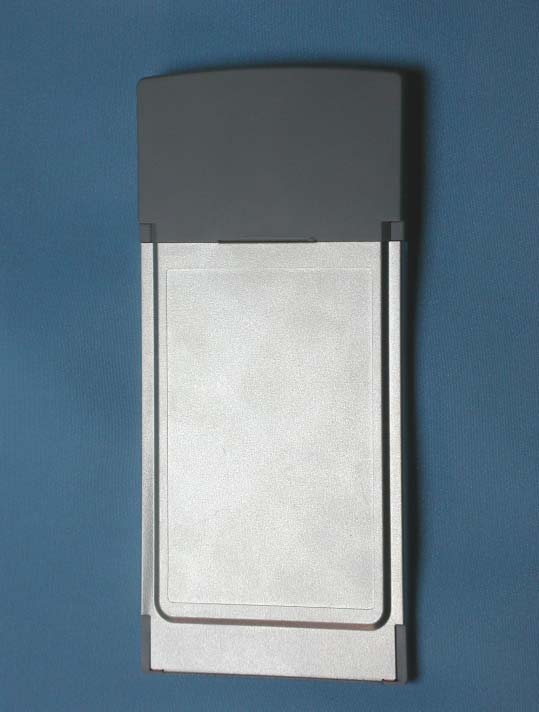

Company: D-Link CorporationPage : 1 of 5 Product : High-Speed 2.4GHz Wireless Cardbus AdapterModel : DWL-G650 Company: D-Link CorporationPage : 2 of 5 Product : High-Speed 2.4GHz Wireless Cardbus AdapterModel : DWL-G650

Node ID: S/N:

Company : D-Link Corporation Model : DWL-G650 Product : High-Speed 2.4GHz Wireless Cardbus Adapter High-Speed 2.4GHz Wireless Cardbus Adapter Model No: DWL-G650 FCC IDKA2DWL-G650A1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company: D-Link CorporationPage : 3 of 5 Product : High-Speed 2.4GHz Wireless Cardbus AdapterModel : DWL-G650 Company: D-Link CorporationPage : 4 of 5 Product : High-Speed 2.4GHz Wireless Cardbus AdapterModel : DWL-G650 Company: D-Link CorporationPage : 5 of 5 Product : High-Speed 2.4GHz Wireless Cardbus AdapterModel : DWL-G650

Description of Operation EUT is a High-Speed 2.4GHz Wireless Cardbus Adapter with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This High-Speed 2.4GHz Wireless Cardbus Adapter is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the High-Speed 2.4GHz Wireless Cardbus Adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for High-Speed 2.4GHz Wireless Cardbus Adaptor MODEL: DWL-G650 FCC ID: KA2DWL-G650A1 January 13, 2003 REPORT NO: 02T1745-1 Prepared for D-LINK CORPORATION NO. 8, LI-SHING ROAD, VII SCIENCE-BASED INDUSTRIAL PARK HSINCHU, TAIWAN, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 02T1745-1 DATE: January 13, 2003 FCC ID: KA2DWL-G650A1 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 21 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: January 13, 2003 Report No: 02T1745-1 APPLICANT: D-Link Corporation No. 8, Li-Shing Road, VII Science-Based Industrial Park Hsinchu, Taiwan, R. O. C. MODEL: DWL-G650 FCC ID: KA2DWL-G650A1 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power (Conducted): 19.54 dBm (2462 MHz) Max. SAR (1g): 0.794 mW/g (2462MHz) Application type: Certification FCC Rule part(s): § 15.247 Laptop: Part No.: Serial No.: Toshiba PS183U-00KP0X 91617937PU This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 02T1745-1 DATE: January 13, 2003 FCC ID: KA2DWL-G650A1 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 21 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.............................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC...............5 3. DOSIMETRIC ASSESSMENT SYSTEM.................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.............................................................................................6 3.2. SYSTEM COMPONENTS.................................................................................................................7 4. EVALUATION PROCEDURE................................................................................9 5. MEASUREMENT UNCERTAINTY.......................................................................12 6. EXPOSURE LIMIT..............................................................................................13 7. MEASUREMENT RESULTS...............................................................................14 7.1. SYSTEM VALIDATION...................................................................................................................14 7.2. TEST LIQUID CONFIRMATION.....................................................................................................15 7.3. EUT TUNE-UP PROCEDURE........................................................................................................15 7.4. EUT SETUP PHOTOS....................................................................................................................16 7.5. SAR MEASUREMENT RESULT.....................................................................................................17 8. EUT PHOTOS....................................................................................................18 9. EQUIPMENTS LIST & CALIBRATION STATUS...................................................19 10. REFERENCES...................................................................................................20 11. ATTACHMENT..................................................................................................21 REPORT NO: 02T1745-1 DATE: January 13, 2003 FCC ID: KA2DWL-G650A1 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 21 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: D-Link Corporation No. 8, Li-Shing Road, VII Science-Based Industrial Park Hsinchu, Taiwan, R. O. C. MODEL: DWL-G650 FCC ID: KA2DWL-G650A1 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power (Conducted): 19.54 dBm (2462 MHz) Max. SAR (1g): 0.794 mW/g (2462MHz) Application type: Certification FCC Rule part(s): § 15.247 Laptop: Part No.: Serial No.: Toshiba PS183U-00KP0X 91617937PU 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 02T1745-1 DATE: January 13, 2003 FCC ID: KA2DWL-G650A1 COMPLIANCE CERT…

Text truncated - open the document above for the full version.

Date/Time: 01/13/03 10:17:00 Test Laboratory: Compliance Certification Services File Name: D2450V2_011303-1.da4 DUT: D2450V2 Type & Serial Number: D2450V2 SN 706 Program: System Validation; D2450V2 SN 706 Communication System: Dipole; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.9749 mho/m, ε = 39.5, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.5, 4.5, 4.5); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 1 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 85.3 V/m Peak SAR = 38.4 mW/g SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.02 mW/g Power Drift = 0.02 dB Area Scan (8x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -21.4 -19 -16.6 -14.3 -11.9 -9.5 -7.13 -4.75 -2.38 0

Date/Time: 01/13/03 11:34:32 Test Laboratory: Compliance Certification Services File Name: 1_C1_L-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configuration 1 ; Low Channel Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 6.79 V/m Peak SAR = 0.227 mW/g SAR(1 g) = 0.0943 mW/g; SAR(10 g) = 0.0512 mW/g Power Drift = -0.002 dB Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.1 -15.2 -13.3 -11.4 -9.5 -7.6 -5.7 -3.8 -1.9 0 Date/Time: 01/13/03 12:11:18 Test Laboratory: Compliance Certification Services File Name: 2_C1_M-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configuration 1; Middle Channel Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 7.7 V/m Peak SAR = 0.306 mW/g SAR(1 g) = 0.123 mW/g; SAR(10 g) = 0.064 mW/g Power Drift = -0.03 dB Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.4 -16.5 -14.7 -12.9 -11 -9.19 -7.35 -5.51 -3.68 -1.84 0 Date/Time: 01/13/03 13:28:24 Test Laboratory: Compliance Certification Services File Name: 3_C1_H-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configuration 1; High Channel Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 8.77 V/m Peak SAR = 0.434 mW/g SAR(1 g) = 0.171 mW/g; SAR(10 g) = 0.0884 mW/g Power Drift = 0.1 dB Area Scan (11x11x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19 -17.1 -15.2 -13.3 -11.4 -9.51 -7.61 -5.71 -3.8 -1.9 0 Date/Time: 01/13/03 16:27:58 Test Laboratory: Compliance Certification Services File Name: 1_C2_L-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configurration 2; Low Channel Communication System: D-Link; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 15.2 V/m Peak SAR = 1.48 mW/g SAR(1 g) = 0.6 mW/g; SAR(10 g) = 0.329 mW/g Power Drift = -0.02 dB Area Scan (10x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -9.44 -8.39 -7.34 -6.29 -5.24 -4.2 -3.15 -2.1 -1.05 0 Date/Time: 01/13/03 17:11:16 Test Laboratory: Compliance Certification Services File Name: 2_C2_M-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configuration 2; Middle Channel Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 15.5 V/m Peak SAR = 1.68 mW/g SAR(1 g) = 0.672 mW/g; SAR(10 g) = 0.339 mW/g Power Drift = -0.06 dB Area Scan (11x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.6 -15.7 -13.7 -11.7 -9.78 -7.83 -5.87 -3.91 -1.96 0 Date/Time: 01/13/03 14:57:46 Test Laboratory: Compliance Certification Services File Name: 3_C2_H-CH.da4 DUT: D-Link Type & Serial Number: DWL-G650 Program: EUT Setup Configuration 2; High Channel Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0356 mho/m, ε = 53.0651, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/22/2002 - Phantom: - TP: SAM 2 - Software: DASY4, V4.0 Build 51 Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm Reference Value = 17.4 V/m Peak SAR = 2.04 mW/g SAR(1 g) = 0.794 mW/g; SAR(10 g) = 0.392 mW/g Power Drift = -0.06 dB Area Scan (11x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.7 -16.6 -14.5 -12.4 -10.4 -8.3 -6.22 -4.15 -2.07 0

FCC ID ：KA2DWL-G650A1 Report No. ：510-9112-048F Page 1 of 37 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 ELECTROMAGNETIC COMPATIBILITY TEST REPORT Company ： D-Link Corporation Address ： No.8, Li-Shing Rd., VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Product name ： High-Speed 2.4GHz Wireless Cardbus Adapter Model name ： DWL-G650 Date Received ： DEC,23,2002 Date Tested ： DEC,24-25,2002 MEASUREMENT REQUIREMENT USED ： 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-1992 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to test, and is invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. FCC ID ：KA2DWL-G650A1 Report No. ：510-9112-048F Page 2 of 37 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 TABLE OF CONTENTS TITLEPAGE NO. 1. GENERAL INFORMATION................................................................................................... 4 1.1 GENERAL STATEMENT.................................................................................................. 4 1.2 GENERAL DESCRIPTION OF EUT & POWER ............................................................. 4 1.3 DESCRIPTION OF PERIPHERALS ................................................................................. 5 1.4 EUT & PERIPHERALS SETUP DIAGRAM .................................................................... 6 1.5 EUT OPERATING CONDITION ...................................................................................... 6 1.6 DESCRIPTION OF TEST SITE ......................................................................................... 7 1.7 SUMMARY OF TEST RESULTS ..................................................................................... 7 2. CONDUCTED POWERLINE TEST ....................................................................................... 8 2.1 TEST EQUIPMENTS ......................................................................................................... 8 2.2 TEST SETUP ...................................................................................................................... 8 2.3 CONDUCTED POWER LINE EMISSION LIMIT ........................................................... 9 2.4 TEST PROCEDURE........................................................................................................... 9 2.5 UNCERTAINTY OF CONDUCTED EMISSION ............................................................. 9 2.6 CONDUCTED RF VOLTAGE MEASUREMENT ........................................................... 10 2.7 PHOTOS OF CONDUCTION TEST ................................................................................. 11 3. RADIATED EMISSION TEST ............................................................................................... 12 3.1 TEST EQUIPMENTS ......................................................................................................... 12 3.2 TEST SETUP ...................................................................................................................... 12 3.3 RADIATION LIMIT........................................................................................................... 13 3.4 TEST PROCEDURES ........................................................................................................ 14 3.5 UNCERTAINTY OF RADIATED EMISSION ................................................................. 14 3.6 RADIATED RF NOISE MEASUREMENT ...................................................................... 15-23 3.7 PHOTOS OF OPEN SITE .................................................................................................. 24-25 4. 6dB BANDWIDTH MEASUREMENT................................................................................... 26 4.1 TEST EQUIPMENTS ......................................................................................................... 26 4.2 TEST SETUP ...................................................................................................................... 26 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................... 26 4.4 TEST PROCEDURE........................................................................................................... 26 4.5 UNCERTAINTY OF CONDUCTED EMISSION ............................................................. 26 4.6 TEST RESULTS ................................................................................................................. 27 4.7 PHOTO OF 6DB BANDWIDTH MEASURERMENT ..................................................... 28 5. MAXIMUM PEAK OUTPUT POWER .................................................................................. 29 5.1 TEST EQUIPMENTS ......................................................................................................... 29 5.2 TEST SETUP ...................................................................................................................... 29 5.3…

Text truncated - open the document above for the full version.

FCC ID KA2DWL-G650A1 Report No. 510-9112-048F Page 1 of 3 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 2.7 PHOTOS OF CONDUCTION TEST FCC ID KA2DWL-G650A1 Report No. 510-9112-048F Page 2 of 3 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 3.7 PHOTOS OF OPEN SITE FCC ID KA2DWL-G650A1 Report No. 510-9112-048F Page 3 of 3 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 3.7 PHOTOS OF OPEN SITE
