KA2DWL2700APB1IEEE802.11g Outdoor Access Point

 DWL-700AP User’s Manual D-Link Systems, Inc. Table of Contents Table of Contents Package Contents.............................................................................................5 Minimum System Requirements ..............................................................5 Introduction .......................................................................................................6 Features and Benefits ......................................................................................8 Wireless Basics ................................................................................................9 Standards-based Technology ................................................................10 Installation Considerations .....................................................................11 Getting Started ...............................................................................................13 Connecting To a PoE (Power over Ethernet) Network ...........................14 Using the Configuration Menu ......................................................................15 Configuration > Save and Activate .........................................................16 Home > Basic Settings > Wireless > Access Point ................................17 Home > Basic Settings > Wireless > Access Point (WEP) ....................19 Home > Basic Settings > Wireless > Access Point (802.1x) ..................20 Home > Basic Settings > Wireless > Access Point (WPA-Enterprise) ...21 Home > Basic Settings > Wireless > Access Point (WPA-Personal) .....22 Home > Basic Settings > Wireless > WDS with AP ...............................23 Home > Basic Settings > Wireless > WDS with AP (WEP) ...................25 Home > Basic Settings > Wireless > WDS with AP (WPA-Personal) .....26 Home > Basic Settings > Wireless > WDS ............................................27 Home > Basic Settings > Wireless > WDS (WEP) .................................29 Home > Basic Settings > Wireless > WDS (WPA-Personal) ..................30 Home > Basic Settings > Wireless Modes .............................................31 Home > Basic Settings > LAN > Static ..................................................32 Home > Basic Settings > LAN > Dynamic .............................................33 Home > Advanced Settings > Performance ...........................................34 Home > Advanced Settings> AP Grouping Settings .............................36 Home > Advanced Settings > Multi-SSID Settings ................................37 Home > Filters > Ethernet MAC ACL .....................................................39 Home > Filters > Wireless MAC ACL .....................................................40 Home > Filters > Wireless IP ACL .........................................................41 Home > Filters > WLAN Partition Settings .............................................42 Home > Status > Device Information .....................................................43 Home > Status > Indication ...................................................................44 Home > Status > Client Information .......................................................45 Home > Status > WDS Information........................................................46 Home > Status > WLAN 802.11G Traffic Statistics ................................47 Home > Log > View Log ........................................................................48 Home > Log > System Log Settings ......................................................49  DWL-700AP User’s Manual D-Link Systems, Inc. Tool > Administrator Settings .................................................................50 Tool > Firmware and SSL Certification Upload ......................................52 Tool > Configuration File Upload and Download ....................................53 Tool > Cfg File > Choose file .................................................................54 Tool > SNTP ..........................................................................................55 System > System Settings .....................................................................56 Using the AP Manager ...................................................................................57 Discovering Devices ..............................................................................57 Selecting Devices ..................................................................................58 IP Configuration .....................................................................................58 Device Configuration .............................................................................59 Device Configuration > General .............................................................60 Device Configuration > Wireless ...........................................................62 Device Configuration > Wireless > Authentication Modes .....................64 Device Configuration > Security ............................................................65 Device Configuration > Security > WEP ................................................67 Device Configuration > Security > 802.1x .............................................68 Device Configuration > Security > 802.1x (RADIUS) ............................69 Device Configuration > Security > WPA-Enterprise (Cipher) .................70 Device Configuration > Security > WPA-Enterprise (Server) .................71 Device Configuration > Security > WPA-Personal (Cipher) ...................72 Device Configuration > Filters > WLAN Partition > Access Control .......73 Device Configuration > Filters > Ethernet/Wireless IP Filters ................74 Device Configuration > AP Mode ...........................................................75 Device Configuration > AP Mode > WDS with AP .................................76 Device Configuration > AP Mode > WDS ..............................................77 Device Configuration …

Text truncated - open the document above for the full version.

1 DWL-700AP User’s Manual D-Link Systems, Inc. Using the AP Manager Device Configuration > Multi-SSID The Primary SSID and Security can not be changed here. Those values follow the settings in Home > Wireless. The Security options for Multi-SSID 1-7 are Open System, Shared Key, WPA-Personal, WPA2-Personal, and WPA-Auto-Personal. If you want to configure the Guest and Internal networks on Virtual LAN (VLANs), the switch and DHCP server you are using must support VLANs. As a prerequisite step, configure a port on the switch for handling VLAN tagged packets as described in the IEEE 802.1Q standard. Primary SSID: Multi-SSID: When you Enable Multi-SSID you can name each guest SSID. Security: Note: Security Setting Limit: When the Primary SSID is set to use one key index for WEP, you can use the 3 other key indexes for Guest SSIDs. If the Primary SSID is set to WPA/WPA2-Personal, or WPA-Auto-Personal, you can only use WEP key index 1 and 4 for Guest SSIDs.  DWL-700AP User’s Manual D-Link Systems, Inc. Device Configuration > Multi-SSID (continued) Using the AP Manager Check this box to enable multiple SSIDs and select the band. Available when Both is selected, select the band you want to use on the pull-down menu. Enable Multi-SSID: Enable VLAN State: Check this box to enable VLANs. Band: If you enable Multiple-SSID, and configure Internal and MSSID on VLANs, this field will be enabled. Provide a number between 1 and 4094 for the Internal VLAN. This will cause the access point to send DHCP requests with the VLAN tag. The switch and the DHCP server must support VLAN IEEE 802.1Q frames. The access point must be able to reach the DHCP server. Check with the Administrator regarding the VLAN and DHCP configurations. SSID: Multi SSID Setting The Service Set (network) Identifier. VLAN ID: Cipher Type: Select a cipher type from the pull-down menu. Group Key Update: Select the interval during which the group key will be valid. 1800 is the recommended setting. A lower interval may reduce transfer rates. Passphrase: Enter a PassPhrase between 8-63 characters in length.  DWL-700AP User’s Manual D-Link Systems, Inc. SNTP/NTP Information: Displays the current SNTP/NTP settings. SNT/NTP Server IP Address: Enter the SNTP/NTP server IP address. SNTP/NTP Time Zone: Select your correct Time Zone. Daylight Saving Time: Check the box to Enable Daylight Saving Time. Device Configuration > SNTP  DWL-700AP User’s Manual D-Link Systems, Inc. Device Configuration > Misc. Console Settings: Check the box to enable the device console settings. Console Protocol: Select the type of protocol you would like to use, Telnet or SSH. Telnet Timeout: Select the telnet timeout value (in seconds). Limit Administrator IP 1: Enter the IP address that the administrator will be allowed to log in from. Limit Administrator IP Limit Administrator IP 2: Enter a secondary IP address that the administrator will be allowed to log in from. Check the box to enable the feature.  DWL-700AP User’s Manual D-Link Systems, Inc. SNMP Settings Public Community String: Enter the public SNMP community string. Status: Status is Enabled by default. Uncheck the box to disable the SNMP functions. Private Community String: Enter the private SNMP community string. User Status Notification: Check the box to enable user status notification. Trap Server IP: Enter the IP address of the trap server. Device Configuration > Misc.  DWL-700AP User’s Manual D-Link Systems, Inc. FTP Server: Enter the IP address of the FTP server. Device Configuration > SSL FTP User Name: FTP Password: FTP Certificate File Name: FTP Key File Name: Upload: Enter the FTP user name. Enter the password for the FTP user name. Enter the FTP certificate file name. Enter the FTP key file name. Click Upload to load the settings. 7 DWL-700AP User’s Manual D-Link Systems, Inc. Using the AP Manager Configuration Files The DWL-2700AP allows you to save the device settings to a configuration file. To save a configuration file follow these steps:  Select a device from the Device List on the main screen of the AP Manager.  Click the device configuration button.  Click the Save button after you have all the settings as you want them.  A popup window will appear prompting you for a file name and location. Enter the file name, choose a file destination, and click Save. Device Configuration button.  DWL-700AP User’s Manual D-Link Systems, Inc. You must always click Apply in the Configuration window if you want the settings to take effect. Using the AP Manager To load a previously saved configuration file, follow these steps:  Select a device from the Device List on the main screen of the AP Manager.  Click the device configuration button.  Click the Open button.  A popup window will appear prompting you to locate the configuration file. Locate the file and click Open.  The configuration file is loaded into the AP Manager but has not actually been written to the device(s). If you want to use the newly loaded configuration for the selected device(s), click Apply and the configuration settings will be written to the device(s). Device Configuration button.  DWL-700AP User’s Manual D-Link Systems, Inc. Using the AP Manager To upgrade the firmware: Download the latest firmware upgrade from http://support.dlink.com to an easy to find location on your hard drive. Click on the firmware button as shown above. A popup window will appear. Locate the firmware upgrade file and click Open. You can upgrade the firmware by clicking on this button after selecting the device(s). Firmware    IMPORTANT! DO NOT DISCONNECT POWER FROM THE UNIT WHILE THE FIRMWARE IS BEING UPGRADED. 0 DWL-700AP User’s Manual D-Link Systems, Inc. You can customize the basic System Settings for the DWL-2700AP by clicking on this button. System Settings Access Password: This sets the admin password for the select device(s). Auto Refresh: This setting allows you to enable auto refreshing of the network device list. …

Text truncated - open the document above for the full version.

110 DWL-700AP User’s Manual D-Link Systems, Inc. Networking Basics  Click Apply Now.  The IP Address, Subnet mask, and the Router’s IP Address will appear in a few seconds. Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wireless router or access point, as shown. Checking the Wireless Connection by Pinging in Windows ® XP and 2000 111 DWL-700AP User’s Manual D-Link Systems, Inc. Troubleshooting Troubleshooting This Chapter provides solutions to problems that can occur during the installation and operation of the DWL-2700AP Wireless Access Point. We cover various aspects of the network setup, including the network adapters. Please read the following if you are having problems. Note: It is recommended that you use an Ethernet connection to configure the DWL-2700AP. 1. The computer used to configure the DWL-2700AP cannot access the Configuration menu.  Check that the Ethernet LED on the DWL-2700AP is ON. If the LED is not ON, check that the cable for the Ethernet connection is securely inserted.  Check that the Ethernet Adapter is working properly. Please see item 3 (Check that the drivers for the network adapters are installed properly) in this Troubleshooting section to check that the drivers are loaded properly.  Check that the IP address is in the same range and subnet as the DWL-2700AP. Please see Checking the IP Address in Windows ® XP in the Networking Basics section of this manual. Note: The IP address of the DWL-2700AP is 192.168.0.50. All the computers on the network must have a unique IP address in the same range, e.g., 192.168.0.x. Any computers that have identical IP addresses will not be visible on the network. They must all have the same subnet mask, e.g., 255.255.255.0.  Do a Ping test to make sure that the DWL-2700AP is responding. Go to Start>Run>Type Command>Type ping 192.168.0.50. A successful ping will show four replies. Note: If you have changed the default IP address, make sure to ping the correct IP address assigned to the DWL-2700AP. 11 DWL-700AP User’s Manual D-Link Systems, Inc. Troubleshooting 2. The wireless client cannot access the Internet in the Infrastructure mode. Make sure the wireless client is associated and joined with the correct access point. To check this connection: Right-click on the Local Area Connection icon in the taskbar> select View Available Wireless Networks. The Connect to Wireless Network screen will appear. Please make sure you have selected the correct available network, as shown in the illustrations below.  Check that the IP address assigned to the wireless adapter is within the same IP address range as the access point and gateway. Since the DWL-2700AP has an IP address of 192.168.0.50, wireless adapters must have an IP address in the same range, e.g., 192.168.0.x. Each device must have a unique IP address; no two devices may have the same IP address. The subnet mask must be the same for all the computers on the network.) To check the IP address assigned to the wireless adapter, double-click on the Local Area Connection icon in the taskbar > select the Support tab and the IP address will be displayed. Please refer to Checking the IP Address in the Networking Basics section of this manual.)  If it is necessary to assign a Static IP Address to the wireless adapter, please refer to the appropriate section in Networking Basics. If you are entering a DNS Server address you must also enter the Default Gateway Address. (Remember that if you have a DHCP capable router, you will not need to assign a static IP address. See Networking Basics: Assigning a Static IP Address.) 11 DWL-700AP User’s Manual D-Link Systems, Inc. 3. Check that the drivers for the network adapters are installed properly. You may be using different network adapters than those illustrated here, but this procedure will remain the same, regardless of the type of network adapters you are using.  Go to Start > My Computer > Properties. Troubleshooting  Select the Hardware Tab.  Click Device Manager. 11 DWL-700AP User’s Manual D-Link Systems, Inc. Troubleshooting  Double-click on Network Adapters.  Right-click on D-Link AirPlus DWL-G680 Wireless Cardbus Adapter. (In this example we use the DWL-G680; you may be using other network adapters, but the procedure will remain the same.)  Select Properties to check that the drivers are installed properly.  Look under Device Status to check that the device is working properly.  Click OK. 11 DWL-700AP User’s Manual D-Link Systems, Inc. Troubleshooting 4. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advantageous placement of your D-Link wireless products. 5. Why does my wireless connection keep dropping?  Antenna Orientation- Try different antenna orientations for the DWL-2700AP. Try to keep the antenna at least 6 inches away from the wall or other objects.  If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade dramatically or drop altogether. Try changing the channel on your router, access point and wireless adapter to a different channel to avoid interference.  Keep your product away (at least 3-6 feet) from electrical devices that generate RF noise, like microwaves, monitors, electric motors, etc. 6. Why can’t I get a wireless connection? If you have enabled encryption on the DWL-2700AP, you must also enable encryption on all wireless clients in order to establish a wireless connection.  Make sure that the SSID on the r…

Text truncated - open the document above for the full version.

D-Link Corporation NO.289, SHINHU 3RD RD., NEIHU DISTRICT, TAIPEI CITY 114, TAIWAN, R.O.C. Tel: 886-2-66000123 Fax: 886-2-55509988 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: KA2DWL2700APB1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Akira Huang / Director D-Link Co. Ltd Tel: 886-2-66000123 ext.5810 Fax: 886-2-55509988 E-mail: [email protected]

D-Link Corporation NO.289, SHINHU 3RD RD., NEIHU DISTRICT, TAIPEI CITY 114, TAIWAN, R.O.C. Tel: 886-2-66000123 Fax: 886-2-55509988 POWER OF ATTORNEY To whom it may concern: We, the undersigned D-link Corporation hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Akira Huang / Director D-Link Co. Ltd Tel: 886-2-66000123 ext.5810 Fax: 886-2-55509988 E-mail: [email protected]

Professional Installation Attestation Date: August 8, 2006 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, __________________________________ Akira Huang / Director D-Link Co. Ltd Tel: 886-2-66000123 ext.5810 Fax: 886-2-55509988 E-mail: [email protected]

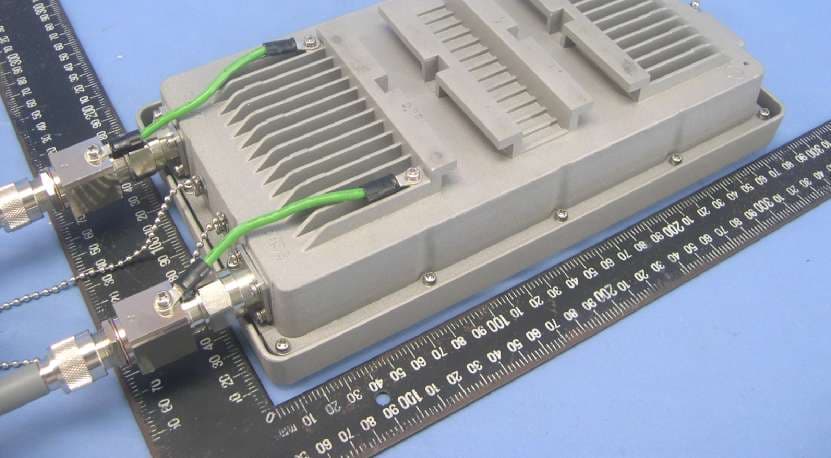

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Adapter Model No.: TG-6001-48V EUT with Adapter Model No.: TG-4201-48V-IV Page 2

FCC ID：KA2DWL2700APB1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4 Page 5 Page 6 Page 7 Antenna 1 Page 8 Page 9 Antenna 2 Page 10 Page 11 Page 12 Adapter Model No.: TG-6001-48V Page 13 Page 14 Adapter Model No.: TG-4201-48V-IV Page 15

FCC ID: KA2DWL2700APB1 Report No. 950516H01 Operational Description This device is an IEEE802.11g Outdoor Access Point, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE802.11g Outdoor Access Point) is powered by POE (Power Over Ethernet). The antennas type used in this product are as below. No. Antenna Type Gain (dBi) Cable lose(dB) Arrester lose(dB) Net Gain (dBi) Antenna Connector 1Monopole50.80.83.4 RP-N Type Male 2Dipole 4.5 0.80.82.9 RP-N plug The other instruction, please have a look at the users manual.

Report No.: SA950516H01 1 RF EXPOSURE REPORT REPORT NO.: SA950516H01 MODEL NO.: DWL-2700AP FCC ID: KA2DWL2700APB1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950516H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950516H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950516H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.4dBi or 2.18776 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241286.6960.0381.0 62437223.8720.0971.0 11246279.4330.0351.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412115.6110.0501.0 62437354.8130.1541.0 112462100.0000.0441.0
