KA2DWL900AP-PLUSWireless Access Point

D-Link AirPlus DWL-900AP+ 2.4 GHz Wireless Access Point Manual Rev. 071002 Building Networks for People 2 Contents 1. Package Contents...................................... 3 2. Introduction.................................................. 4 3. Wireless Basics........................................... 7 4. Getting Started.......................................... 10 5. Using the Configuration Menu.............. 12 6. Using the AirPlus AP Manager.............. 21 7. Troubleshooting........................................ 25 8. Networking Basics................................... 30 9. Technical Specifications........................ 64 10. Contacting Technical Support............. 66 11. Warranty and Registration................... 67 1. Package Contents Contents of Package: • D-Link AirPlus DWL-900AP+ Enhanced 2.4GHz Wireless Access Point • Power Supply – 5V DC, 2.0A • Manual on CD • Quick Installation Guide • Ethernet Cable Note: Using a power supply with a different voltage rating than the one included with the DWL-900AP+ will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements: • Computer with Windows, Macintosh, or Linux-based operating system with an installed Ethernet adapter • Internet Explorer or Netscape Navigator version 4.0 or above, with JavaScript enabled 4 2. Introduction The D-Link AirPlus DWL-900AP+ Wireless Access Point is an enhanced 802.11b high-performance wireless access point. It is an ideal way to extend the reach and number of computers connected to your wireless network. Unlike most 802.11b access points, the DWL-900AP+ is capable of data transfer speeds of up to 22 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus products such as the DWL-520+ Wireless PCI Adapter. After completing the steps outlined in the Quick Installation Guide (included in your package) you will have the ability to share information and resources, such as files and printers, and enjoy the freedom that wireless networking delivers. The DWL-900AP+ is compatible with most popular operating systems, including Macintosh, Linux and Windows, and can be integrated into a large network. This Manual is designed to help you connect the Access Point and the D-Link AirPlus 2.4GHz Wireless Adapters into a network in Infrastructure mode. Please take a look at the Getting Started section in this manual to see an example of an Infrastructure network using the DWL-900AP+. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Please take a moment to read through this manual and get acquainted with wireless technology. Connections MDII RJ-45 Ethernet Port • Straight-Through cable is required when connecting to a router or switch • Cross-Over cable is required to connect to a computer Reset Button Power Features & Benefits • Up to 2X Faster with AirPlus Products - high-speed wireless data transfer rates up to 22Mbps. With twice the data rate and capacity, the DWL-900AP+ delivers media rich content such as digital images, videos, and MP3 files much faster than standard 802.11b networks • Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b standard and interoperable with all existing 802.11b compliant devices • Improved Performance – Up to 20% faster data transfer rates on standard 802.11b networks • Stronger Network Security with 256-bit WEP Encryption – Supports 64/128/256-bit WEP encryption for higher level of security for your data and wireless communication than encryption found in existing 802.11b products • Built-in DHCP Server – If enabled, it will automatically assign IP addresses to wireless clients in a temporary network. • Web-based interface for Managing and Configuring – Easy-to-use interface independent of the operating system • 4 Different Operation Modes – Capable of operating in one of four different operation modes to meet your wireless networking requirements: Access Point, AP-to-AP Bridging, AP-to-Multipoint Bridging, and Wireless Client. 6 LEDS LED stands for Light-Emitting Diode. The DWL-900AP+ Wireless Access Point has 3 LEDs as shown below: Power LAN WLAN Power: solid green light indicates connection LAN: blinking green light indicates activity; solid green light indicates connection WLAN: blinking green light indicates wireless activity; solid green light indicates connection 3. Wireless Basics D-Link AirPlus wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link AirPlus wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access Point (AP) is a device used to provide this link. People use wireless LAN technology for many different purposes: Mobility - Productivity increases when people have access to data in…

Text truncated - open the document above for the full version.

40 Networking Basics Checking the IP Address in Windows XP/2000 Type ipconfig /renew at the prompt to get a new IP Address. Press Enter. The new IP Address is shown below. (Windows 98/ME users: go to Start > Run. Type winipcfg at the prompt. The Windows IP Configuration menu will come up. Click Release, then Renew to obtain a new IP Address.) Assigning a Static IP Address Note: Residential Gateways/Broadband Routers will automatically assign IP Addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable Gateway/Router you will not need to assign Static IP Addresses. If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP Address, please follow these instructions: • Go to Start • Double-click on Control Panel Networking Basics Assigning a Static IP Address • Double-click on Network Connections • Right-click on Local Area Connections. • Double-click Properties 42 Networking Basics Assigning a Static IP Address • Click OK You have completed the assignment of a Static IP Address. (You do not need to assign a Static IP Address if you have a DHCP-capable Gateway/Router.) • Click on Internet Protocol (TCP/IP) • Click Properties • Select Use the following IP address in the Internet Protocol (TCP/IP) Properties window, • Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) • Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP Address of the Default Gateway.) The DNS server information will be provided by your ISP (Internet Service Provider.) DWL-650+ Wireless Cardbus Adapter Networking Basics Assigning a Static IP Address with Macintosh OS X Go to the Apple Menu and select System Preferences. Click on Network Select Built-in Ethernet in the Show pull-down menu. Select Manually in the Configure pull-down menu. Input the Static IP Address, the Subnet Mask and the Router IP Address in the appropriate fields. Click Apply Now 44 Networking Basics Selecting a Dynamic IP Address with Macintosh OS X Go to the Apple Menu and select System Preferences. Click on Network Select Built-in Ethernet in the Show pull-down menu. Select Using DHCP in the Configure pull-down menu. Click Apply Now The IP Address, Subnet mask, and the Router’s IP Address will appear in a few seconds. Networking Basics Connecting to a Wireless Network in Windows XP To be able to connect to a wireless network, make sure the proper network settings are configured for DWL-650+. Go to Start > right-click on My Network Places > select Properties > double-click on the Wireless Network Connection associated with the DWL-650+ > select Properties > select Internet Protocol (TCP/IP) > click Properties Connecting to a Wireless Network with a Wireless Router or an Access Point using a DHCP server in Windows XP. Select Obtain an IP address automatically - if the Wireless Router or Access Point has DHCP server enabled Select Obtain DNS server address automatically. Click OK Fig. 8.26 Fig. 8.27 D-Link AirPlus DWL-650+ Wireless Cardbus Adapter 46 Networking Basics Connecting to a Wireless Network Connecting to a Wireless Network with a Wireless Router or an Access Point using a static IP address in Windows XP. Select Use the following IP address - if the Wireless Router or Access Point does not have a DHCP server enabled. Input a static IP address within the same range as the Wireless Router or Access Point. IP address: 192.168.0.51 Subnet mask: 255.255.255.0 Default Gateway: Enter the LAN IP address of the Wireless Router Select Use the following DNS server address. Enter the LAN IP address of the Wireless Router. Click OK Connecting to a Wireless Network in Windows 2000 Go to Start > Settings > Network and Dial-up Connections > Double click on the Local Area Connection associated with the DWL-650+ > select Properties > select Internet Protocol (TCP/IP) > click Properties Fig. 8.28 Fig. 8.29 D-Link AirPlus DWL-650+ Wireless Cardbus Adapter 192 168 0 1 Networking Basics Connecting to a Wireless Network Connecting to a Wireless Network with a Wireless Router or an Access Point using a DHCP server in Windows 2000. Select Obtain an IP address automatically. Select Obtain DNS server address automatically. Click OK Connecting to a Wireless Network with a Wireless Router or an Access Point using a static IP address in Windows 2000. Select Use the following IP address Input a static IP Address within the same IP Address range as the wireless router or the access point. IP address: 192.168.0.51 Subnet mask: 255.255.255.0 Default Gateway: 192.168.0.1 Select Use the following DNS server address. Leave this section blank. Click OK Fig. 8.30 Fig 8.31 192 168 0 1 Fig 8.30 48 Networking Basics Connecting to a Wireless Network Connecting to a Wireless Network in Windows Me and 98 Go to Start > Settings > Control Panel > Double-click on the Network associated with the DWL-650+ > Click Properties > Select Internet Protocol (TCP/IP) > Click Properties Connecting to a Wireless Network with a Wireless Router or an Access Point using a DHCP server in Windows Me and 98. Select the IP Address tab. Then, select Obtain an IP address automatically. Select Detect connection to network media. Click OK Fig. 8.32 Fig. 8.33 TCP/IP – D-Link AirPlus DWL-650+ Wireless Cardbus Networking Basics Connecting to a Wireless Network Connecting to a Wireless Network with a Wireless Router or Access Point using a static IP address in Windows Me or Windows 98 . Select Specify an IP address. Input a static IP address within the same IP Address range as the wireless router or access point. IP address: 192.168.0.51 Subnet mask: 255.255.255.0 Select Detect connection to …

Text truncated - open the document above for the full version.

D-Link Corporation No.8, Li Hsing Rd VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C Tel: +886 3-577-9110 Fax: +886 3-578-1861 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910704R01. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: Product name, model name and trade name. Company name, and address of the one who is responsible for this declaration. Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

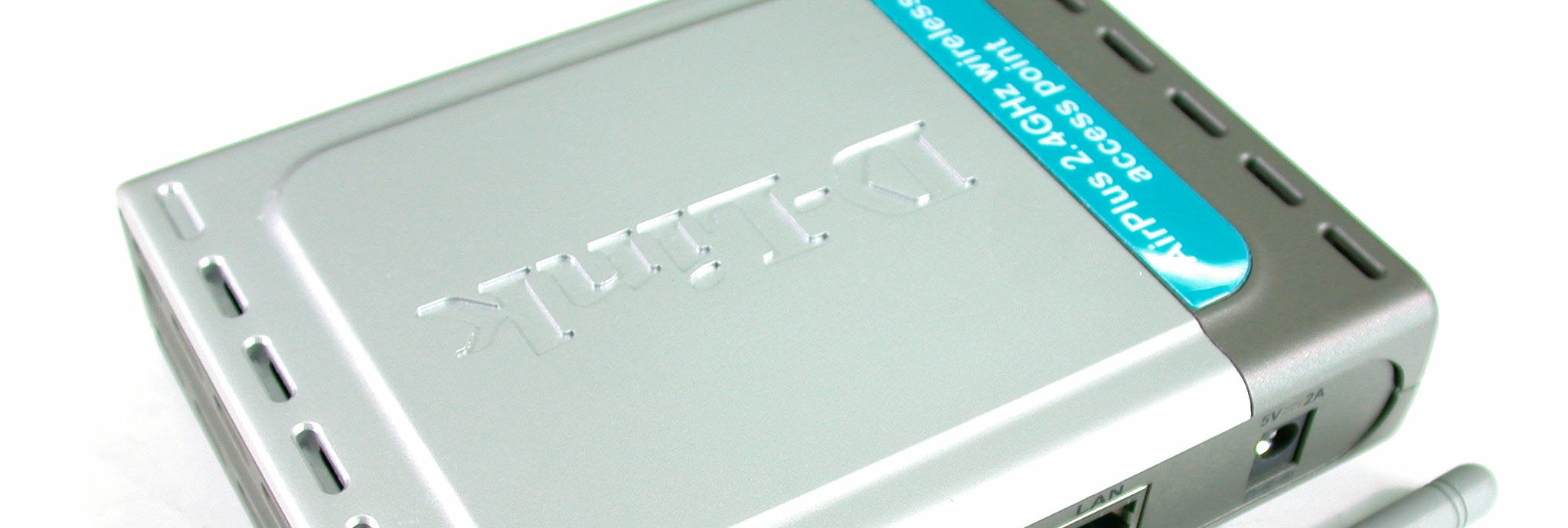

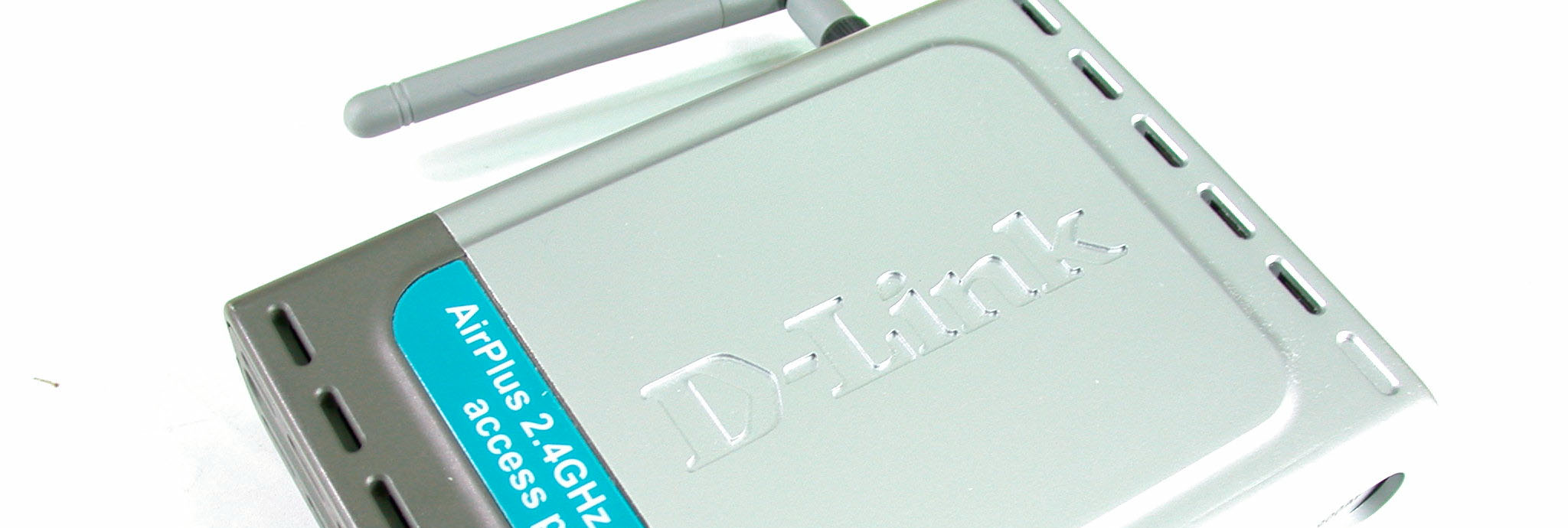

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

LABEL LOCATION FOR FCC ID: KA2DWL900AP-PLUS

Page 4 Page 5 Page 6

Page 7 Page 8 Page 9

Page 10 Page 11 Page 12

FCC ID: KA2DWL900AP-PLUS ADT No.910704R01 Operational Description The transmitter of the EUT is powered by power adapter and connected with managing computer through RJ45 port. The antenna type is Dipole antenna with Reversed SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11,22Mbps, the symbol rates are 1,1,1.375,1.375,1.375 Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8,8,and16 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: KA2DWL900AP-PLUS ADT No.: 910704R01 FCC TEST REPORT REPORT NO.: RF910704R01 MODEL NO.: DWL-900AP+ ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:D-Link ADDRESS: No. 8, Li Hsing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: KA2DWL900AP-PLUS ADT No.: 910704R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA2DWL900AP-PLUS ADT No.: 910704R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA2DWL900AP-PLUS ADT No.: 910704R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241213.681.17 6243713.871.18 11246217.701.33 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: KA2DWL900AP-PLUS Report No.: RF910704R011Issued: August 6, 2002 FCC TEST REPORT REPORT NO.: RF910704R01 MODEL NO.: DWL-900AP+ RECEIVED: July 4, 2002 TESTED: June 11 ~ July 30, 2002 APPLICANT:D-Link ADDRESS: No. 8, Li-shing Rd VII, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 47 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DWL900AP-PLUS Report No.: RF910704R012Issued: August 6, 2002 Table of Contents 1CERTIFICATION....................................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................................5 3GENERAL INFORMATION....................................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................................8 4TEST TYPES AND RESULTS...............................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT........................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.2TEST INSTRUMENTS............................................................................................................9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.................................................................................10 4.1.5TEST SETUP........................................................................................................................11 4.1.6EUT OPERATING CONDITIONS.........................................................................................12 4.1.7TEST RESULTS....................................................................................................................13 4.2RADIATED EMISSION MEASUREMENT...........................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..........................................................19 4.2.2TEST INSTRUMENTS..........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD.................................................................................21 4.2.5TEST SETUP........................................................................................................................22 4.2.6EUT OPERATING CONDITIONS.........................................................................................22 4.2.7TEST RESULTS....................................................................................................................23 4.36dB BANDWIDTH MEASUREMENT...................................................................................28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................................28 4.3.2TEST INSTRUMENTS..........................................................................................................28 4.3.3TEST PROCEDURE.............................................................................................................29 4.3.4DEVIATION FROM TEST STANDARD.................................................................................29 4.3.5TEST SETUP........................................................................................................................29 4.3.6EUT OPERATING CONDITIONS.........................................................................................29 4.3.7TEST RESULTS....................................................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER...................................................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................33 4.4.2INSTRUMENTS....................................................................................................................33 4.4.3TEST PROCEDURES...........................................................................................................34 4.4.4DEVIATION FROM TEST STANDARD.................................................................................34 4.4.5TEST SETUP........................................................................................................................34 4.4.6EUT OPERATING CONDITIONS.........................................................................................34 4.4.7TEST RESULTS....................................................................................................................35 4.5POWER SPECTRAL DENSITY MEASUREMENT..............................................................36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.........................................…

Text truncated - open the document above for the full version.

FCC ID: KA2DWL900AP-PLUS Report No.: RF910704R0145Issued: August 6, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DWL900AP-PLUS Report No.: RF910704R0146Issued: August 6, 2002 RADIATED EMISSION TEST
