KA2DWLAG132A1D-Link AirPremier AG DWL-AG132 Wireless USB Adapte

31 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 32 DWL-AG132 User’s Manual D-Link Systems, Inc. Please read the information on this screen, then click Finish to complete the Network Setup Wizard. Networking Basics The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 33 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Naming your Computer To name your computer using Windows XP, please follow these directions: Click Start (in the lower left corner of the screen). Right-click on My Computer. Select Properties. Select the Computer Name Tab in the System Properties window. You may enter a Computer Description if you wish; this field is optional. To rename the computer and join a domain, click Change. 34 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Naming Your Computer Checking the IP Address in Windows XP In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK. All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the following: Right-click on the Local Area Connection icon in the task bar. Click on Status. 35 DWL-AG132 User’s Manual D-Link Systems, Inc. Click the Support tab. Click Close. Assigning a Static IP Address in Windows XP/2000 Note: Many broadband routers will automatically assign IP addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions: Go to Start. Click on Control Panel. Checking the IP Address in Windows XP Networking Basics 36 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Double-click on Network Connections. Click on Properties. Right-click on Local Area Connections. Assigning a Static IP Address in Windows XP/2000 37 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP address of the Default Gateway.) The DNS server information will be supplied by your ISP (Internet Service Provider.) Click OK. Click on Internet Protocol (TCP/IP). Click Properties. Assigning a Static IP Address in Windows XP/2000 38 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wireless router or access point, as shown. 39 DWL-AG132 User’s Manual D-Link Systems, Inc. 1. How do I check to see that the drivers for the DWL-AG132 are installed properly? Click Device Manager. Select the Hardware Tab. Troubleshooting Go to Start > My Computer > Properties. This chapter provides solutions to problems that can occur during the installation and operation of the DWL-AG132. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have another operating system, these solutions will still apply although the appearance on your computer screen may differ.) 40 DWL-AG132 User’s Manual D-Link Systems, Inc. Double-click on Network Adapters. Right-click on D-Link AirPremier AG DWL-AG132 Wireless USB Adapter. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK. Troubleshooting D-Link AirPremier AG DWL-AG132 Wireless USB Adapter D-Link AirPremier AG DWL-AG132 Wireless USB Adapter D-Link AirPremier AG DWL-AG132 Wireless USB Adapter 41 DWL-AG132 User’s Manual D-Link Systems, Inc. Troubleshooting 2. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advantageous placement of your D-Link wireless products. 3. Why does my wireless connection keep dropping? 4. Why can’t I get a wireless connection? If you have enabled encryption on the DWL-AG132, you must also enable encryption on all wireless devices in the network in order to establish a wireless connection. If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade …

Text truncated - open the document above for the full version.

31 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 32 DWL-AG132 User’s Manual D-Link Systems, Inc. Please read the information on this screen, then click Finish to complete the Network Setup Wizard. Networking Basics The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. 33 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Naming your Computer To name your computer using Windows XP, please follow these directions: Click Start (in the lower left corner of the screen). Right-click on My Computer. Select Properties. Select the Computer Name Tab in the System Properties window. You may enter a Computer Description if you wish; this field is optional. To rename the computer and join a domain, click Change. 34 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Naming Your Computer Checking the IP Address in Windows XP In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK. All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the following: Right-click on the Local Area Connection icon in the task bar. Click on Status. 35 DWL-AG132 User’s Manual D-Link Systems, Inc. Click the Support tab. Click Close. Assigning a Static IP Address in Windows XP/2000 Note: Many broadband routers will automatically assign IP addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions: Go to Start. Click on Control Panel. Checking the IP Address in Windows XP Networking Basics 36 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Double-click on Network Connections. Click on Properties. Right-click on Local Area Connections. Assigning a Static IP Address in Windows XP/2000 37 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP address of the Default Gateway.) The DNS server information will be supplied by your ISP (Internet Service Provider.) Click OK. Click on Internet Protocol (TCP/IP). Click Properties. Assigning a Static IP Address in Windows XP/2000 38 DWL-AG132 User’s Manual D-Link Systems, Inc. Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wireless router or access point, as shown. 39 DWL-AG132 User’s Manual D-Link Systems, Inc. 1. How do I check to see that the drivers for the DWL-AG132 are installed properly? Click Device Manager. Select the Hardware Tab. Troubleshooting Go to Start > My Computer > Properties. This chapter provides solutions to problems that can occur during the installation and operation of the DWL-AG132. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have another operating system, these solutions will still apply although the appearance on your computer screen may differ.) 40 DWL-AG132 User’s Manual D-Link Systems, Inc. Double-click on Network Adapters. Right-click on D-Link AirPremier AG DWL-AG132 Wireless USB Adapter. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK. Troubleshooting D-Link AirPremier AG DWL-AG132 Wireless USB Adapter D-Link AirPremier AG DWL-AG132 Wireless USB Adapter D-Link AirPremier AG DWL-AG132 Wireless USB Adapter 41 DWL-AG132 User’s Manual D-Link Systems, Inc. Troubleshooting 2. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advantageous placement of your D-Link wireless products. 3. Why does my wireless connection keep dropping? 4. Why can’t I get a wireless connection? If you have enabled encryption on the DWL-AG132, you must also enable encryption on all wireless devices in the network in order to establish a wireless connection. If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade …

Text truncated - open the document above for the full version.

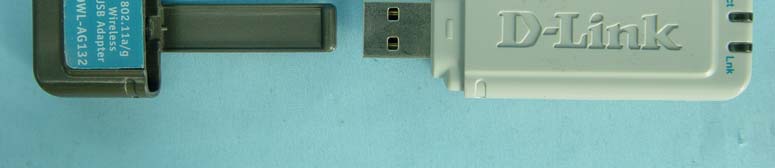

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

Model No: DWL-AG132 FCC ID: KA2DWLAG132A1 H/W Ver: A1 Made in China SN: PN: MAC:

Page 3 Page 4 Page 5

FCC ID: KA2DWLAG132A1 Report No.RF931026L19A Technical Description The transmitter of the EUT (D-Link AirPremier AG DWL-AG132 Wireless USB Adapter) is powered by host equipment. The antenna type used in this product is Chip antenna without antenna connector. Under normal use condition, the user has to keep at least 2.5cm separation distance between radiator and the body of the user. This device is an D-Link AirPremier AG DWL-AG132 Wireless USB Adapter, which operates in both of the 5GHz and 2.4GHz bands and can not transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

D3: 3G DOSIMETRIC E-FIELD PROBE

D6: 2450MHz SYSTEM VALIDATION DIPOLE SN: 716

D2: 5G DOSIMETRIC E-FIELD PROBE

D5: 5GHz SYSTEM VALIDATION DIPOLE SN: 1019

D4: DAE SN: 510

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Date/Time: 11/03/04 17:25:46 Test Laboratory: Advance Data Technology DWL-AG132 11a Bottom Mode 1 Ch 1 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5180 MHz Communication System: 802.11a ; Frequency: 5180 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5180 MHz; σ = 5.32 mho/m; ε r = 47.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22 ; Postprocessing SW: SEMCAD, V1.8 Build 127 Band 1 Low Channel/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.135 mW/g Band 1 Low Channel/Zoon Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 2.47 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 10155441.0 W/kg SAR(1 g) = 0.027 mW/g; SAR(10 g) = 0.00805 mW/g Maximum value of SAR (measured) = 0.145 mW/g Date/Time: 11/03/04 17:58:54 Test Laboratory: Advance Data Technology DWL-AG132 11a Bottom Mode 1 Ch 4 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5240 MHz Communication System: 802.11a ; Frequency: 5240 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5240 MHz; σ = 5.4 mho/m; ε r = 47.1; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22 ; Postprocessing SW: SEMCAD, V1.8 Build 127 Band 1 High Channel/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.230 mW/g Band 1 High Channel/Zoon Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 3.42 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 1393111.1 W/kg SAR(1 g) = 0.073 mW/g; SAR(10 g) = 0.023 mW/g Maximum value of SAR (measured) = 0.255 mW/g Date/Time: 11/03/04 18:47:23 Test Laboratory: Advance Data Technology DWL-AG132 11a Bottom Mode 1 Ch 5 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5260 MHz Communication System: 802.11a ; Frequency: 5260 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5260 MHz; σ = 5.43 mho/m; ε r = 47.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22 ; Postprocessing SW: SEMCAD, V1.8 Build 127 Band 2 Low Channel/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.239 mW/g Band 2 Low Channel/Zoon Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 4.03 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 3334010.4 W/kg SAR(1 g) = 0.069 mW/g; SAR(10 g) = 0.024 mW/g Maximum value of SAR (measured) = 0.272 mW/g Date/Time: 11/03/04 19:44:04 Test Laboratory: Advance Data Technology DWL-AG132 11a Bottom Mode 1 Ch 8 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5320 MHz Communication System: 802.11a ; Frequency: 5320 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5320 MHz; σ = 5.52 mho/m; ε r = 47.1; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22 ; Postprocessing SW: SEMCAD, V1.8 Build 127 Band 2 High Channel/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.392 mW/g Band 2 High Channel/Zoon Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 5.32 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 6397567.0 W/kg SAR(1 g) = 0.135 mW/g; SAR(10 g) = 0.053 mW/g Maximum value of SAR (measured) = 0.468 mW/g Date/Time: 11/03/04 19:44:04 Test Laboratory: Advance Data Technology DWL-AG132 11a Bottom Mode 1 Ch 9 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5745 MHz Communication System: 802.11a ; Frequency: 5745 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5745 MHz; σ = 6.11 mho/m; ε r = 46.2; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe:…

Text truncated - open the document above for the full version.

Date/Time: 12/20/04 17:24:25 Test Laboratory: Advance Data Technology DWL-AG132 11a Turbo Mode Bottom Mode 3 Ch 1 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5210 MHz Communication System: 802.11a ; Frequency: 5210 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5210 MHz; σ = 5.36 mho/m; ε r = 47.5; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 f:5210 Turbo Mode/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.145 mW/g f:5210 Turbo Mode/Zoom Scan (8x8x11)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 2.09 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 19032425.3 W/kg SAR(1 g) = 0.059 mW/g; SAR(10 g) = 0.013 mW/g Maximum value of SAR (measured) = 0.167 mW/g Date/Time: 12/20/04 17:56:31 Test Laboratory: Advance Data Technology DWL-AG132 11a Turbo Mode Bottom Mode 3 Ch 2 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5250 MHz Communication System: 802.11a ; Frequency: 5250 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5250 MHz; σ = 5.42 mho/m; ε r = 47.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 f:5250 Turbo Mode/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.211 mW/g f:5250 Turbo Mode/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 2.89 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 148016205616.2 W/kg SAR(1 g) = 0.082 mW/g; SAR(10 g) = 0.024 mW/g Maximum value of SAR (measured) = 0.227 mW/g Date/Time: 12/20/04 18:28:09 Test Laboratory: Advance Data Technology DWL-AG132 11a Turbo Mode Bottom Mode 3 Ch 3 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5290 MHz Communication System: 802.11a ; Frequency: 5290 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5290 MHz; σ = 5.47 mho/m; ε r = 47.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(4.29, 4.29, 4.29) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 f:5290 Turbo Mode/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.302 mW/g f:5290 Turbo Mode/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 3.64 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 12565447.6 W/kg SAR(1 g) = 0.099 mW/g; SAR(10 g) = 0.034 mW/g Maximum value of SAR (measured) = 0.325 mW/g Date/Time: 12/20/04 19:02:41 Test Laboratory: Advance Data Technology DWL-AG132 11a Turbo Mode Bottom Mode 3 Ch 4 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5760 MHz Communication System: 802.11a ; Frequency: 5760 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5760 MHz; σ = 6.16 mho/m; ε r = 46.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: EX3DV3 - SN3504 ; ConvF(3.96, 3.96, 3.96) ; Calibrated: 2004/2/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2004/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.4 Build 3 ; Postprocessing SW: SEMCAD, V1.8 Build 130 f:5760 Turbo Mode/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.626 mW/g f:5760 Turbo Mode/Zoom Scan (8x8x9)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 5.75 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 1197064.2 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.057 mW/g Maximum value of SAR (measured) = 0.668 mW/g Date/Time: 12/20/04 19:36:28 Test Laboratory: Advance Data Technology DWL-AG132 11a Turbo Mode Bottom Mode 3 Ch 5 DUT: D-Link AirPremier AG DWL-AG132 Wireless USB Adapter ; Type: DWL-AG132 ; Test Frequency: 5800 MHz Communication System: 802.11a ; Frequency: 5800 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL5800 Medium parameters used: f = 5800 MHz; σ = 6.22 mho/m; ε r = 46.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 5 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp.…

Text truncated - open the document above for the full version.

APPENDIX B : ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: KA2DWLAG132A1 Report No.: SA931026L19A 1 Report Format Version 2.0.1 SAR TEST REPORT REPORT NO.: SA931026L19A MODEL NO.: DWL-AG132 RECEIVED: Oct. 27, 2004 TESTED: Nov. 02 ~ Dec. 20, 2004 ISSUED: Dec. 22, 2004 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road, Science Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 47 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DWLAG132A1 Report No.: SA931026L19A 2 Report Format Version 2.0.1 Table of Contents 1. CERTIFICATION .........................................................................................................3 2. GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................12 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................16 4. DESCRIPTION OF SUPPORT UNITS ......................................................................19 5. TEST RESULTS ........................................................................................................20 5.1 TEST PROCEDURES ...............................................................................................20 5.2 MEASURED SAR RESULT .......................................................................................21 5.3 SAR LIMITS...............................................................................................................27 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................27 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................32 6. SYSTEM VALIDATION ..............................................................................................33 6.1 TEST EQUIPMENT ...................................................................................................33 6.2 TEST PROCEDURE .................................................................................................33 6.3 VALIDATION RESULT...............................................................................................35 6.4 SYSTEM VALIDATION UNCERTAINTIES (FOR 2.4GHZ)........................................38 6.5 SYSTEM VALIDATION UNCERTAINTIES (FOR 5GHZ)...........................................39 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................40 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................40 7.2 ISOTROPY UNCERTAINTY......................................................................................40 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................41 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................41 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................41 7.6 RESPONSE TIME UNCERTAINTY..................…

Text truncated - open the document above for the full version.
