DWL-AG700AP manual cover pending 2 DWL-AG700AP User’s Manual D-Link Systems, Inc. Table of Contents Table of Contents Table of Contents ............................................................................ 2 Package Contents ............................................................................ 3 Introduction.................................................................................... 4 Features and Benefits ...................................................................... 5 Four Operational Modes .................................................................. 6 Using the Configuration Menu ....................................................... 7 Networking Basics ........................................................................ 26 Troubleshooting ........................................................................... 42 Technical Specifications ............................................................... 48 Contacting Technical Support...................................................... 51 Warranty ..................................................................................... 52 Registration.................................................................................. 56 3 DWL-AG700AP User’s Manual D-Link Systems, Inc. Package Contents Note: Using a power supply with a different voltage than the one included with the DWL-AG700AP will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. Package Contents
D-Link AirPlus AG DWL-AG700AP Wireless AG Access Point
Power Supply - 5V DC 2.0A
Manual on CD
Quick Installation Guide
Ethernet Cable ® Minimum System Requirements
Computers with Windows XP/2000, Macintosh, or Linux-based operating systems with an installed Ethernet Adapter
Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above 4 DWL-AG700AP User’s Manual D-Link Systems, Inc. Introduction Introduction With a maximum wireless signal rate of up to 54Mbps*, the DWL-AG700AP is a wireless access point that enables dualband networks, conveniently delivering connectivity in both the 802.11a and 802.11g bands. With the DWL-AG700AP, bandwidth-intensive applications like graphics or multimedia will benefit significantly because large files are able to move across the network quickly. The D-Link AirPlus AG DWL-AG700AP provides maximum security with the option of WPA or WEP. Additional security is provided with the optional use of filters for managing network access. With dualband capabilities, maximum wireless signal rates up to 54Mpbs, enhanced security features including WPA and optional filter management, the DWL-AG700AP is a versatile choice for your diverse network needs. *Maximum wireless signal rate based on IEEE Standard 802.11a/g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. 5 DWL-AG700AP User’s Manual D-Link Systems, Inc. Features and Benefits Features and Benefits *Maximum wireless signal rate based on IEEE Standard 802.11a/g specifications. Actual data throughput will vary. Better security with WPA/WPA-PSK - The DWL-AG700AP can securely connect to wireless clients on the network using WPA or WPA-PSK providing a much higher level of security for your data and communications than has previously been available.
Compatible with IEEE802.11a and IEEE802.11g standards to provide a wireless data rate of up to 54Mbps.*
Backward compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps with 802.11b devices - that means you can migrate your system to the 802.11g standard on your own schedule without sacrificing connectivity.
Supports WEP encryption.
Optional filter management feature - Access to your network can be controlled by the MAC addresses of the devices, using the optional filter tool included in your convenient Web-based management utility.
6 DWL-AG700AP User’s Manual D-Link Systems, Inc. Wireless Basics D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or office. Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network devices. The DWL-AG700AP saves money by providing multi-functionality, configurable in one of four different modes. Scalability - WLANs can be configured in a variety of ways to meet the needs of specific applications and installat…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8,Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C TEL: ++886 3-563-6666 FAX: +886 3-578-1861 Federal CommunicSations Commission Authorization and Evaluation Division Confidentiality Request FCC ID: KA2DWLAG700APA1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Leeming/ Manager D-Link Co. Ltd Phone: 886-3-563666 ext.6613 Fax: 86-3-35781861 E-mail: [email protected]

D-Link Co Ltd. NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C TEL: ++886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Co Ltd. , hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------------------- Leeming/ Manager D-Link Co. Ltd Phone: 886-3-563666 ext.6613 Fax: 86-3-35781861 E-mail: [email protected]

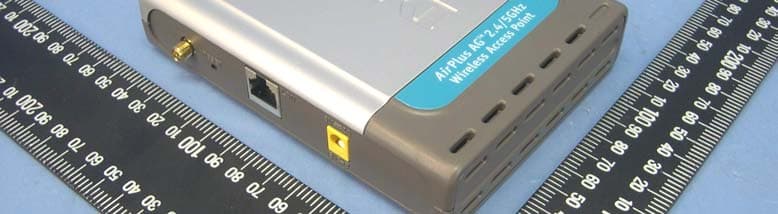

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label (Fig. 1) FCC ID: KA2DWLAG700AP1

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: KA2DWLAG700APA1 Report No. 931228H01 Technical Description This device is an 802.11a/b/g Dual Band Wireless Access Point operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps. The transmitter of the EUT is powered by adapter. The antenna are Dipole antenna with R-SMA connector and Printed antenna without connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: KA2DWLAG700APA1 Report No.: SA931228H011Issued: Jan. 13, 2005 RF EXPOSURE REPORT REPORT NO.: SA931228H01 MODEL NO.: DWL-AG700AP, WAP-D26 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:D-LINK Corporation ADDRESS:No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: KA2DWLAG700APA1 Report No.: SA931228H012Issued: Jan. 13, 2005 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DWLAG700APA1 Report No.: SA931228H013Issued: Jan. 13, 2005 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DWLAG700APA1 Report No.: SA931228H014Issued: Jan. 13, 2005 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241293.540567410.0294936911.0 62437109.90058390.0346520661.0 112462106.90548790.0337077011.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241267.452802770.0212681211.0 6243768.076935870.0214649131.0 11246266.988460940.0211217131.0 For 5GHz Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518035.727283820.0112649461.0 4524036.559479160.0115273411.0 5526036.728230050.0115805481.0 8532037.325015780.0117687171.0 9574520.749135170.006542281.0 11578520.183663640.0063639851.0 13582519.860949170.0062622321.0

FCC ID: KA2DWLAG700APA1 Report No.: RF931228H011Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF931228H01 MODEL NO.:WAP-D26, DWL-AG700AP RECEIVED:Dec. 28, 2004 TESTED:Dec. 20, 2004 to Jan. 05, 2005 ISSUED:Jan. 12, 2005 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 119 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: KA2DWLAG700APA1 Report No.: RF931228H012Report Format Version 2.0.1 Table of Contents 1.CERTIFICATION.....................................................................................................6 2.SUMMARY OF TEST RESULTS.............................................................................7 3.GENERAL INFORMATION ...................................................................................10 3.1GENERAL DESCRIPTION OF EUT......................................................................10 3.2DESCRIPTION OF TEST MODES........................................................................12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................13 3.4DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4.TEST TYPES AND RESULTS (FOR PART 802.11G)............................................16 4.1CONDUCTED EMISSION MEASUREMENT........................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................16 4.1.2 TEST INSTRUMENTS ..........................................................................................16 4.1.3 TEST PROCEDURES ..........................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD .................................................................17 4.1.5 TEST SETUP........................................................................................................18 4.1.6 EUT OPERATING CONDITIONS..........................................................................18 4.1.7 TEST RESULTS ...................................................................................................19 4.2RADIATED EMISSION MEASUREMENT .............................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...........................................21 4.2.2 TEST INSTRUMENTS ..........................................................................................22 4.2.3 TEST PROCEDURES ..........................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD .................................................................23 4.2.5 TEST SETUP........................................................................................................24 4.2.6 EUT OPERATING CONDITIONS..........................................................................24 4.2.7 TEST RESULTS ...................................................................................................25 4.2.8 TEST RESULTS - DSSS.......................................................................................26 4.2.9 TEST RESULTS - OFDM......................................................................................29 4.36DB BANDWIDTH MEASUREMENT....................................................................32 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................32 4.3.2 TEST INSTRUMENTS ..........................................................................................32 4.3.3 TEST PROCEDURE.............................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD .................................................................33 4.3.5 TEST SETUP........................................................................................................33 4.3.6 EUT OPERATING CONDITIONS..........................................................................33 4.3.7 TEST RESULTS -DSSS........................................................................................34 4.3.8 TEST RESULTS -OFDM.......................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................40 FCC ID: KA2DWLAG700APA1 Report No.: RF931228H013Report Format Version 2.0.1 4.4.2 INSTRUMENTS....................................................................................................40 4.4.3 TEST PROCEDURES ..........................................................................................41 4.4.4 TEST SETUP........................................................................................................41 4.4.5 EUT OPERATING CONDITIONS..........................................................................41 4.4.6 TEST RESULTS -DSSS........................................................................................42 4.4.7 TEST RESULTS -OFDM.......................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT ................................................44 4.5.1 LIMITS …

Text truncated - open the document above for the full version.

Report No. 931228H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 931228H01 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 931228H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following page. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931228H01 4 Ch1 Ch11 Report No. 931228H01 5 TEST RESULTS – For 802.11g The spectrum plots are attached on the following page. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931228H01 6 Ch1 Ch11 Report No. 931228H01 7 TEST RESULTS – For 802.11a The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931228H01 8 Ch1 Ch4 Report No. 931228H01 9 Ch5 Ch8 Report No. 931228H01 10 Ch9 Ch11 Report No. 931228H01 11 Ch13

FCC ID: KA2DWLAG700APA1 Report No.: RF931228H01117Report Format Version 2.0.1 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2DWLAG700APA1 Report No.: RF931228H01118Report Format Version 2.0.1 RADIATED EMISSION TEST
