KA2DWLG120C1IEEE802.11g WLAN USB Adapter

Manual Building Networks for People 802.11g (2.4GHz) Wireless USB 2.0 Adapter DWL-G120 D-Link AirPlus G TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features and Benefits........................................................................... 6 Wireless Basics.................................................................................... 7 Installation Considerations.................................................................... 8 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 11 Using the Configuration Utility with Macintosh OS............................... 20 Networking Basics.............................................................................. 24 Troubleshooting................................................................................... 37 Technical Specifications...................................................................... 40 Contacting Technical Support.............................................................. 42 Warranty and Registration................................................................... 43 3 D-Link AirPlus TM G DWL-G120 2.4 GHz Wireless USB 2.0 Adapter At least 32MB of memory and a 300MHz processor Properly installed and working USB Controller Windows XP/2000/Me/98SE
A computer or laptop with an available USB port


Manual on CD-ROM Quick Installation Guide USB Extension Cable Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:



Mac OS X (v10.2x or later)
4 Introduction The D-Link AirPlus G DWL-G120 Wireless USB Adapter is a convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With transfer rates up to 54Mbps you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The DWL-G120 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The DWL-G120 connects to any available USB port on a laptop or desktop Windows and Macintosh-based computer and also includes a standard USB extension cable. With the optional USB extension cable, the DWL-G120 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Apple Mac OS X (v10.2x or later) Jaguar, Microsoft Windows XP, Windows 2000 and other Windows operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the DWL-G120 automatically connects to other D- Link Air or AirPlus wireless products as soon as it’s active. In addition to featuring 64- or 128-bit WEP encryption, the DWL-G120 offers the added security of WPA (Wi-Fi Protected Access) when used with other WPA devices in a network with a RADIUS server. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G120, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre- Shared Key mode of WPA, the DWL-G120 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G120, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. TM 5 Features and Benefits Provides high-speed wireless connection at up to 54Mbps ** 2 Environmental factors may adversely affect range 1 WPA will be available soon as a download for Mac users
Better Security with WPA 1 - In addition to 64-,128-bit WEP encryption, you can also securely connect to a wireless network using WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available. Convenience of Plug & Play installation Compact size for placement anywhere Fully 802.11b/802.11g compatible USB 2.0 standard


Powered by the USB port; no external power source is required


User-friendly configuration and diagnostic utilities Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode Connects at up to 328 feet indoors 2


One year warranty
Optimal wireless reception using its USB cable (included). Position the DWL-G120 almost anywhere in your workspace to achieve the best reception possible.
6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN te…

Text truncated - open the document above for the full version.

16 Using the Configuration Utility (continued) Site Survey > Add If you clicked on Add, you can configure, in this window, all the properties of a profile that you wish to add to the network. In this window you can select the type of network connection. Click OK to save the changes. If you clicked on Configuration or Properties you can config- ure, in this window, all the prop- erties of a profile that already exists in the network. Click OK to save the changes. Advanced Configuration, Add or Properties If you select WPA in the Authentication field, please see detailed instructions for configuring WPA on the following pages. 17 Using the Configuration Utility (continued) Authentication > WPA Click Configure. Select the available network to which you want to connect. After you click Authentication Config, the Advanced Security Settings screen will ap- pear. Complete the Advanced Security Settings configuration. Please see pages 17-20 of this manual to find out more about the Advanced Security Settings. Click Authentication Config Select WPA in the Authentication field. 18 Using the Configuration Utility (continued) Authentication > WPA-PSK Click Configure. Select the available network to which you want to connect. WPA-PSK does not require a RADIUS Server in the network. Select WPA-PSK in the Authentication field. Click Authentication Config 19 Using the Configuration Utility (continued) Authentication > WPA-PSK (continued) Enter the WPA Passphrase. About Advanced Security Settings The About screen gives you the MAC address, Utility Version and the Driver Version of the DWL-G120. Click OK. The configuration is done. 20 After you have completed the installation of the DWL-G120 into your Macintosh computer (please refer to the Quick Installation Guide included with the product), follow the steps below to access the configuration settings. From the Apple pull-down menu select System Preferences. Using the Configuration Utility with Macintosh OS Double-click on the Wireless Adaptor icon. 21 Using the Configuration Utility with Macintosh OS (continued) This window will ap- pear displaying the following: Current Wireless Network settings: Network Name; Net- work Type; Link Sta- tus; Channel; and Signal Strength. Available Wireless Networks includ- ing: Name; Type; Signal; Channel; Privacy. Start Scan: Click Start Scan to rescan for an avail- able wireless net- work at your current location. Connect: Highlight a network profile and click Connect to connect to that net- work profile. Wireless Adaptor Settings: Radio On: Select or deselect Frequency Band: Displays the frequency band; default is 2.4GHz (may not be changeable). Click Show My Networks to manage your network profiles. 22 Using the Configuration Utility with Macintosh OS (continued) My Networks Connect: Highlight a network profile and click Connect to connect to that net- work profile. Properties: Highlight a network profile and click Properties to configure that network profile. (See screens on the next page.) Remove: Highlight a network profile and click Remove to remove that network from the profile list. Create: Click Create to create a new network profile, manually. (See screens on the next page.) 23 Using the Configuration Utility with Macintosh OS (continued) My Networks > Create and/or Properties Select the level of WEP encryp- tion. In the example, 40 Bits ASCII was chosen. Enter the WEP string, in this case 5 ASCII characters have been entered. Select the key that you wish to use. You can input up to four keys. 24 Using the Network Setup Wizard in Windows XP In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com and http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000/Me/98SE. Go to Start>Control Panel>Network Connections Select Set up a home or small office network Networking Basics When this screen appears, click Next. 25 Please follow all the instructions in this window: Networking Basics (continued) Click Next. In the following window, select the best description of your computer. If your computer connects to the Internet through a router, select the second option as shown. Click Next. 26 Enter a Computer description and a Computer name (optional.) Networking Basics (continued) Click Next. Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next. 27 Please wait while the Network Setup Wizard applies the changes. Networking Basics (continued) When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 28 In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. Networking Basics (continued) 29 Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your net- work. To continue click Next. Networking Basics (continued) 30 Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. Networking Basics (continued)

31 Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties





Select the Computer Name Tab in the Sys- tem Properties window. You may enter a Com- puter Description if you wish; this field is optional. To rename the computer and join a domain, click Change. Networking Basics (continued) Naming Your Computer To name your computer in Windows XP, please follow these directions: 32
In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK.


Checking the IP Address in Windows XP All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the follow- ing: Right-click on the Local Area Connection icon in the task bar. Click on Status.

Networking Basics (continued) Naming Your Computer 33 This window will appear. Click the Support tab. Click Close.

Assigning a Static IP Address in Windows XP/2000 Note: Many broadband routers will automatically assign IP addresses to the com- puters on the network, using DHCP (Dynamic Host Configuration Protocol) tech- nology. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions:

Go to Start. Double-click on Control Panel. Networking Basics (continued) Checking the IP Address in Windows XP 34
Double-click on Network Connections.

Double-click on Properties. Right-click on Local Area Connections. Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 35 Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP address of the Default Gateway.)
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Click OK Click on Internet Protocol (TCP/IP) Click Properties


Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 36 Checking the Wireless Connection by Pinging in Windows XP and 2000 Checking the Wireless Connection by Pinging in Windows Me and 98 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wire- less router or access point, as shown. Go to Start > Run > type command. A window similar to this will appear. Type ping xxx.xxx.xxx.xxx where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wire- less router or access point, as shown. Networking Basics (continued) 37 1. How do I check to see that the drivers for the DWL-G120 are installed properly? Click Device Manager.
Select the Hardware Tab.
Troubleshooting Go to Start > My Computer > Properties.
This chapter provides solutions to problems that can occur during the installa- tion and operation of the DWL-G122. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have another operating system, these solutions will still apply although the ap- pearance on your computer screen may differ.) 38 Troubleshooting (continued)




Double-click on Net- work Adapters. Right-click on D-Link AirPlus G DWL-G120 Wireless USB Adapter. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK. D-Link AirPlus G DWL-G120 Wireless USB Adapter D-Link AirPlus G DWL-G122 Wireless USB Adapter D-Link AirPlus G DWL-G120 Wireless USB Adapter 39 Troubleshooting (continued) 2. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advanta- geous placement of your D-Link wireless products. 3. Why does my wireless connection keep dropping? 4. Why can’t I get a wireless connection? If you have enabled encryption on the DWL-G120, you must also enable en- cryption on all wireless devices in the network in order to establish a wireless connection. If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade dramatically or drop altogether. Try changing the channel on your router, access point and wireless adapter to a different channel to avoid interference.
Keep your product away (at least 3-6 feet) from electrical devices that generate RF noise, like microwaves, monitors, electric motors, etc.
The encryption settings are: 64- or 128-bit. Make sure that the encryp- tion bit level is the same on the router and the DWL-G120.
Make sure that the SSID on the wireless router (if you have one in your network) and the DWL-G120 are exactly the same. If they are not, wire- less connection will not be established. The default SSID is default.
40 IEEE 802.11g Technical Specifications USB 2.0
Standard 80% maximum, non-condensing Humidity:
Antenna Type: Single External, Dual Diversity
Modulation Technology: 54, 48, 36,24, 18, 11, 9, 6 5.5, 2, 1Mbps (with Automatic Fallback) Data Rates:
2.4GHz to …

Text truncated - open the document above for the full version.

D-Link Corporation NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 FCC ID: KA2DWLG120C1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: IEEE802.11g WLAN USB Adapter MODEL NO.: DWL-G120, WUS-G03 TRADE NAME: D-Link IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: FD930915H03 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION D-Link Systems, Inc. (COMPANY NAME) 53 Discovery Drive, Irvine CA 92618 U.S.A (COMPANY ADDRESS) TEL 949-708-0805 FAX 949-272-4629 Kenny Huang, Director of Product Management (NAME) (TITLE) (SIGNATURE) (DATE)

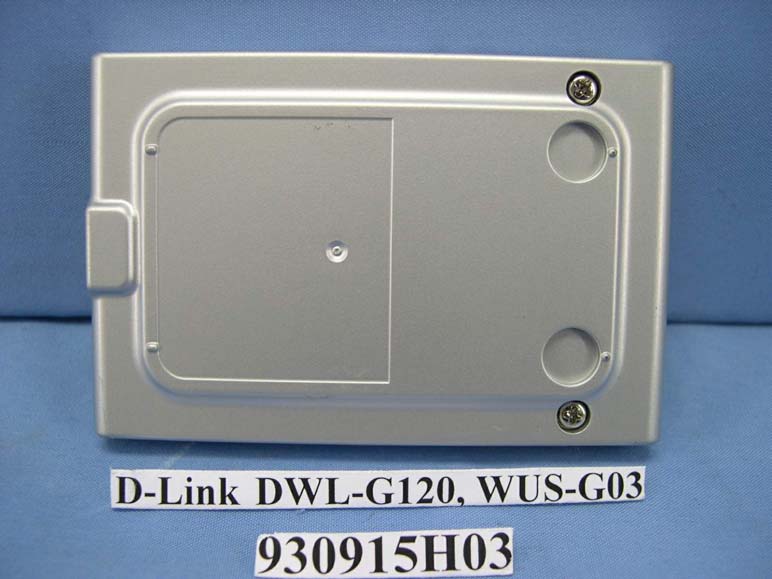

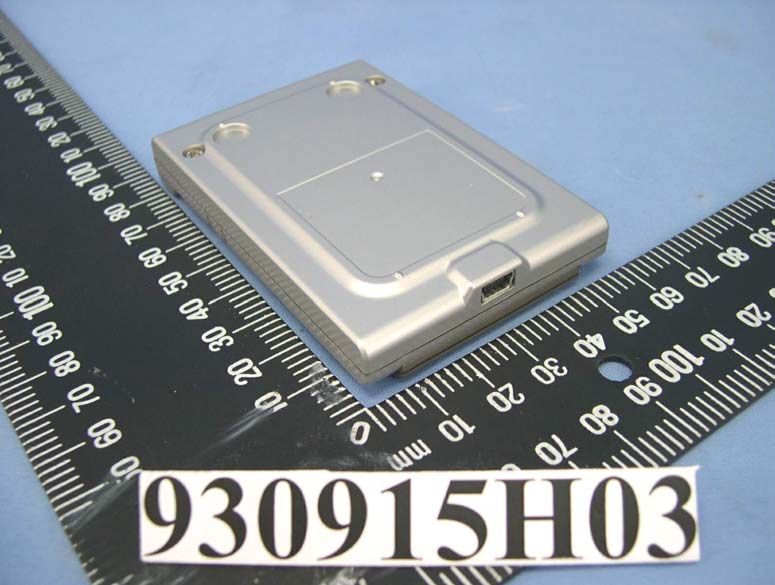

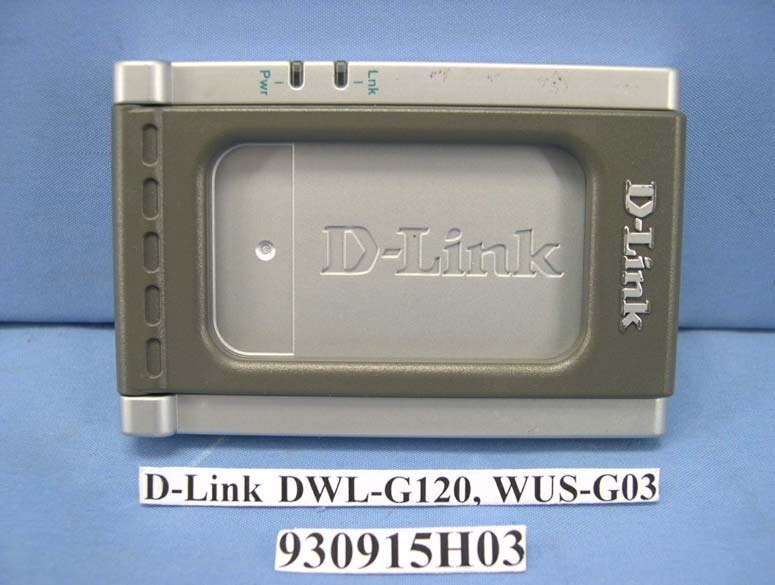

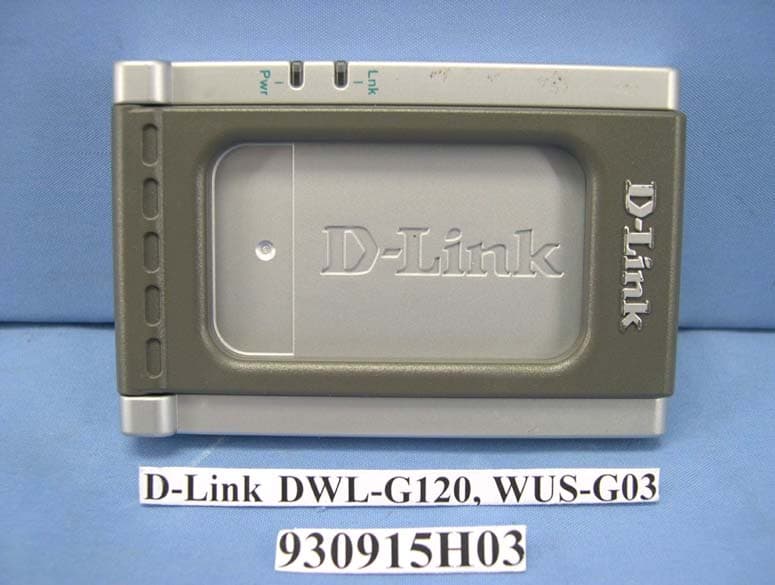

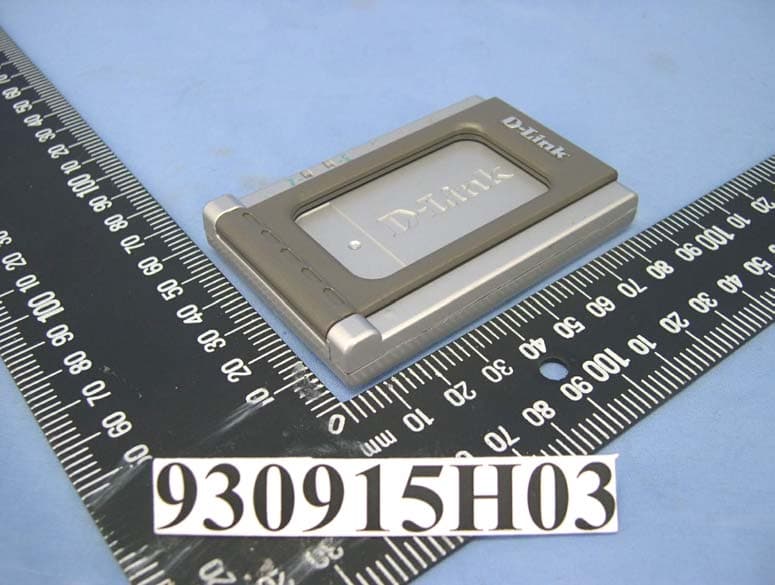

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: KA2DWG120C1 Report No. 930915H03 Operational Description This device is an IEEE802.11g WLAN USB Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE802.11g WLAN USB Adapter) is powered by host equipment. The antenna type used in this product is Dipole antenna without connector . The other instruction, please have a look at the users manual.

FCC ID: KA2DWLG120C1 ADT No.: 930915H03 1 RF EXPOSURE REPORT REPORT NO.: SA930915H03 MODEL NO.: DWL-G120, WUS-G03 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: KA2DWLG120C1 ADT No.: 930915H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: KA2DWLG120C1 ADT No.: 930915H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DWLG120C1 ADT No.: 930915H03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2.0dBi or 1.58489 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 56.4936975 0.017812674 1.0 6 2437 57.4116462 0.018102107 1.0 11 2462 55.2077439 0.017407208 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 93.3254301 0.029425858 1.0 6 2437 95.4992586 0.030111274 1.0 11 2462 93.3254301 0.029425858 1.0

Report No. 930915H03 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930915H03 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930915H03 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930915H03 4 Ch1 Report No. 930915H03 5 Ch11 Report No. 930915H03 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930915H03 7 Ch1 Report No. 930915H03 8 Ch11

FCC ID: KA2DWLG120C1 Report No.: RF930915H03 1 Issued: Sep. 27, 2004 FCC TEST REPORT REPORT NO.: RF930915H03 MODEL NO.: DWL-G120, WUS-G03 RECEIVED: Sep. 16, 2004 TESTED: Sep. 21 to 22, 2004 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: KA2DWLG120C1 Report No.: RF930915H03 2 Issued: Sep. 27, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4 TEST TYPES AND RESULTS....................................................................... 9 4.1 CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2 TEST INSTRUMENTS .................................................................................. 9 4.1.3 TEST SETUP .............................................................................................. 10 4.1.4 EUT OPERATING CONDITIONS.................................................................11 4.1.5 TEST RESULTS.......................................................................................... 12 4.2 Radiated Emission Measurement ............................................................... 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 14 4.2.2 TEST INSTRUMENTS ................................................................................ 15 4.2.3 TEST PROCEDURES................................................................................. 16 4.2.4 TEST SETUP .............................................................................................. 17 4.2.5 EUT OPERATING CONDITIONS................................................................ 17 4.2.6 TEST RESULTS.......................................................................................... 18 4.2.7 TEST RESULTS -…
