Manual Building Networks for People 802.11g (2.4GHz) Wireless G USB 2.0 Adapter DWL-G132 D-Link AirPlus XTREME G TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features and Benefits........................................................................... 6 Wireless Basics.................................................................................... 7 Installation Considerations.................................................................... 7 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 26 Troubleshooting................................................................................... 39 Technical Specifications...................................................................... 42 Contacting Technical Support.............................................................. 44 Warranty and Registration................................................................... 45 3 D-Link AirPlus Xtreme G TM DWL-G132 2.4 GHz Wireless G USB 2.0 Adapter At least 64MB of memory and a 500MHz processor Properly installed and working USB Controller Windows XP/2000
A computer or laptop with an available USB 2.0 port


Manual on CD-ROM Quick Installation Guide Cradle Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:



4 Introduction The D-Link AirPlus Xtreme G DWL-G132 Wireless G USB Adapter is an 802.11b/802.11g high-performance,convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With a maximum wireless signal rate of up to 54Mbps (108Mbps* in Turbo mode) you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The DWL-G132 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The DWL-G132 connects to any available USB port on a laptop or desktop Windows -based computer and also includes a USB cradle. With the optional USB cradle, the DWL-G132 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Microsoft Windows XP and Windows 2000 operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the DWL-G132 automatically connects to other D-Link AirPlus Xtreme G TM wireless products as soon as it’s active. TM *Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and evironmental factors lower actual data throughput rate. The DWL-G132 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 5 For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G132, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the DWL-G132 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G132, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. Introduction (continued) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. 6 Features and Benefits ** 3 Environmental factors may adversely affect range. User-friendly configuration and diagnostic utilities. Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode. Connects at up to 328 feet indoors 3 .


1 year warranty.
2 Using a USB 1.1 port will adversely affect throughput. 1 Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Compact size for placement anywhere.
Convenience of Plug & Play installation.
Fully 802.11b/802.11g compatible.
Powered by the USB port; no external power source is required.
USB 2.0 standard 2 .
Better Security with 802.1x and WPA - In addition to 64-,128-bit WEP encryption, you can also securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data an…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

D-Link Corporation NO.8,Li Hsing Rd VII ,SCIENCE-BASED INDUSTRIAL PARK,HSINCHU,TAIWAN,R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 FCC ID: KA2DWLG132A1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

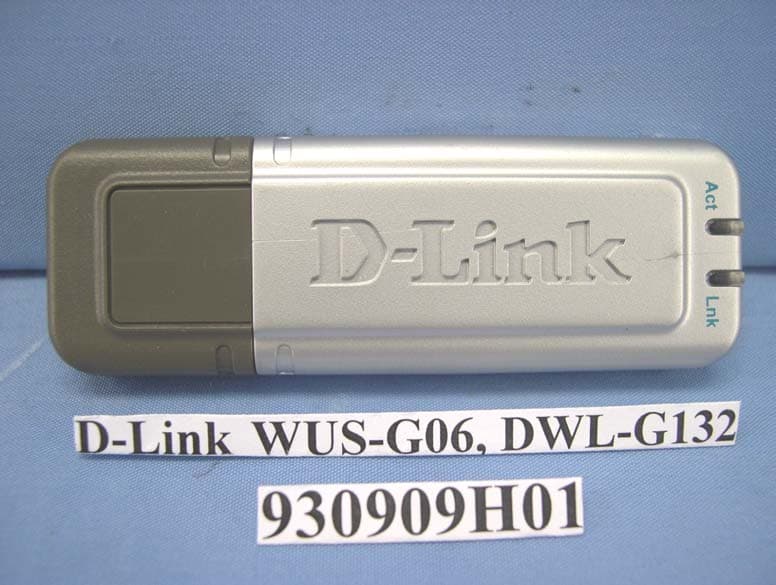

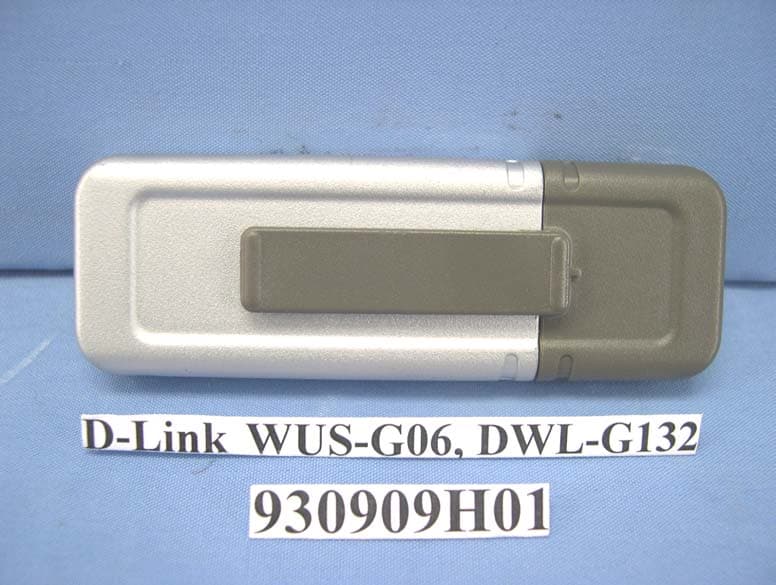

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: IEEE 802.11g Wireless LAN USB Adapter MODEL NO.: WUS-G06, DWL-G132 TRADE NAME: D-Link IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: FD930909H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION D-Link Systems, Inc. (COMPANY NAME) 53 Discovery Drive, Irvine CA 92618 U.S.A (COMPANY ADDRESS) TEL 949-708-0805 FAX 949-272-4629 Kenny Huang, Director of Product Management (NAME) (TITLE) (SIGNATURE) (DATE)

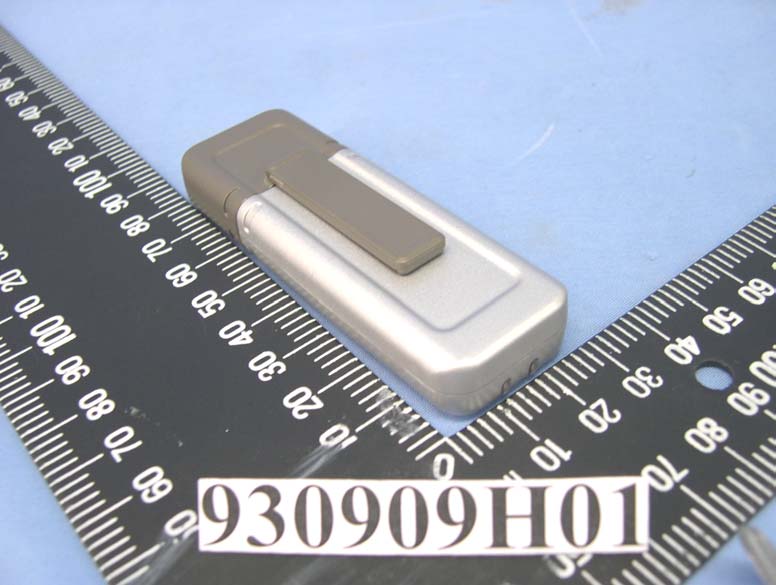

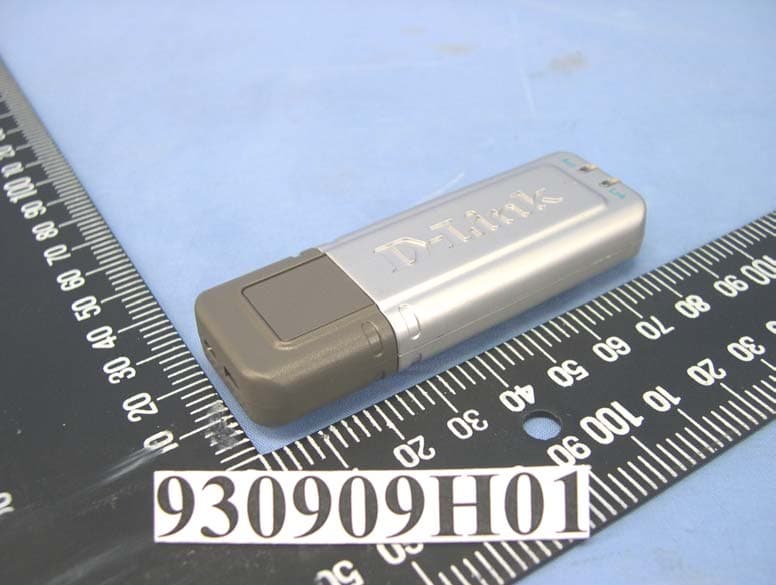

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with USB Cable Page 2 Page 3 EUT without USB Cable Page 4

Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: KA2DWLG132A1 Report No. 930909H01 Operational Description This device is an IEEE 802.11g Wireless LAN USB Adapter, the maximum data rate could be up to 54Mbps (108Mbps for Turbo mode, channel 6) which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE 802.11g Wireless LAN USB Adapter) is powered from host equipment. The antenna used in this product is chip antenna without connector . The other instruction, please have a look at the users manual.

FCC ID: KA2DWLG132A1 Report No.: SA930909H011Issued: Oct. 04, 2004 SAR TEST REPORT REPORT NO.: SA930909H01 MODEL NO.: WUS-G06, DWL-G132 RECEIVED: Sep. 09, 2004 TESTED: Oct. 01, 2004 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: KA2DWLG132A1 Report No.: SA930909H012Issued: Oct. 04, 2004 Table of Contents 1.CERTIFICATION...........................................................................................................3 2.GENERAL INFORMATION...........................................................................................3 2.1GENERAL DESCRIPTION OF EUT.............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM....................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...................................13 4.DESCRIPTION OF SUPPORT UNITS.......................................................................14 5.TEST RESULTS..........................................................................................................15 5.1TEST PROCEDURES................................................................................................15 5.2MEASURED SAR RESULT........................................................................................16 5.3SAR LIMITS.................................................................................................................18 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.......................................................18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.........................................................20 6.SYSTEM VALIDATION................................................................................................21 6.1TEST EQUIPMENT.....................................................................................................21 6.2TEST PROCEDURE...................................................................................................21 6.3VALIDATION RESULT................................................................................................23 6.4SYSTEM VALIDATION UNCERTAINTIES.................................................................24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................25 7.1PROBE CALIBRATION UNCERTAINTY....................................................................25 7.2ISOTROPY UNCERTAINTY.......................................................................................25 7.3BOUNDARY EFFECT UNCERTAINTY......................................................................26 7.4PROBE LINEARITY UNCERTAINTY..........................................................................26 7.5READOUT ELECTRONICS UNCERTAINTY.............................................................26 7.6RESPONSE TIME UNCERTAINTY............................................................................27 7.7INTEGRATION TIME UNCERTAINTY........................................................................28 7.8PROBE POSITIONER MECHANICAL TOLERANCE................................................28 7.9PROBE POSITIONING...............................................................................................29 7.10PHANTOM UNCERTAINTY........................................................................................29 7.11DASY4 UNCERTAINTY BUDGET..............................................................................30 8.INFORMATION ON THE TESTING LABORATORIES...............................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: KA2DWLG132A1 Report No.: SA930909H013Issued: Oct. 04, 2004 1. CERTIFICATION PRODUCT : IEEE 802.11g Wireless LAN USB Adapter MODEL NO. : WUS-G06, DWL-G132 BRAND NAME : D-Link APPLICANT : D-LINK Corporation TESTED : Oct. 01, 2004 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment (Model: DWL-G132) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Oct. 04, 2004 ( Windy Chou ) TECHNICAL ACCEPTANCE:, DATE:Oct. 04, 2004 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Oct. 04, 2004 ( Cody Chang, Deputy Manager ) FCC ID: KA2DWLG132A1 Report No.: SA930909H014Issued: Oct. 04, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT IEEE 802.11g Wireless LAN USB Adapter MODEL NO. WUS-G06, DWL-G132 POWER SUPPLY 5.0 Vdc from host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE …

Text truncated - open the document above for the full version.

D3: DAE D4: 2450MHz SYSTEM VALIDATION DIPOLE

11:54:39 Test Laboratory: Advance Data Technology System Validation Check-MSL 2450MHz DUT: Dipole 2450 MHz ; Type: D2450V2 ; Test Channel Frequency: 2450 MHz Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450;Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm (The feetpoint of the dipole to the Phantom)Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.23, 4.23, 4.23) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2004/8/17 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 d=10mm, Pin=250mW/Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.1 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 27.4 W/kg SAR(1 g) = 12 mW/g; SAR(10 g) = 5.44 mW/g Maximum value of SAR (measured) = 13.6 mW/g

FCC ID: KA2DWLG132A1 Report No.: RF930909H01 1 Issued: Oct. 04, 2004 FCC TEST REPORT REPORT NO.: RF930909H01 MODEL NO.: WUS-G06, DWL-G132 RECEIVED: Sep. 09, 2004 TESTED: Sep. 21 to 22, 2004 APPLICANT: D-LINK CORPORATION ADDRESS: No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: KA2DWLG132A1 Report No.: RF930909H01 2 Issued: Oct. 04, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 9 3.5 CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4 TEST TYPES AND RESULTS......................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................11 4.1.2 TEST INSTRUMENTS .................................................................................11 4.1.3 TEST PROCEDURES................................................................................. 12 4.1.4 TEST SETUP .............................................................................................. 12 4.1.5 EUT OPERATING CONDITIONS................................................................ 13 4.1.6 TEST RESULTS.......................................................................................... 14 4.2 Radiated Emission Measurement ............................................................... 16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 16 4.2.2 TEST INSTRUMENTS ................................................................................ 17 4.2.3 TEST PROCEDURES................................................................................. 18 4.2.4 TEST SETUP .............................................................................................. 19 4.2.5 EUT OPERATING CONDITIONS................................................................ 19 4.2.6 TEST RESULTS.......................................................................................... 20 4.2.7 TEST RESULTS –DSSS ............................................................................. 22 4.2.8 TEST RESULTS -OFDM ............................................................................. 25 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 29 4.3.2 TEST INSTRUMENTS ................................................................................ 29 4.3.3 TEST PROCEDURE ................................................................................... 30 4.3.4 TEST SETUP .............................................................................................. 30 4.3.5 EUT OPERATING CONDITIONS................................................................ 30 4.3.6 TEST RESULTS-DSSS ............................................................................... 31 4.3.7 TEST RESULTS-OFDM .............................................................................. 35 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 40 FCC ID: KA2DWLG132A1 Report No.: RF930909H01 3 Issued: Oct. 04, 2004 4.4.2 TEST INSTRUMENTS ................................................................................ 40 4.4.3 TEST PROCEDURES................................................................................. 41 4.4.4 TEST SETUP .............................................................................................. 41 4.4.5 EUT OPERATING CONDITIONS................................................................ 41 4.4.6 TEST RESULTS- DSSS .............................................................................. 42 4.4.7 TEST RESULTS- OFDM ............................................................................. 43 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 44 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 44 4.5.2 TEST INSTRUMENTS ................................................................................ 44 4.5.3 TEST PROCEDURE ................................................................................... 45 4.5.4 TEST SETUP .............................................................................................. 45 4.5.5 EUT OPERATING CONDITIONS................................................................ 45 4.5.6 TEST RESULTS-DSSS ............................................................................... 46 4.5.7 TEST RESULTS-OFDM ....................................................................…

Text truncated - open the document above for the full version.

Report No. 930909H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930909H01 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930909H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930909H01 4 Ch1 Report No. 930909H01 5 Ch11 Report No. 930909H01 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930909H01 7 Ch1 Report No. 930909H01 8 Ch11
