KA2DWLG132B1AirPlus Xtreme G DWL-G132 Wireless USB Adapter

Manual Building Networks for People 802.11g (2.4GHz) Wireless G USB 2.0 Adapter DWL-G132 D-Link AirPlus XTREME G TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features and Benefits........................................................................... 6 Wireless Basics.................................................................................... 7 Installation Considerations.................................................................... 7 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 26 Troubleshooting................................................................................... 39 Technical Specifications...................................................................... 42 Contacting Technical Support.............................................................. 44 Warranty and Registration................................................................... 45 3 D-Link AirPlus Xtreme G TM DWL-G132 2.4 GHz Wireless G USB 2.0 Adapter At least 64MB of memory and a 500MHz processor Properly installed and working USB Controller Windows XP/2000
A computer or laptop with an available USB 2.0 port


Manual on CD-ROM Quick Installation Guide Cradle Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:



4 Introduction The D-Link AirPlus Xtreme G DWL-G132 Wireless G USB Adapter is an 802.11b/802.11g high-performance,convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With a maximum wireless signal rate of up to 54Mbps (108Mbps* in Turbo mode) you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The DWL-G132 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The DWL-G132 connects to any available USB port on a laptop or desktop Windows -based computer and also includes a USB cradle. With the optional USB cradle, the DWL-G132 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Microsoft Windows XP and Windows 2000 operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the DWL-G132 automatically connects to other D-Link AirPlus Xtreme G TM wireless products as soon as it’s active. TM *Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and evironmental factors lower actual data throughput rate. The DWL-G132 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 5 For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G132, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the DWL-G132 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G132, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. Introduction (continued) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. 6 Features and Benefits ** 3 Environmental factors may adversely affect range. User-friendly configuration and diagnostic utilities. Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode. Connects at up to 328 feet indoors 3 .


1 year warranty.
2 Using a USB 1.1 port will adversely affect throughput. 1 Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Compact size for placement anywhere.
Convenience of Plug & Play installation.
Fully 802.11b/802.11g compatible.
Powered by the USB port; no external power source is required.
USB 2.0 standard 2 .
Better Security with 802.1x and WPA - In addition to 64-,128-bit WEP encryption, you can also securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data an…

Text truncated - open the document above for the full version.

29 Please follow all the instructions in this window: Networking Basics (continued) Click Next. In the following window, select the best description of your computer. If your computer connects to the Internet through a router, select the second option as shown. Click Next. 30 Enter a Computer description and a Computer name (optional.) Networking Basics (continued) Click Next. Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next. 31 Please wait while the Network Setup Wizard applies the changes. Networking Basics (continued) When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes. 32 In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A. Networking Basics (continued) 33 Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next. Networking Basics (continued) 34 Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new wireless network will be ready to use. Networking Basics (continued) 35
Click Start (in the lower left corner of the screen). Right-click on My Computer. Select Properties.




Select the Computer Name Tab in the System Properties window. You may enter a Computer Description if you wish; this field is optional. To rename the computer and join a domain, click Change. Networking Basics (continued) Naming Your Computer To name your computer in Windows XP, please follow these directions: 36
In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK.


Checking the IP Address in Windows XP All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the following: Right-click on the Local Area Connection icon in the task bar. Click on Status.

Networking Basics (continued) Naming Your Computer 37 This window will appear. Click the Support tab. Click Close.

Assigning a Static IP Address in Windows XP/2000 Note: Many broadband routers will automatically assign IP addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions:

Go to Start. Click on Control Panel. Networking Basics (continued) Checking the IP Address in Windows XP 38
Double-click on Network Connections.

Click on Properties. Right-click on Local Area Connections. Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 39 Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP address of the Default Gateway.)
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Click OK. Click on Internet Protocol (TCP/IP). Click Properties.


Networking Basics (continued) Assigning a Static IP Address in Windows XP/2000 40 Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wire- less router or access point, as shown. Networking Basics (continued) 41 1. How do I check to see that the drivers for the DWL-G132 are installed properly? Click Device Manager.
Select the Hardware Tab.
Troubleshooting Go to Start > My Computer > Properties.
This chapter provides solutions to problems that can occur during the installation and operation of the DWL-G132. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have another operating system, these solutions will still apply although the appearance on your computer screen may differ.) 42 Troubleshooting (continued)




Double-click on Network Adapters. Right-click on D-Link AirPlus G DWL-G132 Wireless USB Adapter. Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK. D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter 43 Troubleshooting (continued) 2. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Bas…

Text truncated - open the document above for the full version.

TCB Review Questions for (D-Link Wireless USB Adapter, KA2DWLG132B1) -EMC- Question #1 : P49 of users manual FCC Radiation Exposure Statement: T his equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying R F exposure compliance. My concern is “there has no specific operation instructions inside the manual” a typical proper wording will look like this: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for typical lap held operations with the device contacted directly to the human body to the back side of the Tablet PC. To maintain compliance with FCC RF exposure compliance requirements avoid direct contact to the transmitting antenna during transmitting. Question #2 : P6 of test report stats: NOTE: 1. This is a supplementary report of RF931027L05, the difference is changing the brand name, Model name, Product name, Applicant and adding Cradle. Please confirm if this is a change ID application or it is intended as an original device? If this is an original device then please delete the above mentioned sentence. -SAR- Question #3: P16 and 17. Power drift calculation is not correct and please explain why power after test is higher than power before test (Battery been charged during test?) Question #4 : P16 & 17 of SAR test report, SAR test summary table is not matching the test data show on the test plots (refer to P39 to 52). Please make necessary correction. Question #5: P33 to 37 The EUT photos shown on the SAR report is different from EUT photos shown in the External photos file. Please clarify and make necessary change. Question #6: P39 to 52 indicated test was conducted on “Date/Time: 10/29/04” but liquid was measured on 2004/11/01 (see P20). This violates the FCC supplement C measurement guideline. Supplement C require that the liquid been measured on the same as test performed. Please check and make new test if require. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards Steve Cheng / Technical Reviewer [email protected]

1/10/2005 Dear Steve The detail as below: Question #1........We added the FCC Radiation Exposure Statement on page 49 of user's manual. Question #2........This project is a new application with similar product in other application (only housing is different). -SAR- Question #3 & #4 & #5.... The SAR test report revised ok (Wrong report submitted). Please check. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號

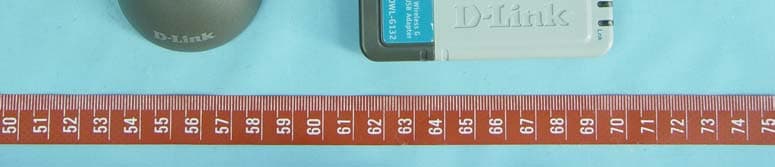

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location

Model No: DWL-G132 FCC ID: KA2DWLG132B1 H/W Ver: B1 Made in China SN: PN: MAC:

Page 3 Page 4 Page 5

FCC ID: KA2DWLG132B1 Report No.: RF 931027L05A Technical Description This device is a D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique for turbo mode will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: KA2DWLG132B1 Report No.: SA931027L05A1Issued: Nov. 03, 2004 SAR TEST REPORT REPORT NO.: SA931027L05A MODEL NO.: DWL-G132 RECEIVED: Oct. 27, 2004 TESTED: Nov. 01, 2004 APPLICANT : D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road, Science Based Industrial Park, Hsin-Chu,Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 32 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DWLG132B1 Report No.: SA931027L05A2Issued: Nov. 03, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.2 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.3 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................14 5.TEST RESULTS ........................................................................................................15 5.1 TEST PROCEDURES ...............................................................................................15 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................20 6.SYSTEM VALIDATION ..............................................................................................21 6.1 TEST EQUIPMENT ...................................................................................................21 6.2 TEST PROCEDURE .................................................................................................21 6.3 VALIDATION RESULT...............................................................................................24 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................25 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................26 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................26 7.2 ISOTROPY UNCERTAINTY......................................................................................26 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................27 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................27 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................27 7.6 RESPONSE TIME UNCERTAINTY...........................................................................28 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................29 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................29 7.9 PROBE POSITIONING .............................................................................................30 7.10 PHANTOM UNCERTAINTY ......................................................................................30 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................31 8.INFORMATION ON THE TESTING LABORATORIES ..............................................32 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: KA2DWLG132B1 Report No.: SA931027L05A3Issued: Nov. 03, 2004 1. CERTIFICATION PRODUCT : D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter MODEL NO. : DWL-G132 BRAND NAME : D-Link APPLICANT : D-Link Corporation TESTED : Nov. 01, 2004 TEST SAMPLE : Engineering Sample STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Nov. 03, 2004 Rennie Wang TECHNICAL ACCEPTANCE:, DATE:Nov. 03, 2004 Responsible for RF Ansen Lei APPROVED BY:, DATE:Nov. 03, 2004 Cody Chang Deputy Manager FCC ID: KA2DWLG132B1 Report No.: SA931027L05A4Issued: Nov. 03, 2004 2. GENERAL INFORMATION PRODUCT D-Link AirPlus Xtreme G DWL-G132 Wireless USB Adapter MODEL NO. DWL-G132 POWER SUPPLY 5.0Vdc from host equipment MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps (Turbo mode: up to 108Mbps *see Note 2) FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTP…

Text truncated - open the document above for the full version.

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE

D4: 2450MHz SYSTEM VALIDATION DIPOLE

FCC ID: KA2DWLG132B1 Report No.: RF931027L05A1Report Format Version 2.0.1 Reference No.: 931027L14 FCC TEST REPORT REPORT NO.: RF931027L05A MODEL NO.: DWL-G132 RECEIVED: Oct. 15, 2004 TESTED: Oct. 15, 2004 ~ Jan. 06, 2005 ISSUED: Jan. 06, 2005 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road, Science Based Industrial Park, Hsin-Chu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2DWLG132B1 Report No.: RF931027L05A2Report Format Version 2.0.1 Reference No.: 931027L14 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................7 3.4DESCRIPTION OF SUPPORT UNITS .........................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST..........................................................8 4TEST TYPES AND RESULTS ......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ...............................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.2 TEST INSTRUMENTS..................................................................................................9 4.1.3 TEST PROCEDURES ................................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................10 4.1.5 TEST SETUP ............................................................................................................. 11 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 11 4.1.7 TEST RESULTS .........................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ..................................................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................24 4.2.2 TEST INSTRUMENTS................................................................................................25 4.2.3 TEST PROCEDURES ................................................................................................26 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................26 4.2.5 TEST SETUP .............................................................................................................27 4.2.6 EUT OPERATING CONDITIONS ...............................................................................27 4.2.7 TEST RESULTS .........................................................................................................28 4.2.8 TEST RESULTS (A) ...................................................................................................32 4.2.9 TEST RESULTS (B) ...................................................................................................35 4.36dB BANDWIDTH MEASUREMENT .........................................................................39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................39 4.3.2 TEST INSTRUMENTS................................................................................................39 4.3.3 TEST PROCEDURE...................................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.3.5 TEST SETUP .............................................................................................................40 4.3.6 EUT OPERATING CONDITIONS ...............................................................................40 4.3.7 TEST RESULTS (A) ...................................................................................................41 4.3.8 TEST RESULTS (B) ...................................................................................................44 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................49 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................49 4.4.2 TEST INSTRUMENTS................................................................................................49 4.4.3 TEST PROCEDURES ................................................................................................50 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................50 4.4.5 TEST SETUP .............................................................................................................50 FCC ID: KA2DWLG132B1 Report No.: RF931027L05A3Repo…

Text truncated - open the document above for the full version.

FCC ID: KA2DWLG132B1 Report No.: RF931027L05A76Report Format Version 2.0.1 Reference No.: 931027L14 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode 1 FCC ID: KA2DWLG132B1 Report No.: RF931027L05A77Report Format Version 2.0.1 Reference No.: 931027L14 Test Mode 2 FCC ID: KA2DWLG132B1 Report No.: RF931027L05A78Report Format Version 2.0.1 Reference No.: 931027L14 RADIATED EMISSION TEST Test Mode 1 FCC ID: KA2DWLG132B1 Report No.: RF931027L05A79Report Format Version 2.0.1 Reference No.: 931027L14 Test Mode 2
