KA2DWLG510A1802.11g Wireless PCI Adapter

Manual 802.11g (2.4GHz) DWL-G510 D-Link AirPlus G TM Wireless PCI Adapter Building Networks for People 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics.................................................................................... 5 Installation Considerations.................................................................... 7 Getting Started ...................................................................................... 8 Using the Configuration Utility.............................................................. 11 Networking Basics.............................................................................. 18 Troubleshooting................................................................................... 31 Technical Specifications...................................................................... 36 Contacting Technical Support.............................................................. 38 Warranty and Registration................................................................... 39 3 Contents of Package: D-Link AirPlus G DWL-G510 802.11g (2.4GHz) Wireless PCI Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements for Configuration:


An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-Peer networking mode.)
At least 32 MB of memory and a 300 MHz processor
A desktop computer with an available 32-bit PCI slot
TM Windows XP/2000/Me/98SE
4 Features Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWL-G510 can connect with existing 802.11b- or 802.11g- compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks.
Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWL-G510 in your desktop PC, you will have the flexibility of wireless networking speeds that save you time and money.


User-friendly configuration and diagnostic utilities. Introduction The D-Link AirPlus G DWL-G510 Wireless PCI Adapter is an 802.11b/802.11g (2.4GHz) wireless adapter that supports high-speed wireless networking. Unlike most network cards, the DWL-G510 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus G products. The 802.11g standard is backwards compatible with 802.11b products. 32-bit PCI Performance/Plug & Play Connectivity - The DWL-G510 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs, and when used with other D-Link Air Plus G products will automatically connect to the network out of the box. TM TM TM LED LED stands for Light-Emitting Diode. The DWL-G510 has one LED: A steady light indicates a connection to an access point. A blinking light indicates activity on the network. Link 5 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial to many users. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or office. Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network devices. Scalability - WLANs can be configured in a variety of ways to meet the needs of specific applications and installations. Configurations are easily changed and range from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed. 6 D-Link AirPlus TM G DI-624 Wireless Router Wireless Basics (continued) Standards-Based Technology The DWL-G510 Wireless PCI Adapter utilizes the 802.11b and the 802.11g standards. The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the data rate up to 54 Mbps within the 2.4GHz band, utilizing OFDM technology. This means that in most environments, within the specified range of this device, you will be able to transfe…

Text truncated - open the document above for the full version.

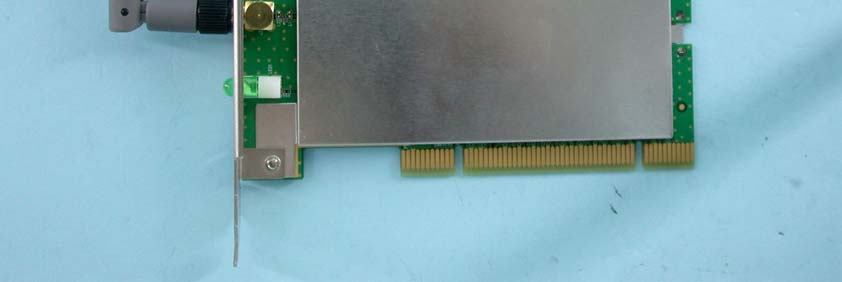

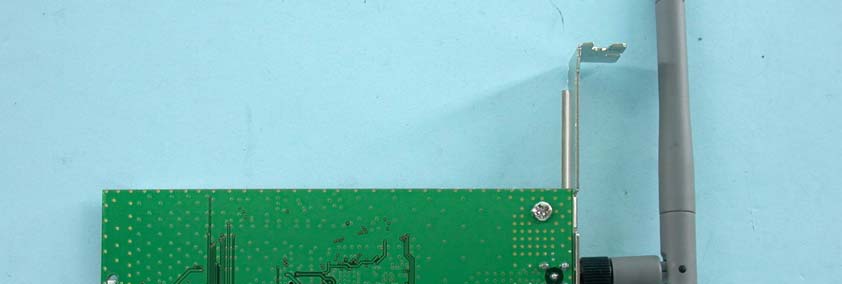

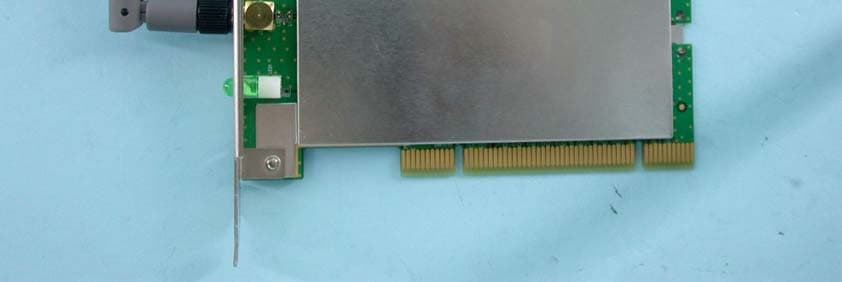

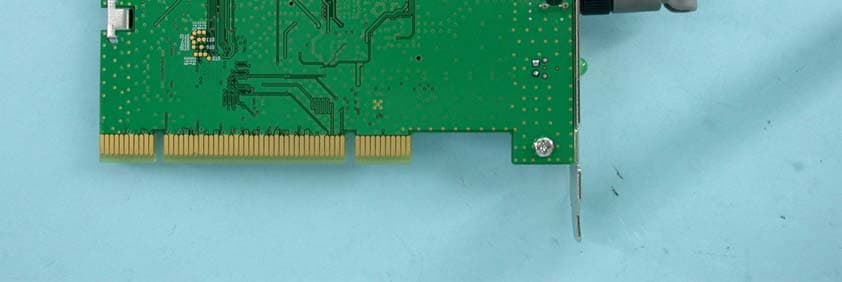

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 1 Label Location

MADE IN TAIWAN FCC ID:KA2DWLG510A1

Page 2 Page 3 Page 4 Page 5

FCC ID: KA2DWLG510A1 ADT No. 921231R01 Operational Description This device is a 802.11g Wireless PCI Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reverse SMA connector. The other instruction, please have a look at the users manual.

FCC ID: KA2DWLG510A1 Report No.: RF921231R01 1 RF EXPOSURE REPORT REPORT NO.: RF921231R01 MODEL NO.: DWL-G510 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: KA2DWLG510A1 Report No.: RF921231R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: KA2DWLG510A1 Report No.: RF921231R01 3 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 2.5cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: KA2DWLG510A1 Report No.: RF921231R01 4 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0101.0 6243733.1130.0101.0 11246234.6740.0111.0 For 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0101.0 6243739.8110.0131.0 11246233.1130.0101.0

FCC ID: KA2DWLG510A1 Report No.: RF921231R011Issued: January 15, 2004 FCC TEST REPORT REPORT NO.: RF921231R01 MODEL NO.: DWL-G510 RECEIVED: December 31, 2003 TESTED: January 10 ~ January 14, 2004 APPLICANT: D-Link Corporation ADDRESS: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: KA2DWLG510A1 Report No.: RF921231R012Issued: January 15, 2004 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................ 9 4TEST TYPES AND RESULTS.................................................................. 10 4.1CONDUCTED EMISSION MEASUREMENT ........................................... 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................... 10 4.1.2TEST INSTRUMENTS ............................................................................. 10 4.1.3TEST PROCEDURES.............................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD .................................................... 11 4.1.5TEST SETUP ........................................................................................... 12 4.1.6EUT OPERATING CONDITIONS............................................................. 12 4.1.7TEST RESULTS....................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................ 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 19 4.2.2TEST INSTRUMENTS ............................................................................. 20 4.2.3TEST PROCEDURES.............................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD .................................................... 21 4.2.5TEST SETUP ........................................................................................... 22 4.2.6EUT OPERATING CONDITIONS............................................................. 22 4.2.7TEST RESULTS....................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 37 4.3.2TEST INSTRUMENTS ............................................................................. 37 4.3.3TEST PROCEDURE ................................................................................ 38 4.3.4DEVIATION FROM TEST STANDARD .................................................... 38 4.3.5TEST SETUP ........................................................................................... 38 FCC ID: KA2DWLG510A1 Report No.: RF921231R013Issued: January 15, 2004 4.3.6EUT OPERATING CONDITIONS............................................................. 38 4.3.7TEST RESULTS....................................................................................... 39 4.4MAXIMUM PEAK OUTPUT POWER ....................................................... 47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 47 4.4.2TEST INSTRUMENTS ............................................................................. 47 4.4.3TEST PROCEDURES.............................................................................. 48 4.4.4DEVIATION FROM TEST STANDARD .................................................... 48 4.4.5TEST SETUP ........................................................................................... 48 4.4.6EUT OPERATING CONDITIONS............................................................. 48 4.4.7TEST RESULTS....................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT................................... 51 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 51 4.5.2TEST INSTRUMENTS ............................................................................. 51 4.5.3TEST PROCEDURE ................................................................................ 52 4.5.4DEVIATION FROM TEST STANDARD.................................................... 52 4.5.5TEST SETUP ........................................................................................... 52 4.5.6EUT OPERATING CONDITIONS............................................................. 52 4.5.7TEST RESULTS....................................................................................... 53 4.6BAND EDGES MEASUREMENT ............................................................. 61 4.6.1LIMITS OF BAND EDGES MEASUREMENT.......................................... 61 4.6.2TEST INSTRUMENTS ............................................................................. 61 4.6.3TEST PROCEDURE ................................................................................ 61 4.…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST
