KA2DWLG520A42.4GHz Wireless PCI Card

1 D-Link AirPlus Xtreme G Manual Building Networks for People DWL-G520 TM 802.11g Wireless PCI Adapter 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics.................................................................................... 6 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 23 Troubleshooting................................................................................... 36 Technical Specifications...................................................................... 41 Contacting Technical Support.............................................................. 43 Warranty and Registration................................................................... 44 3 Contents of Package: D-Link AirPlus Xtreme G DWL-G520 802.11g Wireless PCI Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller.


TM System Requirements for Configuration: An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-Peer networking mode.)
At least 32 MB of memory and a 300 MHz processor
Windows XP/2000/Me/98SE
A desktop computer with an available 32-bit PCI slot
4 The D-Link AirPlus Xtreme G DWL-G520 Wireless PCI Adapter is an 802.11b/802.11g high-performance, wireless adapter that supports high-speed wireless networking. Unlike most network cards, the DWL-G520 provides data transfers at up to 54 Mbps (up to 108Mbps in Super G mode) when used with other D-Link AirPlus Xtreme G products. The 802.11g standard is backwards compatible with 802.11b devices. TM Introduction The DWL-G520 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G520, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre- Shared Key mode of WPA, the DWL-G520 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G520, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. *Not all servers can provide Authentication TM 5 32-bit PCI Performance -The DWL-G520 is a powerful 32-bit PCI Adapter that in- stalls quickly and easily into desktop PCs, and when used with other D-Link Air Plus Xtreme G products will automatically connect to the network out of the box. Features LED LED stands for Light-Emitting Diode. The DWL-G520 has one LED: TM A steady light indicates a connection to an access point. A blinking light indicates activity on the network. Link Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWL-G520 can connect with existing 802.11b- or 802.11g- compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks.

Better Security with 802.1x and WPA -With the DWL-G520 in your desktop PC you can securely connect to a wireless network using 802.1x for wireless authentica- tion, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available.


User-friendly configuration and diagnostic utilities. Faster Wireless Networking with Super G - Speeds up to 15 times faster (up to 108Mbps) with Super G mode. With the DWL-G520 in your PC, you will have the flexibility of wireless networking speeds that save you time and money. 6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize W…

Text truncated - open the document above for the full version.

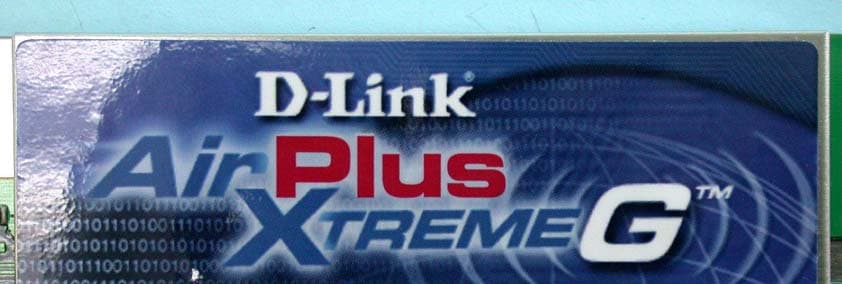

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

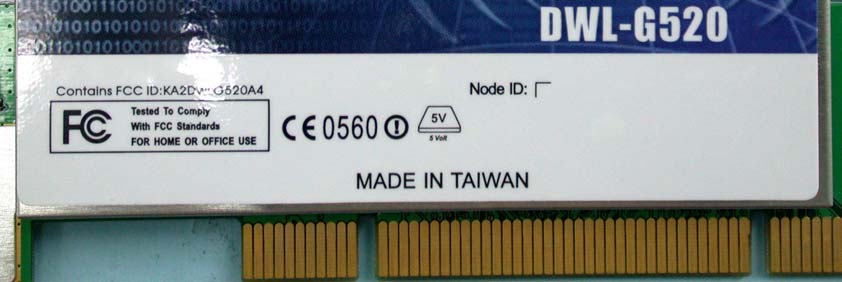

Page 1 Label Location

Page 4 Page 5 Page 6

FCC ID: KA2DWLG520A4 Report No.921204R02A Operational Description This device is a 2.4GHz Wireless PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique (turbo mode:108Mbps) will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna is Dipole antenna with Reversed SMA connector. The other instruction, please have a look at the user’s manual.

FCC ID: KA2DWLG520A4 Report No: 921204R02 1 RF EXPOSURE REPORT REPORT NO.: RF921204R02A MODEL NO.: DWL-G520 (for other models please refer to FCC test report) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Global Sun Technology, Inc. ADDRESS: No.13, Tung Yuan Rd., Jung Li Industrial Park, Jung Li City, Taoyuan Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: KA2DWLG520A4 Report No: 921204R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DWLG520A4 Report No: 921204R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DWLG520A4 Report No: 921204R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.800.0251.0 6243777.980.0251.0 11246277.630.0241.0 For 802.11g (Normal mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.680.0201.0 6243764.570.0201.0 11246264.570.0201.0 For 802.11g (Turbo mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243768.230.0221.0

FCC ID: KA2DWLG520A4 Report No.: RF921204R02A1Issued: December 25, 2003 Reference No.: RF921204R02 FCC TEST REPORT REPORT NO.: RF921204R02A MODEL NO.: DWL-G520 RECEIVED: NA TESTED: Nov. 27 ~ Dec. 9, 2003 APPLICANT:D-Link Corporation ADDRESS:No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A2Issued: December 25, 2003 Reference No.: RF921204R02 Table of Contents 1CERTIFICATION......................................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................................5 3GENERAL INFORMATION......................................................................................................6 3.1GENERAL DESCRIPTION OF EUT........................................................................................6 3.2DESCRIPTION OF TEST MODES..........................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................................7 3.4DESCRIPTION OF SUPPORT UNITS....................................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST.....................................................................9 4TEST TYPES AND RESULTS...............................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT........................................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.2TEST INSTRUMENTS...........................................................................................................10 4.1.3TEST PROCEDURES...........................................................................................................11 4.1.4DEVIATION FROM TEST STANDARD.................................................................................11 4.1.5TEST SETUP.........................................................................................................................12 4.1.6EUT OPERATING CONDITIONS..........................................................................................12 4.1.7TEST RESULTS....................................................................................................................13 4.2RADIATED EMISSION MEASUREMENT.............................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..........................................................19 4.2.2TEST INSTRUMENTS...........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD.................................................................................21 4.2.5TEST SETUP.........................................................................................................................22 4.2.6EUT OPERATING CONDITIONS..........................................................................................22 4.2.7TEST RESULTS....................................................................................................................23 4.2.8TEST RESULTS (A)...............................................................................................................25 4.2.9TEST RESULTS (B)...............................................................................................................28 4.36dB BANDWIDTH MEASUREMENT....................................................................................32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................................32 4.3.2TEST INSTRUMENTS...........................................................................................................32 4.3.3TEST PROCEDURE..............................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD.................................................................................33 4.3.5TEST SETUP.........................................................................................................................33 4.3.6EUT OPERATING CONDITIONS..........................................................................................33 4.3.7TEST RESULTS (A)...............................................................................................................34 4.3.8TEST RESULTS (B)...............................................................................................................38 4.4MAXIMUM PEAK OUTPUT POWER....................................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................44 4.4.2TEST INSTRUMENTS...........................................................................................................44 4.4.3TEST PROCEDURES...........................................................................................................45 4.4.4DEVIATION FROM TEST STANDARD.................................................................................45 4.4.5TEST…

Text truncated - open the document above for the full version.

FCC ID: KA2DWLG520A4 Report No.: RF921204R02A37Issued: December 25, 2003 Reference No.: RF921204R02 CH11 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A38Issued: December 25, 2003 Reference No.: RF921204R02 4.3.8 TEST RESULTS (B) Normal mode: EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.360.5PASS 6243716.360.5PASS 11246216.440.5PASS FCC ID: KA2DWLG520A4 Report No.: RF921204R02A39Issued: December 25, 2003 Reference No.: RF921204R02 CH1 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A40Issued: December 25, 2003 Reference No.: RF921204R02 CH6 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A41Issued: December 25, 2003 Reference No.: RF921204R02 CH11 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A42Issued: December 25, 2003 Reference No.: RF921204R02 Turbo mode: EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 6243732.480.5PASS FCC ID: KA2DWLG520A4 Report No.: RF921204R02A43Issued: December 25, 2003 Reference No.: RF921204R02 CH6 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A44Issued: December 25, 2003 Reference No.: RF921204R02 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 R&S SIGNAL GENERATORSMP04100011May 28, 2004 TEKTRONIX OSCILLOSCOPETDS 220B048470Mar. 05, 2004 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA.. FCC ID: KA2DWLG520A4 Report No.: RF921204R02A45Issued: December 25, 2003 Reference No.: RF921204R02 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR FCC ID: KA2DWLG520A4 Report No.: RF921204R02A46Issued: December 25, 2003 Reference No.: RF921204R02 4.4.7 TEST RESULTS (A) EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241219.0230PASS 6243718.9230PASS 11246218.9030PASS FCC ID: KA2DWLG520A4 Report No.: RF921204R02A47Issued: December 25, 2003 Reference No.: RF921204R02 4.4.8 TEST RESULTS (B) Normal Mode: EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241218.0430PASS 6243718.1030PASS 11246218.1030PASS Turbo Mode: EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 6243718.3430PASS FCC ID: KA2DWLG520A4 Report No.: RF921204R02A48Issued: December 25, 2003 Reference No.: RF921204R02 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. FCC ID: KA2DWLG520A4 Report No.: RF921204R02A49Issued: December 25, 2003 Reference No.: RF921204R02 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: KA2DWLG520A4 Report No.: RF921204R02A50Issued: December 25, 2003 Reference No.: RF921204R02 4.5.7 TEST RESULTS (A) EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 124120.498PASS 62437-1.358PASS 112462-1.298PASS FCC ID: KA2DWLG520A4 Report No.: RF921204R02A51Issued: December 25, 2003 Reference No.: RF921204R02 CH1 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A52Issued: December 25, 2003 Reference No.: RF921204R02 CH6 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A53Issued: December 25, 2003 Reference No.: RF921204R02 CH11 FCC ID: KA2DWLG520A4 Report No.: RF921204R02A54Issued: December 25, 2003 Reference No.: RF921204R02 4.5.8 TEST RESULTS (B) Normal mode: EUT 2.4GHz Wireless PCI Card MODEL DWL-G520 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg. C, 60%RH, 991 hPa TESTED BY: Martin Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 124120.328PASS 62437-0.048PASS 112462-3.048PASS …

Text truncated - open the document above for the full version.
