KA2DWLG520MA1108G MIMO Wireless Desktop Adapter

Manual DWL-G520M Building Networks for People Wireless Desktop Adapter D-Link 108G MIMO 2 DWL-G520M User’s Manual D-Link Systems, Inc. Table of Contents Table of Contents Table of Contents ...............................................................................................2 Package Contents ..............................................................................................3 Introduction .......................................................................................................4 Features and Benefits ......................................................................................... 5 Wireless Basics ..................................................................................................6 Installation Considerations .................................................................................8 Getting Started ...................................................................................................9 Using the Configuration Utility ......................................................................... 12 Networking Basics ...........................................................................................21 Troubleshooting ............................................................................................... 35 Technical Specifications ................................................................................... 38 Contacting Technical Support ........................................................................ 40 Warranty .......................................................................................................... 41 Registration .....................................................................................................45 3 DWL-G520M User’s Manual D-Link Systems, Inc.  At least 64MB of memory and a 500MHz processor  An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-Peer networking mode.) Package Contents Package Contents  D-Link DWL-G520M 108G MIMO Wireless Desktop Adapter  Manual on CD  Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. Minimum System Requirements  A desktop computer with an available 32-bit PCI slot  Windows XP/2000 4 DWL-G520M User’s Manual D-Link Systems, Inc. Connect to wireless networks at farther distances than before with D-Link AirPlus Xtreme G™ line of products infused with Double XR (2XR) Technology. By combining D-Link’s new 2XR technology with D-Link 108G technology, this new Wireless Desktop Adapter offers dramatic performance improvements over standard 802.11g. Based on the latest in Smart Antenna technology, 2XR technology provides the DWL-G520M Wireless 108G MIMO Desktop Adapter with the performance boost which delivers Xccelerated Rates at Xtended Range than standard 802.11g. When paired with D-Link’s 2XR-powered Wireless 108G MIMO Router for an end-to-end solution, reach up to 8x faster speeds at 8x farther coverage. Have more flexibility in the placement of your desktop and still maintain a strong wireless connection. Even if only your client adapter is 2XR-enabled, you can still experience the performance benefits of faster rates at father distances with virtually any standard 802.11g wireless router. In addition, the DWL-G520M remains backward compatible to 802.11b. As an end-to-end 2XR solution, or even as a single-ended solution, D-Link’s 2XR technology is capable of providing exceptional wireless performance while dramatically reducing the number of dead spots throughout your home or office. With an included configuration utility and the Installation Wizard, setup for your DWL-G520M is a straightforward process. The utility keeps track of your most frequently accessed networks and their specific settings, so joining networks is an automatic process. The DWL-G520M also supports the latest security features such as WPA-PSK making your adapter compatible with secure wireless networks. Introduction Introduction * Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate. 5 DWL-G520M User’s Manual D-Link Systems, Inc. Features and Benefits Features and Benefits Provides maximum wireless signal rate of up to 108Mbps*  Fully 802.11b/802.11g compatible.  Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode .  Better Security with WPA-PSK - In addition to 64 and 128-bit WEP encryption, you can also securely connect to a wireless network using WPA-PSK.   User-friendly configuration and diagnostic utilities.  Utilizes Smart Antenna technology. * Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate. 6 DWL-G520M User’s Manual D-Link Systems, Inc. Wireless Basics Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments,…

Text truncated - open the document above for the full version.

30 DWL-G520M User’s Manual D-Link Systems, Inc. Networking Basics Naming Your Computer Checking the IP Address in Windows XP In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK. All wireless adapter-equipped computers in your network must be in the same IP address range (see Getting Started in this manual for a definition of IP address range.) To check on the IP address of an adapter, please do the following: Right-click on the Local Area Connection icon in the task bar. Click on Status. 31 DWL-G520M User’s Manual D-Link Systems, Inc. Click the Support tab. Click Close. Assigning a Static IP Address in Windows XP/2000 Note: Many broadband routers will automatically assign IP addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable router you will not need to assign static IP addresses. If you are not using a DHCP capable router, or you need to assign a static IP address, please follow these instructions: Go to Start. Click on Control Panel . Checking the IP Address in Windows XP Networking Basics 32 DWL-G520M User’s Manual D-Link Systems, Inc. Networking Basics Double-click on Network Connections. Click on Properties . Right-click on Local Area Connections. Assigning a Static IP Address in Windows XP/2000 33 DWL-G520M User’s Manual D-Link Systems, Inc. Networking Basics Input your IP address and subnet mask. (The IP addresses on your network must be within the same range. For example, if one computer has an IP address of 192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the same for all the computers on the network.) Input your DNS server addresses. (Note: If you are entering a DNS server, you must enter the IP address of the Default Gateway.) The DNS server information will be supplied by your ISP (Internet Service Provider.) Click OK. Click on Internet Protocol (TCP/IP). Click Properties. Assigning a Static IP Address in Windows XP/2000 34 DWL-G520M User’s Manual D-Link Systems, Inc. Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point. A good wireless connection will show four replies from the wireless router or access point, as shown. 35 DWL-G520M User’s Manual D-Link Systems, Inc. 1. How do I check to see that the drivers for the DWL-G520M are installed properly? Click Device Manager. Select the Hardware Tab. Troubleshooting Go to Start > My Computer > Properties. This chapter provides solutions to problems that can occur during the installation and operation of the DWL-G520M. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have another operating system, these solutions will still apply although the appearance on your computer screen may differ.) 36 DWL-G520M User’s Manual D-Link Systems, Inc. Double-click on Network Adapters. Right-click on D-Link DWL-G520M 108G MIMO Wireless Desktop Adapter . Select Properties to check that the drivers are installed properly. Look under Device Status to check that the device is working properly. Click OK. Troubleshooting D-Link DWL-G520M 108G MIMO Wireless Desktop Adapter D-Link DWL-G520M 108G MIMO Wireless Desktop Adapter D-Link DWL-G520M 108G MIMO Wireless Desktop Adapterr 37 DWL-G520M User’s Manual D-Link Systems, Inc. Troubleshooting 2. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want. However, the positioning of the products within your environment will affect the wireless range. Please refer to Installation Considerations in the Wireless Basics section of this manual for further information about the most advantageous placement of your D-Link wireless products. 3. Why does my wireless connection keep dropping? 4. Why can’t I get a wireless connection? If you have enabled encryption on the DWL-G520M, you must also enable encryption on all wireless devices in the network in order to establish a wireless connection. If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade dramatically or drop altogether. Try changing the channel on your router, access point and wireless adapter to a different channel to avoid interference. Keep your product away (at least 3-6 feet) from electrical devices that generate RF noise, like microwaves, monitors, electric motors, etc. The encryption settings are: 64-,128- bit. Make sure that the encryption bit level is the same on the router and the DWL-G520M. Make sure that the SSID on the wireless router (if you have one in your network) and the DWL-G520M are exactly the same. If they are not, wireless connection will not be established. The default SSID is default. 38 DWL-G520M User’s Manual D-Link Systems, Inc. Standards Technical Speci Technical Speci Data Rates* C S MA/C A with AC K IE E E 802. 11g IE E E 802. 11b IE E E 802. 11 Temperature O pera ting: 0ºC to 55ºC (32ºF to 131ºF ) 95% ma ximum, non-condens ing Humidity Internal Antenna Type Divers ity 32-bit P C I Bus Type Security 64-, 128-bit WE P WPA-P S K 108, 54, 48, 36, 24, 18, 11, 9, 6 5. 5, 2, 1Mbps (with A utoma tic F a llba ck) Media Access Control Range * Indoors : U p to 328 feet (100 meters ) O utdoors : U p to 1, 312 feet (400 meters ) * Ma ximum wireles s s igna l ra te derived from IE E E S ta nda rd 802. 11g s peci. Actua l da ta throughput will va ry. N etwork conditions a nd environmenta l fa ctors, including volume of network tra f, building ma teria ls a nd cons truction, a nd network overhea d lower a ctua l da ta t…

Text truncated - open the document above for the full version.

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, June 06, 2005 4:02 AM To: steve.cheng Cc: [email protected] Subject: 回信: RE: RE: urgent project uploaded Dear Steve Please see our replay as below: -EMC- Question #1: Users manual p4 stated: Based on the latest in Smart Antenna technology, 2XR technology provides the DWL-G520M Wireless 108G MIMO Desktop Adapter with the performance boost which delivers Xccelerated Rates at Xtended Range than standard 802.11g. When paired with D-Link’s 2XR-powered Wireless 108G MIMO Router for an end-to-end solution, reach up to 8x faster speeds at 8x farther coverage. Test report p7 stated: 2. The EUT incorporates a basic beam forming capability. Physically, the card provides two complete transmit and receive chains. From above two descriptions it seems to suggest that this device has facilitated with both MIMO (Simultaneously Multiple Output/Input with different data in the output/In chain) and phased array technology. Please clarify if this is the case or MIMO means only phase array output with same data on all output chains? ANS: The product is a beam-forming phased array only and the product can not send different data out, through two chains, at same time. Question #2: Operational description has detail technical inside; however, confidentiality is not requested on this document. Please make sure that if this is intended or please revise confidentiality request to include this documents. ANS: Our client does not need to confidential the documents. Question #3: Test setup photo is too blurry and is not able to identify if EUT was properly mounted on the PC. Please re-take or add a close up photo to show how and where EUT was mounted. ANS: We will indicate the EUT's positon of the test setup photos. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號 "steve.cheng" <steve.cheng@nacs emc.com> 收 件人 [email protected] 2005/06/06 下午 副本抄 送 05:26 [email protected] 主旨 RE: RE: urgent project uploaded TCB Review Comments for (D link KA2DWLG520MA1, 940504L17) -EMC- Question #1: Users manual p4 stated: Based on the latest in Smart Antenna technology, 2XR technology provides the DWL-G520M Wireless 108G MIMO Desktop Adapter with the performance boost which delivers Xccelerated Rates at Xtended Range than standard 802.11g. When paired with D-Link’s 2XR-powered Wireless 108G MIMO Router for an end-to-end solution, reach up to 8x faster speeds at 8x farther coverage. Test report p7 stated: 2. The EUT incorporates a basic beam forming capability. Physically, the card provides two complete transmit and receive chains. From above two descriptions it seems to suggest that this device has facilitated with both MIMO (Simultaneously Multiple Output/Input with different data in the output/In chain) and phased array technology. Please clarify if this is the case or MIMO means only phase array output with same data on all output chains? Question #2: Operational description has detail technical inside; however, confidentiality is not requested on this document. Please make sure that if this is intended or please revise confidentiality request to include this documents. Question #3: Test setup photo is too blurry and is not able to identify if EUT was properly mounted on the PC. Please re-take or add a close up photo to show how and where EUT was mounted. Best regards, Steve Cheng North American EMC Certification Services Inc. 359 Hawkland Cir., NW. Calgary, Alberta Canada T3G 3R3 Tel: (403) 241-8826 Email: [email protected]

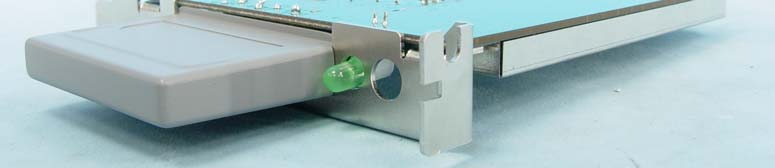

Page 1 CONSTRUCTION PHOTOS OF EUT M1 Page 2 M2 Page 3

FCC ID Label Location (FCC ID: KA2DWLG520MA1)

Page 4 M1 Page 5 Page 6 Page 7 Page 8 M2 Page 9 Page 10 Page 11

D-Link Corporation FCC ID KA2DWLG520MA1 Theory of Operations The D-Link Corporation KA2DWLG520MA1 card is based on the Atheros AR2112/AR5513 chipset, which implements IEEE 802.11b, and IEEE 802.11g WLAN solutions. This all-CMOS chipset consists of the following functionality blocks: • AR2112: Radio-on-a-Chip (RoC): An all-CMOS, single-chip radio transceiver that includes a power amplifier, and integrated dual-conversion filters to convert signals from 2.4GHz to the baseband range. The AR2112 offers fully integrated transmitter, receiver, and frequency synthesizer functions; eliminating the need for external voltage controlled oscillators (VCOs) and surface acoustic wave (SAW) filters. There are two AR2112 chips on each KA2DWLG520MA1 card. These chips are used in two separate radio transceivers, which have outputs that are combined in the far field using phased array antennas. Refer to Theory of Operations Addendum 1 and 2 for additional details on the phased array operation. • AR5513: An all-CMOS multi-protocol MAC/Baseband processor with interfaces for Flash, SDRAM, PCI, UART, GPIO’s, and LED control. KA2DI634MA1 Block Diagram The block diagram of the KA2DWLG520MA1 is shown in Figure 1-1. Figure 1-1 The KA2DWLG520MA1 has three major sections: the digital section, the analog/RF section, and the power supplies. • The digital section consists of the Atheros AR5513 chip, SDRAM, Flash, and PCI interface. • The analog/RF section consists of two identical transceivers, each of which includes an Atheros AR2112 chip, external power booster, filters, diplexers, power detectors, external LNA, diversity switch, and antennae. • The power supplies consist of two low dropout linear regulators. AR5513 The AR5513 is the source and destination of all signals on the KA2DWLG520MA1 card. It contains a MAC, 180MHz MIPS R4Kc processor, SDRAM controller and Flash memory interface, PCI interface, UART interface, DACs, ADCs, General Purpose Input/Outputs, LED control outputs, and baseband circuits for transmit beamforming and multiple receive chain combining. Additional information is available on the transmit beamforming function in separate document. Flash Memory The KA2DWLG520MA1 card is populated with a 16M-bit serial Flash device that requires a single 3.3Vdc supply. In addition to storing operating system and application code, the Flash also stores power-on configuration for the processor and the wireless radio. Because of this, an external EEPROM is not required. PCI Interface PCI interface of the AR5513 is PCI 2.3 compatible. Power Supplies The KA2DWLG520MA1 card uses three voltage supply rails. 1) 3.3Vdc is supplied directly from the host device. This voltage is used to power the digital circuits of the AR2112 and AR5513 chips and to power the RF front end circuits. 2) 2.5Vdc is derived from the 3.3Vdc supply through a low drop-out linear regulator. This voltage is used to power the core of the AR2112 chips. 3) 1.8Vdc is derived from the 3.3Vdc supply through a low drop-out linear regulator. This voltage is used to power the core of the AR5513 chip. 40MHz Crystal The 40MHz crystal provides the core clock for the AR2112’s and AR5513. This crystal is attached to both AR2112’s, which internally form the reference oscillators for their respective synthesizers. The buffered 40MHz output of one of the AR2112’s then drives the 40MHz clock input of the AR5513. The maximum frequency tolerance allowed by the IEEE 802.11b/g standard is +/-20ppm. RF Front-End Overview The front-end of the KA2DI634MA1 card employs two identical 2.4GHz transceivers. Each transceiver includes an Atheros AR2112 chip, integrated front-end module, external power amplifier, external LNA, and transmit band-pass filter. The front-end module includes a diversity switch, diplexer, transmit and receive filters, and power detector. Note that the front-end module is a 2.4GHz/5GHz device; however, in this product it will only be used for 2.4GHz operation. The Atheros AR2112 does not operate in the 5GHz frequency band. The following description applies to both 2.4GHz transceivers: Tracing the transmit path, the 2.4GHz transmit signal from the AR2112 is first filtered by an LTCC bandpass filter and then boosted with an output booster (OPB). The output of the OPB is directed to an integrated front-end module. This module filters the signal, detects the transmit power level for closed loop power control, and then directs the signal to one of two diversity antennas through a diversity switch. Tracing the receive path, the 2.4GHz signal is received at the selected antenna and directed by the front-end module’s diversity switch. The signal at the output of the switch is then filtered and directed to an external low noise amplifier, which amplifies the signal, before directing it to the AR2112 for additional amplification, filtering, and down-conversion to baseband. RF Front-End Detail AR2112 The AR2112 chip is an integrated CMOS radio transceiver that supports the IEEE 802.11b, and IEEE 802.11g standards. The AR2112 supports connection to an external output booster for high performance. The transceiver core, digital logic, and VCO are powered by 2.5V. The tolerances on the 2.5V supply need to be +/-5%. The I/Os are powered by 3.3V. Matching 2.4GHz Tx output from the AR2112 is matched to external components using lumped-element matching circuits. Since there are sufficient gains in the 2.4GHz Tx front-end, a balun is not needed and a single-ended output is used. The unused output is terminated. On the receive side, a similar single-ended matching configuration is used at the 2.4GHz inputs of the AR2112. 2.4 GHz Tx Band Pass Filter (BPF) The AR2112 2.4 GHz transmit output is directed to an LTCC band-pass filter. This filter is intended to reduce spurious emissions from the AR2112 before they reach the external 2.4 GHz output booster. 2.4 GHz Power Booster (OPB) The 2.4 GHz power booster is intended to provide a linear gain boost to the AR2112 transmitter …

Text truncated - open the document above for the full version.

FCC ID.: KA2DWLG520MA1 Report No: SA940504L17 1 RF EXPOSURE REPORT REPORT NO.: SA940504L17 MODEL NO.: DWL-G520M ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8,Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID.: KA2DWLG520MA1 Report No: SA940504L17 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID.: KA2DWLG520MA1 Report No: SA940504L17 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID.: KA2DWLG520MA1 Report No: SA940504L17 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (FOR SINGLE CHAIN (TX)) 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241257.6770.0111.0 6243757.8100.0121.0 11246240.1790.0081.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.8800.0101.0 6243764.2690.0131.0 11246228.9070.0061.0 802.11g Turbo OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243744.8750.0091.0 (FOR DUAL CHAIN (TX)) 802.11b DSSS modulation PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 1241231.62332.43415.0015.1164.05718.070.0131.0 6243751.28652.11917.1017.17103.40520.150.0211.0 11246225.23525.64514.0214.0950.88017.070.0101.0 FCC ID.: KA2DWLG520MA1 Report No: SA940504L17 5 802.11g OFDM modulation PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 6243739.99440.17916.0216.0480.17319.040.0161.0
