KA2DWLG550A1Wireless G PCI Adapter

Manual DWL-G550 D-LinkAirPlus G ® Wireless G PCI Adapter Building Networks for People 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 5 Installation Considerations.................................................................... 7 Getting Started...................................................................................... 8 Using the Configuration Utility.............................................................. 11 Networking Basics.............................................................................. 18 Troubleshooting................................................................................... 31 Technical Specifications...................................................................... 36 Contacting TechnicalSupport.............................................................. 39 Warranty and Registration................................................................... 40 3 Package Contents 3 Contents of Package: D-LinkAirPlus G DWL-G550 802.11g (2.4GHz) Wireless G PCI Adapter CD-ROM with Manual, Warranty, and Drivers Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. System Requirements for Configuration: „ „ „ An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (forAd-Hoc, Peer-to-Peer networking mode.) „ At least 32MB of memory and a 300MHz processor „ A desktop computer with an available 32-bit PCI slot „ ® Windows XP/2000/Me/98SE „ 4 Features Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWL-G550 can connect with existing 802.11b- or 802.11g- compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks. „ Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWL-G550 in your desktop PC, you will have the flexibility of wireless networking speeds that save you time and money. „ „ „ User-friendly configuration and diagnostic utilities. Introduction The D-LinkAirPlus ® G DWL-G550 Wireless G PCI Adapter is an 802.11b/802.11g (2.4GHz) wireless adapter that supports high-speed wireless networking. Unlike most network cards, the DWL-G550 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus ® G products. The 802.11g standard is backwards compatible with 802.11b products. 32-bit PCI Performance/Plug & Play Connectivity-The DWL-G550 is a powerful 32-bit PCI adapter that installs quickly and easily into desktop PCs, and when used with other D-Link AirPlus ® G products will automatically connect to the network out of the box. LED LEDstands forLight-EmittingDiode. TheDWL-G550has two LEDs: A steady light indicates a connection to an access point. Activity A blinking light indicates activity on the network. Power 5 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial to many users. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or office. Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network devices. Scalability- WLANs can be configured in a variety of ways to meet the needs of specific applications and installations. Configurations are easily changed and range from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed. 6 D-Link AirPlus ® G DI-524 Wireless Router Wireless Basics (continued) Standards-Based Technology The DWL-G550 Wireless G PCI Adapter utilizes the802.11band the802.11g standards. The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the data rate up to 54 Mbps within the 2.4GHz band, utilizing OFDM technology. This means that in most environments, within the specified range of this device, you will be able to transfer large files …

Text truncated - open the document above for the full version.

Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: D-Link Corporation FCC ID: KA2DWLG550A1 To whom it may concern, Request is hereby submitted by D-Link Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: D-Link Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Leeming/ Manager D-Link Corporation

Lettery of Agency "I, an officer of D-Link Corporation do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Leeming Signature Printed Title Manager

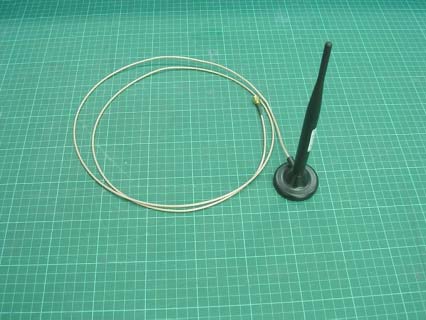

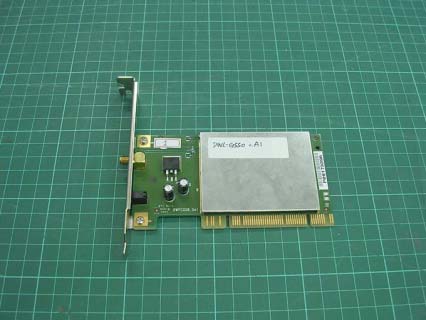

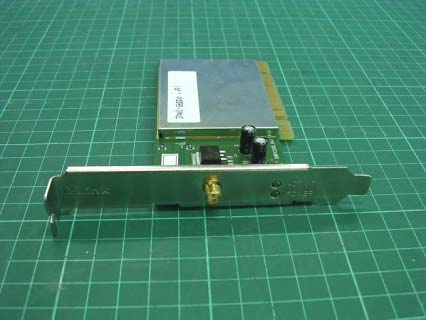

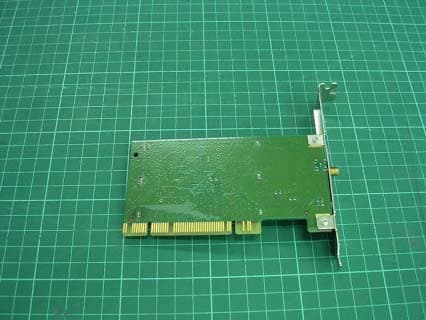

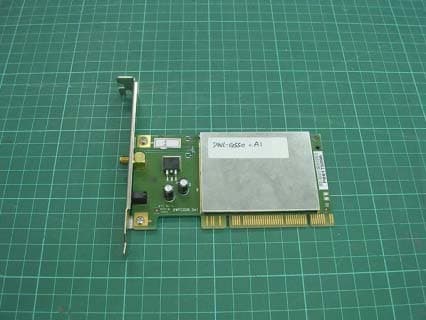

Photo 1: External photo of EUT DWL-G550 Photo 2: External photo of EUT DWL-G550 Photo 3: External photo of EUT DWL-G550 Photo 4: External photo of Antenna DWL-G550

Label Size: (W) 52mm (L) 62.5 mm FCC ID Location S/N: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any Interference received, including interference that may cause undesired operation. FCC ID: KA2DWLG550A1 MADE IN TAIWAN

Photo 1: Internal photo of EUT DWL-G550 Photo 2: Internal photo of EUT DWL-G550

FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-050231 Model No. : DWL-G550 Issued Date : Mar. 31, 2005 Applicant : D-Link Corporation Inc. No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 2 of 6 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 802.11b/g Wireless LAN PCI Adapter-Model: DWL-G550 FCC ID: KA2DWLG550A1 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 5 of 6 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b(DSSS Modulation) normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.26 172.98 0.04332 1.0 6 (middle) 2437 1.26 172.19 0.04313 1.0 11 (highest) 2462 1.26 179.89 0.04505 1.0 Test Mode: 802.11g(OFDM Modulation) normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.26 288.40 0.07223 1.0 6 (middle) 2437 1.26 299.92 0.07512 1.0 11 (highest) 2462 1.26 298.54 0.07477 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time. FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 6 of 6 Test Mode: 802.11g(OFDM Modulation) turbo mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 6 (middle) 2437 1.26 273.53 0.06851 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 1 of 52 EMC TEST REPORT Report No. : EME-050231 Model No. : DWL-G550 Issued Date : Mar. 31, 2005 Applicant : D-Link Corporation Inc. No. 8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 52 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 2 of 52 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT........................................................................................4 1.2 Additional information about the EUT...................................................................4 1.3 Antenna description ................................................................................................5 1.4 Peripherals equipment ............................................................................................5 2. Test specifications .........................................................................................................6 2.1 Test standard ...........................................................................................................6 2.2 Operation mode ......................................................................................................6 2.3 Test equipment........................................................................................................7 3. Minimum 6dB Bandwidth test ......................................................................................8 3.1 Operating environment ...........................................................................................8 3.2 Test setup & procedure ...........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results .......................................8 4. Maximum Output Power test ......................................................................................16 4.1 Operating environment .........................................................................................16 4.2 Test setup & procedure .........................................................................................16 4.3 Measured data of Maximum Output Power test results .......................................16 5. Radiated Emission test ................................................................................................18 5.1 Operating environment .........................................................................................18 5.2 Test setup & procedure .........................................................................................18 5.3 Emission limits .....................................................................................................19 5.4 Radiated spurious emission test data ....................................................................20 5.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................20 5.4.2 Measurement results: frequency above 1GHz...................................................21 6. Power Spectrum Density test ......................................................................................28 6.1 Operating environment .........................................................................................28 6.2 Test setup & procedure .........................................................................................28 6.3 Measured data of Power Spectrum Density test results .......................................28 7. Emission on the band edge §FCC 15.247(C) ..............................................................36 7.1 Band-edge (Conducted method) ...........................................................................37 7.2 Band-edge (Radiated method) ..............................................................................41 8. Power Line Conducted Emission test §FCC 15.207 ...................................................49 8.1 Operating environment .........................................................................................49 8.2 Test setup & procedure .........................................................................................49 8.3 Emission limit.......................................................................................................50 8.4 Uncertainty of Conducted Emission.....................................................................50 8.5 Power Line Conducted Emission test data ...........................................................51 FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 3 of 52 Summary of Tests 802.11b/g Wireless LAN PCI Adapter-Model: DWL-G550 FCC ID: KA2DWLG550A1 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : KA2DWLG550A1 Report No.: EME-050231 Page 4 of 52 1. General information 1.1 Identification of the EUT Applicant : D-Link Corporation Inc. Product : 802.11b/g Wireless LAN PCI Adapter Model No. : DWL-G550 FCC ID. : KA2DWLG550A1 Frequency Range : 2412MHz ~ 2462MHz Channel Number : 11channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 24…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up Photo 2: Conducted Emission Test Set-up DWL-G550 DWL-G550

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up DWL-G550 DWL-G550
