KA2DWLG680A1IEEE802.11g WLAN Cardbus Adapter

Manual Building Networks for People IEEE 802.11g DWL-G680 D-Link AirPlus XTREME G TM WLAN Cardbus Adapter version c1 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 24 Troubleshooting................................................................................... 37 Technical Specifications...................................................................... 42 Contacting Technical Support.............................................................. 44 Warranty and Registration................................................................... 45 3 Contents of Package: D-Link AirPlus Xtreme G DWL-G680 High-Speed 2.4GHz/802.11g Wireless Cardbus Adapter Manual, Warranty and Drivers on CD Printed Quick Installation Guide Package Contents If any of the above items are missing, please contact your reseller. System Requirements for Configuration: ! ! ! An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-Peer networking mode.) ! At least 32 MB of memory and a 300 MHz processor ! Windows XP/2000/Me/98SE ! A laptop or notebook computer with an available 32-bit cardbus slot ! TM 4 Introduction The DWL-G680 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G680, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the DWL-G680 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the DWL-G680, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. *Not all servers can provide Authentication The D-Link AirPlus Xtreme G DWL-G680 Wireless Cardbus Adapter is an 802.11b/ 802.11g high-performance, wireless adapter that supports high-speed wireless networking at home, at work or in public places. Unlike most network cards, the DWL-G680 provides data transfers at up to 54 Mbps (compared to the standard 11 Mbps) when used with other D-Link AirPlus Xtreme G products. The 802.11g standard is backwards compatible with 802.11b products. TM TM 5 Features LEDs LED stands for Light-Emitting Diode. The DWL-G680 has the following LEDs: TM A blinking light indicates data is being transmitted. Activity A steady light indicates a connection to an access point. Link Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWL-G680 can connect with existing 802.11b- or 802.11g- compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks. ! Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWL-G680 in your laptop PC, you will have the flexibility of wireless net- working speeds that save you time and money. ! Better Security with 802.1x and WPA -With the DWL-G680 in your laptop PC you can securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of secu- rity for your data and communication than has previously been available. ! 32-bit Cardbus Performance/Plug & Play Connectivity -The DWL-G680 is a pow- erful 32-bit Cardbus Adapter that installs quickly and easily into laptop PCs, and when used with other D-Link Air Plus Xtreme G products will automatically connect to the network out of the box. ! ! User-friendly configuration and diagnostic utilities. 6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 POWER OF ATTORNEY Date: February 15, 2005 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, ------------------------------------------------------------------- Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

Michael Heckrotte From: [email protected] Sent: Monday, March 28, 2005 8:30 PM To: Michael Heckrotte Cc: [email protected] Subject: ??: RE: ??: RE: ??: ??: FW: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1--Updated(0325) Importance: High 3/29/2005 Hi Michael: Thank you for your e-mail.Please find the following reply(0329). And if still have any problems,please connect with me. BEST REGARDS Daphne Liang / 梁鈺如 3/29/2005 Certification Team Leader/ R&D and Certification Dept. ==================================================== Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5913555 / Fax:886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw Daphne, 17. Please explain how the worst-case antenna was determined for the EMC radiated spurious tests. Ans: we test both antenna ports A & B then we found the port B is worse than the port A in the radiated spurious test. So antenna port B was selected as the worst case and recorded in the test report. "Michael Heckrotte" <[email protected]> 2005/03/26 04:42 收件人： <[email protected]> 副本抄送： <[email protected]> 主旨： RE: ??: RE: ??: ??: FW: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1--Updated(0325) 18. The SAR report indicates that conducted power measurements were made on both antenna ports A and B, however the internal photos only show a coaxial connector on one of the antenna ports. Please explain how conducted power was measured on both ports. Ans: Firstly, the antenna connector show on the EUT is designed for antenna A used only. So by measuring antenna B, a 50 ohm coaxial cable soldered to the antenna port B. 18. The internal photos only show a coaxial connector on one of the antenna ports. Please clarify whether this connector is installed on port A or B. Ans:The connecter showed in the internal photos is for the port A. . Thanks, Mike -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, March 24, 2005 9:43 PM To: Michael Heckrotte Cc: [email protected] Subject: ??: RE: ??: ??: FW: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1--Updated(0325) Hi Michael: Thank you for your e-mail.Please see the following reply(0325). And if still have any problems,please connect with me. BEST REGARDS Daphne Liang / 梁鈺如 3/25/2005 Certification Team Leader/ R&D and Certification Dept. ==================================================== Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5913555 / Fax:886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw "Michael Heckrotte" <[email protected]> 2005/03/23 03:25 收件人： <[email protected]>, <[email protected]> 副本抄送： 主旨： RE: ??: ??: FW: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1--Updated(0318) 3/29/2005 Hi Lucy and Daphne, Please be advised that I did not receive Daphne's email of 3/18, and the 3/22 email forwarded by Lucy does not have the attachments. Please resend the attachments. I will review this as quickly as possible, when I receive the full response. Meanwhile, based on the review of the responses contained in the email, please address the following: Question # 7: I understand the difference between the two rows of Liquid Conductivity errors. Please confirm that the two rows of Liquid Permittivity are similar (first row = deviation from target, second row = measurement uncertainty). Please clearly identify each row in future reports. My question is regarding the second row (your row for Liquid Conductivity measurement uncertainty). In the column for Standard Unc.(1g) +/-% there are two numbers in this row, as follows: +/-3.5/1.7 Please explain the difference between these two numbers. ANS:(+/-3.5) is the uncertainty for 1g sar and (+/-1.7) is for 10g Question # 9, 10, and 11: Due to the large difference between antenna A and antenna B, the data previously requested in questions 10 and 11 (low and high channel SAR data for Antenna A in the Acer host, and Mid channel SAR data for Antenna A in the Dell and IBM hosts) is required to address the issue raised in question 9. Ans:Please find the attached for updated:DWL-G680_Additional SAR test result(0325). Thanks, Mike -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, March 22, 2005 2:16 AM To: Michael Heckrotte Subject: ??: ??: FW: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1-- Updated(0318) Hello Michael, How are you? Hope everything is good to you. Regarding this project, we need your help. Our customer plans to ship in the end of this month, so please kindly help to review it as fast as you can, thank you. Best Regards, 3/29/2005 Lucy Hi Michael: Thank you for your e-mail. Please find the following reply(0318). And if still have any problems,please connect with me. BEST REGARDS Daphne Liang / 梁鈺如 3/18/2005 Certification Team Leader/ R&D and Certification Dept. ==================================================== Compliance Certification Services Inc. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. Tel: 886-3-5913555 / Fax:886-3-5825720 E-mail: [email protected] URL: http://www.ccsemc.com.tw -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, March 10, 2005 4:54 PM To: Michael Heckrotte Subject: D-LINK Corporation, FCC ID: KA2DWLG680A1, Assessment NO.: AN05T4640, Notice#1 1. The functional block diagram is embedded within operational description which is a protected document, please extract block diagram from operational description. Operational description and Block diagram shall be uploaded to FCC individually. Block diagram only des…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8, Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. TEL: +886 3-563-6666 FAX: +886 3-578-1861 February 15, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: KA2DWLG680A1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Leeming Li / Manager D-Link Corporation Tel: 886-3-563-6666 ext.6613 Fax: 886-3-578-1861 E-mail: [email protected]

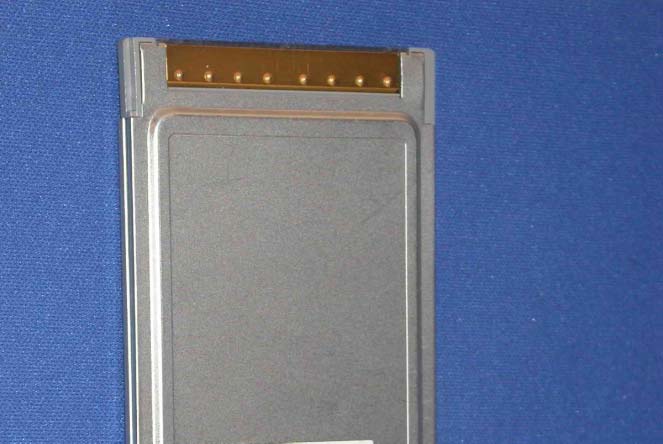

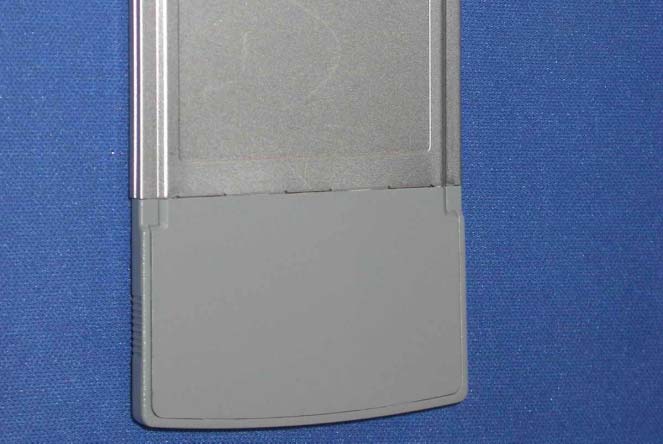

! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 1 of 8 ! !! ! External Photo ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 2 of 8 ! !! !

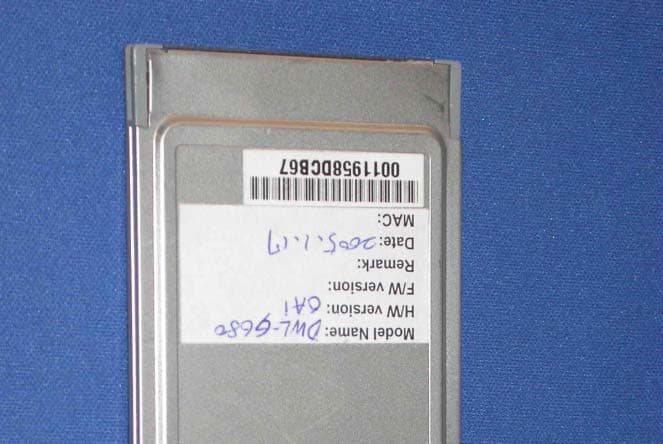

Label Location

! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 3 of 8 ! !! ! Internal Photo ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 4 of 8 ! !! ! ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 5 of 8 ! !! ! ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 6 of 8 ! !! ! ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 7 of 8 ! !! ! ! Compliance Certification Services Inc.! Report No.ΚEC05-01-051FRF Page 8 of 8 ! !! ! !

Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 30 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For IEEE802.11g WLAN Cardbus Adapter Trade Name / Model Number: D-Link / DWL-G680 N/A / WCB-G11 Issued to D-Link Corporation No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 2 Rev.00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .................................................................... 3 2. EUT DESCRIPTION .................................................................................................................................. 4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ....................................... 5 4. DOSIMETRIC ASSESSMENT SYSTEM .................................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM....................................................................................... 6 4.2 SYSTEM COMPONENTS.............................................................................................................. 7 5. EVALUATION PROCEDURES ................................................................................................................ 9 6. MEASUREMENT UNCERTAINTY ....................................................................................................... 13 7. EXPOSURE LIMIT .................................................................................................................................. 14 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS ........................ 14 9. MEASUREMENT RESULTS .................................................................................................................. 15 9.1 SYSTEM PERFORMANCE CHECK ........................................................................................... 15 9.2 TEST LIQUID CONFIRMATION................................................................................................ 17 9.3 EUT TUNE-UP PROCEDURES ................................................................................................... 19 9.4 SAR MEASUREMENTS RESULTS ............................................................................................ 20 10. EUT PHOTOS........................................................................................................................................... 27 11. EQUIPMENT LIST & CALIBRATION STATUS................................................................................... 28 12. FACILITIES.............................................................................................................................................. 29 13. REFERENCES .......................................................................................................................................... 29 14. ATTACHMENTS ..................................................................................................................................... 30 Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 3 Rev.00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Test : Feb. 17 ~ Mar. 02, 2005 Applicant D-Link Corporation No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Trade Name / Model Number D-Link / DWL-G680 N/A / WCB-G11 Device Category PORTABLE DEVICES Exposure Category GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum(DSSS) 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 24.54 dBm 802.11g: 23.71 dBm 802.11g TURBO: 24.11 dBm Max. SAR (1g): 802.11b: 1.510 W/kg 802.11g: 1.380 W/kg 802.11g TURBO: 1.520 W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under m y supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Harris W. Lai Chris Hsieh Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 4 Rev.00 2. EUT DESCRIPTION Applicant D-Link Corporation No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Trade Name / Model Number D-Link / DWL-G680 N/A / WCB-G11 Device Category PORTABLE DEVICES Exposure Category GENERAL POPULATION/UNCONTROLLED E…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 1 Rev.00 802.11b (DSSS): Duty Cycle =100 %, Crest Factor: 1,Rate=11M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 10.5 A 1 2412 22.79 22.76 23.0 0.059 10.5 A 11 2462 22.15 22.12 23.0 0.035 1.6 802.11g (OFDM): Duty Cycle =100 %, Crest Factor: 1,Rate=6M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 10.5 A 1 2412 22.35 22.31 23.0 0.065 10.5 A 11 2462 21.17 21.14 23.0 0.031 1.6 Notes: 1. Testing host: Acer 2. *: Peak power. 3. Bottom face in parallel with flat phantom. 4. See attachment for the result presentation in plot format. Appendix I: Additional SAR test reult Test Configuration--1 Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 2 Rev.00 802.11b (DSSS): Duty Cycle =100 %, Crest Factor: 1,Rate=11M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 12.7 A 6 2437 24.48 24.45 23.0 0.093 1.6 802.11g (OFDM): Duty Cycle =100 %, Crest Factor: 1,Rate=6M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 12.7 A 6 2437 23.73 23.69 23.0 0.096 1.6 802.11g (OFDM)TURBO: Duty Cycle =100 %, Crest Factor: 1,Rate=12M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 12.7 A 6 2437 24.12 24.09 23.0 0.07 1.6 Notes: 1. Testing host: Dell 2. *: Peak power. 3. Bottom face in parallel with flat phantom. 4. See attachment for the result presentation in plot format. Test Configuration--1 Compliance Certification Services Inc. Report No: 50128003-SF FCC ID: KA2DWLG680A1 Date of Issue: Mar. 07, 2005 Page 3 Rev.00 802.11b (DSSS): Duty Cycle =100 %, Crest Factor: 1,Rate=11M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 10.5 A 6 2437 24.49 24.46 23.0 0.124 1.6 802.11g (OFDM): Duty Cycle =100 %, Crest Factor: 1,Rate=6M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 10.5 A 6 2437 23.72 23.70 23.0 0.121 1.6 802.11g (OFDM)TURBO: Duty Cycle =100 %, Crest Factor: 1,Rate=12M Depth of liquid: 15.0 cm *Conducted Power_dBm Sep. [mm] Antenna Channel Frequency [MHz] Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) 10.5 A 6 2437 24.11 24.09 23.0 0.077 1.6 Notes: 1. Testing host: IBM 2. *: Peak power. 3. Bottom face in parallel with flat phantom. 4. See attachment for the result presentation in plot format. Test Configuration--1 Date/Time: 03/24/05 11:10:04 Test Laboratory: Compliance Certification Services Inc. 802.11b Touch Parallel Mode Acer II DUT: 802.11g WLAN Cardbus Adapter; Type: DWL-G680; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 2.01 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 Air Temperature:23.9 deg C;Liquid Temperature:23.0 deg C Area scan setting: Find secondary maxima within 2 dB, and with a peak SAR value greater than 0.0012 mW/g Zoom scan setting: Maximum number of cubes to measure is 2 Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Ant-A Low CH Rate=11M bit/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.071 mW/g Ant-A Low CH Rate=11M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.77 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.146 W/kg SAR(1 g) = 0.059 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.066 mW/g Page1 Date/Time: 03/24/05 11:10:04 Test Laboratory: Compliance Certification Services Inc. 802.11b Touch Parallel Mode Acer II DUT: 802.11g WLAN Cardbus Adapter; Type: DWL-G680; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.01 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 Air Temperature:23.9 deg C;Liquid Temperature:23.0 deg C Area scan setting: Find secondary maxima within 2 dB, and with a peak SAR value greater than 0.0012 mW/g Zoom scan setting: Maximum number of cubes to measure is 2 Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Ant-A High CH Rate=11M bit/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.039 mW/g Ant-A High CH Rate=11M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.77 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 11.7 W/kg SAR(1 g) = 0.035 mW/g; SAR(10 g) = 0.015 mW/g Maximum value of SAR (measured) = 0.037 mW/g Page1 Date/Time: 03/24/05 11:10:17 Test Laboratory: Compliance Certification Services Inc. 802.11g Touch Parallel Mode Acer II DUT: 802.11g WLAN Cardbus Adapter; Type: DWL-G680; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 2.01 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 Air Temperature:23.9 deg C…

Text truncated - open the document above for the full version.

Date/Time: 02/17/05 13:59:56 Test Laboratory: Compliance Certification Services Inc. D2450V2-SN 728-Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 Air Temperature:24.0 deg C;Liquid Temperature:23.1 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.71 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.2 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 31 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 15.4 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 21.9 mW/g Page1 Page2 Date/Time: 02/22/05 16:57:06 Test Laboratory: Compliance Certification Services Inc. D2450V2-SN 728-Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.00 mho/m; ε r = 50.2; ρ = 1000 kg/m 3 Air Temperature:24.2 deg C;Liquid Temperature:23.3 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.81 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 22.8 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.9 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 31.6 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.05 mW/g Maximum value of SAR (measured) = 15.6 mW/g Page1 Page2 Date/Time: 03/02/05 13:12:44 Test Laboratory: Compliance Certification Services Inc. D2450V2-SN 728-Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.03 mho/m; ε r = 50.3; ρ = 1000 kg/m 3 Air Temperature:23.6 deg C;Liquid Temperature:22.4 deg C Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15…

Text truncated - open the document above for the full version.
