KA2DWLG730APB1802.11g Wireless AP

Manual DWL-G730AP 802.11g/2.4GHz Building Networks for People Wireless Pocket Router/AP D-Link AirPlus G TM 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics.................................................................................... 6 Hardware Overview............................................................................... 8 Getting Started in AP Mode ................................................................... 9 Getting Started in Client Mode............................................................. 10 Getting Started in Router Mode........................................................... 11 Using the Configuration Utility in AP Mode........................................... 12 Using the Configuration Utility in AP Client Mode................................. 24 Using the Configuration Utility in Router Mode..................................... 35 Networking Basics.............................................................................. 60 Technical Specifications...................................................................... 73 Contacting Technical Support.............................................................. 76 Warranty and Registration................................................................... 77 3 Computer with Windows XP/2000/Me operating system with an installed Ethernet adapter Internet Explorer version 6.0 or Netscape Navigator version 7.0, with JavaScript enabled Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:
D-Link AirPlus TM G DWL-G730AP 802.11g/2.4GHz Wireless Pocket Router/AP
Power Supply - 5V DC, 1.2A
Manual on CD
Quick Installation Guide
Ethernet Cable
USB Power Cable
Travel Case Note: Using a power supply with a different voltage rating than the one included with the DWL-G730AP will cause damage and void the warranty for this product. 4 At up to five times the speed of previous wireless devices (maximum wireless signal rate up to 54Mbps*), you can work faster and more efficiently, increasing productivity. With the DWL-G730AP, bandwidth-intensive applications like graphics or multimedia will benefit significantly because large files are able to move across the network quickly. Introduction The D-Link AirPlus TM G DWL-G730AP Wireless Pocket Router/AP is an 802.11g high-performance, wireless device that is also compatible with 802.11b devices. It is an ideal way to extend the reach and number of computers connected to your wireless network. The DWL-G730AP is capable of data transfer rates up to 54Mbps*, when used with other D-Link AirPlus G products, and can be integrated into a large network. The pocket-sized DWL-G730AP gives you all the features of a full-size router/access point with pocket-size convenience and portability. Carry it along with you on business trips and vacations, and experience the convenience of wireless networking with your colleagues and family almost anywhere you travel. With 3 different operating modes, the versatile DWL-G730AP can be used as a portable access point, AP client or router. *Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. 5 Up to 5X Faster with AirPlus G Products - maximum wireless signal rate up to 54Mbps.* With increased data rate and capacity, the DWL-G730AP delivers media rich content such as digital images, videos, and MP3 files much faster than standard 802.11b networks.
Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b standard and interoperable with all existing 802.11b compliant devices.
Network Security with up to 128-bit WEP Encryption – Supports 64/128-bit WEP encryption for a level of security for your data and wireless communication.
Built-in DHCP Server – If enabled, it will automatically assign IP addresses to wireless clients on the local network.
Web-based interface for Managing and Configuring – Easy-to-use interface independent of the operating system.
Features and Benefits *Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. 6 Wireless Basics D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A Wireless Local Area Network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users. Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs – WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from WLANs ease of implementation. WLANs can opera…

Text truncated - open the document above for the full version.

41 Using the Configuration Utility in Router Mode (continued) Advanced > Virtual Server The DWL-G730AP can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network). The DWL-G730AP firewall feature filters out unrecognized packets to protect your LAN network so all computers networked with the DWL-G730AP are invisible to the outside world. If you wish, you can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the DWL-G730AP redirects the external service request to the appropriate server within the LAN network. The DWL-G730AP is also capable of port-redirection meaning incoming traffic to a particular port may be redirected to a different port on the server computer. Each virtual service that is created will be listed at the bottom of the screen in the Virtual Servers List. There are pre-defined virtual services already in the table. You may use them by enabling them and assigning the server IP to use that particular virtual service. 42 Using the Configuration Utility in Router Mode (continued) Advanced > Virtual Server (continued) Example #1: Protocol Type- The protocol used for the virtual service. Public Port- The port number on the WAN (Wide Area Network) side that will be used to access the virtual service. Private Port- The port number of the service used by the Private IP computer. Schedule- The schedule of time when the virtual service will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. If it is set to From, select the time frame for the service to be enabled. If the system time is outside of the scheduled time, the service will be disabled. Virtual Server- Select Enabled or Disabled. Name- Enter the name referencing the virtual service. Private IP- The server computer in the LAN (Local Area Network) that will be providing the virtual services. If you have a Web server that you wanted Internet users to access at all times, you would need to enable it. Web (HTTP) server is on LAN (Local Area Network) computer 192.168.0.25. HTTP uses port 80, TCP. Name: Web Server Private IP: 192.168.0.25 Protocol Type: TCP Private Port: 80 Public Port: 80 Schedule: always 43 Using the Configuration Utility in Router Mode (continued) Advanced > Virtual Server (continued) Example #2: If you have an FTP server that you wanted Internet users to access by WAN port 2100 and only during the weekends, you would need to enable it as such. FTP server is on LAN computer 192.168.0.30. FTP uses port 21, TCP. Name: FTP Server Private IP: 192.168.0.30 Protocol Type: TCP Private Port: 21 Public Port: 2100 Schedule: From: 01:00AM to 01:00AM, Sat to Sun Click on this icon to edit the virtual service Click on this icon to delete the virtual service All Internet users who want to access this FTP Server must connect to it from port 2100. This is an example of port redirection and can be useful in cases where there are many of the same servers on the LAN network. 44 Using the Configuration Utility in Router Mode (continued) Advanced > Applications Some applications such as Internet gaming, video conferencing, Internet telephony and others, require multiple connections. These applications save difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DWL-G730AP. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type as TCP or UDP, then enter the public ports associated with the trigger port to open them for inbound traffic. The DWL-G730AP provides some predefined applications in the table on the bottom of the Web page. Select the application you want to use and enable it. Name: This is the name referencing the special application. Trigger Port: This is the port used to trigger the application. It can be either a single port or a range of ports. Trigger Type:This is the protocol used to trigger the special application. Public Port: This is the port number on the WAN side that will be used to access the application. You may define a single port or a range of ports. You can use a comma to add multiple ports or port ranges. Public Type:This is the protocol used for the special application. Note! Only one PC can use each Special Application tunnel. Special Applications List 45 Using the Configuration Utility in Router Mode (continued) Advanced > Filters > IP Filters Filters are used to deny or allow LAN (Local Area Network) computers from accessing the Internet. The DWL-G730AP can be setup to deny internal computers by their IP or MAC addresses. The DWL-G730AP can also block users from accessing restricted web sites. This is the schedule of time when the IP Filter will be enabled. Schedule: Select the protocol type Protocol Type: Use IP Filters to deny LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for the specific IP address. IP Filters: The single port or port range that will be denied access to the Internet. Port: The IP address of the LAN computer that will be denied access to the Internet. IP: 46 Using the Configuration Utility in Router Mode (continued) Advanced > Filters > URL Blocking Select Enable or Disable. Enter the words or word contained in the URL that you wish to block. Click Apply to activate the URL blocking. URL Blocking: Select the URL block that you want to delete. Click Delete. Delete: Click Apply to save changes. Apply: 47 Using the Configuration Utility in Router Mode (continued) Advanced > Filters > MAC Filters Click to Disable MAC Filters. Disable MAC Filters: Allow only those devices with the listed MAC addresses access to the network. Allow: Deny the devices that are listed from accessing the …

Text truncated - open the document above for the full version.

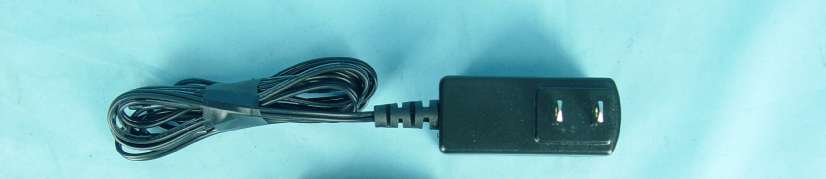

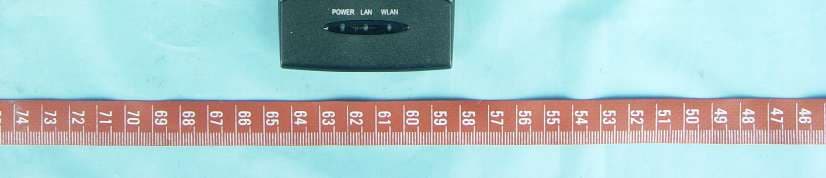

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : KA2DWLG730APB1 Label Location

ACN 052 202 838 Z576 Model No.:DWL-G730AP FCC ID:KA2DWLG730APB1 IC:4216A-WLG730AP MADE IN CHINA

Page 3 Page 4 Page 5 Page 6

FCC ID: KA2DWLG730APB1 Report No.: RF950427L20 Operational Description This device is a 802.11g Wireless AP which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is PIFA antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: KA2DWLG730APB1 Report No: SA950427L20 1 RF EXPOSURE REPORT REPORT NO.: SA950427L20 MODEL NO.: DWL-G730AP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : D-Link Corporation ADDRESS : 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2DWLG730APB1 Report No: SA950427L20 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2DWLG730APB1 Report No: SA950427L20 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2DWLG730APB1 Report No: SA950427L20 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4dBi or 2.51189(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.8560.0111.0 6243735.4810.0181.0 11246228.7740.0141.0 For 802.11g OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.9020.0201.0 6243751.0500.0261.0 11246245.6040.0231.0

Report No.: RF950427L201Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950427L20 MODEL NO.: DWL-G730AP RECEIVED: Apr. 06, 2006 TESTED: Apr. 06 ~ May 12, 2006 ISSUED: May 15, 2006 APPLICANT : D-Link Corporation ADDRESS : 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950427L202Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.....................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................5 2.1MEASUREMENT UNCERTAINTY..........................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................9 3.4DESCRIPTION OF SUPPORT UNITS.................................................................10 4TEST TYPES AND RESULTS...............................................................................11 4.1CONDUCTED EMISSION MEASUREMENT........................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................11 4.1.2TEST INSTRUMENTS..........................................................................................11 4.1.3TEST PROCEDURES..........................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.................................................................12 4.1.5TEST SETUP.......................................................................................................13 4.1.6EUT OPERATING CONDITIONS.........................................................................13 4.1.7TEST RESULTS...................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................20 4.2.2TEST INSTRUMENTS..........................................................................................21 4.2.3TEST PROCEDURES..........................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.................................................................22 4.2.5TEST SETUP.......................................................................................................23 4.2.6EUT OPERATING CONDITIONS.........................................................................23 4.2.7TEST RESULTS...................................................................................................24 4.36dB BANDWIDTH MEASUREMENT....................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................31 4.3.2TEST INSTRUMENTS..........................................................................................31 4.3.3TEST PROCEDURE.............................................................................................31 4.3.4DEVIATION FROM TEST STANDARD.................................................................31 4.3.5TEST SETUP.......................................................................................................32 4.3.6EUT OPERATING CONDITIONS.........................................................................32 4.3.7TEST RESULTS...................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER....................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................39 4.4.2TEST INSTRUMENTS..........................................................................................39 4.4.3TEST PROCEDURES..........................................................................................40 4.4.4DEVIATION FROM TEST STANDARD.................................................................40 4.4.5TEST SETUP.......................................................................................................40 4.4.6EUT OPERATING CONDITIONS.........................................................................40 Report No.: RF950427L203Report Format Version 2.0.4 4.4.7TEST RESULTS...................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................42 4.5.2TEST INSTRUMENTS..........................................................................................42 4.5.3TEST PROCEDURE.............................................................................................42 4.5.4DEVIATION FROM TEST STAND…

Text truncated - open the document above for the full version.

Report No.: RF950427L2059Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950427L2060Report Format Version 2.0.4 RADIATED EMISSION TEST
