KA2DWM162USB Modem

CDMA 2000 EVDO Rev.A USB Dongle DWM-162 Quick Installation Guide+ Draft Version 2 Quick Installation Guide DWM-162 CDMA 2000 EVDO Rev. A USB Dongle About D-Link DWM-162 Hardware Installation DWM-162 is a CDMA EVDO Rev.A USB Dongle. Besides Windows OS, DWM-162 can also be run under MAC environment which makes it become the perfect solution for customization. DWM-162 can support the downlink up to 3.1 Mbps and uplink up to 1.8Mbps. UIM Card Installation Steps: 1.Ensure the USB modem is plug off. Remove the back cover. 2.Hold the UIM card with the cut corner oriented as shown and then slide it into the card holder face down. 3.Replace the back cover. MicroSD Card Installation Steps: 1.Ensure the USB modem is plug off. Remove the back cover. 2.Hold the MicroSD card with the oriented as shown and then slide it into the card holder face up. 3.Replace the back cover. Step 1Step 2Step 3 Step 1Step 2Step 3 3 Software Installation Before you install the software, you must first install a UIM card into the USB modem and connect the modem to a USB port on your computer. 1.Step 1: The first time you plug in the dongle to your computer, the dongle will run the installation application automatically. 2.Step 2: Please follow the intallation by clicking “Next”, the application will install the driver and the connection manager to your computer automatically. 3.Step 3: Please click “Finish” to finish the installation. Then plug out the dongle and reinsert the dongle to PC. The connection manager will pop up automatically. Now you could use your dongle to go to the internet. 4 Troubleshooting 1. Connect the USB modem on the computer, Connection Manager can not install Automatically. Please enter the virtual CD ROM in explorer, then click Autorun.exe. 2. Connect the USB modem on the computer, the modem can not work. Please check the UIM card is installed property. Make sure your UIM card do have 3G data service. Or check if the Antivirus Software block the connection. Technical Support: Thank you for choosing D-Link products. For further information, technical support, product drivers, and manuals, please visit the D-Link website. FCC statement : Se ction 15.105 (b) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help.

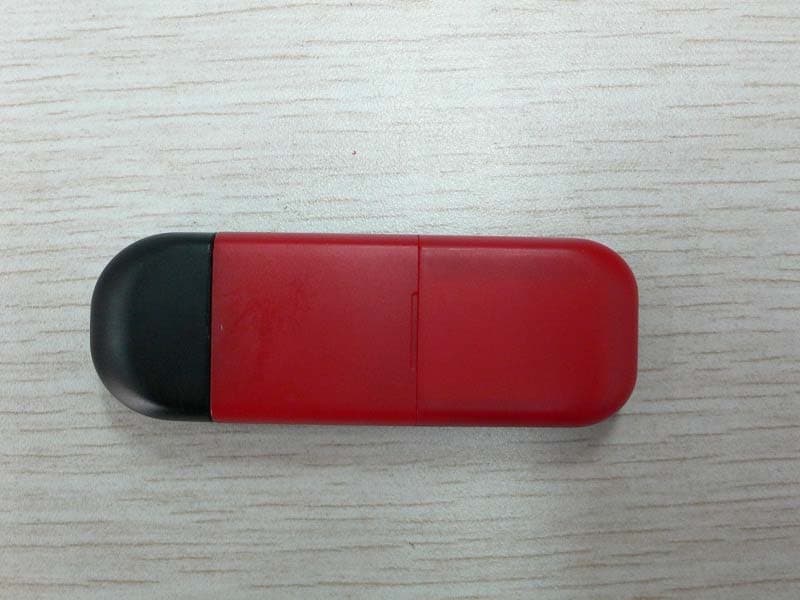

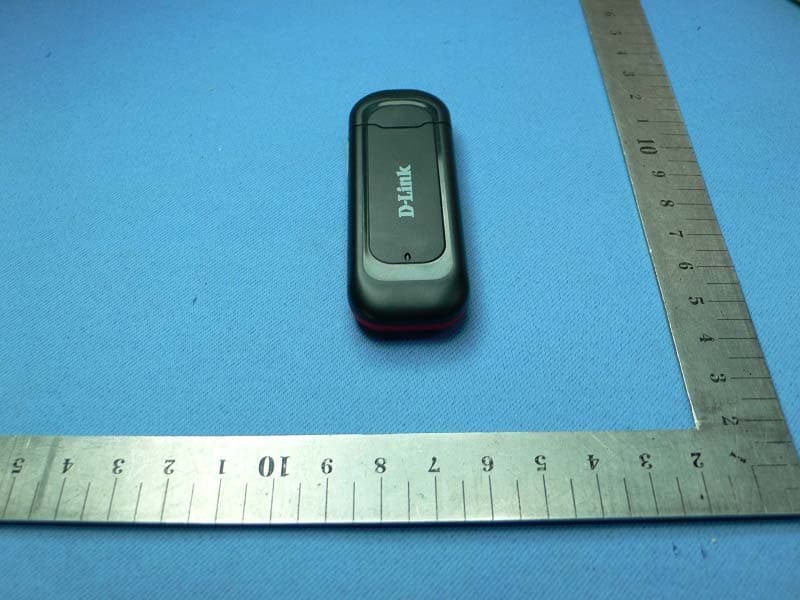

PHOTOGRAPH OF THE EUT 1. Appearance of the EUT

PHOTOGRAPH OF THE EUT 1. inside of the EUT

Report No.: SH10010072E01 Page 2 of 17 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 3 2. GENERAL INFORMATION .................................................................................................... 4 2.1 EUT Description ......................................................................................................................... 4 2.2 Test Standards and Results ........................................................................................................ 5 2.3 Facilities and Accreditations ...................................................................................................... 6 2.3.1 Facilities .................................................................................................................................... 6 2.3.2 Test Environment Conditions .................................................................................................... 6 3. TEST CONDITIONS SETTING .............................................................................................. 7 3.1 GSM Test Mode .......................................................................................................................... 7 3.2 Test Setup and Equipments List ................................................................................................ 8 3.2.1 Conducted Emission ................................................................................................................. 8 3.2.2 Radiated Emission ..................................................................................................................... 9 4. 47 CFR Part 15B Requirements .............................................................................................. 10 4.1 Conducted Emission ................................................................................................................. 10 4.1.1 Requirement ............................................................................................................................ 10 4.1.2 Test Description ...................................................................................................................... 10 4.1.3 Test Result ............................................................................................................................... 10 Radiated Emission ............................................................................................................................... 13 4.2 Requirement .............................................................................................................................. 13 4.2.1 Test Description ...................................................................................................................... 13 4.2.2 Test Result ............................................................................................................................... 14 Report No.: SH10010072E01 Page 4 of 17 2. GENERAL INFORMATION 2.1 EUT Description EUT Type.............................. : USB MODEM Model Name ......................... : DWM-162 Serial No. .............................. : (n.a., marked #1 by test site) Hardware Version ................. : 325-0091-001-2 Software Version .................. : V1.0.3.6 Modulation Type ................... : QPSK Ancillary Equipment .......... : 1: Notebook PC Model Name: THINKPAD R40e Brand Name: IBM Note 1: A communication link between the EUT and a System Simulator (SS) is established at the start of the test, and maintained during the all test in this report. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SH10010072E01 Page 5 of 17 2.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-05 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS Report No.: SH10010072E01 Page 6 of 17 2.3 Facilities and Accreditations 2.3.1 Facilities Shenzhen Electronic Product Quality Testing Center Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Laboratories (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. All measurement facilities used to collect the measurement data are located at Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen 518055 CHINA. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 2.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 20 - 25 Relative Humidity (%): 40 - 60 Atmospheric Pressure (kPa): 960 Report No.: SH10010072E01 Page 7 of 17 3. TEST CONDITIONS SETTING 3.1 CDMA Test Mode 1. During the measurement, the CDMA radio is working. The test modes of the EUT are showed as below: (1) Traffic operating CDMA 1xRTT mode The EUT configuration of the emission tests is EUT + PC A communication link was established between the EUT and a System Simulator (SS). The EUT operated at CDMA Cellular mid ARFCN (384) and maximum output power (All up bit). (2) Traffic operating CDMA 1xEVDO Rev A mode The EUT configuration of the emission tests is EUT + PC. A communication link was established between the EUT and a System Simulator (SS); date was transmitted between EUT and System Simulator (SS), and maintained during the measurement. the EUT operated at CDMA Cellular mid ARFCN (384) and maximum output power (All up bit) (3) Idle operating mode The EUT configuration of the emission tests is EUT + PC The EUT was regis…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE TEST SETUP 1.CONDUCTED EMISSION TEST 2.RADIATED EMISSION TEST
