KA2HD131A1Intel wireless display TV adaptor

DHD-131 ENGLISH Quick Install Guide MainStage™ TV Adapter for Intel® Wireless Display Thank you for purchasing the MainStage™ TV Adapter. Follow the easy steps in this guide to properly set up your device. Please verify that all the package contents listed below are available. If any of the above items are missing, please contact your reseller. Technical Support Having trouble installing your new product? D-Link’s website contains the latest user documentation and software updates for D-Link products. U.S. and Canadian customers can contact D-Link Technical Support through our website or by phone. United States Telephone: (877) 453-5465 Internet: http://support.dlink.com Canada Telephone: (800) 361-5265 Internet: http://support.dlink.ca Package Contents Step 1 Connect the MainStage™ TV adapter to your TV. Use the HDMI connection for the best quality video. Step 2 Connect the supplied power adapter to the back of the MainStage™ TV adapter and the other end to a power outlet or surge protector. The MainStage™ TV adapter LED is red when it powers up. Then the LED turns yellow to indicate it is ready, but is not yet connected to your computer. Step 3 Power on your TV and select the correct TV input source. Please refer to your TV documentation for instructions on how to change your input source. Installation DHD-131 MainStage™ TV Adapter for Intel® Wireless Display HDMI Cable Power Adapter Version 1.0 | January 24, 2011 29072600H131A10 ©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. Visit dlink.com (US) or dlink.ca (Canada) for more details. Hardware Overview 1Reset Button4S/PDIF Digital Audio Port 2HDMI Port5On/Off Button 3Composite Audio/Video Ports6Power Connector 123456 Step 4 The Startup screen displays on your TV within 30 seconds. If this screen does not appear, make sure your TV is set to the correct video input and all the cables are firmly secured. Step 5 Launch the Intel® Wireless Display software on your laptop. Some laptops may have a button or key, or launch from Windows. Click Start, type Intel® Wireless Display in the search field and then run the Intel® Wireless Display software. Step 6 Use the Intel® Wireless Display software to scan and find the MainStage™ TV adapter. The screen below shows that the Intel® Wireless Display software has found the wireless adapter. System Requirements • Laptop featuring Intel® Wireless Display and powered by a 2nd generation Intel® Core™ processor. • TV with a HDMI or AV Composite input DC IN Power Adapter Outlet HDMI Cable Laptop HDMI Input TV Step 7 Double-click the MainStage™ TV adapter listed under Detected Adapters to connect to it. The LED on the TV adapter will start flashing green. If you are connecting the laptop to the MainStage™ TV adapter for the first time, it will display a 4-digit security code on the TV. Enter this 4-digit security code into the Intel® Wireless Display software. Step 8 The TV screen will display your laptop screen and the LED on the MainStage™ TV adapter will turn solid green. Your device is now ready to use.

Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/ EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2009 Safety of Information Technology Equipment EN62311: 2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz – 300GHz) EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-1 V1.8.1 (2008-04) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/ EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Federal Communication Commission Interference Statement Industry Canada statement: Korea Communications Commission (방송통신위원회) statement This equipment has b…

Text truncated - open the document above for the full version.

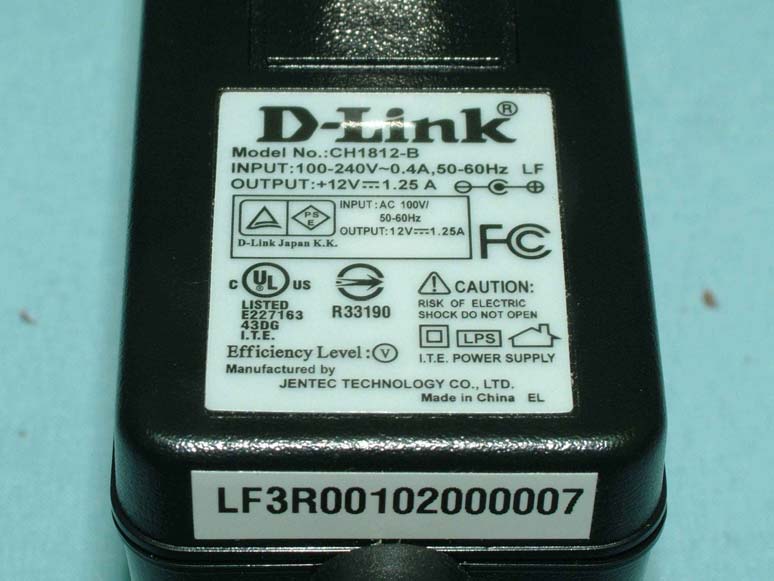

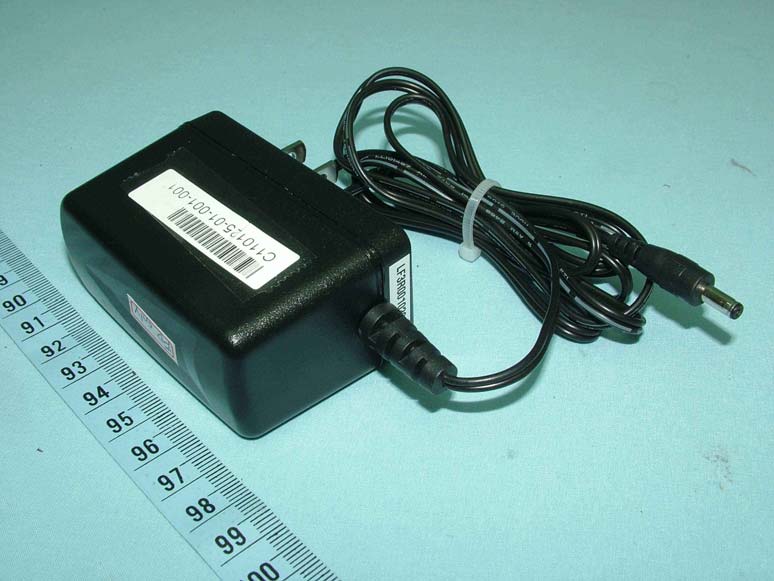

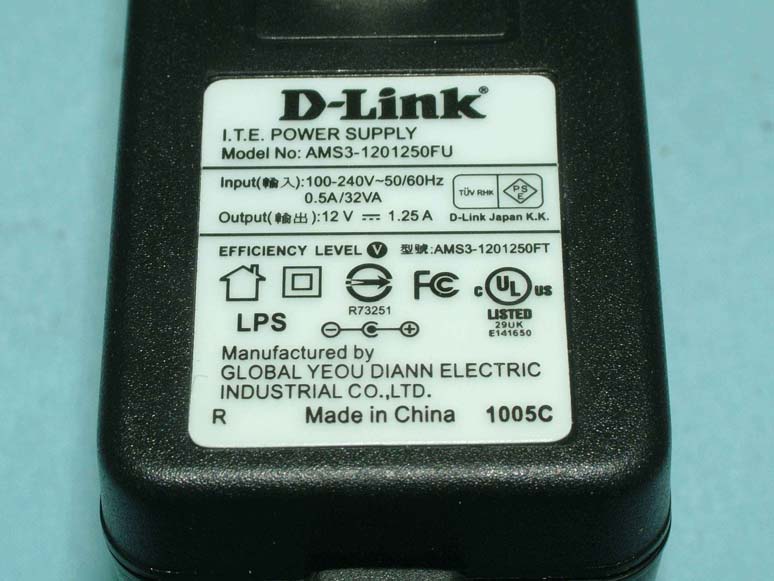

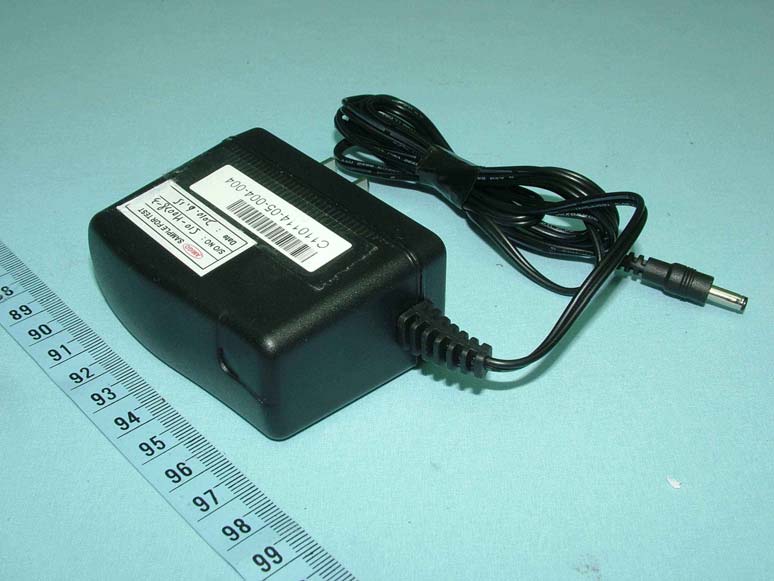

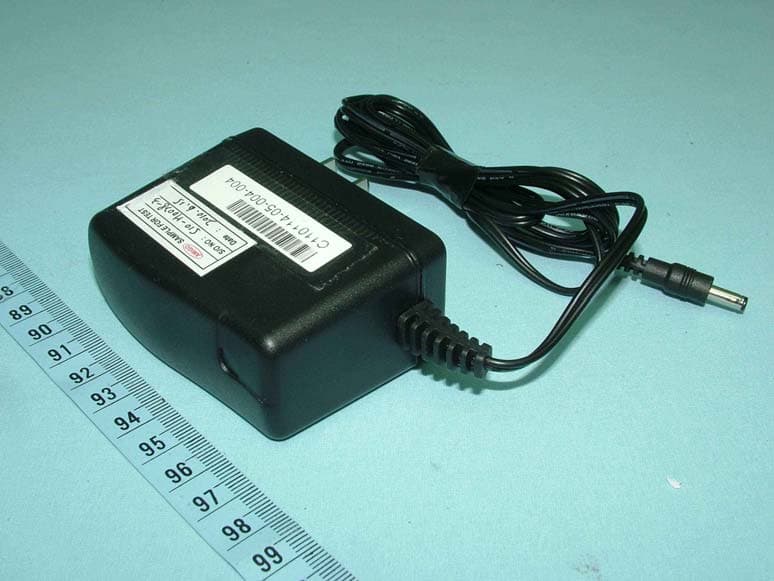

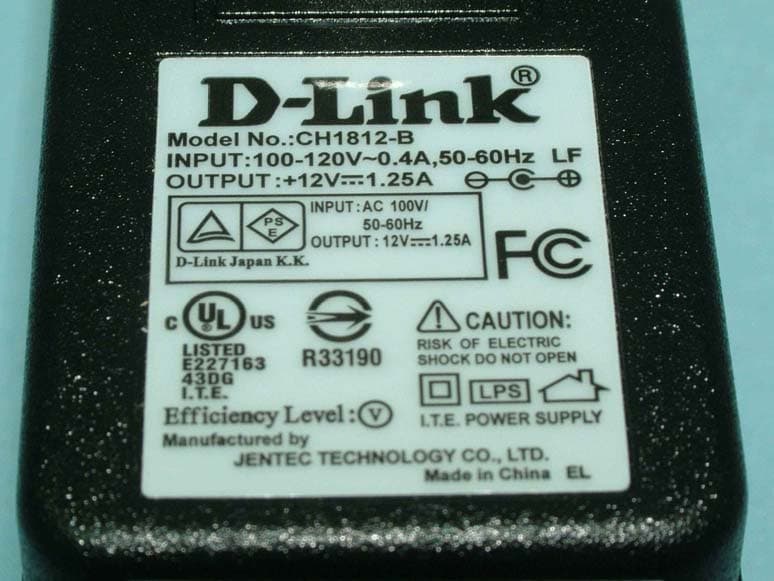

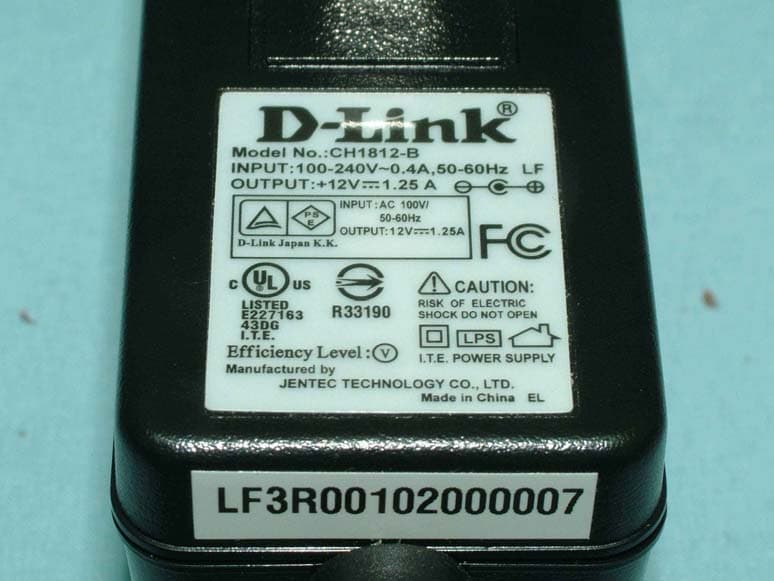

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

DHD-131 Made in China FCC ID : KA2HD131A1 IC : 4216A-HD131A1 Model : DHD-131A1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Power Connector ON/OFF S/PDIF Reset Button HDMIAnalog Audio Composite Video Input: 12V 1.25A Polarity:

Label location (FCC ID: KA2HD131A1)

Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

FCC ID: KA2HD131A1 Report No.: RF110104C15 Operational Description This device is a intel wireless display TV adaptor, which operates in both of 2.4GHz and 5GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from AC adapter. The antenna is Printed antenna without antenna connector. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA110104C15 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110104C15 MODEL NO.: DHD-131 FCC ID: KA2HD131A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA110104C15 Report Format Version 4.0.0 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 15, 2011 Report No.: SA110104C15 Report Format Version 4.0.0 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110104C15 Report Format Version 4.0.0 4 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 28.8 2 20 0.239 1 5180-5240 16.5 3 20 0.018 1 5745-5825 25.3 3 20 0.135 1

Report No.: RF110104C15 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110104C15 MODEL NO.: DHD-131 FCC ID: KA2HD131A1 RECEIVED: Dec. 29, 2010 TESTED: Dec. 29, 2010 ~ Jan. 17, 2011 ISSUED: Feb. 15, 2011 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 130 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110104C15 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.............................................................................................. 5 1. CERTIFICATION........................................................................................................... 6 2. SUMMARY OF TEST RESULTS .................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY................................................................................ 7 3. GENERAL INFORMATION ........................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 8 3.2 DESCRIPTION OF TEST MODES ............................................................................. 10 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 11 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 17 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 17 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................. 18 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 18 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 18 4.1.2 TEST INSTRUMENTS................................................................................................ 19 4.1.3 TEST PROCEDURES ................................................................................................ 20 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 20 4.1.5 TEST SETUP.............................................................................................................. 21 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 21 4.1.7 TEST RESULTS ......................................................................................................... 22 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 37 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 37 4.2.2 TEST INSTRUMENTS................................................................................................ 37 4.2.3 TEST PROCEDURES ................................................................................................ 38 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 38 4.2.5 TEST SETUP.............................................................................................................. 39 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 39 4.2.7 TEST RESULTS ......................................................................................................... 40 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 46 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 46 4.3.2 TEST INSTRUMENTS................................................................................................ 46 4.3.3 TEST PROCEDURE................................................................................................... 46 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 46 4.3.5 TEST SETUP.............................................................................................................. 47 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 47 4.3.7 TEST RESULTS ......................................................................................................... 48 4.4 MAXIMUM OUTPUT POWER .................................................................................... 52 Report No.: RF110104C15 3 Report Format Version 4.0.0 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT..................................... 52 4.4.2 INSTRUMENTS .......................................................................................................... 52 4.4.3 TEST PROCEDURES ................................................................................................ 52 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 53 4.4.5 TEST SETUP.............................................................................................................. 53 4.4.6 EUT OPERATING CONDITIONS .........................................................................…

Text truncated - open the document above for the full version.

Report No.: RF110104C15-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110104C15-1 MODEL NO.: DHD-131 FCC ID: KA2HD131A1 RECEIVED: Dec. 29, 2010 TESTED: Dec. 30, 2010 ~ Jan. 18, 2011 ISSUED: Feb. 15, 2011 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110104C15-1 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.............................................................................................. 4 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 12 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 12 4. TEST TYPES AND RESULTS .................................................................................... 13 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 13 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 13 4.1.3 TEST INSTRUMENTS................................................................................................ 14 4.1.4 TEST PROCEDURES ................................................................................................ 15 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 15 4.1.6 TEST SETUP.............................................................................................................. 16 4.1.7 EUT OPERATING CONDITION.................................................................................. 16 4.1.8 TEST RESULTS ......................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 28 4.2.2 TEST INSTRUMENTS................................................................................................ 28 4.2.3 TEST PROCEDURES ................................................................................................ 29 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 29 4.2.5 TEST SETUP.............................................................................................................. 30 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 30 4.2.7 TEST RESULTS ......................................................................................................... 31 4.3 PEAK TRANSMIT POWER MEASUREMENT ........................................................... 37 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ......................................... 37 4.3.2 TEST INSTRUMENTS................................................................................................ 37 4.3.3 TEST PROCEDURE................................................................................................... 38 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 38 4.3.5 TEST SETUP.............................................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.3.7 TEST RESULTS ......................................................................................................... 39 Report No.: RF110104C15-1 3 Report Format Version 4.0.0 4.4 PEAK POWER EXCURSION MEASUREMENT ........................................................ 43 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...................................... 43 4.4.2 TEST INSTRUMENTS................................................................................................ 43 4.4.3 TEST PROCEDURE................................................................................................... 43 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 44 4.4.5 TEST SETUP.............................................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ..…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 CONDUCTED EMISSION TEST (TEST MODE B) 3 CONDUCTED EMISSION TEST (TEST MODE C) 4 RADIATED EMISSION TEST (TEST MODE A) 5 RADIATED EMISSION TEST (TEST MODE B) 6 RADIATED EMISSION TEST (TEST MODE C)
