KA2HPW220AVA1Powerline AV Wireless N150 Mini Extender/Powerline AV Wireless N150 Mini Router

DHP-W220AV User Manual PowerLine AV Wireless N150 Mini Extender Version 1.00 | 11/13/2014 iD-Link DHP-W220AV User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2014 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. The purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power management mode. If you wish to power down this product, please simply unplug it from the power outlet. Power Usage This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. It can also be turned off through a power switch to save energy when it is not needed. Network Standby: 2.27 watts Switched Off: 0.05 watts RevisionDateDescription 1.0013 November, 2014• Initial release for A1 version Preface iiD-Link DHP-W220AV User Manual Table of Contents Preface .................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Power Usage ....................................................................................i Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 Connections ...........................................................................5 Buttons .....................................................................................6 LEDs ...........................................................................................7 Installation .........................................................................8 Wireless Installation Considerations ......................................8 Powerline Installation Considerations ................................10 Safety ..............................................................................................11 Configuration ...................................................................12 Setup ...............................................................................................12 Setup Wizard ........................................................................13 Wireless Settings .................................................................14 Clone My Wi-Fi ................................................................15 Network Settings ................................................................16 Static IP ..............................................................................16 Dynamic IP (DHCP) ........................................................17 PLC Settings .........................................................................18 Advanced ......................................................................................19 MAC Address Filter .............................................................19 Advanced Wireless .............................................................20 User Limit ...............................................................................21 Tools ................................................................................................22 Admin .....................................................................................22 Time .........................................................................................23 System ....................................................................................24 Firmware ................................................................................25 System Check .......................................................................26 Status ..............................................................................................27 Device Info ............................................................................27 Logs .........................................................................................28 Statistics .................................................................................29 Wireless ..................................................................................30 Help .................................................................................................31 Connecting to a Wireless Network .................................32 WPS Button ...................................................................................32 Windows® 8 ...............................................................…

Text truncated - open the document above for the full version.

客户： 品牌： 品名： 料号： 日期： 拟制审核批准 何东森李杰波程长红 电话：0769-82999981 传真：0769-82999985 地址：东莞市塘厦镇清湖头村清湖路40号 2013/08/09 规格/ 描述： 25.4*6.0*7.3//洋白铜//800000000269 800000000269 内置天线 物料承认书 深圳共进电子股份有限公司 第一项 -------------------- 封面 第二项 -------------------- 目录 第三项 -------------------- 样品检测报告 第四项 -------------------- 测试报告 第五项 -------------------- 材料成分表 第六项 -------------------- 物质调查表一 第七项 -------------------- 物质调查表二 第八项 -------------------- 保证书 第九项 -------------------- 申明书 第十项 -------------------- 图纸 承认书目录表 +- 样品1样品2样品3样品4样品5 OKNG 1 25.40 0.100.10 25.38925.36125.44225.43625.459 √ 2 2.50 0.100.10 2.5222.5162.5192.5232.534 √ 3 6.00 0.100.10 6.0056.0016.0136.0246.008 √ 4 7.00 0.100.10 6.9056.9146.9026.9316.921 √ 5 7.30 0.100.10 7.2567.2897.2547.2647.261 √ 6 1.000.100.10 1.0451.0311.0441.0321.042 √ 7 6.000.100.10 6.0616.0036.0526.0576.045 √ 8 2.50.100.10 2.5892.5462.5872.5462.552 √ 9 7.30.100.10 7.2177.2167.2057.2147.206 √ 10 4.70.100.10 4.6714.6784.6684.6754.672 √ 11 0.300.020.02 0.2940.2960.2990.2940.297 √ 测量 工具 二次元 二次元 二次元 二次元 二次元 二次元 二次元 东莞市贤华实业有限公司 样品检测报告 页 码 1/1 客 户 DATE: 2013-7-27 HKS61-159 HKS61 品 名 客户料号 洋白铜 0.3MM 表面处理 内置天线 图纸版本机种名 80000000269 材 质 判定 测量数据 / 模 号 A0 ■ 第一次送样 □ 第二次送样 □ 第三次送样 备注 序 号 规格 图纸尺寸 工程：何东森 审核：王波 测量员 ：刘志梅 二次元 二次元 二次元 FM-721-01-03 Rev: A0 备注： 二次元 型号： 物料名称： 规格： 测试日期： 样品1样品2样品3样品4OKNG 1材质目视 OKOKOKOKOK 2顔色 目视 Pantone OKOKOKOKOK 3尺寸卡尺 OKOKOKOKOK 4 硬度 测试 硬度计 OKOKOKOKOK 5 试配检 测 组装 OKOKOKOKOK 检验员：刘志梅批准： 内置天线 2013-7-27 HKS61 800000000269 结果判定 五金类测试报告 客户名称： 料 号： 800000000269 检验结果描述 序 号 检验 项目 检验方法 及工具 25.4*6.0*7.3//洋白铜 □维氏硬度计 □络氏硬度计 审核：王波 装配测试良好 检验标准 与订单/图纸要求一致 与订单/图纸要求一致, 色差△E≤1.0 与结构图纸一致，具体见 《样品读数报告》 料號 數量 此至 日 期﹕2013-7-27 以上用料記載無誤﹐若有不實﹐本公司愿負全責。 供應商﹕东莞贤华实业有限公司 負責人﹕王波 原 材 料 規 格 供 應 商 材 質 洋白铜 防 火 等 級 UL NOCSA NO 購單編號生產日期 材料名稱 内置天线 800000000269 使用機種 廠商使用原材料保証書 茲保証本公司﹕东莞贤华实业有限公司 所使用之 成型材料確实为同维图纸規定用料。 詳細資料如下: 兹证明我公司 关于我司产品 的原材料组成成分皆符合欧盟REACH指令。 特此证明！如有不实，本公司愿承担一切责任。 东莞市贤华实业有限公司 2013年8月9日 REACH指令自我申明 东莞市贤华实业有限公司 内置天线(800000000269) 1 / 1 1:1 N/A mm U7 XXXXXXXXXXXX 工艺要求 : 1 . 材料 : 洋白铜 0 . 3 MM 。 2 . 所有标注尺寸为检验用 , 重点管控尺寸用符号 * 标记 。 3 . 未标注公差请参照公差表 ， 用符号 ▲ 标示 。 4 . 表面不得有划碰伤和变形 。 5 . 去除披锋和毛刺 。 7 . 材料及后处理工艺符合 RoHS 要求 。 8 . 图纸比例为 1 ： 1 ， 未标明尺寸自行测量 。 TW2420-GND N/A N/A N/A

Report No.: T141009N06 Page A1 of A8 External Photo of EUT Report No.: T141009N06 Page A2 of A8 Report No.: T141009N06 Page A3 of A8

g Company : D-LINK Corporation Model: DHP-W220AV/DHP-1220A Product : Powerline AV Wireless N150 Mini Extender/ Powerline AV Wireless N150 Mini Router Label Here Maked in the manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan

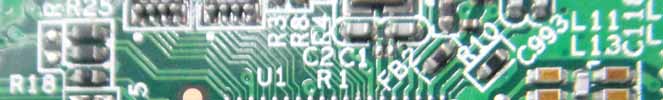

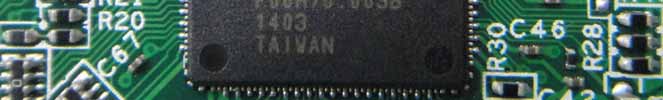

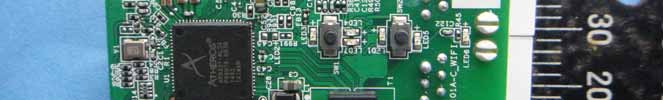

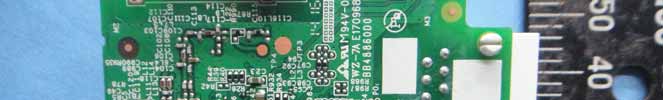

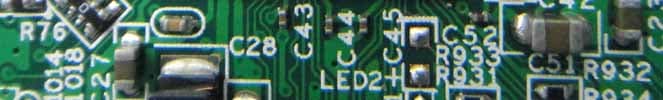

Report No.: T141009N06 Page A4 of A8 Internal Photo of EUT Report No.: T141009N06 Page A5 of A8 Report No.: T141009N06 Page A6 of A8 Report No.: T141009N06 Page A7 of A8 Report No.: T141009N06 Page A8 of A8

Compliance Certification Services Inc. Report No.: T141009N06-MF Date of Issue: November 03, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Powerline AV Wireless N150 Mini Extender/Powerline AV Wireless N150 Mini Router Model DHP-W220AV/DHP-1220AV Brand D-Link RF Module ATHEROS Model: AR9331-AL3A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain 2.4GHz 2.0 dBi (Numeric gain: 1.58) Maximum Average output power IEEE 802.11b Mode : 18.27 dBm (67.143 mW) IEEE 802.11g Mode : 22.75 dBm (188.365 mW) IEEE 802.11n HT20 Mode : 22.41 dBm (174.181 mW) IEEE 802.11n HT40 Mode : 22.07 dBm (161.065 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T141009N06-MF Date of Issue: November 03, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 03, 2014Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Report No.: T141009N06-MF Date of Issue: November 03, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T141009N06-MF Date of Issue: November 03, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 6 2437 67.143 1.58 20 0.0212 1 Pass IEEE 802.11g mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 6 2437 188.365 1.58 20 0.0594 1 Pass IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 6 2437 174.181 1.58 20 0.0549 1 Pass IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 6 2437 161.065 1.58 20 0.0508 1 Pass

Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 1 / 97 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2009 TEST REPORT For Powerline AV Wireless N150 Mini Extender/Powerline AV Wireless N150 Mini Router Model: DHP-W220AV/DHP-1220AV Brand: D-Link Issued for D-LINK Corporation No.289,Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Issued by Compliance Certification Services Inc. Tainan Lab. No.8, Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: November 18, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 2 / 97 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 03, 2014 Initial Issue ALL Sunny Chang 01 November 18, 2014 Update Con test data Page 88-91 Sunny Chang Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 3 / 97 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 6 4. TEST METHODOLOGY............................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS.................................................................................... 7 5.1 FACILITIES............................................................................................................................................7 5.2 EQUIPMENT..........................................................................................................................................7 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................8 6. CALIBRATION AND UNCERTAINTY..................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................8 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 9 7.1 SETUP CONFIGURATION OF EUT..................................................................................................9 7.2 SUPPORT EQUIPMENT.....................................................................................................................9 7.3 SETUP DIAGRAM FOR TESTS.........................................................................................................10 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 14 8.1 6DB BANDWIDTH................................................................................................................................14 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................24 8.3 POWER SPECTRAL DENSITY..........................................................................................................28 8.4 CONDUCTED SPURIOUS EMISSION.............................................................................................38 8.5 RADIATED EMISSIONS......................................................................................................................52 8.5.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS.......................................... 52 8.5.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz......................................... 57 8.5.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz......................................... 58 8.5.4 RESTRICTED BAND EDGES...................................................................................... 70 8.6 POWERLINE CONDUCTED EMISSIONS........................................................................................86 8.7 DUTY CYCLE........................................................................................................................................92 9. ANTENNA REQUIREMENT...................................................................................................... 93 9.1 STANDARD APPLICABLE..................................................................................................................93 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................93 APPENDIX SETUP PHOTOS........................................................................................................ 94 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 4 / 97 1. TEST REPORT CERTIFICATION Applicant D-LINK Corporation Address No.289,Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Manufacturer D-LINK Corporation Address No.289,Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Equipment Under Test Powerline AV Wireless N150 Mini Extender/Powerline AV Wireless N150 Mini Router Model DHP-W220AV/DHP-1220AV Brand D-Link Date of Test September 24, 2014 ~ October 21, 2014 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C: 2012 AND ANSI C63.4 : 2009 No …

Text truncated - open the document above for the full version.

Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 91 / 94 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 92 / 94 RADIATED RF MEASUREMENT SETUP Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 93 / 94 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T120724N42-RP1 FCC IDKA2HPW220AVA1 Report No.T141009N06-RP1 Page 94 / 94 CONDUCTED EMISSION SETUP
