KA2HPW310AVA1Powerline AV Wireless N mini Extender

2D-Link DHP-W310AV User Manual Table of Contents Product Overview ........................................................3 Package Contents ...................................................3 System Requirements .............................................4 Introduction ..............................................................5 Features ..................................................................6 Hardware Overview .................................................7 Connections .......................................................7 Side ....................................................................8 Installation ....................................................................9 Connecting the Powerline AV Adapter ....................9 Technical Specifications...........................................10 ....Federal Communication Commission Interference Statement ..............................................................11 Table of Contents 3D-Link DHP-W310AV User Manual Section 1 - Product Overview Product Overview D-Link DHP-W310AV Powerline AV+ Wireless N Mini Extender CAT5 Ethernet Cable Package Contents 4D-Link DHP-W310AV User Manual Section 1 - Product Overview Network Requirements • IEEE 802.11n or 802.11g wireless clients • 10/100 Ethernet clients Web-based Configuration Utility Requirements Computer with the following: • Windows ® , Macintosh ® , or Linux-based operating system • An installed Ethernet adapter Browser Requirements: • Internet Explorer 6.0 or higher • Firefox 3.0 or higher • Safari 3.0 or higher • Chrome 2.0 or higher Windows ® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version. CD Installation Wizard Requirements Computer with the following: • Windows ® XP with Service Pack 2 / Vista ® / Windows 7 • An installed Ethernet adapter • CD-ROM drive System Requirements 5D-Link DHP-W310AV User Manual Section 1 - Product Overview Introduction The DHP-W310AV Powerline AV+ Wireless N Mini Extender is ideal for home or office wireless networks that require very fast Internet connections. The DHP-W310AV provides wireless transmission speeds of up to 300 Mbps, enabling you to enjoy fast Internet access, stream High Definition content, and enjoy lag-free gaming and VoIP. The DHP- W310AV also supports hybrid networking, which utilizes wireless, Powerline, and wired Ethernet to create a reliable and efficient network for your entire home or office. 6D-Link DHP-W310AV User Manual Section 1 - Product Overview • Compatible with 802.11b and 802.11g Devices - The DHP-W310AV is still fully compatible with the 802.11b/g standards, so it can connect with existing 802.11b/g PCI, USB, and Cardbus adapters. • Compliant with the HomePlug AV - Provides physical layer data rate of over 200Mbps over existing in-home power lines. • WPS PBC - (Wi-Fi Protected Setup Push Button Configuration) Push Button Configuration is a button that can be pressed to add the device to an existing network or to create a new network. A virtual button can be used on the utility while a physical button is placed on the side of the device. This easy setup method allows you to form a secured wireless link between the DHP-W310AV and another WPS enabled device. A PC is no longer needed to log into the Web-based interface. • User-friendly Setup Wizard - Through its easy-to-use Web-based user you can configure your access point to your specific settings within minutes. Features 7D-Link DHP-W310AV User Manual Section 1 - Product Overview Hardware Overview Connections Powerline LED Wi-Fi LED Power LED Ethernet LED 8D-Link DHP-W310AV User Manual Section 1 - Product Overview Hardware Overview Side Reset Button Power On/Off Switch Common Connect Button LAN Port 9D-Link DHP-W310AV User Manual Section 2 - Installation Installation Connecting the Powerline AV Adapter It is easy to connect the DHP-W310AV simply by performing the following instructions: 1. Plug the DHP-W310AV into the wall outlet/socket. 2. Connect one end of the supplied CAT5 Ethernet cable to the Ethernet port on the DHP-W310AV and the other end of the cable to the device’s Ethernet interface. You can also enable wireless to connect to the WiFi devices using WPS. DHP-W310AV DHP-W310AV Computer 10D-Link DHP-W310AV User Manual Appendix C - Technical Specifications Technical Specifications DEVICE INTERFACES • One RJ-45 Ethernet LAN ports • 802.11n WLAN (AP wireless connection to computers) • Common connect button • Power ON/OFF switch • Reset button • Over 200Mbps Powerline WIRELESS LAN • 802.11b/g standards • 802.11n standard • Wireless speed: up to 300 Mbps (802.11n) • 64/128-bit WEP data encryption • WPA/WPA2 (Wi-Fi Protected Access) ADVANCED FEATURES • IPv6 support • Multicast over Unicast Technology OPERATION MODES • AP 2.4 GHz DIMENSIONS • 90 x 65 x 50 mm WEIGHT • 500 grams (1.10 lb) MAXIMUM POWER CONSUMPTION • AC: 10 watts • DC: 6 watts TEMPERATURE • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F) HUMIDITY • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing CERTIFICATIONS • CE/LVD • FCC • IC • UL • CB • Homeplug AV • IPv6 1. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. 2. Range varies depending on country’s regulation. 11D-Link DHP-W310AV User Manual Appendix C - Technical Specifications This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found…

Text truncated - open the document above for the full version.

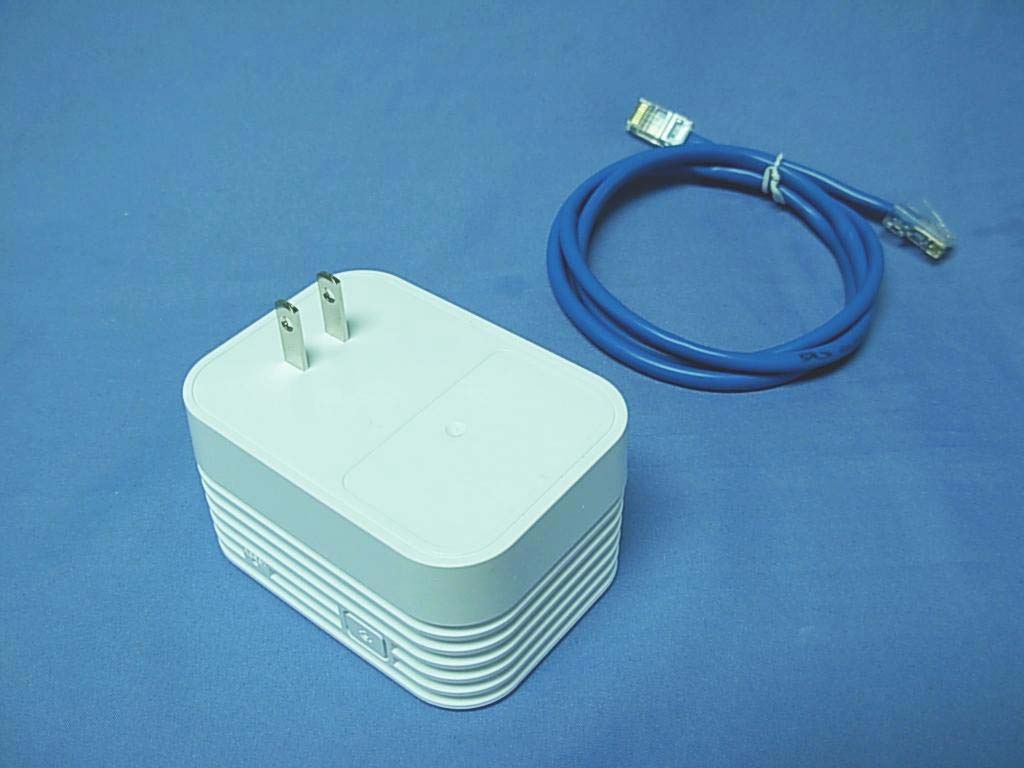

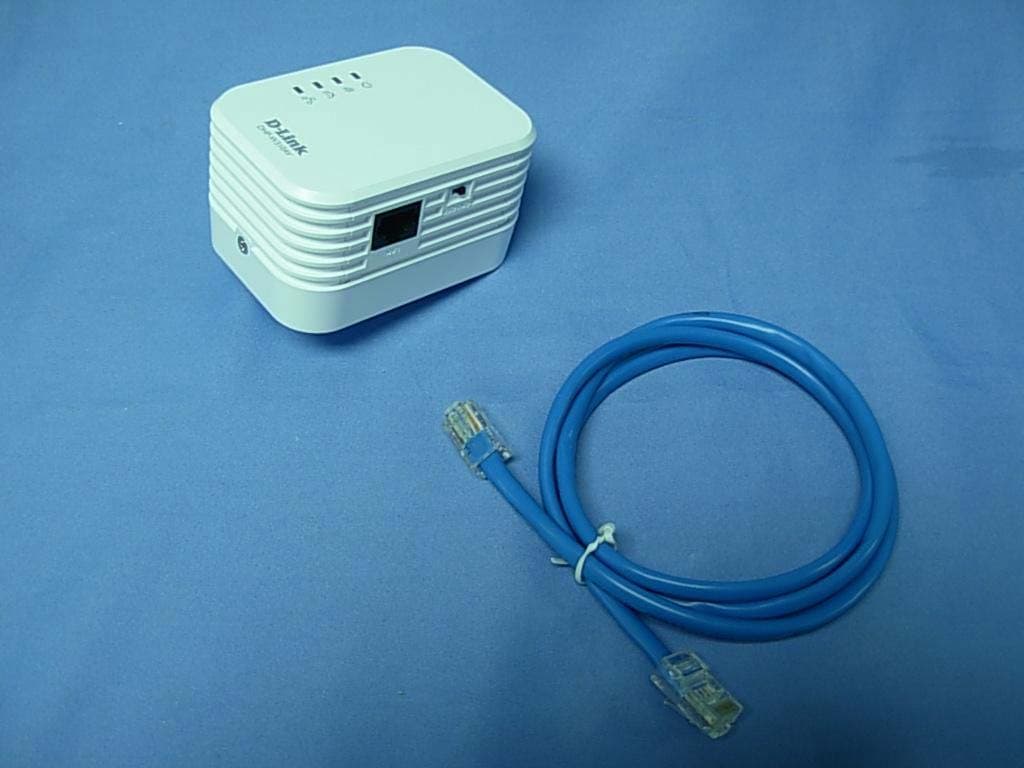

Report No： 128260R-RFUSP42V01 Page: 176 of 184 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID.: KA2HPW310AVA1 FCC ID AND DoC Label

D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID.: KA2HPW310AVA1 FCC ID AND DoC Label

Report No： 128260R-RFUSP42V01 Page: 177 of 184 (3) EUT Photo (4) EUT Photo Report No： 128260R-RFUSP42V01 Page: 178 of 184 (5) EUT Photo (6) EUT Photo Report No： 128260R-RFUSP42V01 Page: 179 of 184 (7) EUT Photo (8) EUT Photo Report No： 128260R-RFUSP42V01 Page: 180 of 184 (9) EUT Photo (10) EUT Photo Report No： 128260R-RFUSP42V01 Page: 181 of 184 (11) EUT Photo (12) EUT Photo Report No： 128260R-RFUSP42V01 Page: 182 of 184 (13) EUT Photo (14) EUT Photo Report No： 128260R-RFUSP42V01 Page: 183 of 184 (15) EUT Photo (16) EUT Photo Report No： 128260R-RFUSP42V01 Page: 184 of 184 (17) EUT Photo (MB) (18) EUT Photo (ANT)

Report No. 128260R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation declaration Product Name ： Powerline AV+ Wireless N Mini Extender Model No. ： DHP-W310AV FCC ID. ： KA2HPW310AVA1 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : 2012/08/13 Date of Declaration : 2012/09/20 Report No. : 128260R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 128260R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 128260R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Powerline AV+ Wireless N Mini Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5dBi or 1.41 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 18.41 0.0052 6 2437 18.07 0.0051 11 2462 17.30 0.0049 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 22.08 0.0062 6 2437 21.58 0.0061 11 2462 20.09 0.0056 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 128260R-RF-US-Exp Page: 4 of 4 Product Powerline AV+ Wireless N Mini Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5dBi or 1.41 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 39.36 0.0110 6 2437 35.08 0.0098 11 2462 38.11 0.0107 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 36.14 0.0101 6 2437 35.56 0.0100 9 2452 33.81 0.0095 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 128260R-RFUSP42V01 Page: 1 of 184 Test Report Product Name ： PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Model No. ： DHP-W310AV FCC ID. ： KA2HPW310AVA1 Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt：2012/08/13 Issued Date ：2012/09/20 Report No. ：128260R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 128260R-RFUSP42V01 Page: 2 of 184 Test Report Certification Issued Date : 2012/09/20 Report No. : 128260R-RFUSP42V01 Product Name ： PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Manufacturer ： D-Link Corporation Model No. ： DHP-W310AV FCC ID. ： KA2HPW310AVA1 EUT Test Voltage : AC 100-240V, 50-60Hz Trade Name ： D-Link Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Demi Chang / Engineering Adm. Specialist) Reviewed By : ( Quale Tang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 128260R-RFUSP42V01 Page: 3 of 184 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 9 1.3. Test Mode ..................................................................................................................... 10 1.4. Tested System Details .................................................................................................. 11 1.5. Configuration of tested System .................................................................................... 11 1.6. EUT Exercise Software ................................................................................................ 11 1.7. Test Facility...................................................................................................................12 2. Conducted Emission .......................................................................................................... 14 2.1. Test Equipment............................................................................................................. 14 2.2. Test Setup .................................................................................................................... 14 2.3. Limits ............................................................................................................................ 15 2.4. Test Procedure ............................................................................................................. 15 2.5. Test Specification.......................................................................................................... 15 2.6. Uncertainty ................................................................................................................... 15 2.7. Test Result....................................................................................................................16 2.8. Test Photo .................................................................................................................... 18 3. Peak Power Output ............................................................................................................ 19 3.1. Test Equipment............................................................................................................. 19 3.2. Test Setup .................................................................................................................... 19 3.3. Test procedures ............................................................................................................ 19 3.4. Limits ............................................................................................................................ 19 3.5. Test Specification.......................................................................................................... 19 3.6. Uncertainty ................................................................................................................... 19 3.7. Test Result....................................................................................................................20 4. Radiated Emission ............................................................................................................. 46 4.1. Test Equipment............................................................................................................. 46 4.2. Test Setup .................................................................................................................... 46 4.3. Limits ............................................................................................................................ 47 4.4. Test Procedure ............................................................................................................. 47 4.5. Test Specification.......................................................................................................... 47 4.6. Uncertainty ................................................................................................................... 47 4.7. Test Result....................................................................................................................48 4.8. Test Photo ................…

Text truncated - open the document above for the full version.

Report No： 128260R-RFUSP42V01 Page: 46 of 184 4. Radiated Emission 4.1. Test Equipment The following test equipments are used during the test: Radiated Emission / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Bilog Antenna SCHAFFNER CBL6112B 2895 2013/08/14 Double Ridged Guide Horn Antenna Schwarzback BBHA 9120D 743 2013/02/02 Pre-Amplifier MITEQ AMF-4D-005180-24-10P 888003 2012/12/05 Pre-Amplifier QuieTek AP-025C CHM-0706049 2013/03/01 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 4.2. Test Setup Under 1GHz Test Setup: Above 1GHz Test Setup: Report No： 128260R-RFUSP42V01 Page: 47 of 184 4.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. FCC Part 15 Subpart C Paragraph 15.209 Limits Frequency MHz dBuV/m dBuV/m 30-88 100 40 88-216 150 43.5 216-960 200 46 Above 960 500 54 Remarks: E field strength (dBuV/m) = 20 log E field strength (uV/m) 4.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. On any frequency or frequencies below or equal to 1000 MHz, the limits shown are based on measuring equipment employing a quasi-peak detector function and on any frequency or frequencies above 1000 MHz the radiated limits shown are based upon the use of measurement instrumentation employing an average detector function. When average radiated emission measurement are included emission measurement below 1000 MHz, there also is a limit on the radio frequency emissions, as measured using instrumentation with a peak detector function, corresponding to 20 dB above the maximum permitted average limit. The bandwidth below 1GHz setting on the field strength meter is 120 kHz and above 1GHz is 1MHz. 4.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2011 4.6. Uncertainty The measurement uncertainty 30MHz～1GHz as ±3.43dB 1GHz～26.5Ghz as ±3.65dB Report No： 128260R-RFUSP42V01 Page: 48 of 184 4.7. Test Result 30MHz-1GHz Spurious Site : CB1 Time : 2012/09/03 - 13:03 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-1_0901 - HORIZONTAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : Mode 1: Transmit _802.11b_2437MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 101.133 -8.977 44.88335.906-7.594 43.500 QUASIPEAK 2 249.867 -13.634 47.39033.756-12.244 46.000 QUASIPEAK 3 400.217 -11.027 45.51634.489-11.511 46.000 QUASIPEAK 4 600.683 -7.125 44.08836.963-9.037 46.000 QUASIPEAK 5 749.417 -8.717 38.26929.553-16.447 46.000 QUASIPEAK 6 875.517 -8.997 35.04826.051-19.949 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No： 128260R-RFUSP42V01 Page: 49 of 184 Site : CB1 Time : 2012/09/03 - 13:06 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-1_0901 - VERTICAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : Mode 1: Transmit _802.11b_2437MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 101.133 -8.977 48.02439.047-4.453 43.500 QUASIPEAK 2 249.867 -13.634 43.80830.174-15.826 46.000 QUASIPEAK 3 400.217 -11.027 42.76831.741-14.259 46.000 QUASIPEAK 4 600.683 -7.125 43.11735.992-10.008 46.000 QUASIPEAK 5 749.417 -8.717 39.30030.584-15.416 46.000 QUASIPEAK 6 875.517 -8.997 35.29426.297-19.703 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No： 128260R-RFUSP42V01 Page: 50 of 184 Site : CB1 Time : 2012/09/03 - 13:10 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-1_0901 - HORIZONTAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : Mode 1: Transmit _802.11g_2437MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 * 101.133 -8.977 43.89834.921-8.579 43.500 QUASIPEAK 2 249.867 -13.634 46.97133.337-12.663 46.000 QUASIPEAK 3 400.217 -11.027 45.27834.251-11.749 46.000 QUASIPEAK 4 600.683 -7.125 43.45436.329-9.671 46.000 QUASIPEAK 5 749.417 -8.717 37.64728.931-17.069 46.000 QUASIPEAK 6 875.517 -8.997 34.08225.085-20.915 46.000 QUASIPEAK Note: 1. All Reading Levels are Quasi-Peak value. 2. “ * ”, means this data is the worst emission level. 3. Measurement Level = Reading Level + Correct Factor. Report No： 128260R-RFUSP42V01 Page: 51 of 184 Site : CB1 Time : 2012/09/03 - 13:14 Limit : FCC_CLASS_B_03M_QP Margin : 6 Probe : CB1_FCC_EFS_30-1G-1_0901 - VERTICAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : Mode 1: Transmit _802.11g_2437MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Lev…

Text truncated - open the document above for the full version.

Report No： 128260R-RFUSP42V01 Page: 102 of 184 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120D 743 2013/02/02 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 128260R-RFUSP42V01 Page: 103 of 184 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2011 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 128260R-RFUSP42V01 Page: 104 of 184 6.7. Test Result Radiated is defined as Site : CB1 Time : 2012/08/29 - 14:38 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.263 24.55852.821-21.179 74.000 PEAK 2 * 2386.800 28.563 26.03654.599-19.401 74.000 PEAK 3 2390.000 28.575 24.83453.409-20.591 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 128260R-RFUSP42V01 Page: 105 of 184 Site : CB1 Time : 2012/08/29 - 14:39 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.263 11.50039.763-14.237 54.000 AVERAGE 2 2389.400 28.573 11.96040.533-13.467 54.000 AVERAGE 3 * 2390.000 28.575 11.99340.568-13.432 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 128260R-RFUSP42V01 Page: 106 of 184 Site : CB1 Time : 2012/08/29 - 14:45 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.263 24.79253.055-20.945 74.000 PEAK 2 * 2383.600 28.550 27.03155.581-18.419 74.000 PEAK 3 2390.000 28.575 25.64254.217-19.783 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 128260R-RFUSP42V01 Page: 107 of 184 Site : CB1 Time : 2012/08/29 - 14:46 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V / 60Hz EUT : PowerLine AV 500 Wireless N Mini Extender/ PowerLine AV+ Wireless N Mini Extender Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.263 11.56439.827-14.173 54.000 AVERAGE 2 2389.400 28.573 12.32340.896-13.104 54.000 AVERAGE 3 * 2390.000 28.575 12.38440.959-13.041 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 128260R-RFUSP42V01 Page: 108 of 184 Site : CB1 Time : 2012/08/29 -…

Text truncated - open the document above for the full version.

Report No： 128260R-RFUSP42V01 Page: 18 of 184 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 128260R-RFUSP42V01 Page: 80 of 184 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 128260R-RFUSP42V01 Page: 81 of 184 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
