KA2HPW312AVA1Power Line AV 500 Wireless AC600 Extender

D-Link Corporation
Power Line AV 500 Wireless AC600 Extender - FCC ID KA2HPW312AVA1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 14, 2014
Application Purpose
Original Equipment
Date of Application
Aug 13, 2014
Equipment Note
Power Line AV 500 Wireless AC600 Extender
Frequency Range
2422.00000000 - 2452.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

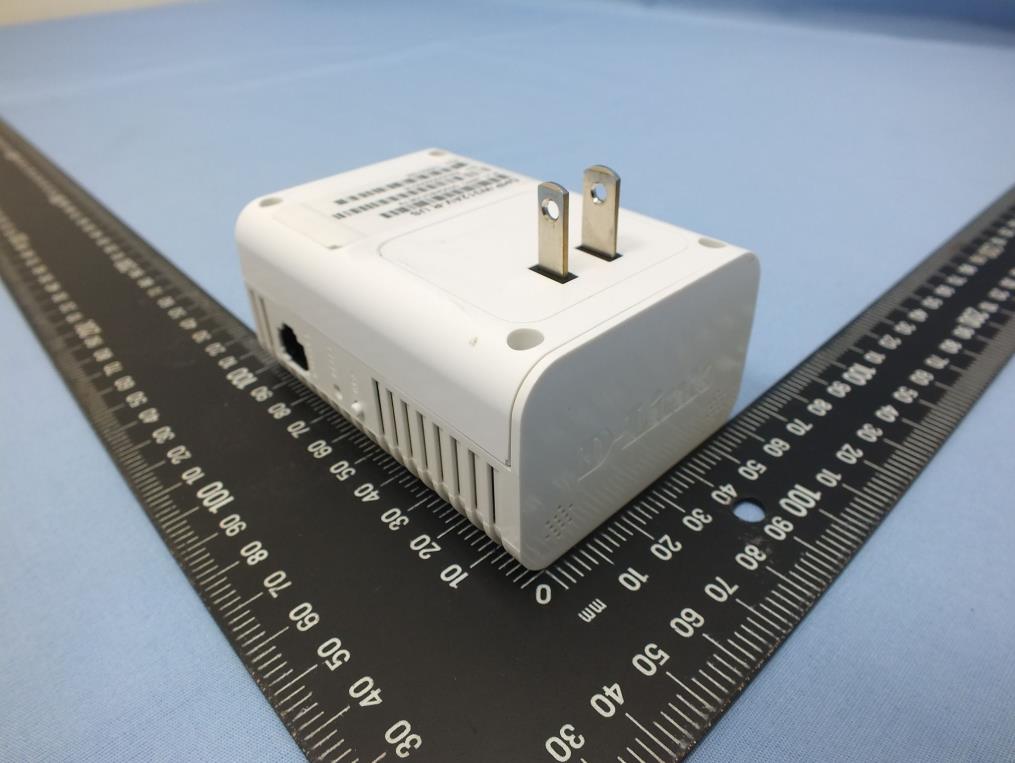

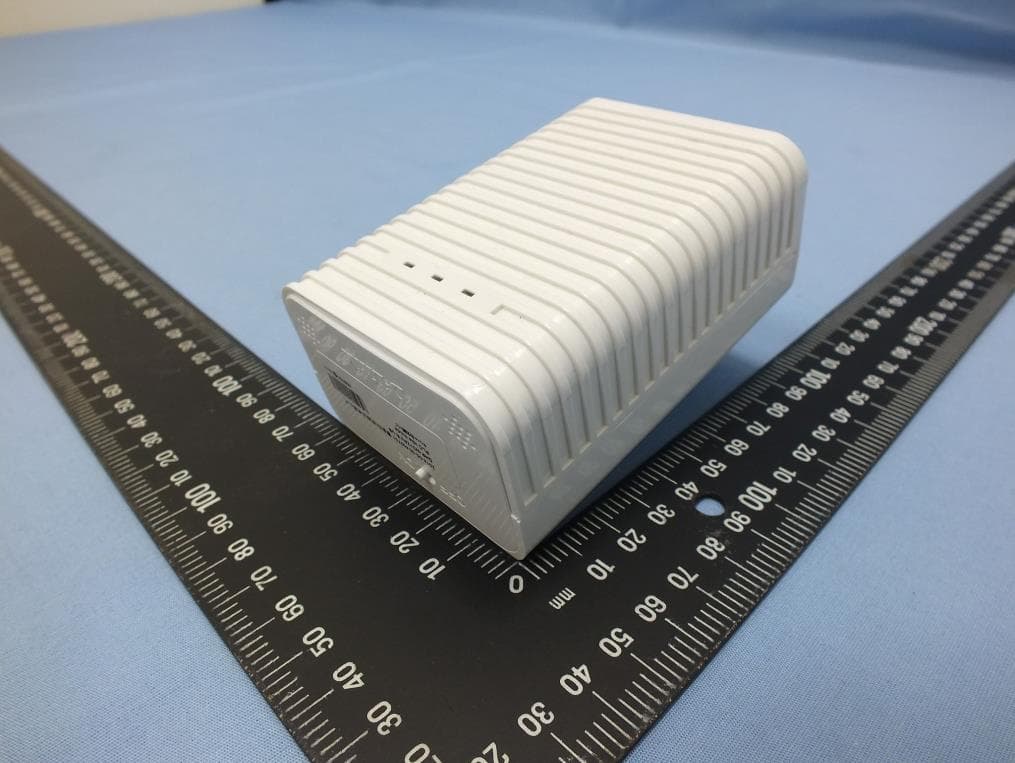

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DHP-W312AV User Manual Version 1.00 | 22/07/2014 PowerLine AV 500 Wireless AC600 Extender 2D-Link DHP-W312AV User Manual Table of Contents Product Overview ..............................................................................4 Package Contents ...........................................................................................4 System Requirements ....................................................................................5 Introduction ......................................................................................................5 Connections .............................................................................................7 Side ..............................................................................................................8 LEDs ............................................................................................................9 Hardware Installation .....................................................................10 Wireless Installation Considerations ......................................................11 Powerline Installation Considerations ...................................................12 Safety .................................................................................................................13 Configuration ...................................................................................14 Setup ..................................................................................................................14 Hybrid Link Setup ................................................................................15 Wireless Settings ..................................................................................16 LAN Settings ..........................................................................................17 LAN Settings - Static IP .................................................................18 PL C Settings ..........................................................................................19 Advanced .........................................................................................................20 MAC Address Filter...............................................................................20 Advanced Wireless ...............................................................................21 User Limit ................................................................................................22 Tools ...................................................................................................................23 Admin .......................................................................................................23 System ......................................................................................................24 Firmware..................................................................................................25 Time ..........................................................................................................26 System Check ........................................................................................27 Status .................................................................................................................28 Device Info ..............................................................................................28 Logs ...........................................................................................................29 Statistics ...................................................................................................30 Wireless ....................................................................................................31 IPv6 ............................................................................................................32 Support .............................................................................................................33 Wireless Security .............................................................................34 What is WEP? ...................................................................................................34 What is WPA? ...................................................................................................35 Configuring WEP ...........................................................................................36 Configuring WPA/WPA2Personal .............................................................37 Connecting to a Wireless Network .................................................38 Using Windows ® 7 ..........................................................................................38 Using Windows Vista ® ..................................................................................41 Configuring Wireless Security..........................................................43 Using Windows ® XP .......................................................................................45 Configuring WPA-PSK .........................................................................46 Troubleshooting ..............................................................................48 Wireless Basics ................................................................................50 What is Wireless? ...........................................................................................51 Table of Contents 3D-Link DHP-W312AV User Manual Table of Contents How does wireless work? ..................................................................51 Wireless Local Area Network (WLAN) ...........................................51 Networking Basics ...........................................................................54 Check your IP address ..................................................................................54 Statically Assign an IP address ..................................................................55 Technical Specifications .......................................…

Text truncated - open the document above for the full version.

External Photos

Report No. : EP450701 SPORTON International Inc. Page No. : 1 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP450701 SPORTON International Inc. Page No. : 2 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973

ID Label/Location Info

Label location

Internal Photos

Report No. : EP450701 SPORTON International Inc. Page No. : 3 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 4 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 5 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 6 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 7 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 8 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 9 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 10 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 11 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 12 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 13 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 14 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP450701 SPORTON International Inc. Page No. : 15 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973

RF Exposure Info

RF Exposure Report Report No. : FA450701 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA450701 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA450701 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) 2400-2483.5 17.26 2.41 19.67 0.018 1 5150-5250 15.24 4.63 19.87 0.019 1 5725-5850 15.16 4.63 19.79 0.019 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) MPE of Co-location evaluation: 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1 PD = Power density 1) 2.4 + 5.2GHz = 0.018 / 1 + 0.019 / 1 = 0.037 < 1 2) 2.4 + 5.8GHz = 0.018 / 1 + 0.019 / 1 = 0.037 < 1

Test Report

FCC Test Report Report No. : FR450701AC SPORTON INTERNATIONAL INC. Page No. : 1 of 67 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : PowerLine AV 500 Wireless AC600 Extender Brand Name : D-Link Model No. : DHP-W312AV FCC ID : KA2HPW312AVA1 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, CA 92708 U.S.A The product sample received on May 07, 2014 and completely tested on Jun. 05, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR450701AC SPORTON INTERNATIONAL INC. Page No. : 2 of 67 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 6dB Bandwidth ..................................................................................................................................... 15 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Emissions in non-restricted frequency bands ...................................................................................... 24 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 37 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 66 A PPENDIX A. TEST PHOTOS ................................................................................................................. A1-A3 FCC Test Report Report No. : FR450701AC SPORTON INTERNATIONAL INC. Page No. : 3 of 67 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1805620MHz 56.52 (Margin 7.94dB) – QP 50.03 (Margin 4.43dB) – AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M:9.10 / 40M:35.36 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 25.03 Power [dBm]: 30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/3kHz]: 2.05 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 20dB below the highest power Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:2483.50MHz 73.00 (Margin 1.00dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR450701AC SPORTON INTERNATIONAL INC. Page No. : 4 of 67 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR450701AC Rev. 01 Initial issue of report Jul. 30, 2014 FCC Test Report Report No. : FR450701AC SPORTON INTERNATIONAL INC. Page No. : 5 of 67 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 1…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Photos Report No. : FR450701 SPORTON INTERNATIONAL INC. Page No. : A1 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR450701 SPORTON INTERNATIONAL INC. Page No. : A2 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW Test Photos Report No. : FR450701 SPORTON INTERNATIONAL INC. Page No. : A3 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emission Test FRONT VIEW REAR VIEW

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz290.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 20 cm from all persons. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz BW modes.
