KA2I524I1Wireless 150 Router

Manual Wireless Router DI-524 2 Contents Package Contents ................................................................................3 Introduction ...........................................................................................4 Wireless Basics ....................................................................................8 Getting Started ....................................................................................11 Using the Configuration Menu ............................................................12 Networking Basics ..............................................................................40 Troubleshooting ..................................................................................55 Technical Specifications .....................................................................62 Frequently Asked Questions...............................................................65 3 Internet Explorer Version 6.0 or Netscape Navigator Version 7.0 and Above Contents of Package: D-Link DI-524 Wireless 150 Router Switching 5V/1A Full-Range Manual and Warranty on CD Quick Installation Guide Ethernet Cable (All the DI-524’s Ethernet ports are Auto-MDIX) Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter Package Contents Note: Using a power supply with a different voltage rating than the one included with the DI-524 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. System Requirements for Configuration:        Ethernet-Based Cable or DSL Modem  4 Introduction The D-Link DI-524 is based on 802.11n technology, wireless router that supports high- speed wireless networking at home, at work or in public places. Unlike most routers, the DI-524 provides data transfers at up to 150 Mbps (compared to the standard 54 Mbps) when used with other D-Link N products. The 802.11g standard is backwards compatible with 802.11b products. This means that you do not need to change your entire network to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix 802.11b and 802.11g devices, but you will not lose the ability to communicate when you incorporate the 802.11g standard into your 802.11b network. You may choose to slowly change your network by gradually replacing the 802.11b devices with 802.11g devices . In addition to offering faster data transfer speeds when used with other 802.11g products, the DI-524 has the newest, strongest, most advanced security features available today. When used with other 802.11g WPA (WiFi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at a regular interval. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security. (By contrast, the older WEP encryption required the keys to be changed manually.) 802.1x: Authentication is a first line of defense against intrusion. In the Authentication process the server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DI-524, used in conjunction with other 802.11g products, will still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA, the DI-524 will obtain a new security key every time it connects to the 802.11g network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security, with the DI-524, you will automatically receive a new key every time you connect, vastly increasing the safety of your communications. 5 Connections All Ethernet Ports (WAN and LAN) are auto MDI/MDIX, meaning you can use either a straight-through or a crossover Ethernet cable. The Auto MDI/ MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem Auto MDI/MDIX LAN ports automatically sense the cable type when connecting to Ethernet-enabled computers. Receptor for the Power Adapter Pressing the Reset Button restores the router to its original factory default settings. 6 LEDs WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission POWER LED A solid light indicates a proper connection to the power supply LOCAL NETWORK LED A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission WAN LED A solid light indicates connection on the WAN port. This LED blinks during data transmission 7 Features WPA (Wi Fi Protected Access) authorizes and identifies users based on a secret key that changes automatically at a regular interval, for example: 802.1x Authentication in conjunction with the RADIUS server verifies the identity of would be clients    TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre Shared Key mode means that the home user, without a RADIUS server, will obtain a new security key every time the he or she connects to the network, vastly improving the safety of communications on the network.  Backwards compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps  Fully compatible with the 802.11g standard to provide a wireless data rate of up to 54Mbps   Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing)  User-friendly configuration and diagnostic utilities Operates in the 2.4GHz frequency range   Connects multiple computers to a Broadband (Cable or…

Text truncated - open the document above for the full version.

61 8. Resetting the DI-524 to Factory Default Settings After you have tried other methods for troubleshooting your network, you may choose to Reset the DI-524 to the factory default settings. Remember that D-Link AirPro products network together , out of the box, at the factory default settings. To hard-reset the DI-524 to Factory Default Settings, please do the following: Troubleshooting     After the DI-524 reboots (this may take a few minutes) it will be reset to the factory Default settings Use a paper clip to press the Reset button Hold for about 10 seconds and then release Locate the Reset button on the back of the DI-524 Reset 62 IP Filtering URL Filtering Domain Blocking Scheduling Based on IEEE 802.11n (draft 2.0) Technology IEEE 802.11g IEEE 802.11b IEEE 802.3 IEEE 802.3u Technical Specifications L2TP    Standards VPN Pass Through/ Multi-Sessions PPTP Device Management Web-Based- Internet Explorer v6 or later; Netscape Navigator v7 or later; or other Java-enabled browsers Advanced Firewall Features NAT with VPN Passthrough (Network Address Translation)         95% maximum (non-condensing) Wireless Operating Range Operating Temperature 32ºF to 104ºF (0ºC to 40ºC)  Humidity:   Indoors – up to 328 feet (100 meters)  IPSec  DHCP Server and Client  MAC Filtering  Outdoors – up to 984 feet (300 meters) Safety and Emissions: FCC, CE   2.4GHz to 2.462GHz  Wireless Frequency Range:  63 LEDs: Power WAN Physical Dimensions: Technical Specifications   L = 5.6 inches (142mm) W = 4.3 inches (109mm) H = 1.2 inches (31mm)    Wireless Transmit Power: 15dBm± 5dB  Security: 802.1x WEP WPA WPA-PSK   External Antenna Type: Single Fixed Antenna  Orthogonal Frequency Division Multiplexing (OFDM) Modulation Technology:  Power Input: Ext. Power Supply DC 5V, 1A Weight: 0.44 lbs. (200g)  LAN (10/100) WLAN (Wireless Connection)    Warranty: 1 year  64 Max physical rate up to 150 Mbps in 802.11n mode 54 Mbps 48 Mbps 36 Mbps 24 Mbps 18 Mbps 12 Mbps 11 Mbps 9 Mbps 6 Mbps 5.5 Mbps 2 Mbps 1 Mbps Wireless Data Rates with Automatic Fallback:    54Mbps OFDM, 10% PER, -68dBm 48Mbps OFDM, 10% PER, -70dBm 36Mbps OFDM, 10% PER, -75dBm   Receiver Sensitivity: 24Mbps OFDM, 10% PER, -79dBm 18Mbps OFDM, 10% PER, -82dBm 12Mbps OFDM, 10% PER, -84dBm    11Mbps CCK, 8% PER, -82dBm 9Mbps OFDM, 10% PER, -86dBm 6Mbps OFDM, 10% PER, -88dBm 5.5Mbps CCK, 8% PER, -85dBm 2Mbps QPSK, 8% PER, -86dBm 1Mbps BPSK, 8% PER, -89dBm  Technical Specifications                 65 Frequently Asked Questions When entering the IP Address of the DI-524 (192.168.0.1), you are not connecting to the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility. To resolve difficulties accessing a web utility, please follow the steps below. Step 1 Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a different cable or connect to a different port on the device if possible. If the computer is turned off, the link light may not be on. The following connections require a Crossover Cable: Computer to Computer Computer to Uplink Port Computer to Access Point Computer to Print Server Computer/XBOX/PS2 to DWL-810 Computer/XBOX/PS2 to DWL-900AP+ Uplink Port to Uplink Port (hub/switch) Normal Port to Normal Port (hub/switch) The following connections require a Straight-through Cable: Computer to Residential Gateway/Router Computer to Normal Port (hub/switch) Access Point to Normal Port (hub/switch) Print Server to Normal Port (hub/switch) Uplink Port to Normal Port (hub/switch) Rule of Thumb: ”If there is a link light, the cable is right.” What type of cable should I be using? Why can ́t I access the web based configuration? 66 Frequently Asked Questions (continued) What type of cable should I be using? (continued) What ́s the difference between a crossover cable and a straight-through cable? The wiring in crossover and straight-through cables are different. The two types of cable have different purposes for different LAN configurations. EIA/TIA 568A/568B define the wiring standards and allow for two different wiring color codes as illustrated in the following diagram. *The wires with colored backgrounds may have white stripes and may be denoted that way in diagrams found elsewhere. How to tell straight-through cable from a crossover cable: The main way to tell the difference between the two cable types is to compare the wiring order on the ends of the cable. If the wiring is the same on both sides, it is straight-through cable. If one side has opposite wiring, it is a crossover cable. All you need to remember to properly configure the cables is the pinout order of the two cable ends and the following rules: A straight-through cable has identical ends A crossover cable has different ends It makes no functional difference which standard you follow for straight-through cable ends, as long as both ends are the same. You can start a crossover cable with either standard as long as the other end is the other standard. It makes no functional difference which end is which. The order in which you pin the cable is important. Using a pattern other than what is specified in the above diagram could cause connection problems. When to use a crossover cable and when to use a straight-through cable: Computer to Computer – Crossover Computer to an normal port on a Hub/Switch – Straight-through Computer to an uplink port on a Hub/Switch - Crossover Hub/Switch uplink port to another Hub/Switch uplink port – Crossover Hub/Switch uplink port to another Hub/Switch normal port - Straight-through Why can ́t I access the web based configuration? (continued) 67 Step 3 Configure your Internet settings. Step 2 Disable any Internet security software running on the computer. Software firewalls like Zone Alarm, Black…

Text truncated - open the document above for the full version.

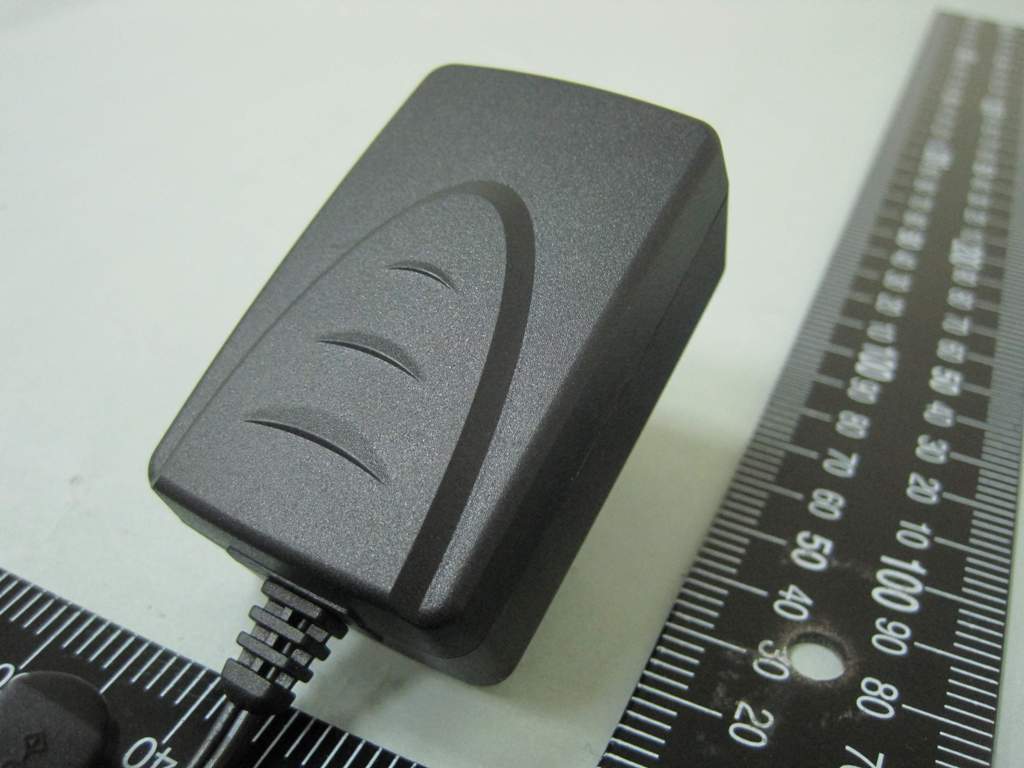

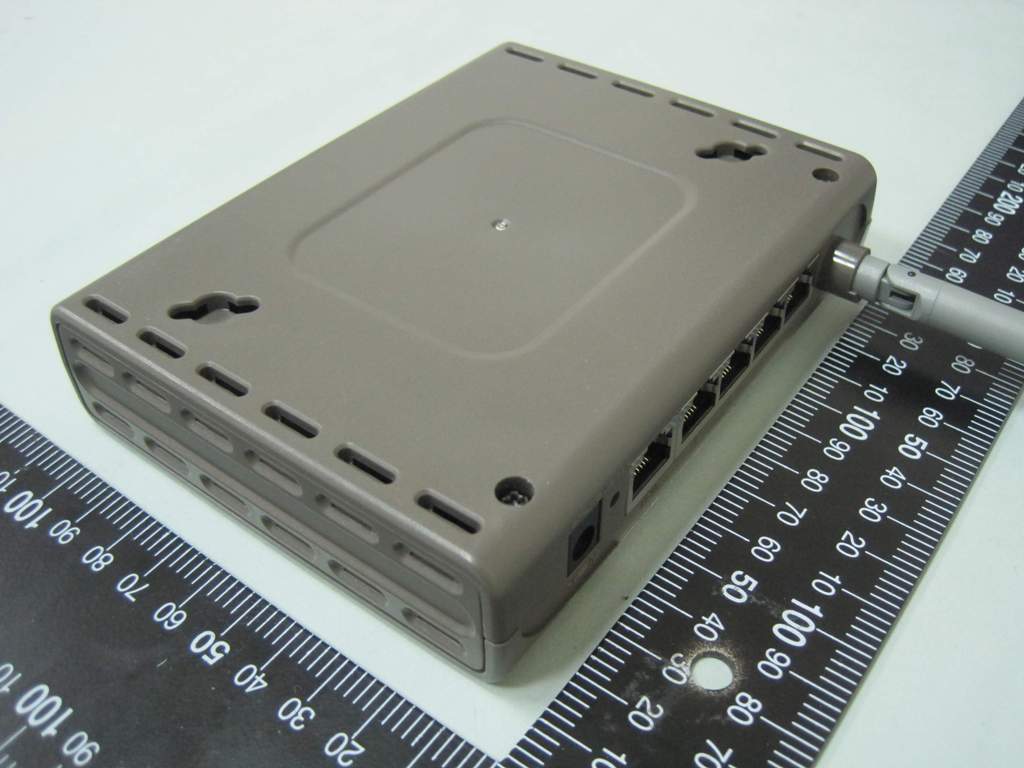

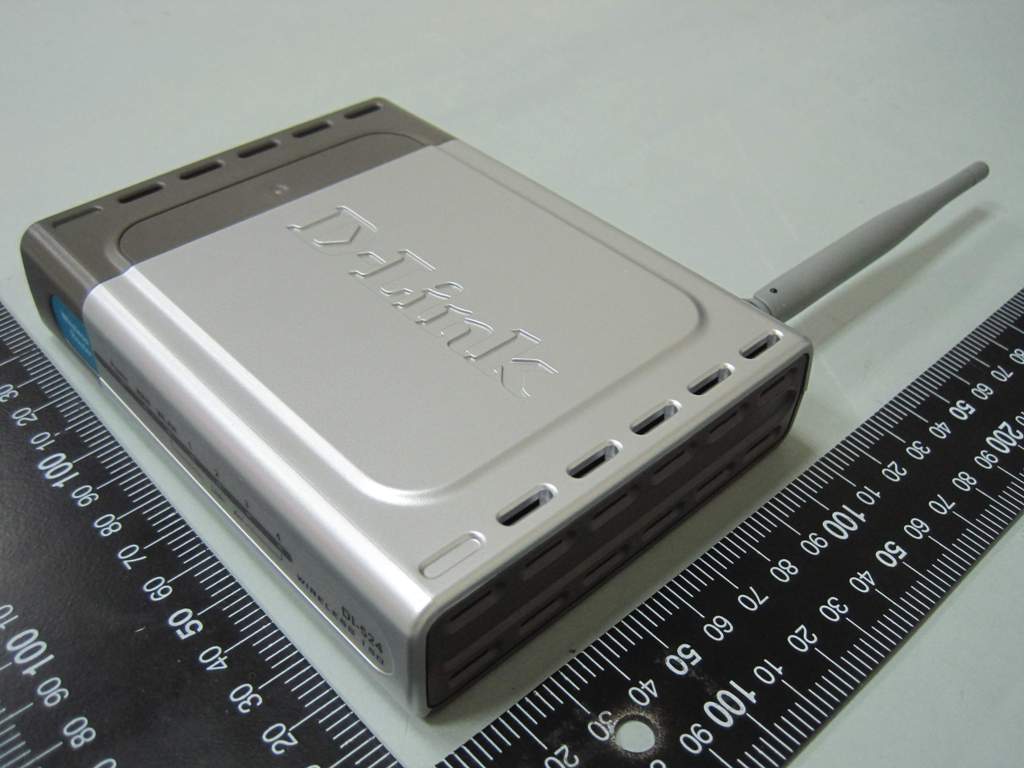

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255

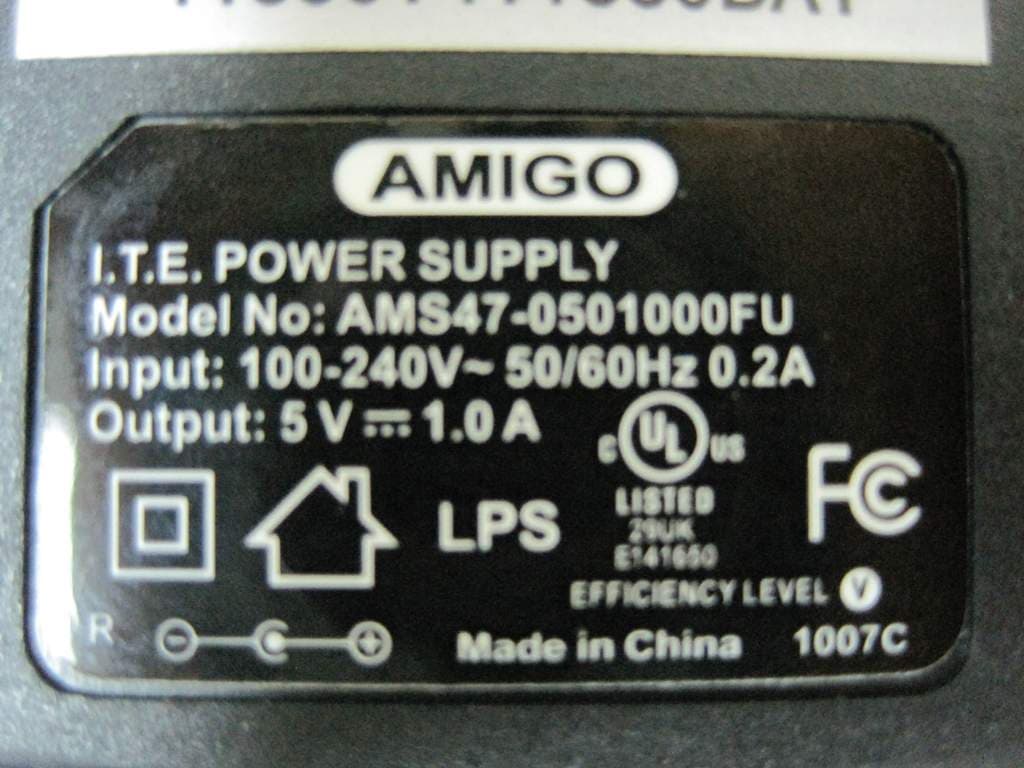

Label size: 75mm*60mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2011 FAX : 886-2-2696-2255

Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2 m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g Ant. A: 26.58 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.40 1.3804 26.5800 454.9881 0.125012 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation Applicant Address No.289 , Sinhu 3 rd , Neihu District Taipei City 114 , Taiwan , R.O.C. FCC ID KA2I524I1 Manufacturer’s company Advance Multimedia Internet Technology Inc. Manufacturer Address No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Product Name Wireless 150 Router Brand Name D-Link Model Name DI-524 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 14, 2011 Final Test Date Jan. 17, 2011 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR111408 Report Format Version: 01 Page No. : i of ii FCC ID: KA2I524I1 Issued Date : Jan. 18, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 3 3.3. Table for Filed Antenna....................................................................................................................................................................... 3 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 3 3.5. Table for Test Modes ........................................................................................................................................................................... 4 3.6. Table for Testing Locations .................................................................................................................................................................. 4 3.7. Table for Supporting Units ................................................................................................................................................................... 5 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 5 3.9. Test Configurations ............................................................................................................................................................................. 6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 8 4.2. Maximum Conducted Output Power Measurement ......................................................................................................................... 12 4.3. Power Spectral Density Measurement .............................................................................................................................................. 14 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 19 4.5. Radiated Emissions Measurement .................................................................................................................................................... 24 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 33 4.7. Antenna Requirements ..................................................................................................................................................................... 38 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 39 6. TEST LOCATION.............................................................................................................................................. 41 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 42 APPENDIX A. PHOTOGRAPHS OF EUT .......................................................................................................... A1 ~ A9 APPENDIX B. TEST PHOTOS .......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE ............................…

Text truncated - open the document above for the full version.

Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 4 of 5 Test Configuration: 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR111408 FCC ID: KA2I524I1 Page No. : 5 of 5 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW
