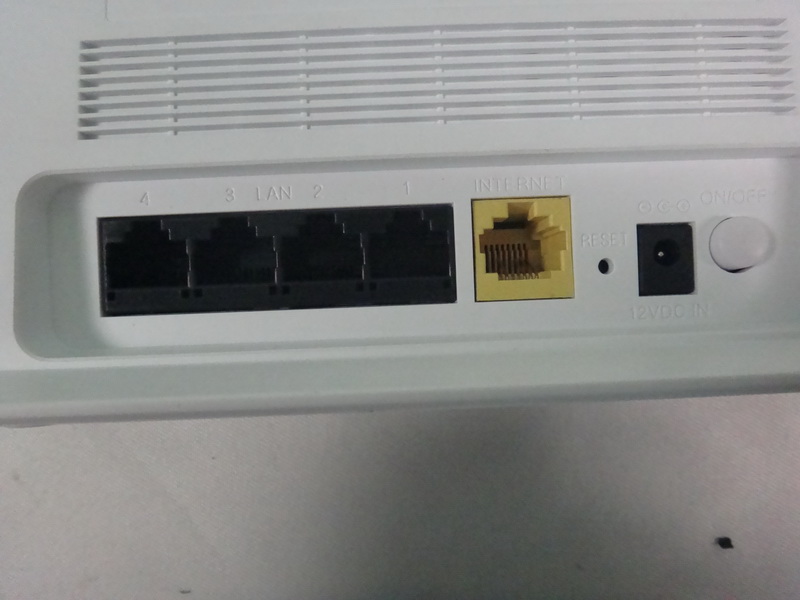

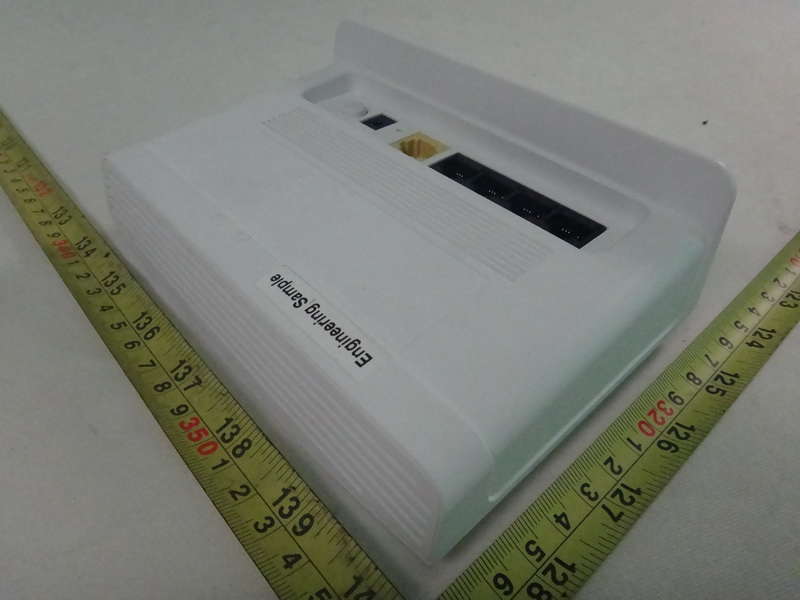

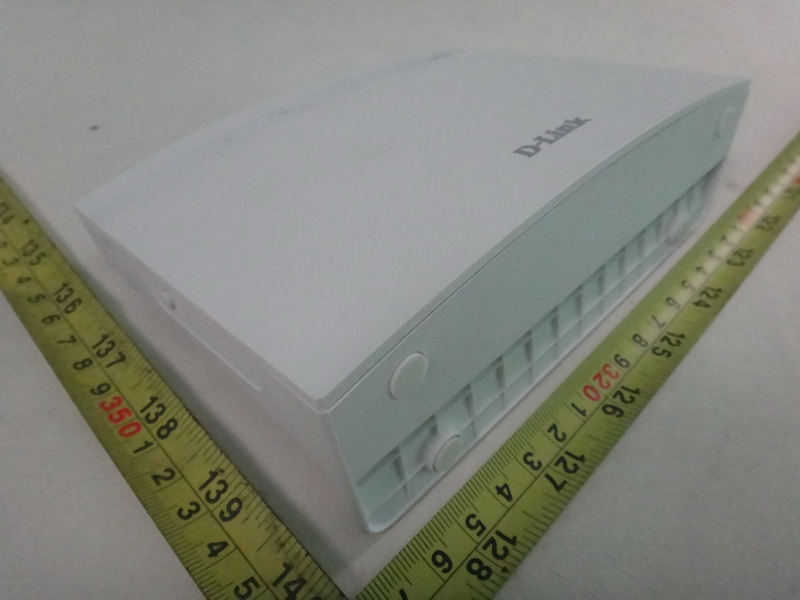

KA2IR300D1Wireless Router

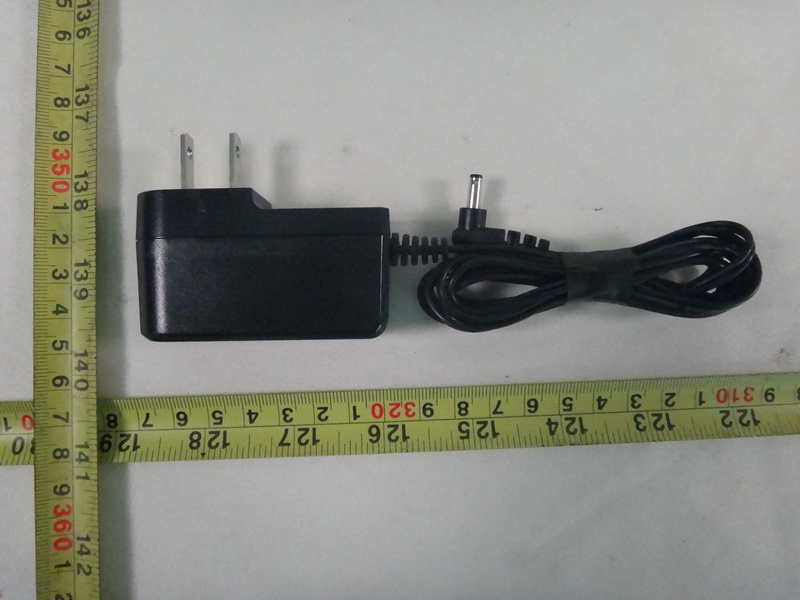

WIRELESS ROUTER DIR-600 DIR-300 DIR-607 QUICK INSTALLATION GUIDE DIR-600 DIR-300 DIR-607 2 ENGLISH CONTENTS OF PACKAGING CONTENTS Wireless Router DIR-600 DIR-300 DIR-607 POWER ADAPTER 12V 0.5A ETHERNET CABLE (CAT5 UTP) CONNECT THE ROUTER TO YOUR PC DURING SET-UP If any of these items are missing from your packaging, contact your reseller. DIR-600 DIR-600 DIR-300 DIR-607 3 ENGLISH PRODUCT SET-UP EASY SETUP WIZARD Step 1 Position your router close to your modem and the computer that is already online. Place this router in an open area of your intended work area for better wireless coverage. ADVANCED SET-UP (ACCESS VIA IP ADDRESS) To configure DIR-600 manually connect your computer to the DIR-600 using the ethernet cable provided. Then connect the power cable on the DIR-600. The power light will display as solid green. Then simply open a browser window and enter the IP address in the browser address field: IP ADDRESS: http://192.168.0.1 USERNAME: Admin PASSWORD: [blank] Step 4 From the computer you connected to the router, open a web browser and enter "http://192.168.0.1". Then, press Enter and you will be directed to the D-Link Setup. Wizard page and follow the on-screen instructions to configure your D-Link router. Step 3 Connect the supplied power adapter into the power port on the back of the router and then plug into a power outlet or surge protector. Verify the power light is lit. Step 2 Unplug the Ethernet cable from your modem that is connected to your computer. Plug it into the black port labled 1 on the back of your router. The router is now connected to your computer. Plug one end of the included Ethernet cable that came with your router into the yellow port labeled INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem. Modem Router PC Router PC Modem Router PC Modem Internet Save DIR-600 DIR-300 DIR-607 DIR-600 DIR-300 DIR-607 4 ENGLISH TROUBLESHOOTING SET-UP AND CONFIGURATION PROBLEMS 1. HOW DO I CONFIGURE MY DIR-600 ROUTER FOR A PERSONALIZED WIRELESS NETWORK NAME (SSID) AND WIRELESS ENCRYPTION KEY? - Connect your PC to the router using an Ethernet cable. - Open a web browser and enter the address http://192.168.0.1 - The default username is ‘Admin’. The default password is to leave the field blank. - If you have changed the password and can not remember it, you will need to reset the router to set the password back to a blank field. 2. HOW DO I RESET MY DIR-600 ROUTER TO FACTORY DEFAULT SETTINGS? - Ensure the router is powered on. - Press and hold the reset button on the rear of the device for 10 seconds. Note: Resetting the router to factory default will erase the current configuration settings. To re- configure your settings, log into the router as outlined in question 1, then run the Setup Wizard. 3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY? - Every PC that needs to connect to the router wirelessly, you will need to ensure you use the correct Wireless Network Name (SSID) and encryption key. - Use the web based user interface (as described in question 1 above) to check or choose your wireless settings. - Make sure you write down these settings so that you can enter them into each wirelessly connected PC. You will find a dedicated area on the back of this document, this important information for future use. 4. WHY CAN I NOT GET AN INTERNET CONNECTION? - For ADSL users please contact your ISP to make sure the service has been enabled/connected by your ISP and that your ISP username and password is correct. For full product manual, please refer to the website www.dlink.com To download the latest firmware, please refer to the website www.dlink.com DIR-600 DIR-300 DIR-607 5 TECHNICAL SUPPORT Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-22-27626600 Toll Free 1800-22-8998 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] South Africa and Sub Sahara Region: Tel: +27 12 661 2025 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time Web: http://www.d-link.co.za E-mail: [email protected] Saudi Arabia (KSA): Tel: +966 01 217 0008 Fax: +966 01 217 0009 Saturday to Wednesday 9.30AM to 6.30PM Thursdays 9.30AM to 2.00 PM E-mail: [email protected] D-Link Middle East - Dubai, U.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] Egypt 1, Makram Ebeid Street - City Lights Building Nasrcity - Cairo, Egypt Floor 6, office C2 Tel.: +2 02 26718375 - +2 02 26717280 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Kingdom of Saudi Arabia Office # 84 , Al Khaleej Building ( Mujamathu Al-Khaleej) Opp. King Fahd Road, Olaya Riyadh - Saudi Arabia Tel: +966 1 217 0008 Technical Support: +966 1 2170009 / +966 2 6522951 General Inquiries: [email protected] Tech Support: [email protected] Pakistan Islamabad Office: 61-A, Jinnah Avenue, Blue Area, Suite # 11, EBC, Saudi Pak Tower, Islamabad - Pakistan Tel.: +92-51-2800397, 2800398 Fax: +92-51-2800399 Karachi Office: D-147/1, KDA Scheme # 1, Opposite Mudassir Park, Karsaz Road, Karachi – Pakistan Phone: +92-21-34548158, 34326649 Fax: +92-21-4375727 Technical Support: +92-21-34548310, 34305069 General Inq…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE&ICA -1-1212C303B Date of Issue: Apr. 25, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless Router Model Name DIR-300; DIR-600; DIR-607 Brand Name D-Link Applicant D-LINK Corporation Address No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Measurement FCC Part 15, Subpart B: 2012 Standard(s) ANSI C63.4 (2009) The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE&ICA-1-1212C303B) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1212C303B Page 2 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 3 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 5 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 6 of 10

99.5 27.5 0 0 -0.2 -0.2 FCC ID:KA2IR300D1 99.5 27.5 0 0 -0.2 -0.2 FCC ID:KA2IR300D1 DIR-607 DIR-607 FCC ID: KA2IR300D1 1 2 3 4 A B C D 56 1 2 3 4 56 A B C D 60°~90°/0.5°30°~60°/0.3° 0°~30°/0.1° 0.3 0.1 0.8 C2 0.5 1.3 1.5 0.2 0.1 0.3 0.25 0.5 0.7 C4 0.5 0.2 1.5 1.2 3 4 C3 0.15 0.4 0.9 1.2 1.8 2.5 C1 ANG.TOL± RANGE 0~6 80~180 30~80 6~30 315~500 180~315 DIM TOL± PART NO: MODEL: FINISH MAT'L UNIT'S SHENZHEN GONGJIN ELECTRONICS CO., LTD. VER: SHEET SCALE DRAW CHECK PDE 6080000xxxxx 1 / 1 1:1 A0mm CUSTOMER: TITLE: DATE: 12-07-19 FCC Label 1.80.9 5 3 500~800 N/A DIR-825&815&651 xxxx D-LINK 徐志娟 9 . 0 40.0 +0 -0.2 + 0 - 0 . 2 1. 黑色印刷，无边框, R1.0 2.材料: 80g 铜版纸,背面附胶 3. 材料,印刷原料,印刷工艺均能满足ROHS指令要求. NOTES(技术要求）: (Material:80g copperplate paper,back with glue) (Black printing,no frame,R1.0) (All Materials and process technologies should be compliant with RoHS) 来料方式:卷装 Editor Description Remark Date

Neutron Engineering Inc. Project No.: 1212C303B Page 7 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 8 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 9 of 10 Neutron Engineering Inc. Project No.: 1212C303B Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: KA2IR300D1 Project No. : 1212C303B Equipment : Wireless router Model : DIR-300;DIR-600; DIR-607 Applicant : D-LINK CORPORATION Address : No. 289, Sinhu 3rd Rd., Neihu District, Taiwan According: : FCC G uidelines for H uman Exposur e IEEE C95.05.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 N/A N/A Integral N/A 2.50 Neutron Engineering Inc. TEST RESULTS EUT： Wireless Router Model Name ： DIR-300 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 19.17 82.6038 0.029238181 Complies 2.5 1.7783 19.20 83.1764 0.029440851 Complies 2.5 1.7783 19.02 79.7995 0.028245571 Complies EUT： Wireless Router Model Name ： DIR-300 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 23.57 227.5097 0.080528641 Complies 2.5 1.7783 23.66 232.2737 0.082214871 Complies 2.5 1.7783 23.72 235.5049 0.083358591 Complies Neutron Engineering Inc. EUT： Wireless Router Model Name ： DIR-300 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20MHz MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 23.33 215.2782 0.076199191 Complies 2.5 1.7783 23.35 216.2719 0.076550911 Complies 2.5 1.7783 23.45 221.3095 0.078334011 Complies EUT： Wireless Router Model Name ： DIR-300 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40MHz MODE CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 23.44 220.8005 0.078153851 Complies 2.5 1.7783 23.35 216.2719 0.076550911 Complies 2.5 1.7783 23.50 223.8721 0.079241081 Complies Note: the calculation distance is 20cm

Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 1 of 135 FCC&IC Radio Test Report FCC ID: KA2IR300D1 IC: 4216A-IR300D1 This report concerns (check one) : Original Grant Class II Change Issued Date : Apr. 25, 2013 Project No. : 1212C303B Equipment : Wireless Router Model Name : DIR-300; DIR-600; DIR-607 Applicant : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Manufacturer : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 01, 2013 Date of Test: Apr. 01, 2013 ~ Apr. 24, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 2 of 135 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 3 of 135 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 22 4.2.1 RADIATED EMISSION LIMITS 22 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 23 4.2.3 TEST PROCEDURE 24 4.2.4 DEVIATION FROM TEST STANDARD 24 4.2.5 TEST SETUP 25 4.2.6 EUT OPERATING CONDITIONS 26 4.2.7 TEST RESULTS (9K~ 30MHZ) 27 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 28 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 41 5 . BANDWIDTH TEST 89 5.1 APPLIED PROCEDURES / LIMIT 89 5.1.1 MEASUREMENT INSTRUMENTS LIST 89 5.1.2 TEST PROCEDURE 89 5.1.3 DEVIATION FROM STANDARD 89 5.1.4 TEST SETUP 89 5.1.5 EUT OPERATION CONDITIONS 89 5.1.6 TEST RESULTS 90 Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 4 of 135 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 98 6.1 APPLIED PROCEDURES / LIMIT 98 6.1.1 MEASUREMENT INSTRUMENTS LIST 98 6.1.2 TEST PROCEDURE 98 6.1.3 DEVIATION FROM STANDARD 98 6.1.4 TEST SETUP 98 6.1.5 EUT OPERATION CONDITIONS 98 6.1.6 TEST RESULTS 99 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 101 7.1 APPLIED PROCEDURES / LIMIT 101 7.1.1 MEASUREMENT INSTRUMENTS LIST 101 7.1.2 TEST PROCEDURE 101 7.1.3 DEVIATION FROM STANDARD 101 7.1.4 TEST SETUP 101 7.1.5 EUT OPERATION CONDITIONS 101 7.1.6 TEST RESULTS 102 8 . POWER SPECTRAL DENSITY TEST 122 8.1 APPLIED PROCEDURES / LIMIT 122 8.1.1 MEASUREMENT INSTRUMENTS LIST 122 8.1.2 TEST PROCEDURE 122 8.1.3 DEVIATION FROM STANDARD 122 8.1.4 TEST SETUP 122 8.1.5 EUT OPERATION CONDITIONS 122 8.1.6 TEST RESULTS 123 9 . EUT TEST PHOTO 131 Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 5 of 135 1. CERTIFICATION Equipment : Wireless Router Brand Name : D-Link Model Name : DIR-300; DIR-600; DIR-607 Applicant : D-Link Technologies Co., Ltd. Factory : Shenzhen Gongjin Electronics Co.,Ltd Address : B116, B118, A211-A213, B201-B213, A311-A313, B411-413, BF08-09 Nanshan Medical Instrument Industry Park, 1019# Nanhai Road, Nanshan District, Shenzhen, Guangdong, 518067, P.R. China Date of Test : Apr. 01, 2013 ~ Apr. 24, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1212C303B) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 6 of 135 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS-210: 2010 Standard Section Test Item Judgment Remark 15.207 RSS-GEN 7.2.2Conducted Emission PASS…

Text truncated - open the document above for the full version.

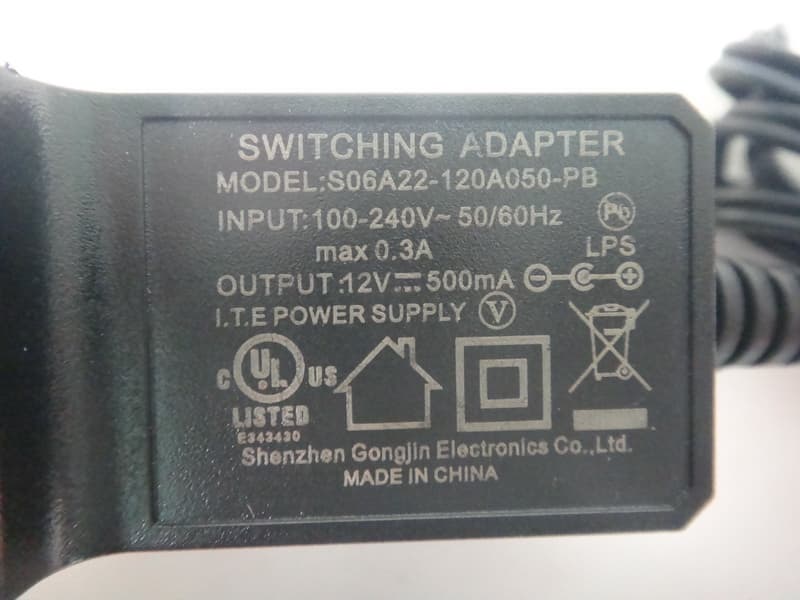

Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 131 of 135 9. EUT TEST PHOTO Conducted Measurement Photos Adapter: S06A22-120A050-PB Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 132 of 135 Conducted Measurement Photos Adapter: F05W-120050SPAU Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 133 of 135 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 134 of 135 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1212C303B Page 135 of 135 Radiated Measurement Photos Above 1000MHz
