KA2IR503ADLINK N-150 Wireless Mini Router DIR-503A

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. RF EXPOSURE: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Serial EEPROM RT5350 USB Connector 1.86V RJ45x5 10/100 Transformer 2.4GHz RX1 5V 20MHz XTAL USB I/F 2.4GHz TX0 /RX0Antenna Connector PCB ANT RESET SDRAM 16Mx16 3.3V SPI 4MB Switching Circuit 1.86V 3.3V 1.2V for RF core 1.2V for PLL 1.2V for digital part 1.2V O/Ps from internal LDOs DC toDC DIR-503A BLOCK DIR-503 BLOCK Title SizeDocument NumberRev Date:Sheetof RT5350 AP Block 2.2 11n 2.4G AP-RT5350 Block RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 1616Thursday, August 22, 2013 Title SizeDocument NumberRev Date:Sheetof RT5350 AP Block 2.2 11n 2.4G AP-RT5350 Block RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 1616Thursday, August 22, 2013 Title SizeDocument NumberRev Date:Sheetof RT5350 AP Block 2.2 11n 2.4G AP-RT5350 Block RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 1616Thursday, August 22, 2013

D Link Corporation 17595 Mt. Herrmann,Fountain Valley,California, United States FCC Declaration of Conformity Number: CF302 Version: V05 Date: 21-05-2012 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: D Link Corporation Address: 17595 Mt. Herrmann Postal/Zip: 92708 City: Fountain Valley State/Province: California Country: United States Contact Person: Mr. Ms. Name: Angus Lin Function: Senior Manager Email: [email protected] Web: Phone: +886-2-66000123#2325 Fax: +886-2-55509988#2325 declare for the equipment identified by: Product Description DLINK N-150 Wireless Mini Router DIR-503A Type or Model(s) DIR-503A Tradename or Brand(s) that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Testing Laboratory name: City and Country: Lab accreditation Number: Test Report Number: Date of issue: Cerpass Technology Corp. Taiwan TW1049, TW1061, 488071, 390316 SEFD1306098 2013/08/16 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name, City and Country: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Fountain Valley， California, United States 2013/08/22 Angus Lin Senior Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

D Link Corporation 17595 Mt. Herrmann,Fountain Valley,California, United States FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name D Link Corporation Address 17595 Mt. Herrmann City Fountain Valley Country California, United States request for this certification filing under: Grantee Code Product Number FCC ID: KA2 IR503A to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Fountain Valley， California, United States 2013/08/22 Angus Lin Senior Manager

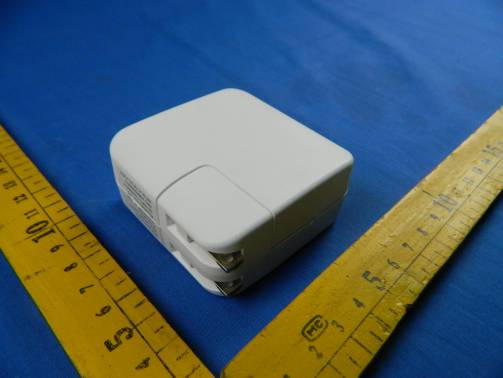

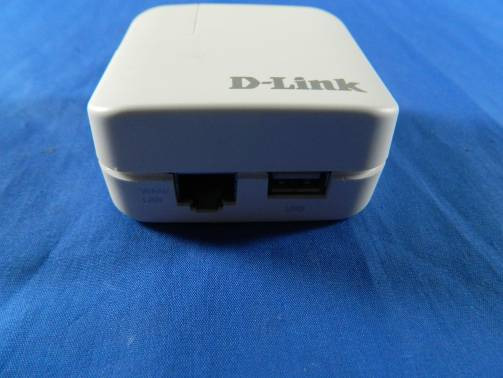

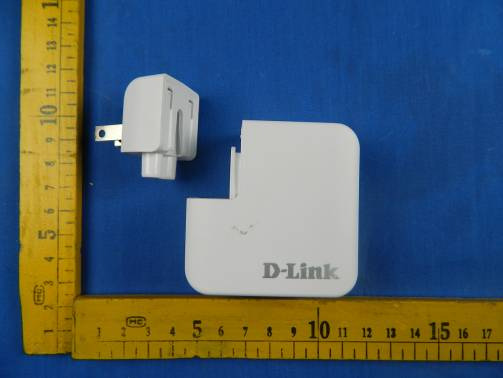

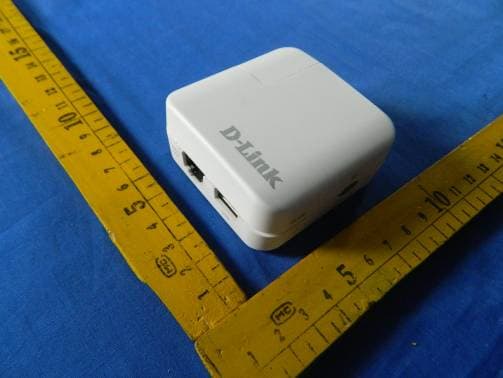

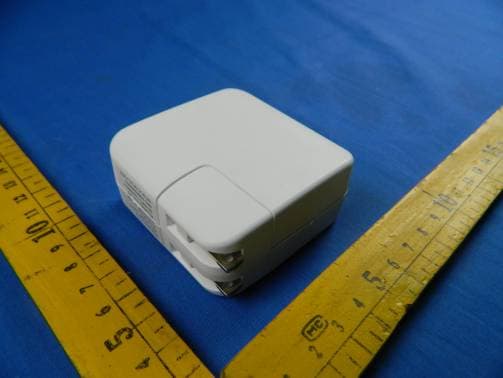

CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo

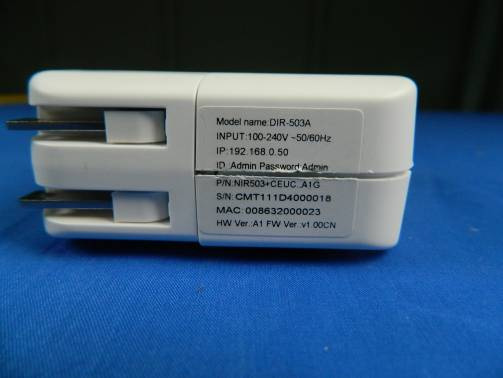

Label Location FCC ID Label

FCC ID LABEL FCC DOC LABEL FCC MODEL BOX:

CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 6 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 6 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 6 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 6 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 6 9) EUT Photo 10) EUT Photo Antenna CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 15,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 6 11) EUT Photo

Approved Sheet CUSTOMER : SHENZHEN MTN ELECTRONICSCO.,LTD CUSTOMER ’S PART NO. : DESCRIPTION: Printed Antenna PART NO. : DATE : Approve Model : MT-G3R-X23N PRODUCTION : CHINA 美桀電科技股份有限公司 Magic Wireless Technology CO., LT C. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C Fully Approved Partially Approved REJECTED RF Antenna Assembly Specification ELECTRICAL PROPERTIES Frequency Range:..........................2400~ 2500Mhz Impedance: ..................................50 Ohm Normal VSWR:...........................................2 Return Loss:................................-10dB Radiation:....................................Omni-directional Gain:...........................................2dBi Polarization: ..............................Linear Vertical Admitted Power:.............................1W 美桀電科技股份有限公司 Magic Wireless Technology CO., LT C. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C Model MT-G3R-X23N Antenna type Printed Antenna Frequency(MHz) 2400 2450 2500 Return loss(S11)(dB) -8.19 -10.42 -4.74 Efficiency (%) 24.81 23.6 16.49 Test Report Return Loss (S11) 美桀電科技股份有限公司 Magic Wireless Technology CO., LT C. Website : http://www.magictec.com.tw (TEL)+886-2-82273366 15-5, No.716, Chung Cheng Rd., Chung Ho District, New Taipei City, Taiwan, R.O.C

Operational Description The EUT is WiFi Travel router with 11 channels 802.11b/g /n(20MHz) and with 7 channels 802.11n(40MHz) function. The EUT provides one completed transmitter and one receiver. The EUT use an antenna working in 802.11b /g/n of the state. The modulation of device is DQPSK, DBPSK, DSSS, CCK, BPSK, QPSK, OFDM, transmitting speed 1, 2, 5.5, 11 for 802.11b, 6, 9, 12, 18, 24, 36, 48 and 54Mbps for 802.11g, up to 150Mbps for 802.11n. The technology of this device used is DQPSK, DBPSK, DSSS, CCK, BPSK, QPSK, OFDM. The device adapts direct sequence spread spectrum modulation for WLAN module. The antenna provides diversity function to improve the receiving function. This device, compliant with IEEE 802.11b, IEEE 802.11g, IEEE802.11n(20MHz) and IEEE 802.11n(40MHz) is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz is Direst Sequence Spread Spectrum (DSSS) radio transmission, the EUT Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b, IEEE 802.11g, IEEE802.11n(20MHz) and IEEE 802.11n(40MHz) network devices.

MPE Calculation FCC ID: KA2IR503A Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. 11bgn(HT20) mode: Frequency range:2412-2462MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =17.59dBm =57.41mW Antenna Gain: G = 2.0dBi =1.58on the linear scale Calculation: P radiated = P conducted + G linear =17.59dBm +2dBi =19.59dBm =90.99mW Power density S = (P radiated ) / (4π x d 2 ) =90.99/5026 =0.0181mW/cm 2 <1=> below limit 11n(HT40) mode: Frequency range:2422-2452MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =14.74dBm =29.79mW Antenna Gain: G = 2.0dBi =1.58on the linear scale Calculation: P radiated = P conducted + G linear =14.74dBm +2dBi =16.74dBm =47.21mW Power density S = (P radiated ) / (4π x d 2 ) =47.21/5026 =0.0094mW/cm 2 <1=> below limit

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Filename: AP-RT5350-V22-SPI-SDRAM-1X1-101018.DSN LINK3 LINK1 LINK2 LINK4 WLAN_LED SPI_MISO TXOM0 LINK0 UART_TX SDRAM_BA[0:1] SDRAM_CASN SDRAM_MDQM[0:1] LINK1 SDRAM_RASN RXIP0 TXD 3G_LED LINK4 AP_LED MADDR[0:12] WLAN_LED JTAGRST_N SDRAM_CS0N RXIM0 LINK2 ROT_LED SPI_CS0 SPI_CLK TXOP0 RFOUT_G0 SPI_MOSI SDRAM_CLK_P MDATA[0:15] LINK3 CPURST_N RST_PBC SDRAM_WEN SDRAM_MCKE LINK0 USB_EN Title SizeDocument NumberRev Date:Sheetof AP-RT5350-V22.SCH 2.2 11n 2.4G AP-RT5350 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 116Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof AP-RT5350-V22.SCH 2.2 11n 2.4G AP-RT5350 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 116Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof AP-RT5350-V22.SCH 2.2 11n 2.4G AP-RT5350 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 116Friday, April 19, 2013 1-CPU-RT5350 1-CPU-RT5350 SPI_CLK SDRAM_WEN SDRAM_CS0N SDRAM_CLK_P SPI_CS0 SDRAM_RASN MADDR[0:12] MDATA[0:15] TXOM4 TXOP4 RXIM4 RXIP4 CPURST_N JTAGRST_N AP_LED WLAN_LED RFOUT_G0 RF0IN_G0 LINK3 LINK2 LINK0 LINK1 LINK4 RXIM3 RXIP0 RXIP1 RXIP2 RXIP3 RXIM0 RXIM1 RXIM2 TXOP0 TXOP1 TXOP2 TXOP3 TXOM0 TXOM1 TXOM2 TXOM3 ROT_LED 3G_LED USB_EN RST_PBC SDRAM_MDQM[0:1] SDRAM_CASN SDRAM_BA[0:1] SPI_MOSI SPI_MISO UART_TX TXD SDRAM_MCKE 2-MEMORY 2-MEMORY SPI_CLK SDRAM_CS0N SDRAM_WEN SDRAM_CLK_P SPI_CS0 SDRAM_RASN MADDR[0:12] MDATA[0:15] SDRAM_MDQM[0:1] SDRAM_CASN SDRAM_BA[0:1] SPI_MOSI SPI_MISO LINK4 LINK3 LINK2 LINK1 WLAN_LED UART_TX TXD SDRAM_MCKE LINK0 5-POWER 5-POWER CPURST_N JTAGRST_N 3-WLAN 3-WLAN RF0IN_G0 RFOUT_G0 4-ETHERNET 4-ETHERNET TXOM4 TXOP4 RXIM4 RXIP4 RXIM3 RXIP3 TXOM3 TXOP3 TXOM2 TXOP2 RXIM2 RXIP2 RXIM1 RXIP1 TXOM1 TXOP1 TXOM0 TXOP0 RXIM0 RXIP0 6-LED 6-LED LINK0 LINK1 LINK2 LINK3 LINK4 AP_LED WLAN_LED 3G_LED ROT_LED USB_EN RST_PBC 5 5 4 4 3 3 2 2 1 1 DD CC BB AA LDORF_Out LDOPLL_Out 1.8V LDO_In 3.3V Input C8 layout close D8 C11 layout close C7 L34 ,C252 layout close C1 and F1 3.3VD OSC_O40MX2 PLL_V12A SOC_1.2VD 40MX1 PLL_VC_CAP RF_V12A SOC_1.8VD_J BG_RES_12K RF0_PA1_V33A PA0_OUT- RFOUT_G0 RF0_PA_OUTN PA0_OUT_1PA0_OUT+ GND RF0_PA_OUTP WLAN_LED SOC_1.8VD RF0_RF_V12A PA_V33_0 RFOUT_G0[12] WLAN_LED[11,15] GND GND GND GND GND SOC_1.8VD 3.3VD GND GND GND SOC_1.2VD GND 3.3VD GND GND GND 3.3VD_J GND GNDGND GND Title SizeDocument NumberRev Date:Sheetof 11-RT5350 RF Power-A.SCH 2.2 RT5350 RF Power-A RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 216Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof 11-RT5350 RF Power-A.SCH 2.2 RT5350 RF Power-A RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 216Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof 11-RT5350 RF Power-A.SCH 2.2 RT5350 RF Power-A RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 216Friday, April 19, 2013 C415 1.5pF/NI C415 1.5pF/NI 1 2 C11 100pF C11 100pF 1 2 L12 2.7nH L12 2.7nH 12 R211 845K 1%/NI R211 845K 1%/NI 1 2 R309 0 ohm R309 0 ohm 12 2.5x3.2 U2 XTAL/3.2x2.5/20MHz 2.5x3.2 U2 XTAL/3.2x2.5/20MHz 1 2 4 3 C407 1.5pF/NI C407 1.5pF/NI 1 2 C42 4.7uF C42 4.7uF 1 2 C406 1.2pF/NI C406 1.2pF/NI 1 2 C16 0.1uF C16 0.1uF 1 2 U1A RT5350SF U1A RT5350SF WL_LDORF_OUT_V12 C8 WL_RF0_IF_V12A B5 WL_RF_BB1_V12A A5 WL_RF0_RF_V12A B3 WL_LDOPLL_OUT_V12 C7 WL_VCO_VCO_V12A C6 WL_PLL_V12A B6 WL_ADC_V12 B9 WL_LDORF_IN_VX A8 WL_BG_V33A A9 WL_BG_RES_12K B8 WL_PLL_X1 A7 WL_PLL_X2 B7 WL_PLL_VC_CAP A6 WL_RF0_2G_INP A2 WL_RF0_2G_INN A3 WL_RF0_PA_OUTP C1 WL_RF0_PA_OUTN D1 WL_RF0_PA1_V33A E3 WL_RF0_PA_V33P B1 WL_RF0_PA_V33N E1 WLAN_LED_N K1 WL_RF_BB2_V12 C9 C405 0 ohm C405 0 ohm 12 R311 0 ohm R311 0 ohm 12 C37 1.5pF C37 1.5pF 1 2 C40 1.2pF C40 1.2pF 1 2 C6 10pF C6 10pF 1 2 L34 0 ohm L34 0 ohm 1 2 R2121K ohmR2121K ohm 12 C252 10pF C252 10pF 12 C8 1uF C8 1uF 1 2 R1 12K 1% R1 12K 1% 1 2 C17 10pF C17 10pF 1 2 C4 10nF C4 10nF 1 2 C430 10pF C430 10pF 1 2 L11 2.2nH L11 2.2nH 1 2 C10 100pF C10 100pF 1 2 C9 0.1uF C9 0.1uF 1 2 C251 4.7uF C251 4.7uF 12 C35 2.7pF C35 2.7pF 12 C15 27pF C15 27pF 1 2 C443 10pF C443 10pF 12 C38 2.7pF C38 2.7pF 12 C18 22nF C18 22nF 1 2 C2 4.7uF C2 4.7uF 1 2 C14 1uF C14 1uF 1 2 C429 10pF C429 10pF 1 2 L53 0 ohm L53 0 ohm 12 C7 100pF C7 100pF 1 2 C36 1.2pF C36 1.2pF 12 5 5 4 4 3 3 2 2 1 1 DD CC BB AA MDATA2 MDATA1 MDATA0 MDATA3 MDATA7 MDATA5 MDATA4 MDATA6 MDATA10 MDATA11 MDATA8 MDATA9 MDATA12 MDATA13 MDATA14 MDATA15 MADDR3 MADDR2 MADDR1 MADDR0 MADDR6 MADDR7 MADDR4 MADDR5 MADDR9 MADDR11 MADDR8 MADDR10 MADDR12 SDRAM_WEN SDRAM_RASN SDRAM_CS0N SDRAM_CASN SDRAM_MDQM0 SDRAM_MDQM1 SDRAM_BA0 SDRAM_BA1 SDRAM_MCKE MADDR3 MADDR5 MADDR12 MADDR6 MADDR4 MADDR[0:12] MADDR7 MADDR9 MADDR1 SDRAM_MDQM0 MADDR8 MADDR11 SDRAM_MDQM1 MADDR10 SD_CLK_P MADDR0 MADDR2 SDRAM_RASN SDRAM_BA0 SDRAM_CS0N MDATA14 MDATA13 MDATA1 MDATA3 MDATA[0:15] MDATA10 MDATA5 MDATA9 MDATA0 MDATA2 MDATA11 MDATA12 MDATA7 MDATA6 MDATA8 MDATA15 MDATA4 SDRAM_CASN SDRAM_WEN SDRAM_BA1 SDRAM_MCKE SDRAM_CLK_P MDATA[0:15][10]SDRAM_MDQM0[10] MADDR[0:12][10] SDRAM_MDQM1[10] SDRAM_CLK_P[10] SDRAM_RASN[10] SDRAM_CS0N[10] SDRAM_BA0[10] SDRAM_CASN[10] SDRAM_WEN[10] SDRAM_BA1[10] SDRAM_MCKE[10] GND 3.3VD 3.3VD GND Title SizeDocument NumberRev Date:Sheetof 13-RT5350 SDRAM I/F-B.SCH 2.2 RT5350 SDRAM I/F-B RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 316Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof 13-RT5350 SDRAM I/F-B.SCH 2.2 RT5350 SDRAM I/F-B RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 316Friday, April 19, 2013 Title SizeDocument NumberRev Date:Sheetof 13-RT5350 SDRAM I/F-B.SCH 2.2 RT5350 SDRAM I/F-B RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 316Friday, April 19, 2013 C84 4.7uF C84 4.7uF 1 2 R300 51 ohm R300 51 ohm 12 U1B RT5350SF U1B RT5350SF MD3 D13 MA0 G14 MDQM0 J10 MDQM1 M13 MBA0 L12 MBA1 M14 MCLK H14 MCKE C11 MRAS_N L11 MCAS_N C12 MWE_N C13 MCS0_N K11 MD0 E10 MD1 D11 MD2 D12 MD4 D14 MD5 E11 MD6 F11 MD7 E12 MD11 G11 MD10 E14 MD9 E13 MD8 F12 MD15 F14 MD14 G13 MD13 F13 MD12 G12 MA3 H11 MA2 H12 MA1 H13 MA7 K14 MA6 J12 MA5 J13 MA4 J14 MA11 K12 MA10 L14 MA9 J11 MA8 K13 MA12 L13 MCS1_N C14 SDRAM_IO_V33D F10 SDRAM_IO_V33D G10 SDRAM_IO_V33D H10 C424 10pF/NI C424 10p…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued Date : July 15,2013 Tel:86!512!6917!5888 Fax: 86!512!6917!5666 Page No. : 1 of 78 FCC ID : KA2IR503A FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : D Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu Dist., Taipei City 114, Taiwan Equipment : DLINK N!150 Wireless Mini Router DIR!503A Model No. : DIR!503A FCC ID : KA2IR503A
The test result refers exclusively to the test presented test model / sample.
Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued Date : July 15,2013 Tel:86!512!6917!5888 Fax: 86!512!6917!5666 Page No. : 2 of 78 FCC ID : KA2IR503A Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1 List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1 Manufacturer.....................................................................................................................................7 2.2 Feature of Equipment under Test.....................................................................................................7 2.3 Carrier Frequency of Channels ........................................................................................................8 2.4 Test Manner......................................................................................................................................9 2.5 Description of Test System.............................................................................................................10 2.6 General Information of Test............................................................................................................11 2.7 Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1 Standard Applicable........................................................................................................................12 3.2 Antenna Construction and Directional Gain ...................................................................................12 4. Test of Conducted Emission.................................................................................................................... 13 4.1 Test Limit.........................................................................................................................................13 4.2 Test Procedures..............................................................................................................................13 4.3 Typical Test Setup...........................................................................................................................14 4.4 Measurement Equipment ...............................................................................................................14 4.5 Test Result and Data ......................................................................................................................15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1 Test Limit.........................................................................................................................................17 5.2 Test Procedures..............................................................................................................................17 5.3 Typical Test Setup...........................................................................................................................18 5.4 Measurement Equipment ...............................................................................................................19 5.5 Test Result and Data ......................................................................................................................20 6. Occupied Bandwidth................................................................................................................................. 33 6.1 Test Limit.........................................................................................................................................33 6.2 Test Procedures..............................................................................................................................33 6.3 Test Setup Layout...........................................................................................................................33 6.4 Measurement Equipment ...............................................................................................................33 6.5 Test Result and Data ......................................................................................................................34 7. Maximum Peak Output Power ................................................................................................................. 42 7.1 Test Limit.........................................................................................................................................42 7.2 Test Procedure ...............................................................................................................................42 7.3 Test Setup Layout.........................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 08,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 08,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1306098 Cerpass Technology Corp. Issued date : Jul 08,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
