KA2IR506LA1Pocket Cloud Router

Start Here - Select The Mode Quick Install Guide Package Contents If any of the above items are missing, please contact your reseller. DIR-506L LEDs SharePort™ Go Your Mobile Companion Power LED - A solid amber light indicates a proper connection to the power supply. The light will blink green when the USB cable is disconnected. Start Here SharePort Mobile App Scan this QR code using your mobile device to download the App and begin file sharing. Requirements: Compatible with iPhone, iPod touch and iPad. Requires iOS 4.3 or later. Router Mode Repeater ModeWi-Fi Hotspot Mode This feature allows you to share a single internet connection with multiple devices such as a laptop, mobile phone, ipad, etc. It behaves as a router in areas where you cannot take your home router. This feature extends your wireless coverage allowing you to share your wireless signal with all your portable devices such as your mobile device or laptop. This provides your own private network from anywhere that you may travel and allows you to share a single connection with multiple devices (laptop, mobile phone, Ipad etc.). Pleaser refer to the user manual for further information regarding SharePort Mobile App. Please download the user manual from http://www.dlink. com/support/ 2 3 4 5 Router Mode 1 Connect your device to your laptop to charge using a USB cable. Then, turn on the power switch and wait until the power LED turns green. Connect one end of the Ethernet cable into the Ethernet port of the Internet-enabled device (e.g. modem) and then plug the other end of this cable into the Ethernet port of the DIR-506L. From your laptop or mobile device go to your Wireless Utility to display the available wireless networks and select the dlink_DIR-506L for the Wi-Fi name. The password should be left blank. Open a web browser and type http://192.168.0.1 in the address bar. Then, type admin as your user name and click Login. Go to Setup > Internet and click on Internet Connection Setup Wizard to run the wizard. Internet Welcome to the Setup Wizard please read the steps and click Next to continue. Select your Time Zone from the drop-down list and click Next to continue. Select the Internet connection type you would like to use. Then, click Next and follow the on-screen instructions to complete the setup. Once you completed the setup, proceed to step 10. 6 7 8 910 From your laptop or mobile device go to your wireless utility to display the available wireless networks and select the network that you previously connected to for internet access. Choose a password to secure your networking device. Enter your new password under Password and Verify Password. Then, click Next. AP Mode SharePort SharePort SharePortSharePort Note: The SharePort Mobile App only works on Router and Wi-Fi Hotspot Mode. Use Access Point (AP) mode if you want to connect wireless clients (such as laptops, tablets, smartphones, and media players) to your wired network (via router, switch, or PowerLine devices). LAN ON OFF 5V LAN ON OFF 5V LAN ON OFF 5V SharePort SharePort LAN ON OFF 5V LAN ON OFF 5V LAN ON OFF 5V SharePort SharePort 2 3 4 5 Wi-Fi Hot Spot Mode 1 Connect your device to your laptop to charge using a USB cable. Then, turn on the power switch and wait until the power LED turns green. Verify if the Power LED is lit amber and Wi-Fi LED turn green. Open a web browser and type http://192.168.0.1 in the address bar. Then, type admin as your user name and click Login. Go to Setup > Internet and click on Internet Connection Setup Wizard to run the wizard. Welcome to the Setup Wizard please read the steps and click Next to continue. Select your Time Zone from the drop-down list and click Next to continue. Select the Wi-Fi HotSpot and click Next. 6 7 8 910 From your laptop or mobile device go to your wireless utility to display the available wireless networks and select the network that you previously connected to for internet access. Choose a password to secure your networking device. Then, enter your new password under Password and Verify Password. Click Next. LAN ON OFF 5V LAN ON OFF 5V LAN ON OFF 5V SharePort Note: the USB cable is only for power. It does not transmit data. USB LED - A solid green light indicates that the USB cable is attached. A flashing green will indicate access to a file is being transmitted. Wi-Fi LED - A blinking green light will indicate data is being transmitted. Select the wireless network you would like to connect to and click Select. Then, enter your Pre-Shared Key information. Click Next and follow the on-screen instructions to complete the setup and proceed to Step 10. Ethernet LED - A green light indicates the Ethernet connection has been established. A blinking green indicates data is being transferred. IOS Android From your laptop or mobile device go to your Wireless Utility to display the available wireless networks and select the dlink_DIR-506L for the Wi-Fi name. The password should be left blank. Ethernet Cable Battery Please make sure you insert the battery before using the DIR-506L. SharePort™ Go Your Mobile Companion USB cable ©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. Visit dlink.com (US) or dlink.ca (Canada) for more details. iPhone, iPad,…

Text truncated - open the document above for the full version.

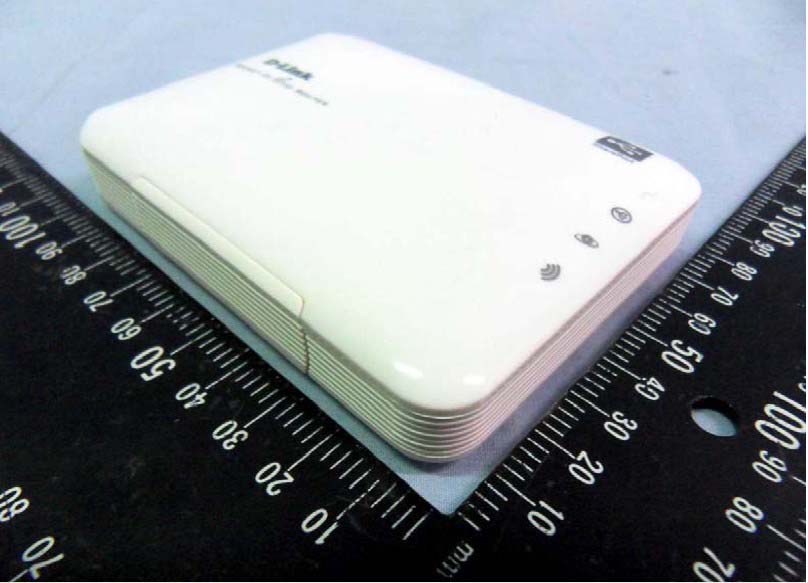

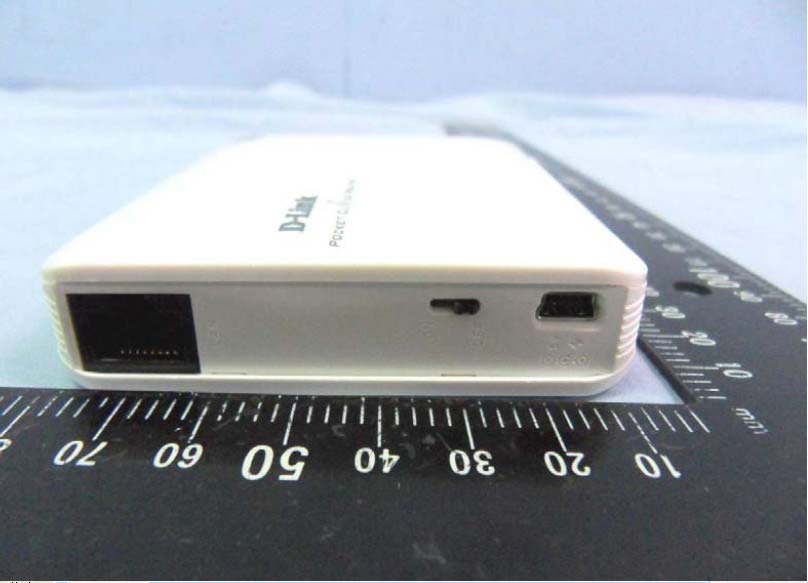

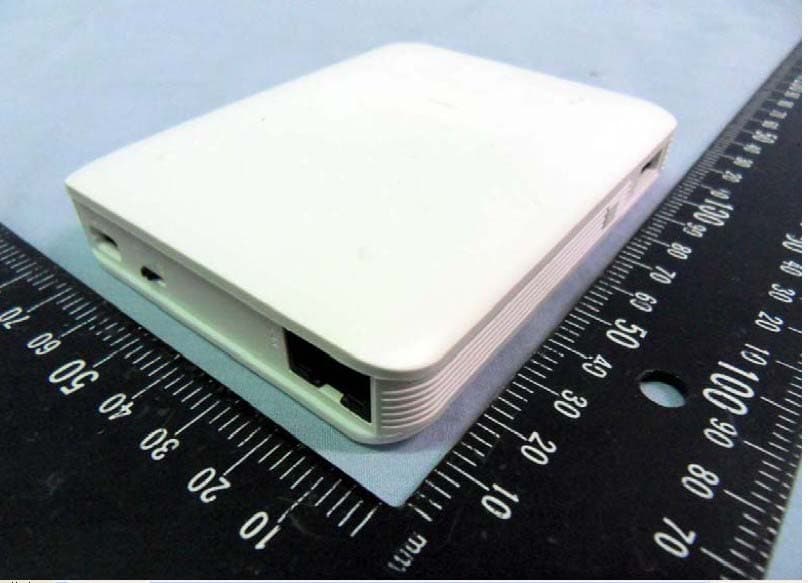

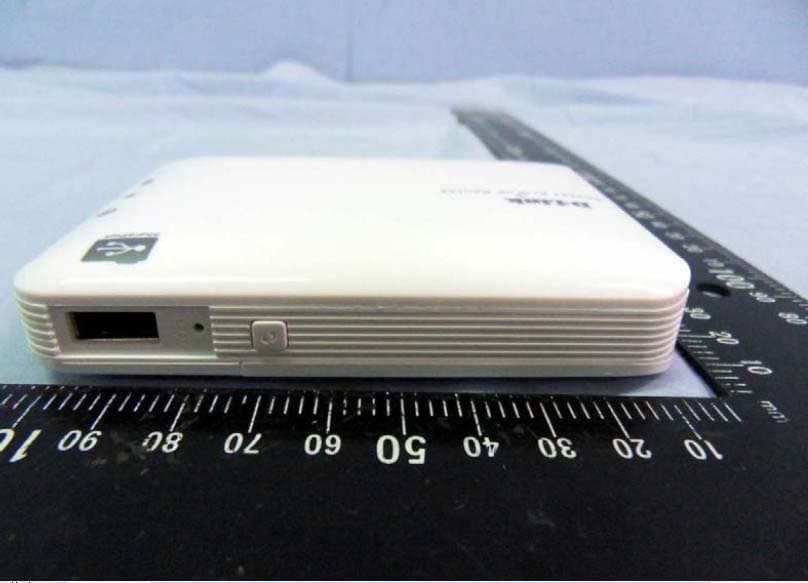

Compliance Certification Services Inc. Report No.：T120611N06 Page A1 / 8 External Photo (DIR-506L ) Compliance Certification Services Inc. Report No.：T120611N06 Page A2 / 8 Compliance Certification Services Inc. Report No.：T120611N06 Page A3 / 8

DIR-506L Diagram Label location

Compliance Certification Services Inc. Report No.：T120611N06 Page A4 / 8 Internal Photo (DIR-506L ) Compliance Certification Services Inc. Report No.：T120611N06 Page A5 / 8 Compliance Certification Services Inc. Report No.：T120611N06 Page A6 / 8 Compliance Certification Services Inc. Report No.：T120611N06 Page A7 / 8 Compliance Certification Services Inc. Report No.：T120611N06 Page A8 / 8

1. Experimental setup (H) (V) X Z Y X Z Y Antenna Antenna 2. Return loss 3. Antenna matching circuit diagram Antenna 0.75pF 4.7nH I/O GND 4.0 Radiation pattern (H) Phi=0.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -1.76 -5.71 2450(MHz) -1.95 -5.65 2500(MHz) -2.10 -5.83 Phi=0.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -3.18 -8.72 2450(MHz) -3.74 -9.13 2500(MHz) -4.51 -9.42 Phi=0.00deg Gain . dB Layer Max value Average 2400(MHz) -1.73 -3.95 2450(MHz) -1.59 -4.04 2500(MHz) -2.10 -4.25 Phi=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -0.05 -5.67 2450(MHz) 0.15 -5.63 2500(MHz) -0.52 -5.61 Phi=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) 0.42 -4.22 2450(MHz) 0.33 -4.32 2500(MHz) 0.84 -4.27 Phi=90.00deg Gain . dB Layer Max value Average 2400(MHz) 1.88 -1.87 2450(MHz) 1.85 -1.91 2500(MHz) 2.54 -1.87 Theta=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.83 -3.61 2450(MHz) 0.73 -3.76 2500(MHz) 0.52 -3.78 Theta=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -10.70 -14.30 2450(MHz) -11.77 -14.90 2500(MHz) -11.56 -15.18 Theta=90.00deg Gain . dB Layer Max value Average 2400(MHz) 1.00 -3.26 2450(MHz) 0.96 -3.43 2500(MHz) 0.78 -3.47 4.1 Radiation pattern (V) Phi=0.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -2.97 -7.44 2450(MHz) -3.14 -7.75 2500(MHz) -3.09 -8.01 Phi=0.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -1.64 -6.54 2450(MHz) -2.13 -6.98 2500(MHz) -1.69 -7.17 Phi=0.00deg Gain . dB Layer Max value Average 2400(MHz) -0.81 -3.95 2450(MHz) -1.35 -4.34 2500(MHz) -0.99 -4.55 Phi=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -11.14 -15.52 2450(MHz) -12.07 -16.40 2500(MHz) -12.13 -16.25 Phi=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) 0.34 -3.55 2450(MHz) 0.07 -3.65 2500(MHz) 0.38 -3.67 Phi=90.00deg Gain . dB Layer Max value Average 2400(MHz) 0.49 -3.28 2450(MHz) 0.22 -3.42 2500(MHz) 0.56 -3.43 Theta=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.64 -5.02 2450(MHz) 0.25 -5.15 2500(MHz) 0.44 -5.09 Theta=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -0.31 -4.11 2450(MHz) -0.18 -4.28 2500(MHz) 0.30 -4.04 Theta=90.00deg Gain . dB Layer Max value Average 2400(MHz) 2.19 -1.53 2450(MHz) 1.94 -1.68 2500(MHz) 2.00 -1.52 5. Efficiency (H) Maximum efficiency at 2.4~2.5GHz : 63.3% (V) Maximum efficiency at 2.4~2.5GHz : 66.1%

Description of Operation The EUT is a Pocket Cloud Router with IEEE 802.11b/g/n (1T 1R) of 2.4G . And this device provided of transmitting speed: 2.4G IIEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK . The device adapts DSSS and OFDM modulation. And the antenna was one PIFA Antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network.

Date/Time: 8/22/2012 06:56:34 PM Test Laboratory: Compliance Certification Services Inc. System check 20120822_BSL2450 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 53.682; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: lProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; lSensor-Surface: 2.5mm (Mechanical Surface Detection) lElectronics: DAE4 Sn877; Calibrated: 3/16/2012 lPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 lMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Pin=250mW, d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.8 mW/g Pin=250mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 95.9 V/m; Power Drift = -0.028 dB Peak SAR (extrapolated) = 25.9 W/kg SAR(1 g) = 13.0 mW/g; SAR(10 g) = 5.88 mW/g Maximum value of SAR (measured) = 18.1 mW/g Pin=250mW, d=10mm/Z Scan (1x1x11): Measurement grid: dx=20mm, dy=20mm, dz=10mm Maximum value of SAR (measured) = 17.9 mW/g

Compliance Certification Services Inc. FCC ID: KA2IR506LA1 Report No.: T120807N01-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 30 Rev. 01 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Pocket Cloud Router Trade Name: D-LINK Model: DIR-506L Issued to D-Link Corporation No.289 , Sinhu 3rd Rd. , Neihu District , Taipei City 114 , Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsrf.com [email protected]. Issued Date: August 24, 2012 Compliance Certification Services Inc. Report No.: T120807N01-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 24, 2012 Initial Issue ALL Anson Lu 01 September 27, 2012 Change E-file Probe 4, 23 Anson Lu Compliance Certification Services Inc. Report No.: T120807N01-SF Page 3 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ............................................................... 4 2. EUT DESCRIPTION ................................................................................................................................ 5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED ......................................................... 6 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC....................................... 6 4. DOSIMETRIC ASSESSMENT SYSTEM .............................................................................................. 6 4.1 MEASUREMENT SYSTEM DIAGRAM....................................................................................... 7 4.2 SYSTEM COMPONENTS.............................................................................................................. 8 5. EVALUATION PROCEDURES............................................................................................................ 11 6. EVALUATION PROCEDURES............................................................................................................ 13 7. MEASUREMENT UNCERTAINTY..................................................................................................... 17 8. EXPOSURE LIMIT ................................................................................................................................ 19 9. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS................ 20 10. MEASUREMENT RESULTS ................................................................................................................ 21 10.1 TEST LIQUID CONFIRMATION................................................................................................ 21 10.2 SYSTEM PERFORMANCE CHECK ........................................................................................... 23 10.3 EUT TUNE-UP PROCEDURES AND TEST MODE .................................................................. 24 10.4 EUT TEST POSITION .................................................................................................................. 25 10.5 SAR MEASUREMENTS RESULTS ............................................................................................ 27 11. EQUIPMENT LIST & CALIBRATION STATUS .............................................................................. 28 12. FACILITIES ............................................................................................................................................ 29 13. REFERENCES ........................................................................................................................................ 29 14. ATTACHMENTS .................................................................................................................................... 30 Compliance Certification Services Inc. Report No.: T120807N01-SF Page 4 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: D-Link Corporation No.289 , Sinhu 3rd Rd. , Neihu District , Taipei City 114 , Taiwan R.O.C. Manufacture Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Equipment Under Test: Pocket Cloud Router Trade Name: D-LINK Model Number: DIR-506L Date of Test: August 22, 2012 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD FCC FCC OET 65 Supplement C IEEE 1528 2003 KDB 447498 D01 KDB 248227 D01 Deviation from Applicable Standard None TEST RESULT No non-compliance noted The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Alex Wu Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T120807N01-SF Page 5 Rev. 00 2. EUT DESCRIPTION Product Pocket Cloud Router Trade Name D-Link Model Number DIR-506L Model Discrepancy N/A Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz 802.11n HT20: 2412 ~ 2462 MHz 802.11n HT40: 2422 ~ 2452 MHz. Maximum Output Power (Average): 802.11b: 15.10 dBm 802.11g: 12.40 dBm 802.11n HT20: 10.31 dBm 802.11n HT40: 10.12 dBm Maximum SAR (1g): 802.11b: 1.410 W/kg 802.11g: SAR test is not required, please refer to page 24. 802.11n HT20: SAR test is not required, pl…

Text truncated - open the document above for the full version.

Date/Time: 8/22/2012 8:51:24 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Rate 1M_Edge 1_ FCC Communication System: IEEE802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.822; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; zSensor-Surface: 2.5mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/16/2012 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Configuration/Edge 1 Low Ch1/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.375 mW/g Configuration/Edge 1 Low Ch1/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 11.079 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.662 mW/g SAR(1 g) = 0.338 mW/g; SAR(10 g) = 0.168 mW/g Maximum value of SAR (measured) = 0.379 mW/g Date/Time: 8/22/2012 9:37:14 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Rate 1M_Edge 4_ FCC Communication System: IEEE802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.822; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; zSensor-Surface: 2.5mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/16/2012 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Configuration/Edge 4 Low Ch1/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.629 mW/g Configuration/Edge 4 Low Ch1/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 11.344 V/m; Power Drift = 0.110 dB Peak SAR (extrapolated) = 1.167 mW/g SAR(1 g) = 0.520 mW/g; SAR(10 g) = 0.217 mW/g Maximum value of SAR (measured) = 0.604 mW/g Date/Time: 8/22/2012 7:43:56 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Rate 1M_Front Side_ FCC Communication System: IEEE802.11b WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.822; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; zSensor-Surface: 2.5mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/16/2012 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Configuration/Front Side Low Ch1/Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.77 mW/g Configuration/Front Side Low Ch1/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 8.865 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 3.487 mW/g SAR(1 g) = 1.410 mW/g; SAR(10 g) = 0.602 mW/g Maximum value of SAR (measured) = 1.54 mW/g Date/Time: 8/22/2012 10:06:18 PM Test Laboratory: Compliance Certification Services Inc. 802.11b CH6 Rate 1M_Front Side_ FCC Communication System: IEEE802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.953 mho/m; ε r = 53.736; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; zSensor-Surface: 2.5mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/16/2012 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Configuration/Front Side Middle CH6/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.83 mW/g Configuration/Front Side Middle CH6/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.095 V/m; Power Drift = 0.160 dB Peak SAR (extrapolated) = 3.222 mW/g SAR(1 g) = 1.280 mW/g; SAR(10 g) = 0.550 mW/g Maximum value of SAR (measured) = 1.46 mW/g Date/Time: 8/22/2012 10:36:12 PM Test Laboratory: Compliance Certification Services Inc. 802.11b CH11 Rate 1M_Front Side_ FCC Communication System: IEEE802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.986 mho/m; ε r = 53.648; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY Configuration: zProbe: EX3DV4 - SN3665; ConvF(7.11, 7.11, 7.11); Calibrated: 4/27/2012; zSensor-Surface: 2.5mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn877; Calibrated: 3/16/2012 zPhantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 zMeasurement SW: DASY52, Version 52.8 (1)SEMCAD X Version 14.6.5 (6469) Configuration/Front Side High CH11/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.03 mW/g Configuration/Front Side High CH11/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.763 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：KA2IR506LA1 Report No.：T120611N06-RP1 Page 1 / 111 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Pocket Cloud Router Model Number: DIR-506L Brand: D-Link Issued for D-Link Corporation No.289 , Sinhu 3rd Rd. , Neihu District , Taipei City 114 , Taiwan R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: October 02, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：KA2IR506LA1 Report No.：T120611N06-RP1 Page 2 / 111 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 June 23, 2012 Initial Issue ALL Sunny Chang 01 October 01, 2012 Update date Page 5; 14-23; 46 Sunny Chang 02 October 02, 2012 Update date Page 15 Sunny Chang Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：KA2IR506LA1 Report No.：T120611N06-RP1 Page 3 / 111 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 3. DESCRIPTION OF TEST MODES ..................................................................................6 4. TEST METHODOLOGY ..................................................................................................7 5. FACILITIES AND ACCREDITATIONS............................................................................7 5.1 FACILITIES .............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................ 7 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 8 6. CALIBRATION AND UNCERTAINTY.............................................................................9 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 9 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................10 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 10 7.2 SUPPORT EQUIPMENT ......................................................................................................... 11 7.3 EUT OPERATING CONDITION .............................................................................................. 12 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................13 8.1 6DB BANDWIDTH ................................................................................................................... 13 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 24 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 45 8.4 POWER SPECTRAL DENSITY ............................................................................................... 47 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 57 8.6 RADIATED EMISSIONS ..........................................................................................................70 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 103 9. ANTENNA REQUIREMENT ............................................................................................107 9.1 STANDARD APPLICABLE ...................................................................................................... 107 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 107 APPENDIX I SETUP PHOTOS ...........................................................................................108 APPENDIX II PHOTOGRAPHS OF EUT.............................................................................A1 Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：KA2IR506LA1 Report No.：T120611N06-RP1 Page 4 / 111 1. TEST REPORT CERTIFICATION Applicant ： D-Link Corporation Address ： No.289 , Sinhu 3rd Rd. , Neihu District , Taipei City 114 , Taiwan R.O.C. Manufacturer ： Advance Multimedia Internet Technology Inc. Address ： No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Equipment Under Test ： Pocket Cloud Router Model Number ： DIR-506L Brand Name ： D-Link Date of Test ： June 14, 2012 ~ September 24, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC ID：KA2IR506LA1 Report No.：T120611N06-RP1 Page 5 / 111 2. EUT DESCRIPTION Product Name Pocket Cloud Router Model Number DIR-506L Brand Name D-Link Received Date June 11, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power IEEE 802.11b Mode :18.58dBm (D…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC IDKA2IR506LA1 Report No.T120611N06-RP1 Page 108 / 111 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC IDKA2IR506LA1 Report No.T120611N06-RP1 Page 109 / 111 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC IDKA2IR506LA1 Report No.T120611N06-RP1 Page 110 / 111 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T120611N06-RP1 FCC IDKA2IR506LA1 Report No.T120611N06-RP1 Page 111 / 111 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP

Compliance Certification Services Inc. Report No: T12080…
